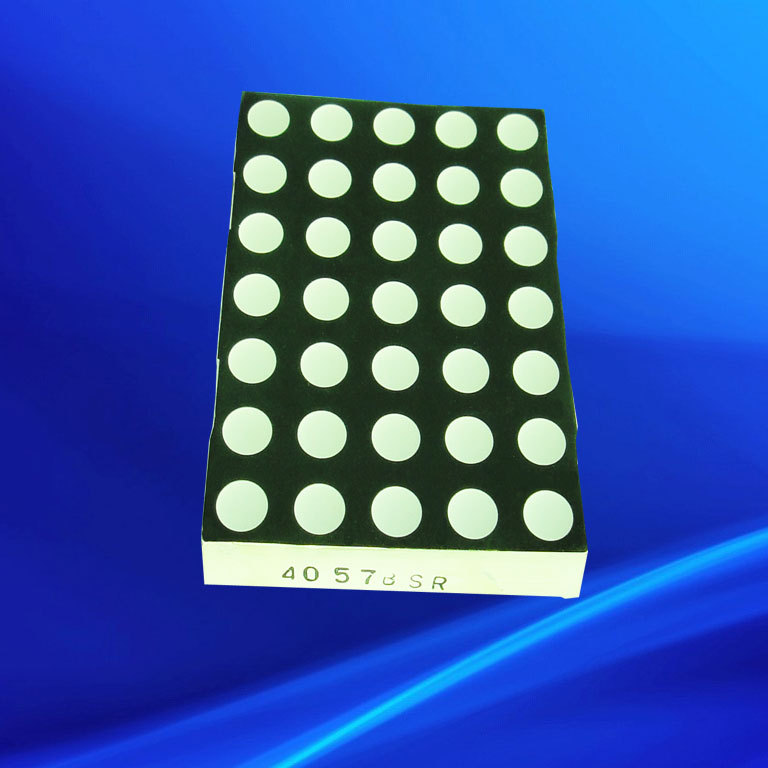

76*106.5mm 5x7 rgb led matrix 10mm
76*106.5mm 5x7 rgb led matrix 10mm
76*106.5mm 5x7 rgb led matrix 10mm

76*106.5mm 5x7 rgb led matrix 10mm

Model NO.
KEM-40057A/BRGB
Price:
USD 3.00-5.00 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
SZ/GZ (LED 5*7 round dot matrix)
Quantity:
  • Place of Origin:CN;GUA
  • Display Function:Graphics
  • Pixels:16mm
  • Usage:outdoor/indoor
  • Tube Chip Color:milky white or as emitting color
  • Brand Name:KEM
  • Model Number:KEM-40057A/BRGB
  • Screen Dimension:76*106.5mm


76*106.5mm 5x7 rgb led matrix 10mm

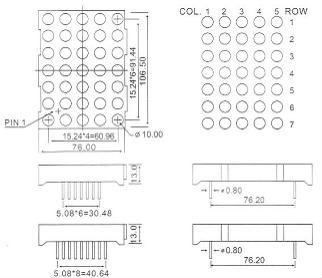

 Dimension and Internal Curcuit :





40057 1

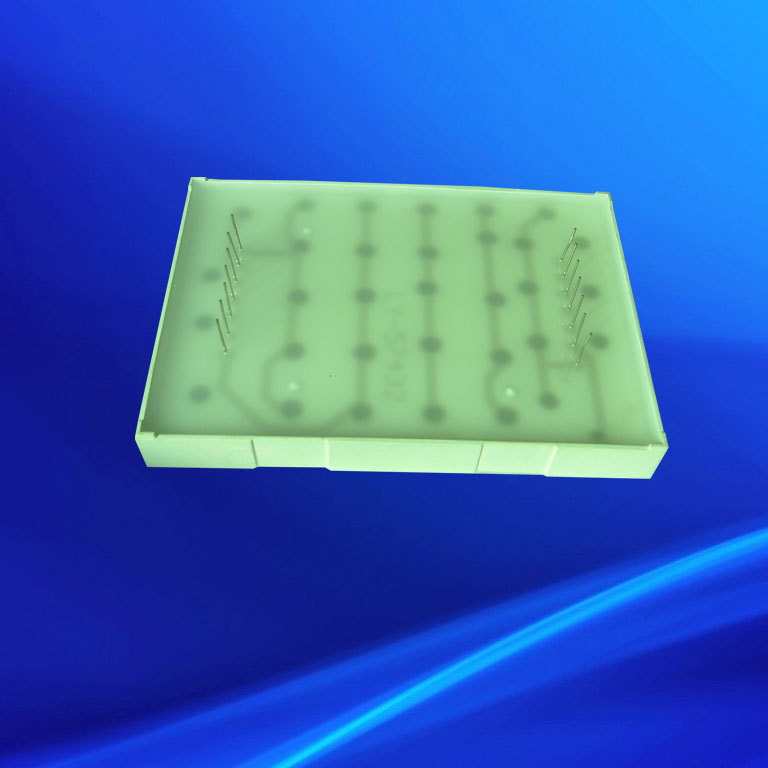

More Pictures for your easy ref





10 mm dot matrix on alibaba

Features :

  • Low current operation.
  • Low power consumption.
  • Full color.
  • High brightness.
  • Industrial standard size.
  • Easy mounting on P.C. board or sockets.
  • Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB.
  • Face color : black / gray.
  • Surface dot type : epoxy diffusion / clear lens.

Part details :



Model.

:KEM-40057A/BRGB



Description

:76*106.5mm



Surface color

:Black / gray/red



Emitting color

: red,blue,green



Wavelength

475-635 nm



Luminous intensity

50-200mcd



Voltage/ Current

1.8-3.3v  / 15-20mA



PCB Polarity

:Common Cathode or Common Anode

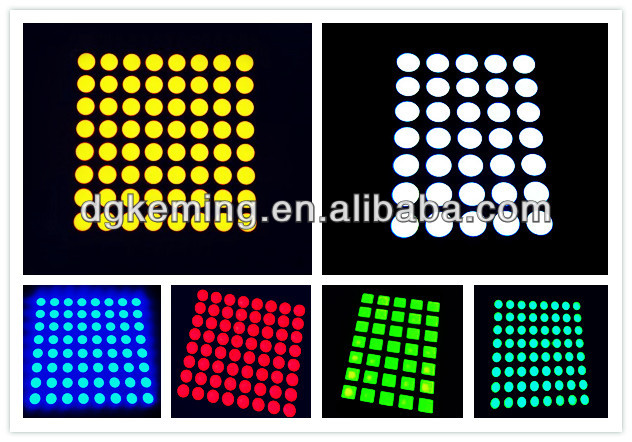

Various color available for  10 mm dot matrix on alibaba  :

Dominant Wavelength                    Luminous Intensity

Red: 620 - 630nm                                     Red: 70-90 mcd                         (1.8-2.3v / 20mA)

High red: 635 - 640 nm                             High red: 50-70 mcd                  (1.8-2.3v / 20mA)

Green: 565 - 575 nm                                Green: 70-90 mcd                      (1.8-2.3v / 20mA)

Yellow: 585 - 595 nm                                Yellow: 40-50 mcd                     (1.8-2.3v / 20mA)

Amber: 600 - 605nm                                 Amber: 30 mcd                          (1.8-2.3v / 20mA)

Blue: 460 - 475nm                                    Blue: 40-50 mcd                     (3.0-3.3v / 20mA)

Pure green: 515 - 525nm                         Pure green: 180-250 mcd       (3.0-3.3v / 20mA)

White : 450-460 nm                                 White: 100-180 mcd                (3.0-3.3v / 20mA



If the PCB curcuit can not meet your need, pls contact me for other choices.









10 mm dot matrix on alibaba

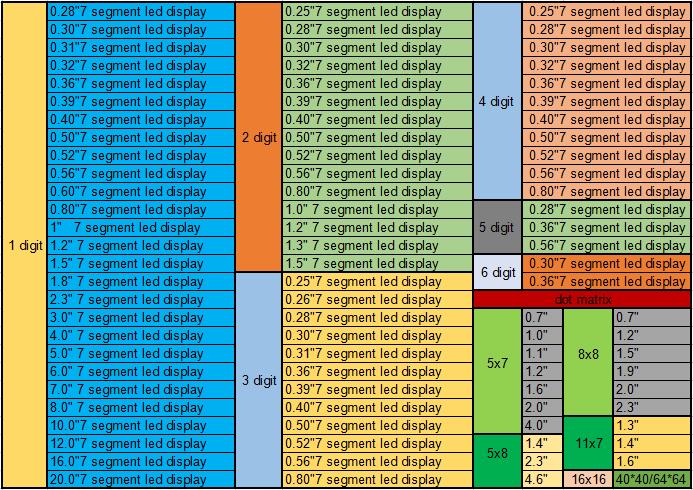

All of our products


7 segment dot matrix LED

Certificates:


FAQ

Q1. Can I have a sample order for your products?

A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-7 days, mass production time needs 1-3 weeks .

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 1pc for sample checking is available for most types.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order ?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-3 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.

For defective batch products, we will  resend them to you or we can discuss the solution

including re-call according to real situation.

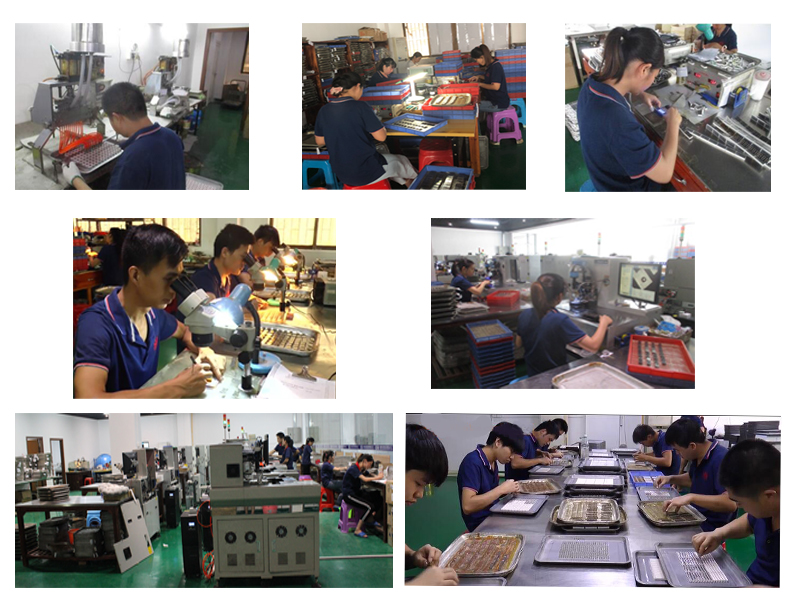

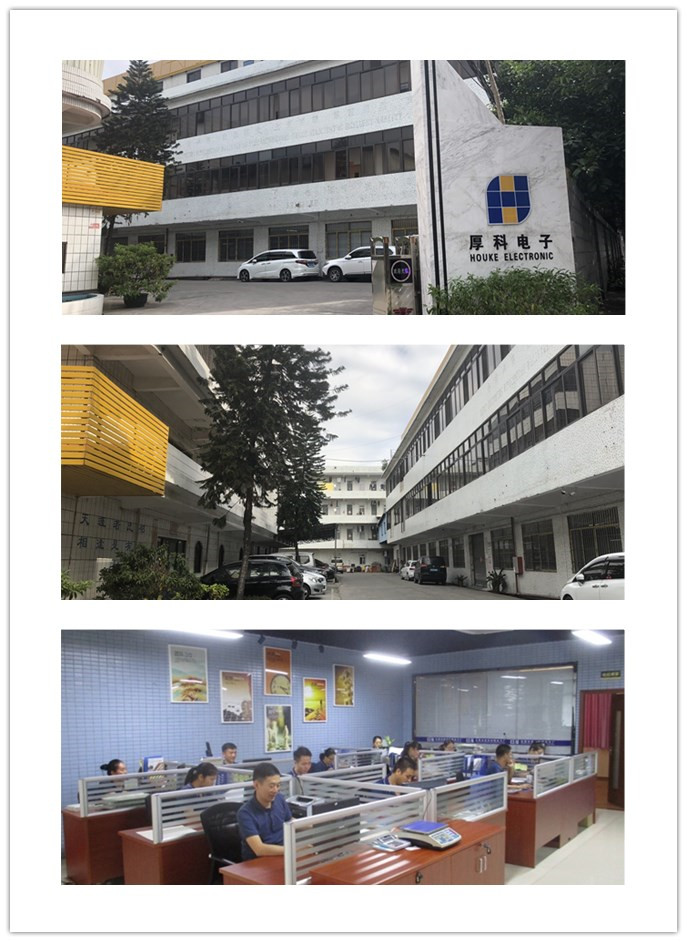

Our factory

Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix ,bar graph

arrays ,arrow led display and high power led.etc.
