70W 70watts 365nm 375nm UV led high power led
- Input Voltage(V):30-34V
- Warranty(Year):2-Year
- Type:UV LED
- Support Dimmer:NO
- Lighting solutions service:Project Installation, datasheet
- Lifespan (hours):50000
- Working Time (hours):50000
- Chip Material:INGAN
- Emitting Color:UV
- Luminous Intensity:Distance
- Optical Attenuation(%):1
- Power:70W
- Power Dissipation:70
- Viewing Angle(°):120/140
- Color Rendering Index(Ra):80
- Color Temperature:365nm 375nm
- Operating Temperature(℃):-40 - 70
- Storage Temperature(℃):-40 - 100
- Place of Origin:Guangdong, China
- Brand Name:HNK
- Wavelength:365-375nm
- Product Name:70W 365nm 375nm 385nm 395nm
- Keyword:70W 365nm 375nm 385nm 395nm
- LED chips:Bridgelux , epistar and so on
- Warranty:2 years
- Certification:RoHS, CE
- Voltage:30-34V
- Lifetime:50000 hours
- Current:2.1~2.45A

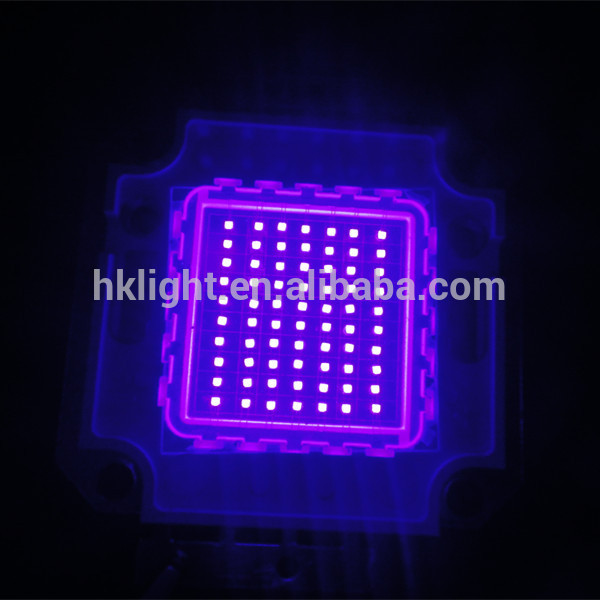

70W 365nm 375nm UV led high power led
Features:
1. Bridgelux, Epistar, Epileds Chips
2.Japanese Dow Corning Silicon packing, in accordance with environmental protection
3.Intematix fluorescent powder, quality assurance
4. Gold wire: 1.25mil huge diameter
5. High brightness,low light attenuation,less power, Long lifespan.
6. Lights attenuation: less than 1%
7. Reasonable prices, fast delivery(3-5 days)
8. CE & RoHS
9. MOQ: 1 piece
Detail information for 70W UV high power LED
| Item | 70W 365nm 375nm UV led high power led | ||
| Product name | 70W 365nm 375nm UV led high power led | ||
| Power | 70w | ||
| Model No | HNK-HP070UV-E45 | ||
| Color | uv | ||
| Chip Material | GaAs | ||
| Luminous Flux(lm) | 2500-3000lm | ||
| wavelength (nm) | 365-375nm | ||
| Working temperature | -40 °C-+100 °C | ||
| Current(mA) | 2.1-2.45 A | ||
| Forward Voltage | 30-34V | ||
| Certification | CE, RoHS | ||
| Warranty | 2 years | ||
| Place of Origin | Dongguan,Guangdong,China | ||
Advantages:
1, less power consumption: light effects to 75lm / w of the LED power consumption than equivalent incandescent brightness reduced by 80%
2, long life: product life of up to 50,000 hours
3, nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control
4, Individualized design: can be designed by your picturers or mind
5, environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation
6, color: different wavelengths produce different colored light, can control red, green and blue primary colors to form a variety of colors
7,2 years warranty
The LED CHIPS of our products
The LOGISTICS partner of our company
The PACKAGE of cargoes
Packaging Detail:
6 pieces/tray,10 trays/box,4 boxes/carton
2000 pcs/carton
Tray size:20cm*15cm*1cm
Box size:25cm*20cm*10cm
Carton size:55cm*45cm*15cm
Or as per customer's request
Shipping Detail: 1-3 for sample, 7-15 days for normal order according to quantity.
Can be delivered by sea,air and express.
1.Trade terms
Price can be FOB, CIF ,EXW, or With taxes
2.What will be the delivery time and what will be the mode of payment?
5-7 days after payment
The payment can be T/T transaction,Letter of credit,Paypal,Western Union
3.Aboutlogistics?
Usually ,we ship the products by express since the products isn’t too heavy for the transportation.
We can also arrange Air or LCL shipments if you need.
4.Could you please send me thesample for the same so that i could see and analyze its quality?
Yes.We can send samples first,samples will be free charged if the value is lower.
1,all the raw materials for above products are from domestic and foreign well-known brand manufactures.
2,all products will be with strict tested before shipping.
3,choosing the best logistics services for all shipments.
4,2 years warranty for our products
The CE&RoHS certificated of our products
We focus on producing High Power LED or COB LED.
We will continue the quality and service concept , we will still provide our best products for all our clients.

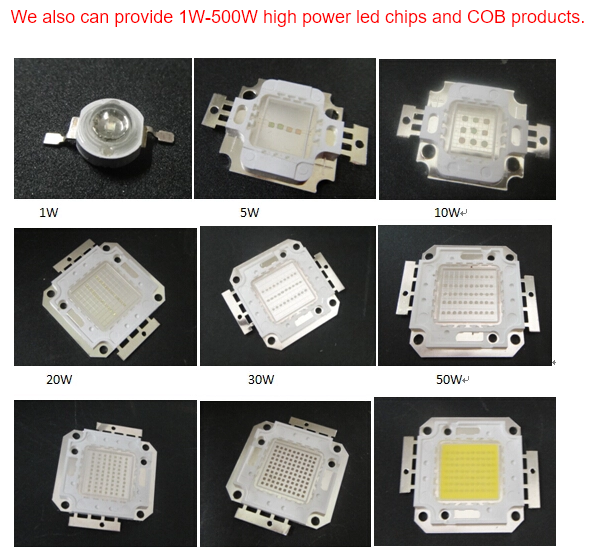

We can provide 1w,3w,5w,10,20w,30w,50w,70w,100w high power LED or COB LED.
The products have obtained CE&RoHS certification.
All led products will get 2 years warranty.
Just give us watt and wavelength,we can do samples for you.Wish we can grow up with your esteemed company.
With over 16 years experices in LED market, we do have an experienced team,we do belive we can provide you both good quality products and professional service!
