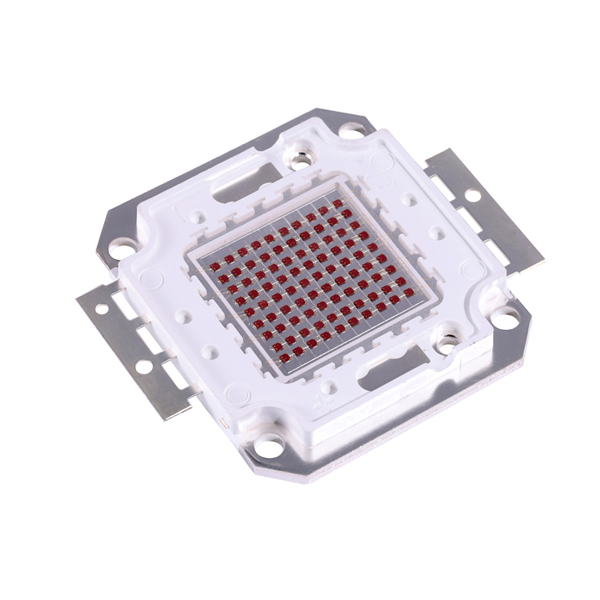

100watt 705nm 710nm 700nm IR led high power 700nm infrared led
- Input Voltage(V):DC 20-22V
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.03
- Chip Material:AlGaInP
- Emitting Color:Red
- Power:100w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:100W High Power ir LED 700nm
- Emitting Colour:red
- Forward Current:3000-3500mA
- Forward Voltage:6-6.6v
- Warranty:2 Years
- Wave length:700-705nm
- Chip Size:42mil
- Certification:RoHS, CE
High power 100w 710nm 705nm 700nm ir led
Electrical and optical characteristics (Ta = 25℃)
| Item | High Power 100w IR LED 700nm |
| Power | 100w |
| Radiant flux | 630-720mw |
| Color | RED |
| Wavelength | 700-710nm,720-725nm, 730-735nm, 740-745nm, 750-760nm, 760-765nm, 765-770nm, 775-780nm, 780-785nm, 785-790nm, 800-805nm, 980nm-985nm, 990nm-1000nm, 1000nm-1010nm, 1010nm-1020nm, 1030nm-1035nm, 1045n-1050nm, 1345-1350nm, 1400nm-1450nm, |
| Forward Current | 3000-3500mA |
| Forward Voltage | 20-22v |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
