Red 8x8 6x6mm Square Dot LED Matrix Display

HOUKEM manufactures red 8x8 LED dot matrix displays with 6x6mm square dots and a 60.4 × 60.4mm panel size, supporting common-anode or common-cathode configurations for instruments, digital indicators, and OEM applications.

minimum order :

1 piece

Country of Origin :

FOB Shenzhen

Quantity :

$2.40 - $2.40 / piece

add to cart

Contact Now

Red 8x8 6x6mm Square Dot LED Matrix Display

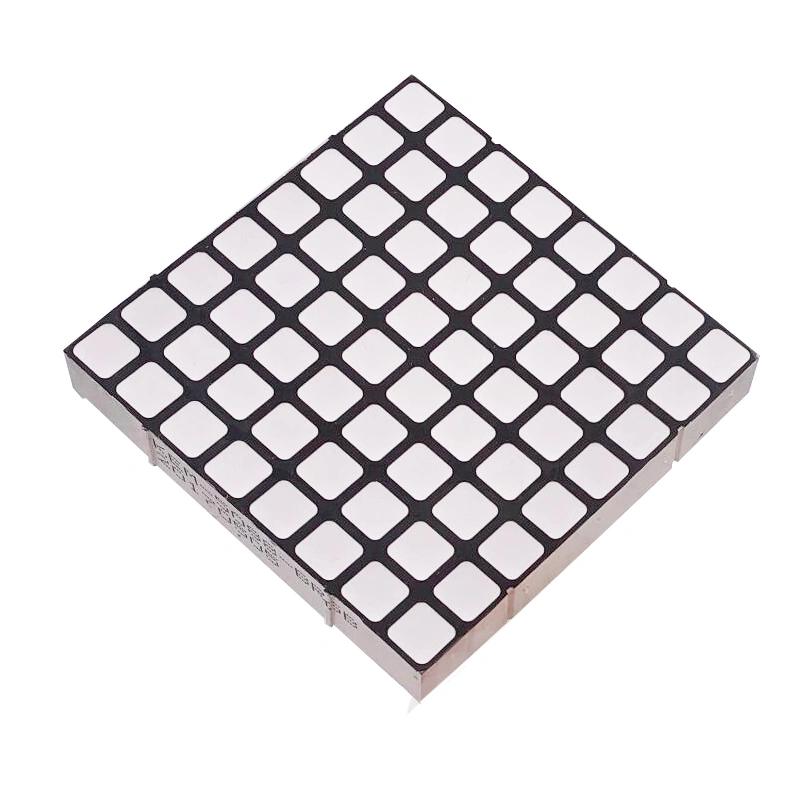

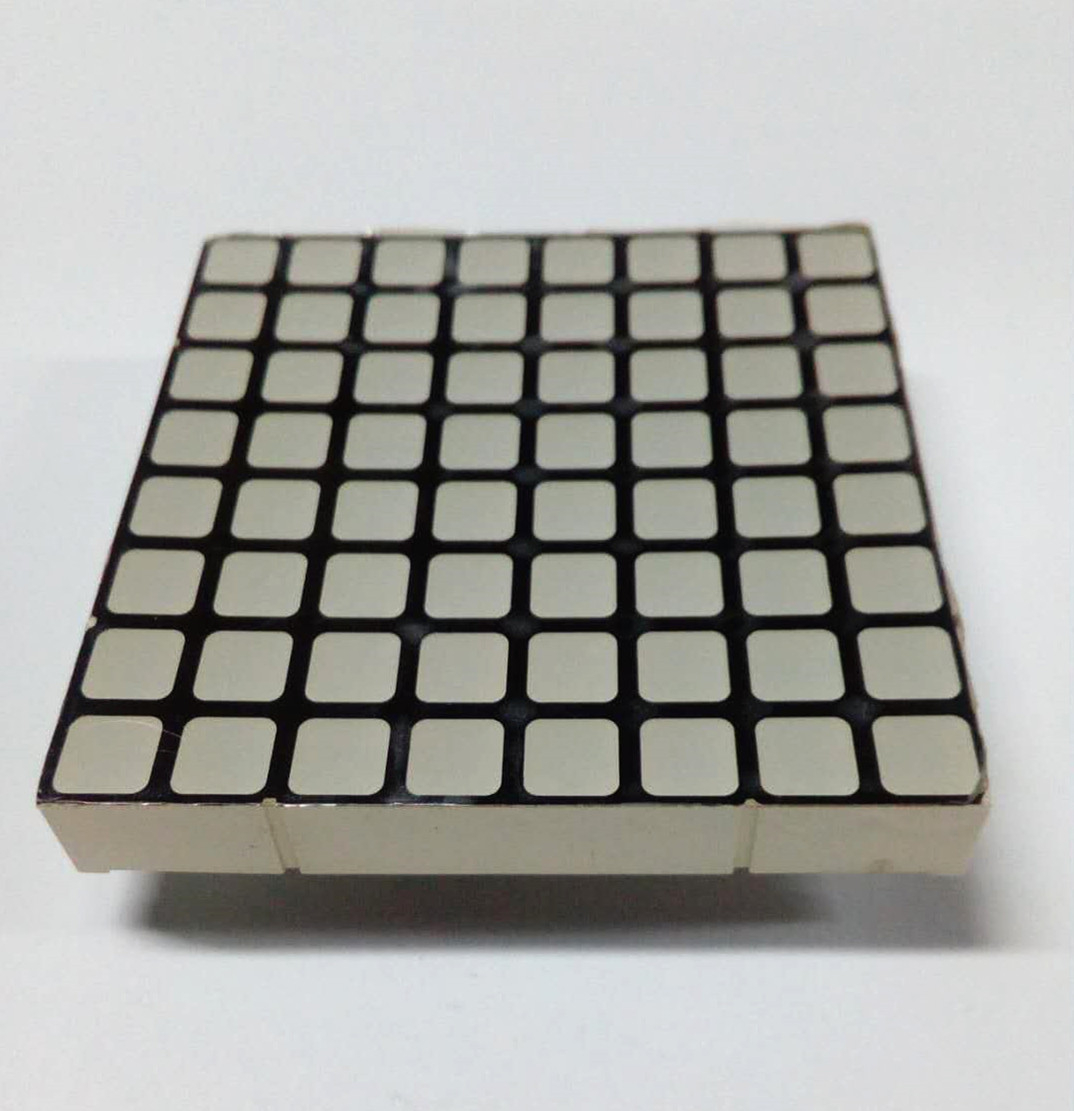

HOUKEM manufactures the Red 8x8 LED Dot Matrix Display for professional electronics manufacturers, instrument makers, digital indicator suppliers, and OEM/ODM customers. The KEM-5088-BSR features an 8×8 LED array with 6×6mm square dots and a 60.4 × 60.4mm display size for clear character, numeric, symbol, and status indication.

8x8 LED Matrix for Electronic Applications

The KEM-5088-BSR is a 6x6mm 8x8 LED Dot Matrix Display designed for general digital indicators and electronic instruments. Its 64-dot matrix provides greater flexibility than a conventional segmented display, allowing manufacturers to create numbers, letters, symbols, and simple graphical patterns.

The standard model uses super red LEDs, while HOUKEM can also provide Ultra Red, High Red, Yellow Green, Super Green, Pure Green, Yellow, Blue, Amber, and White emitting colors. Different colors are available according to project requirements and pricing.

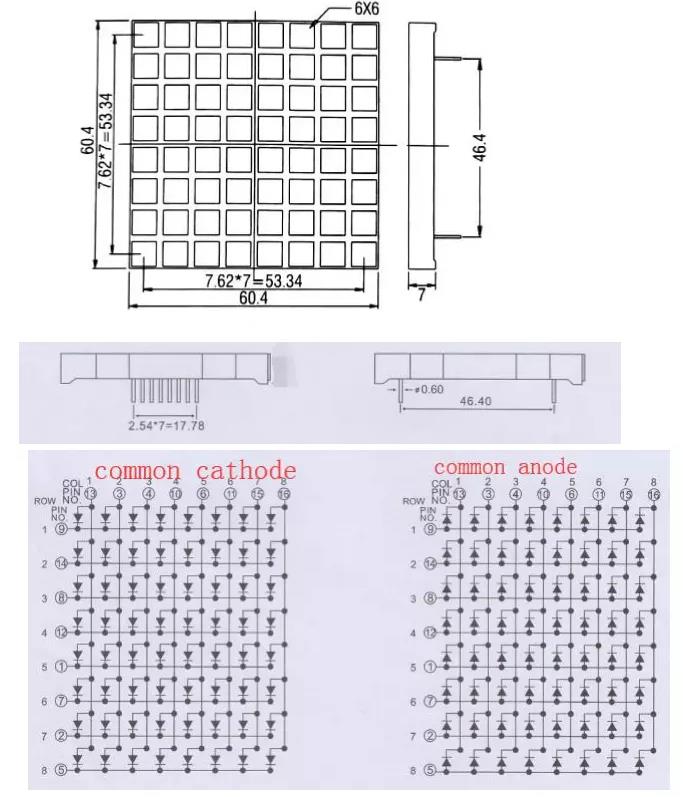

The display has a 60.4 × 60.4mm panel size,2.54mm pixel pitch, and 6×6mm square dots. Common-anode and common-cathode polarity options are available, helping OEM customers select a configuration compatible with their electronic driving circuit.

Product Specifications

Parameter	Specification
Product Name	6x6mm 8x8 Dot Matrix Square Dot LED Display Red Color
Model Number	KEM-5088-BSR
Display Type	8×8 LED Dot Matrix Display
Emitting Color	Super Red
Array	8×8 dots
Dot Diameter / Size	6×6mm
Display Size	60.4 × 60.4mm
Dot Shape	Square Dot
Surface Color	Black Face / Gray Face
Dot Color	Water Clear / Diffuse White
Polarity	Common Anode / Common Cathode
Pixel Pitch	2.54mm
Current	20mA
Voltage	1.8–2.3V
LED Chips	EpiLEDs, Epistar, Bridgelux
Lifespan	50,000 hours
Warranty	3 years
Certifications	CE, RoHS
Supplier Type	Original Manufacturer
Place of Origin	Guangdong, China
Media Available	Datasheet, Photos
MOQ	1 piece
Delivery	3–5 days for standard requirements

Quality and Manufacturing Features

HOUKEM uses LED chips from Bridgelux, Epistar, and EpiLEDs, together with Japanese Dow Corning silicon packaging and Intematix fluorescent powder. A 1.25 mil gold wire is used in the product construction.

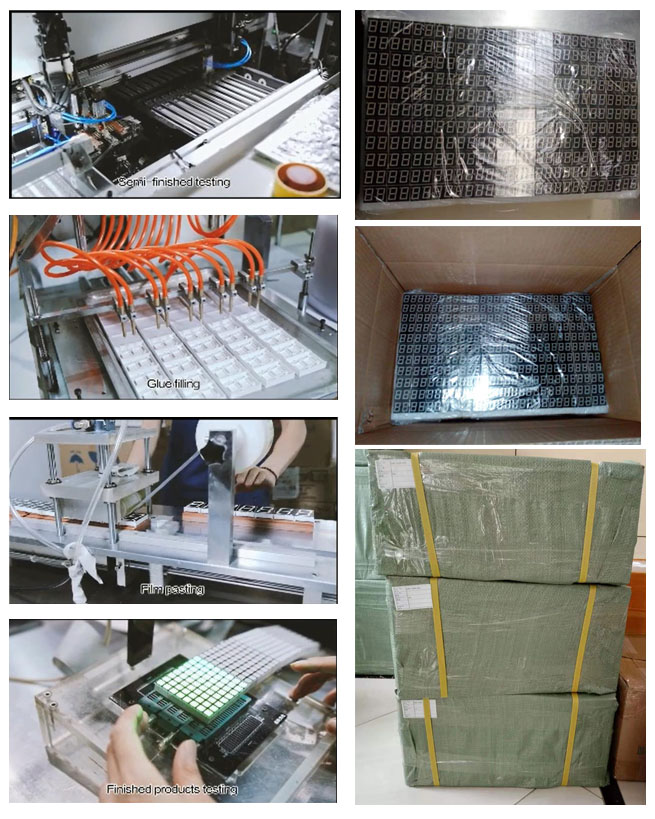

The LED matrix is designed for high brightness, low light attenuation, lower power consumption, and long service life. The stated light attenuation is less than 1%, while the product has a rated lifespan of 50,000 hours. All products are strictly tested before shipment, and CE and RoHS requirements are supported.

OEM Color and Configuration Options

For professional B2B projects, HOUKEM can provide different emitting colors and configuration options. Buyers can specify the required digit or dot size, surface color, emitting color, and common-anode or common-cathode configuration according to the target application.

The standard product supports a MOQ of 1 piece, making it suitable for sample evaluation and engineering validation. HOUKEM can also arrange express, air, or LCL shipping according to order size and destination.

FAQ

Can this 8x8 LED matrix display show letters?

Yes, its 64-dot array can form letters, numbers, symbols, and simple graphics. The actual display pattern depends on the customer's driving circuit and programming.

Which polarity should engineers select?

Both common-anode and common-cathode configurations are available. Select the version that matches the LED matrix driver and PCB architecture.

Are different LED colors available?

Yes, HOUKEM offers multiple emitting colors including Ultra Red, Super Red, High Red, green variants, yellow, blue, amber, and white. Color selection may affect pricing.

Can I request a sample before mass production?

Yes, the MOQ is 1 piece, allowing engineers and buyers to evaluate the display before larger procurement.

What information is needed for a quotation?

Please provide the required quantity, dot size, surface color, emitting color, polarity, application, destination, and shipping requirements for quotation and logistics evaluation.

Packaging and Shipping

Products are protected with EPE internal packaging and packed in cartons for external protection. HOUKEM normally uses express shipping for smaller orders and can arrange air or LCL shipments when required.

The standard delivery time is approximately 3–5 days for applicable standard requirements, while larger quantities or customized specifications can be negotiated according to the project.

Request a Quote

Looking for a reliable Red 8x8 LED Dot Matrix Display for instruments, digital indicators, or OEM electronics? Contact HOUKEM with your required dot size, color, polarity, quantity, and application.

Request a datasheet, sample, customized configuration, or B2B quotation from HOUKEM today.
