60mw UVC led 254nm 255nm led 3w uvc 255nm led with heatsink
- Input Voltage(V):5-6V
- Type:UV LED
- Luminous Efficacy(lm/w):20
- Lifespan (hours):10000
- Working Time (hours):10000
- Product Weight（kg）:0.001
- Chip Material:INGAN
- Emitting Color:purple
- Viewing Angle(°):60 or 120
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Wavelength:255nm
- Product name:3W uvc LED 255nm
- Emitting Colour:puple
- Forward Voltage:5.5-6v
- Warranty:2 Years
- Wave length:255-260nm
- warranty:2 Years
- Current:500mA
- Chip Size:40*40mil
- Application:sterilization

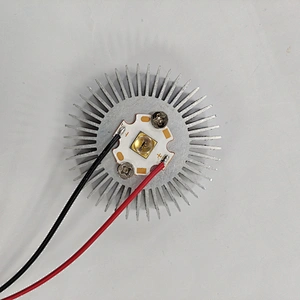

High power 3w uvc 254nm 255nm led with heatsink
| Item | High Power 3w UVC 255nm LED 6565 |
| Power | 3w |
| radiant flux | 40-60mw |
| Color | purple |

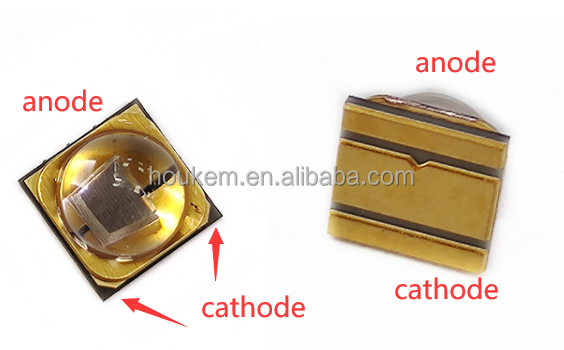

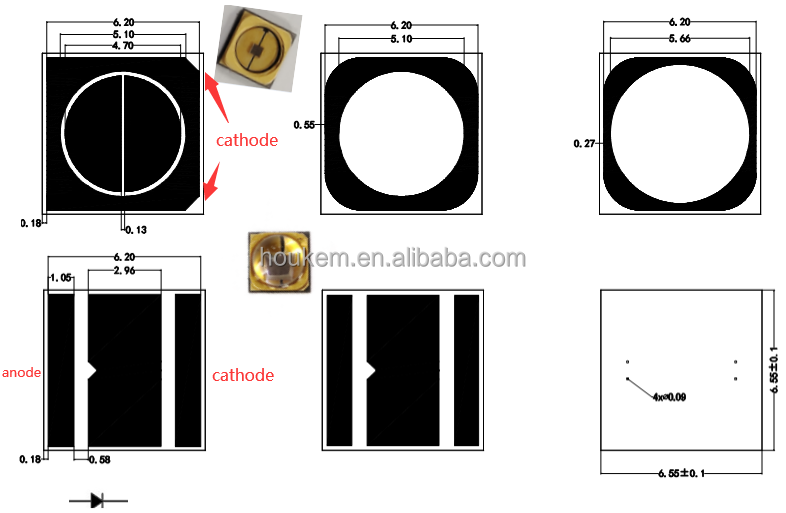

| Diode type | 6565 smd type |

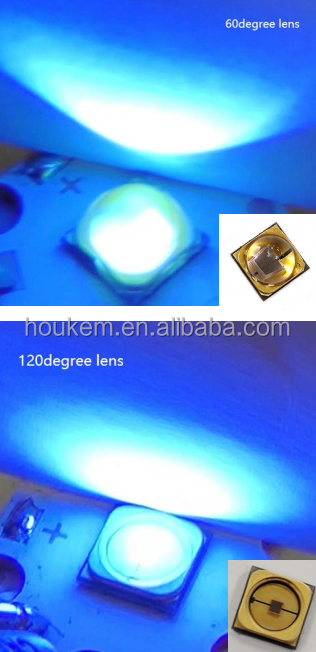

| View Angle of the Lens | 60 degree or 120degree |
| Wavelength | 255-260nm |
| peak wavelength | 255nm |

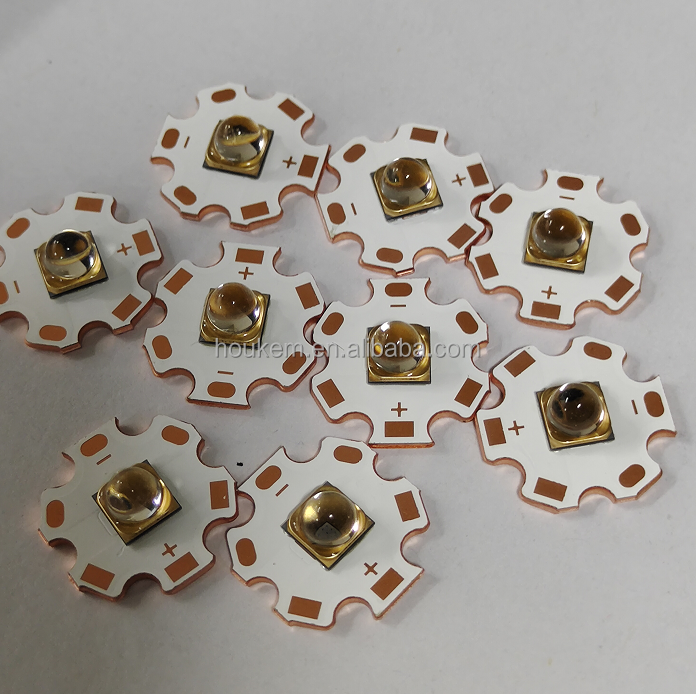

| the size of red copper pcb board | 20mm |
| Forward Current | 500mA |
| Forward Voltage | 5.5-6v |
| Certification | CE, RoHS |
• Deep ultraviolet LED
• Low thermal resistance
• SMT solderable
• Lead Free product
• RoHS compliant
• High Luminous intensity
• Long Operation Life
Key Applications
• Blood Analysis
• Phototherapy
• Spectroscopy for Medical &
Scientific application
• Deodorization
60degree
LED light
Established in 2003, we are a LED professional manufacturer, we offer led products, high power 255nm to 1550nm LED, COB LEDs,
SMD LEDs, street light LED, LED optical lens, uvc led light, 50w-1000w LED grow light, 10w-200w led flood light, and all LED lighting application solution.
1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.
2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.
3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
4. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
