5w high power 365nm 370nm 375nm 385nm 395nm 405nm uv led 365 nm for uv coating
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design, uv curing, uv coating, uv ink
- Luminous Efficacy(lm/w):400
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.02
- Chip Material:AlGaInP
- Emitting Color:purple
- Luminous Intensity:500mw
- Power:5w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:5W High Power LED 365nm
- Emitting Colour:purple
- Forward Current:350mA
- Forward Voltage:13-15v
- Application:uv curing, uv ink, uv coating
- Wave length:365-370nm
- Other Wavelength:255nm-1550nm
- Certification:RoHS, CE
- Chip brand:Epileds
- Chip Size:45mil

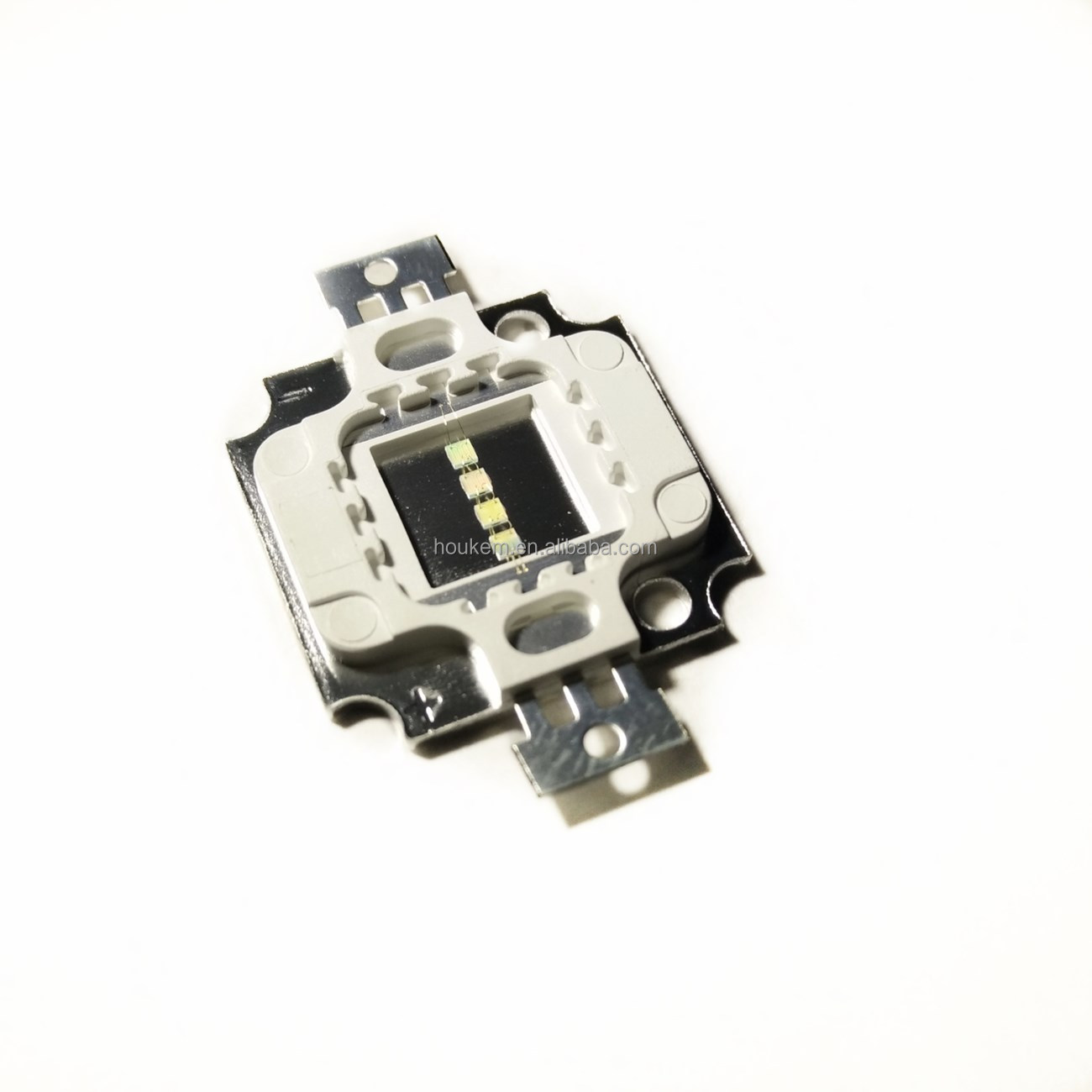

High power 5w 365nm UV led
Electrical and optical characteristics (Ta = 25℃)
| Item | High Power 5w uv LED 365nm |
| Radiant flux | 2720-2880mw |
| Color | uv |
| view angle | 140degree |
| Wavelength | 365-370nm,370-375nm, 380-385nm, 390-395nm, 395-400nm, 400-405nm, 405-410nm, 410-415nm, 415-420nm, 420-425nm, 430-435nm |
| Forward Current | 300-350mA |
| Forward Voltage | 13-15v |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |

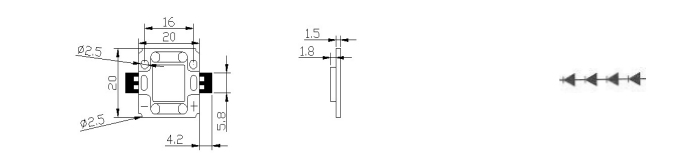

4 series 1 parallel
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.
2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.
3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
4. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
