5x7 Red LED Dot Matrix Display Module

Red LED Dot Matrix Display for Industrial and Elevator Applications

TheRed LED Dot Matrix Display from Houkem is a high-performance 5x7 LED matrix module designed for industrial equipment, elevator systems, digital clocks, home appliances, and information display devices. Featuring a 5mm super red LED array, this display provides excellent brightness, stable performance, and a long operating life, making it an ideal solution for OEM manufacturers and electronic equipment developers.

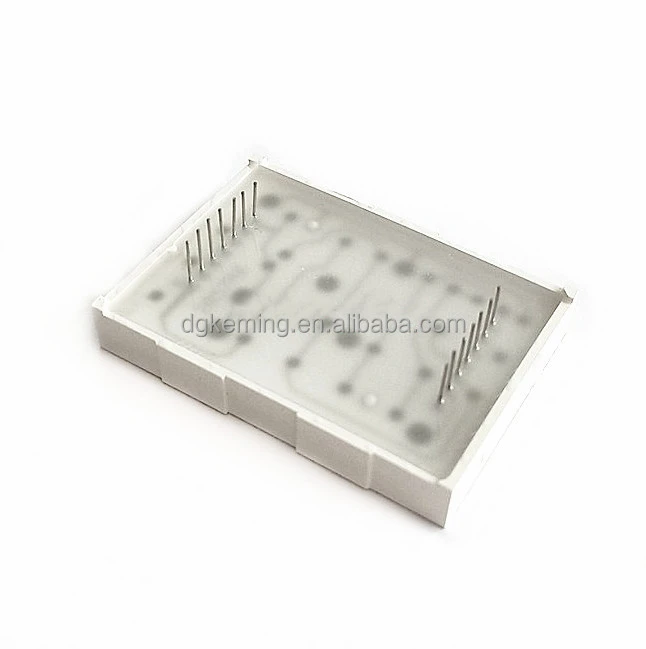

ModelHOUKEM-20057-BSR features a compact 37.8 × 53.1 × 8.4 mm package with both common cathode and common anode options. Manufactured under ISO9001 quality management standards, it supports OEM and ODM customization to meet different application requirements worldwide.

Product Features

TheRed LED Dot Matrix Display is engineered for reliable operation in demanding electronic applications while maintaining low power consumption and high display clarity.

Key Features

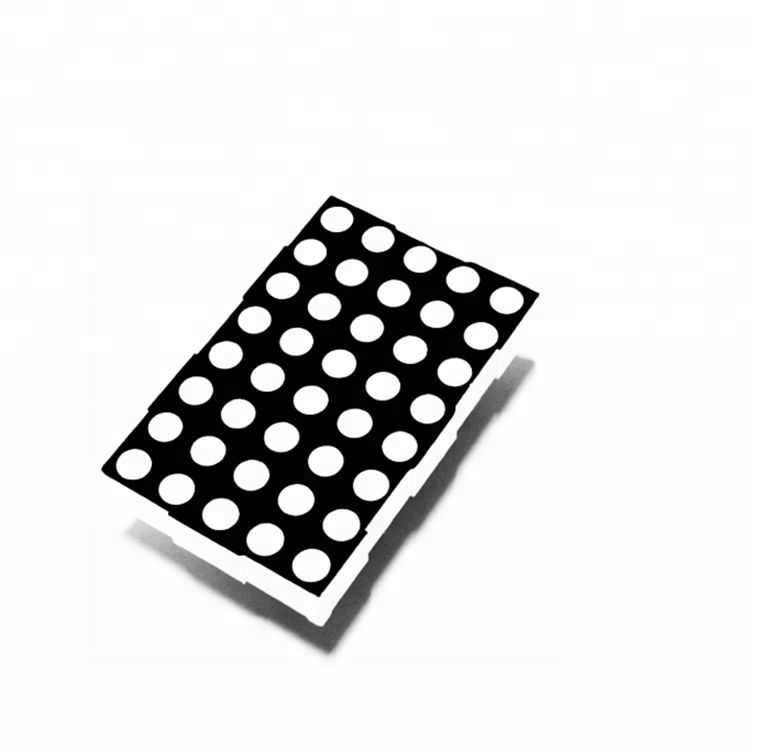

• 5×7 LED dot matrix configuration
• 5mm super red LED dots
• High brightness: 130–140 mcd/chip
• Common cathode or common anode available
• Low power consumption
• Stable optical performance
• Operating temperature: -20℃ to +50℃
• Compact size: 37.8 × 53.1 × 8.4 mm
• OEM & ODM customization supported

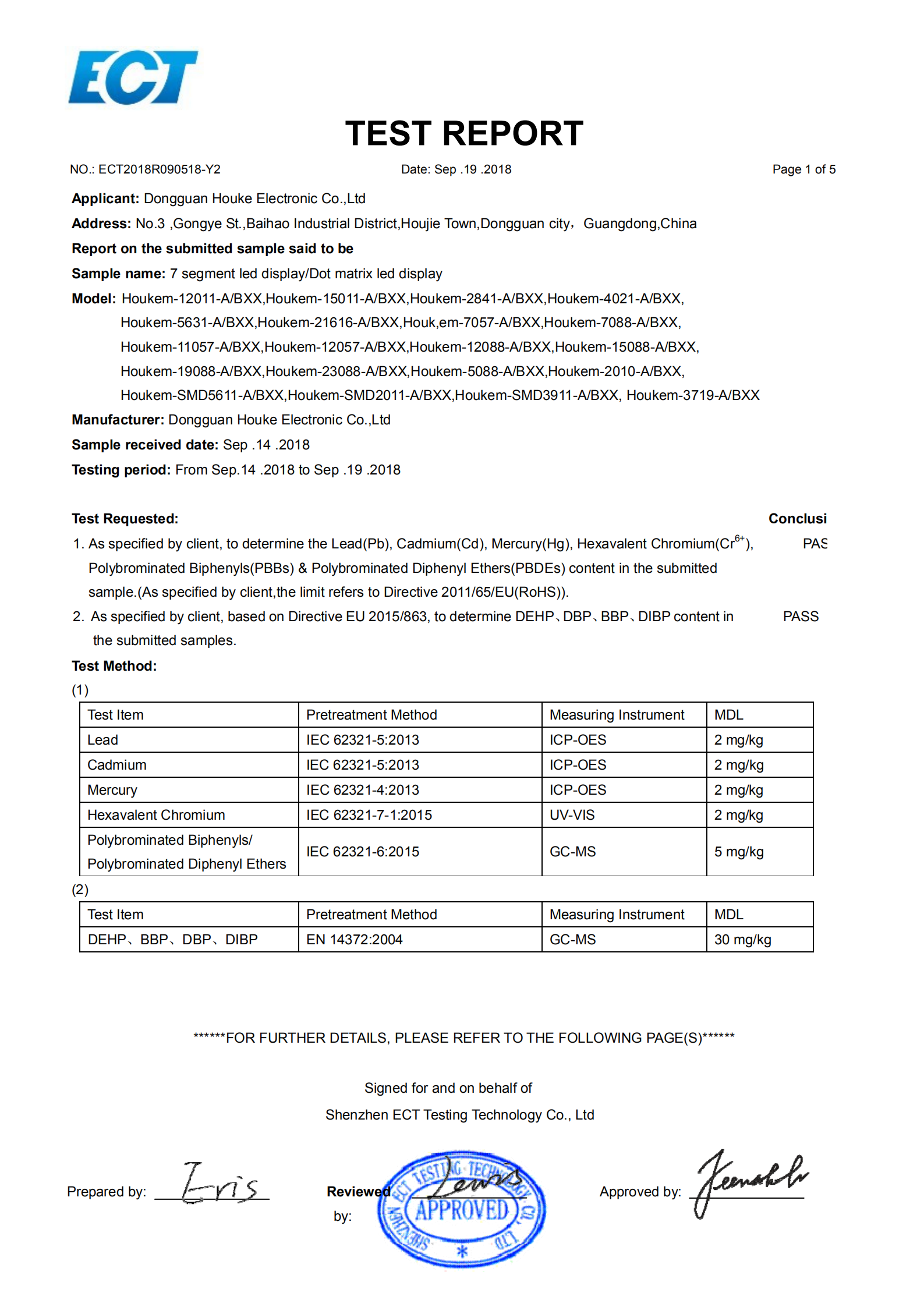

• CE, RoHS, REACH and ISO9001 certified
• 2-year warranty

This module is suitable for displaying numbers, letters, symbols, and simple graphics in various industrial and commercial electronic products.

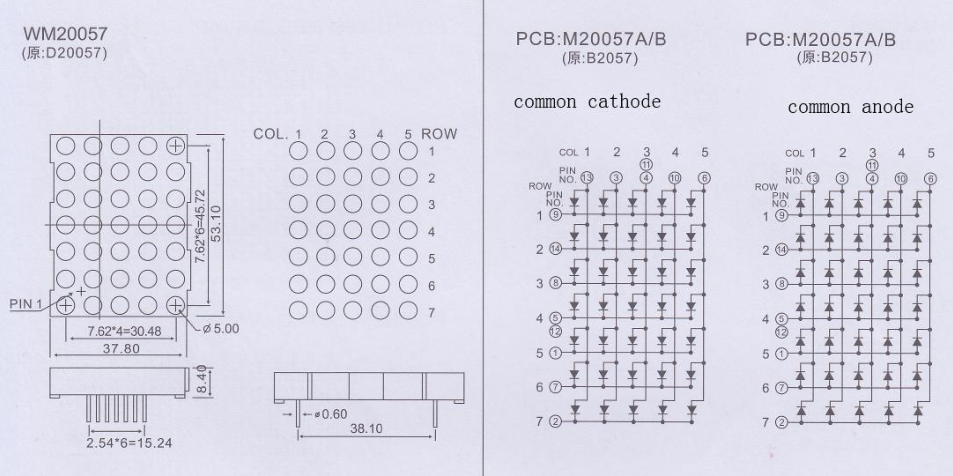

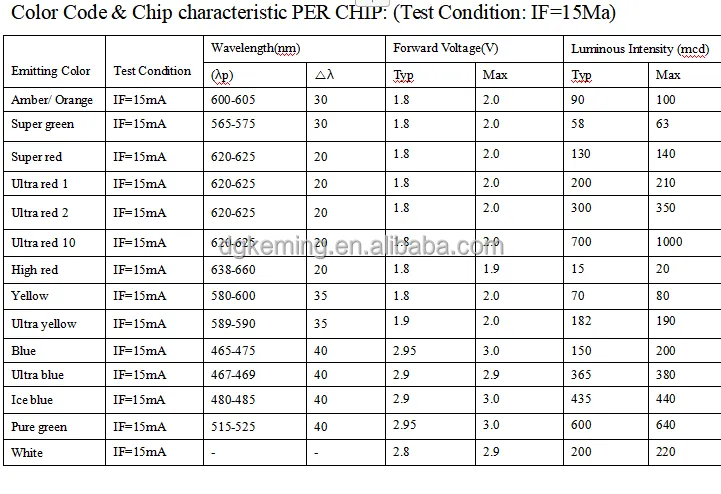

Technical Specifications

If you require different LED colors, dimensions, brightness levels, or pin configurations, Houkem can provide customized solutions based on your project specifications.

Typical Applications

The5x7 Red LED Matrix is widely used in electronic equipment requiring reliable and easy-to-read visual indicators.

Industrial Equipment

Suitable for automation equipment, industrial control panels, instrumentation, testing devices, and machine status indicators.

Elevator and Building Systems

Ideal for elevator floor indicators, direction displays, public information systems, subway equipment, and building control panels.

Clock and Timer Displays

Commonly integrated into digital clocks, timers, counters, and electronic measuring instruments.

Home Appliances

Used in household appliances and smart electronic devices for status indication, function display, and control interfaces.

Retail and Commercial Equipment

Applicable to self-service terminals, restaurant equipment, retail displays, and information publishing systems.

OEM & Custom Manufacturing

As a professional LED display manufacturer with more than 20 years of industry experience, Houkem provides flexible OEM and ODM services for global customers.

Customization options include:

• LED color selection
• Common cathode or common anode configuration
• Customized dimensions
• Surface and epoxy colors
• Brightness adjustment
• Private label and logo printing
• Custom packaging
• Technical drawings and datasheets

Our engineering team works closely with customers to ensure each Red LED Dot Matrix Display meets the requirements of industrial and commercial applications.

Quality Assurance

Every LED matrix module is manufactured under a strict quality control process to ensure reliable electrical performance and consistent brightness.

Our quality advantages include:

• ISO9001 certified production
• CE, RoHS and REACH compliance
• Automated production equipment
• Comprehensive electrical and optical testing
• Factory-direct supply
• Stable mass production capability
• 2-year product warranty

Houkem products are exported to customers in the United States, Germany, Japan, Korea, and many other international markets.

Frequently Asked Questions

Can you customize the Red LED Dot Matrix Display?

Yes. We support OEM and ODM services, including customized LED color, polarity, dimensions, brightness, packaging, and pin configuration. Engineering support is available throughout your project.

Is this 5x7 Red LED Matrix suitable for elevator display systems?

Yes. Its stable brightness, long service life, and compact size make it suitable for elevator indicators, floor displays, and other building information systems.

Can I order samples before mass production?

Yes. Sample orders are available for functional testing and design verification before placing bulk orders.

What certifications does this LED matrix module have?

This product is certified to CE, RoHS, REACH, and ISO9001 standards, making it suitable for international industrial and commercial applications.

What is your production lead time?

Standard samples are typically ready within 3–7 working days, while mass production generally takes 1–3 weeks depending on order quantity and customization requirements.

Why Choose Houkem

• More than 20 years of LED manufacturing experience
• Professional OEM & ODM customization
• Factory-direct pricing
• Advanced automated production lines
• Strict quality inspection before shipment
• Global export experience
• Responsive technical and after-sales support
• Flexible international shipping solutions

Request a Quote

Looking for a reliable Red LED Dot Matrix Display manufacturer for your next project?

Houkem supplies high-quality 5x7 Red LED Matrix modules with factory-direct pricing, stable production capacity, OEM customization, and professional technical support.

Contact our sales team today to request datasheets, samples, pricing, or customized LED matrix display solutions for your industrial, elevator, or electronic equipment applications.
