Model No: houkem-1000nm
50w cob led high power ir led 1000nm ir led
ir led houkem is led infrared professional manufacturer
Delivery :
FOB
minimum order :
1 piece
Supply Ability :
5000piece / Day
Country of Origin :
Shenzhen
Quantity :
USD305.00 - USD320.00 / piece
- Type:High Power LED
- Chip Material:AlGaInP
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Emitting Color:IR
- Power:50W
- Optical Attenuation(%):2
- Viewing Angle(°):140 Degree
- Color Rendering Index(Ra):80
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 80
- Brand Name:HOUKEM
Product Description

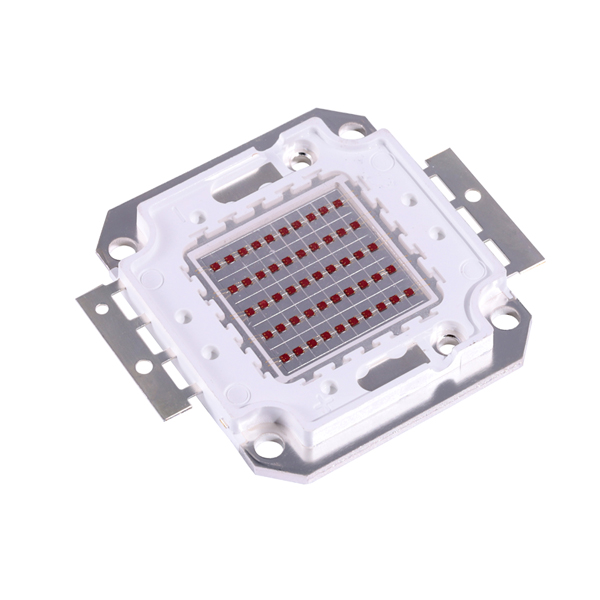

50w high power ir led 1000nm ir led
Electeical Characteristics at 1750mA,Ta=25°C
Color | Part No | Forward Voltage | Units | ||
Min | Typ | Max | |||
IR | KEM-HP50IR-E42 | 12 | - | 14 | V |
Parameter | Symbol | Rating | Unit |
IR | |||
DC Forward Current(mA) | If | 1750 | mA |
Peak Pulse Current(mA) | If | 1750 | mA |
Reverse Voltage | VR | 5 | V |
LED Junction Temperature | Tj | 125 | °C |
Operation Temperature | Topr | -20--60 | °C |
Storage Temperature | Tstg | -20--80 | °C |
Soldening Temperature | Tsol | 260 | °C |
ESD Sensitivity | Vb | 4000 | V |
Luminous Flux at 1750mA,Ta=25°C
Color | Part No | Wavelength | |
IR | KEM-HP50IR-E42 | 997-1000nm |
Certifications

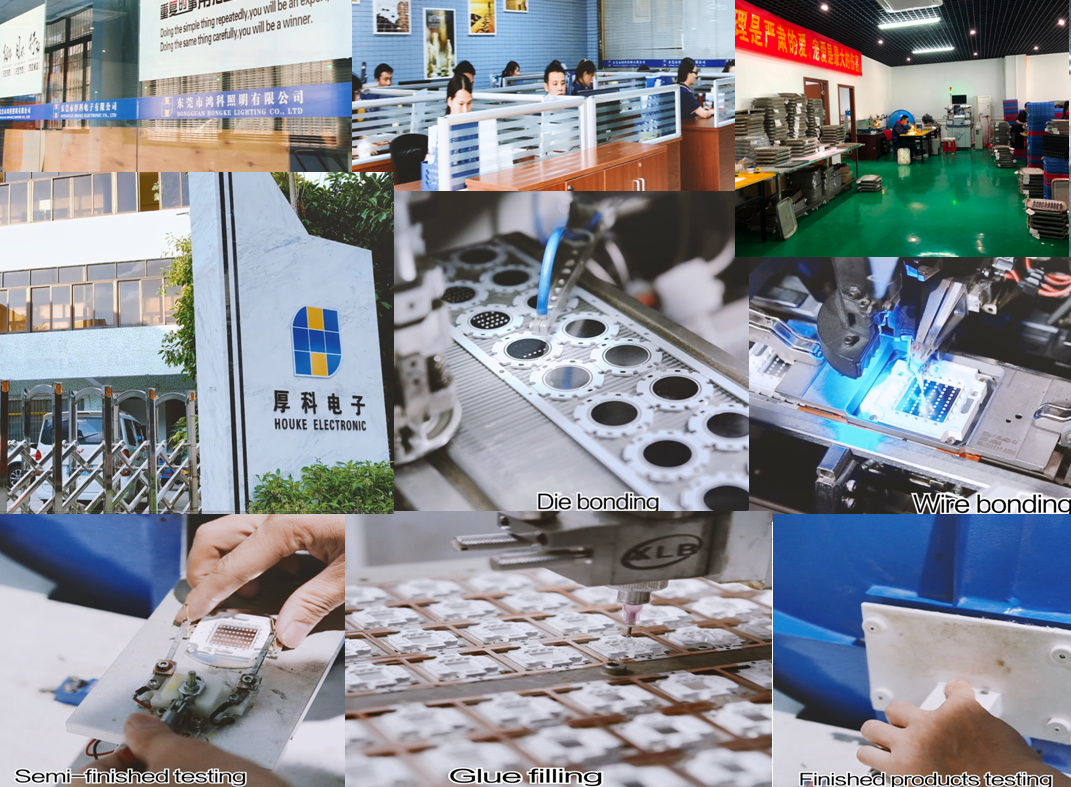

Factory pictures
Packing
