50w 390nm 395nm 400nm 410nm 420nm 430nm high power UV led module for 3D printing
- Color Temperature(CCT):normal
- Input Voltage(V):DC 36-40V
- Warranty(Year):2-Year
- Type:LED Modules
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design, uv curing
- Luminous Efficacy(lm/w):400
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.2
- Chip Material:AlGaInP
- Emitting Color:purple
- Luminous Intensity:19000mw
- Power:50w
- Viewing Angle(°):60
- Color Temperature:normal
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 60
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:High Power uv led module 395nm
- Emitting Colour:puple
- Forward Voltage:36-40v
- Application:uv curing,
- Warranty:2 Years
- Wave length:390-395nm
- warranty:2 Years
- Radiant flux:18240-19200mw
- Certification:CE, RoHS, ISO9001
- chip quantity:48pcs
| Item | High Power 50w uv 395nm LED module |
| Power | 50w |
| chip quantity | 48pcs |
| Color | purple |
| Diode type | 395nm 3535 smd type |
| chip brand | Epileds 45mil |
| optical power | 18240-19680mw |
| material | copper ( aluminum are available) |
| size | 51*31mm( customized size are avilable) (235*36mm,585*36mm, 985*36mm, 40*40mm aluminum pcb board) |
| Radiant flux | 18240-19200mw |
| View Angle of the Lens | 30degree,60 degree, 90degree or 120degree |
| Wavelength | 365-370nm, 370-375nm, 390-395nm, 380-385nm, 365-370nm, 400-405nm, 405-410nm, 410-415nm, 415-420nm, 420-425nm |
| other wavelength | 255-1550nm |
| Forward Voltage | 36-40v |
| Application | uv curing, coating, uv ink, 3D printing, Machine vision, Medical and Scientific Instrumentation,etc |

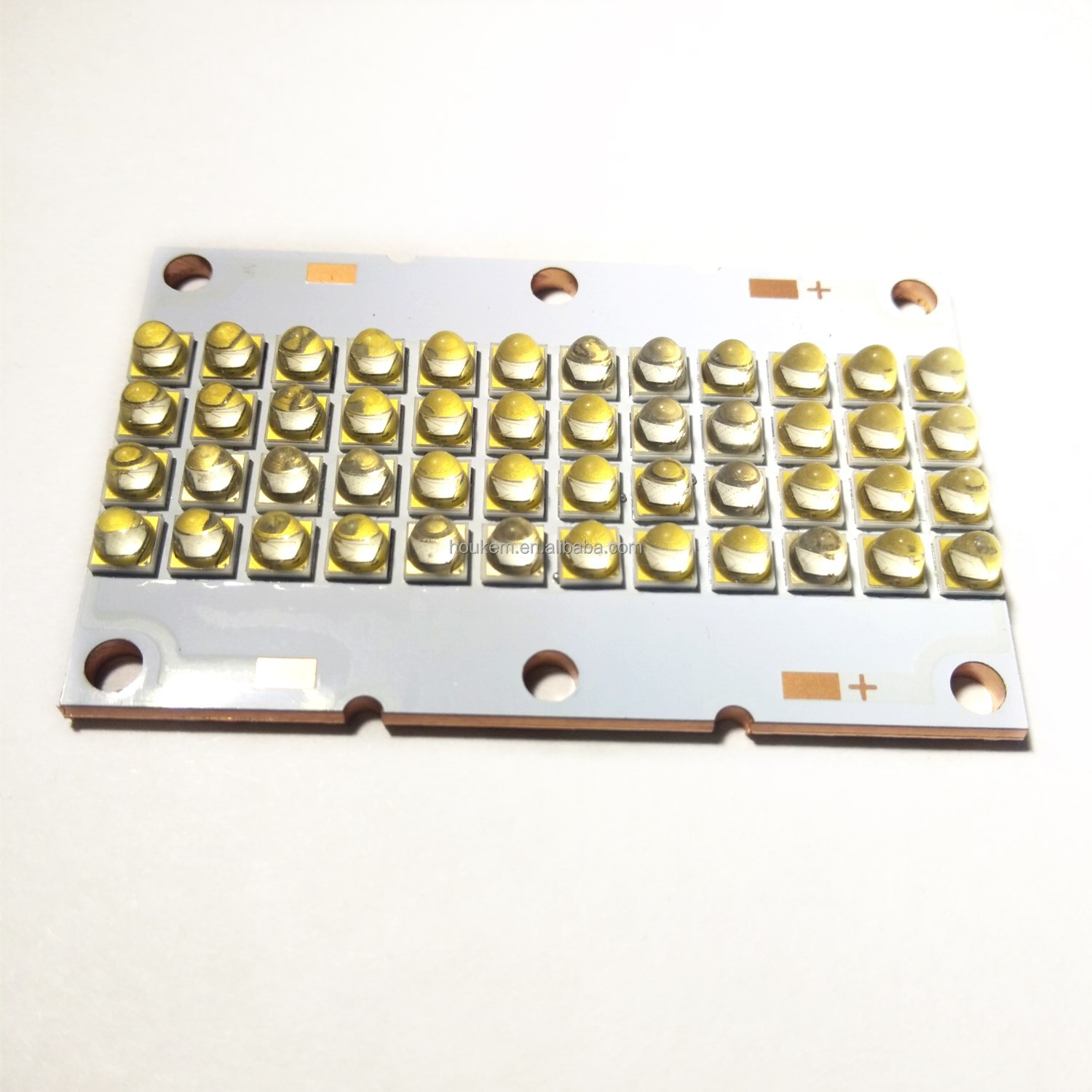

51*31*2mm
12series 4parallel, 48pcs led

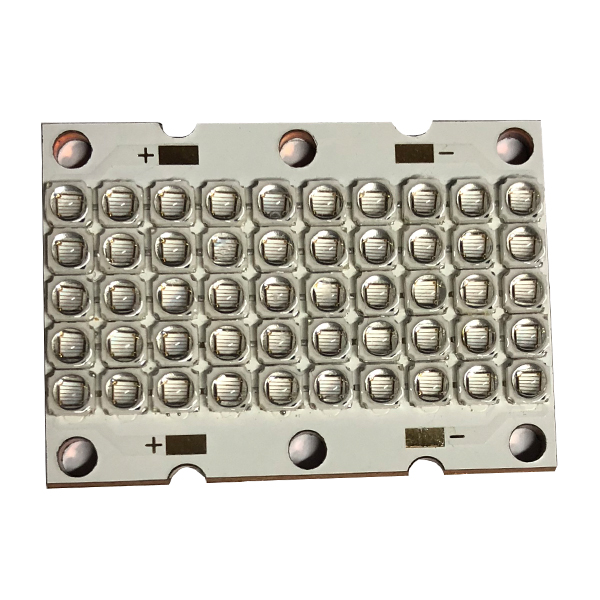

41*30mm copper board
10 series 5 parallel
50pcs led

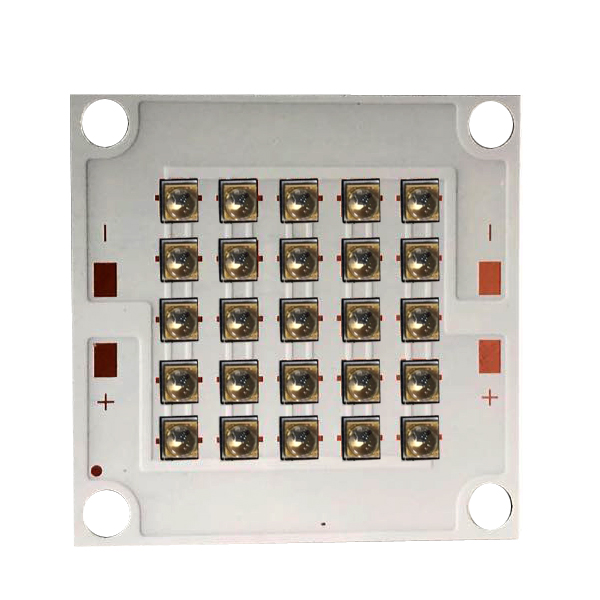

40*40mm
5 series 5 parallel
25pcs led
585*36mm
5 series 8 parallel
40 pcs led

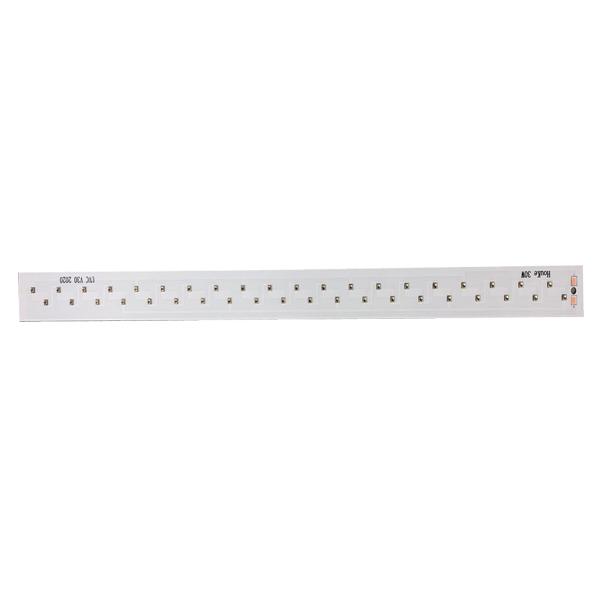

985*36mm
5 series 12 parallel
60pcs led
Established in 2003, Houkem has 19 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1600nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
