295nm UVB LED High Power SMD Emitter
295nm UVB LED High Power SMD Emitter
HOUKEM295nm UVB LED is a high power SMD UV LED emitter designed for professional applications including medical phototherapy, vitamin D light therapy, and customized UVB lighting systems.
With stable 290-300nm wavelength output, 50-60mW radiant flux, and reliable performance, this UVB LED solution is suitable for OEM medical equipment manufacturers, UV system integrators, and research applications.
Product Overview
The HOUKEM-3W-295-6565 is a High Power UVB LED featuring a 295nm peak wavelength and 6565 SMD package design.
Compared with traditional UV lamps, this compact UV LED solution provides advantages including smaller size, lower energy consumption, longer operating life, and flexible integration into customized equipment.
The product is widely used for UVB phototherapy systems, vitamin D light therapy devices, and professional UV LED modules requiring stable wavelength performance.
HOUKEM provides customized UV LED solutions with different power levels, lens options, and module designs according to customer requirements.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | 3W High Power UVB LED 295nm |
| Model Number | HOUKEM-3W-295-6565 |
| LED Type | High Power SMD UV LED |
| Power | 3W |
| Wavelength Range | 290-300nm |
| Peak Wavelength | 295nm |
| Radiant Flux | 50-60mW |
| Luminous Intensity | 60mW |
| Forward Voltage | 5-6V |
| Current | 500mA |
| Viewing Angle | 60° / 120° Lens |
| Chip Material | AlGaInP |
| Chip Size | 40×40mil |
| Chip Quantity | 1PC |
| Emitting Color | Purple |
| Input Voltage | DC 5-6V |
| Operating Temperature | -20℃ to 60℃ |
| Storage Temperature | -40℃ to 80℃ |
| Lifespan | 10,000 hours |
| Product Weight | 0.001kg |
| Certification | CE, RoHS, ISO9001 |
| Warranty | 2 Years |
Electrical and Optical Characteristics
| Item | 3W 295nm UVB LED |
|---|---|
| Radiant Flux | 50-60mW |
| Power | 3W |
| Wavelength | 290-300nm |
| Peak Wavelength | 295nm |
| View Angle | 60° or 120° Lens |
| Forward Voltage | 5-6V |
| Color | Purple |
Key Features of 295nm UVB LED
Stable UVB Wavelength Output
The 295nm UVB LED provides consistent ultraviolet output within the 290-300nm range, making it suitable for applications requiring accurate UVB wavelength control.
High Power SMD UV LED Design
The 6565 SMD package offers compact size and efficient UV output, allowing easy integration into customized UV LED systems and equipment.
Flexible Optical Design

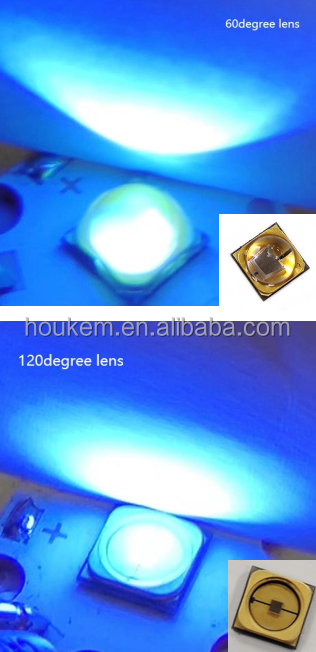

Available with 60° and 120° lens options, the product can meet different illumination area requirements for various applications.
Reliable Quality and Long Lifetime
With a 10,000-hour lifespan and strict quality inspection, HOUKEM UVB LED products provide stable performance for professional equipment applications.
Applications of UVB LED for Phototherapy
The HOUKEM UVB LED for Phototherapy is designed for professional UVB light applications requiring precise wavelength and reliable output.
Medical Phototherapy Equipment
295nm UVB LED is commonly used in medical and healthcare equipment where controlled UVB exposure is required.
Applications include:
- UVB phototherapy devices
- Dermatology treatment equipment
- Medical light therapy systems
Vitamin D Light Therapy Devices
The 295nm wavelength is used in vitamin D related UV light applications and professional wellness equipment.
Applications include:
- Vitamin D light devices
- UVB research systems
- Customized health equipment
Customized UV LED Systems
The compact 295nm UV LED Module design allows manufacturers to integrate UVB light sources into specialized equipment.
Applications include:
- OEM UV equipment
- Laboratory systems
- Optical testing devices
Why Choose HOUKEM UV LED Solutions?
Dongguan Houke Electronic Co., Ltd. (HOUKEM) is a professional LED manufacturer specializing in high power LED, UV LED, and infrared LED solutions.
With more than 20 years of LED manufacturing experience, HOUKEM provides reliable products and customized services for global OEM customers.
Our advantages include:
- Professional UV LED manufacturing capability
- Independent R&D team
- Advanced production and testing equipment
- Strict quality control process
- CE and RoHS certified products
- OEM and ODM customization support
HOUKEM supports customers from prototype testing to mass production with professional technical assistance.
Customized 295nm UV LED Module Solutions
HOUKEM provides customized 295nm UV LED Module solutions according to different application requirements.
Customization options include:
- Different UVB wavelength ranges
- Customized power output
- Lens angle selection
- Module structure design
- Thermal management solutions
Our engineering team helps customers develop reliable UV LED solutions for medical, industrial, and research applications.
FAQ
What is a 295nm UVB LED used for?
A 295nm UVB LED is mainly used for medical phototherapy, vitamin D light therapy, and customized UVB equipment.
It provides stable UVB wavelength output for professional applications.
Can HOUKEM customize UVB LED products?
Yes, HOUKEM provides customized UV LED solutions including wavelength, power, lens, and module design.
Is sample testing available before bulk orders?
Yes, HOUKEM supports sample orders for customers to verify optical performance and product compatibility.
What certifications are available for HOUKEM UV LED products?
HOUKEM products support CE and RoHS certifications with strict quality testing before shipment.
What is the warranty period of this 295nm UVB LED?
The product includes a 2-year warranty with professional technical support from HOUKEM.
Request a Quote for 295nm UVB LED
Looking for a reliable 295nm UVB LED manufacturer for medical phototherapy or customized UV applications?
HOUKEM provides high-performance UVB LED solutions with OEM customization, stable quality, and professional support.
Contact HOUKEM today for samples, technical consultation, and customized quotations.
