4W 40W 80W 120W 160W RGBW LED high power RGBW led
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):50000
- Chip Material:AlGaInP
- Emitting Color:RED+GREEN+BLUE+WHITE
- Power:120W
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:120W High Power RGBW LED
- Emitting Colour:red+green+blue+white
- Forward Current:3600-4200mA
- Forward Voltage:R:20-24V, G:30-34V, B: 30-34V,W: 30-34V
- Lifespan:50000 Hours

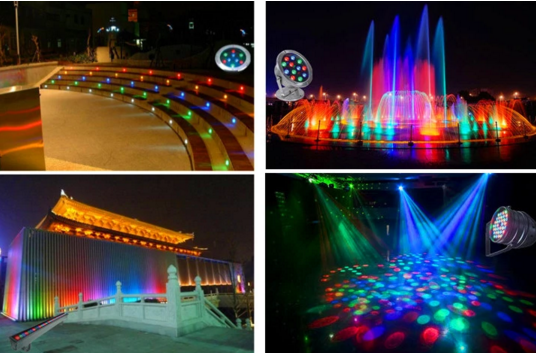

- Application:Stage light
- Warranty:2 Years
- Wave length:620-625nm, 460-465nm, 520-525nm
- Certification:CE, ROHS
- warranty:2 Years

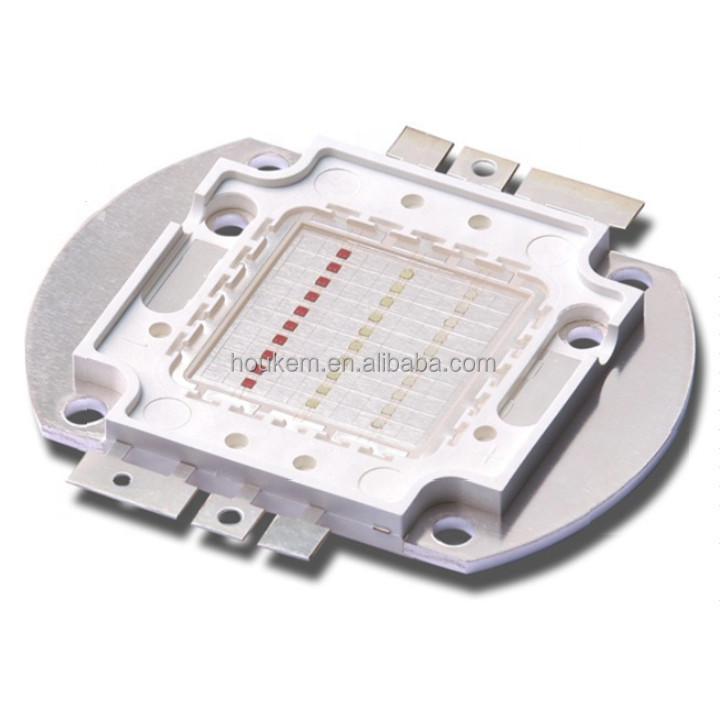

High power 120w RGBW led
Electrical and optical characteristics (Ta = 25℃)
| Item | High Power 120w RGBW LED |

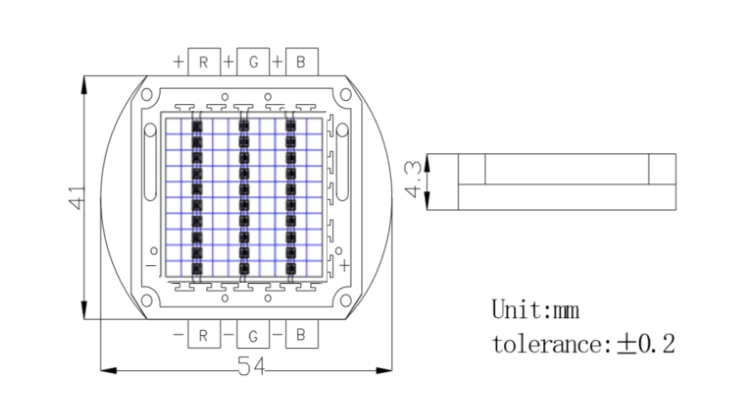

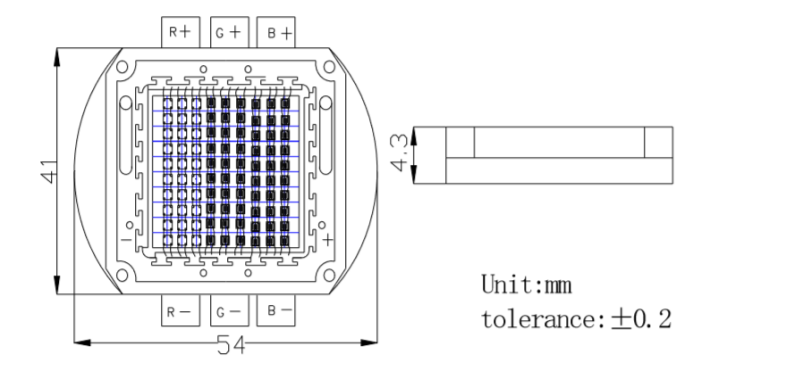

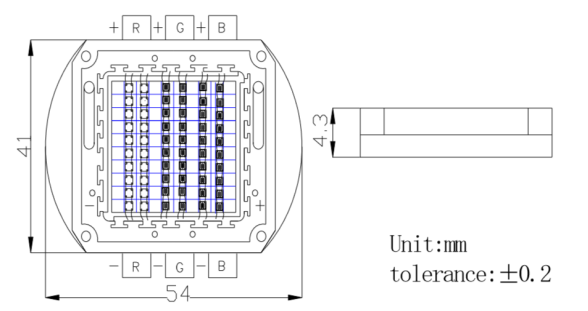

| size | 54*41mm |
| Color | Red+Green+blue+white |
| view angle | 140degree |
| Wavelength | R: 620-625nm, G: 520-525nm, B:460-465nm,W: 5000-6000K |
| Forward Current | 3600-4200mA |
| Forward Voltage | R: 20-24V, G: 30-34V, B: 30-34V, W: 30-34V |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |
60W, 10 series 6 parallel
30W, 10 series 3 parallel
90W, 10 series 9 parallel
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.
Established in 2003, our factory is specialized in LED products, including High power led, high power 255nm to 1550nm LED arrays,

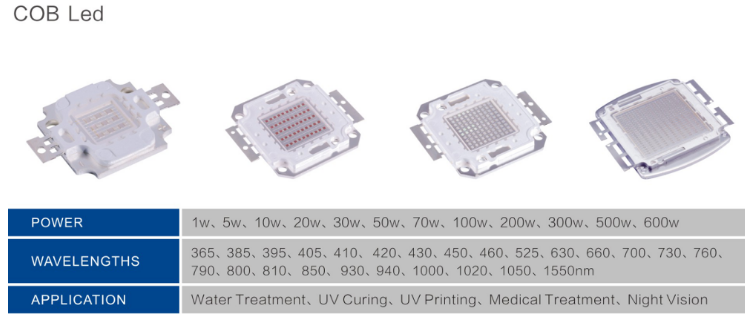

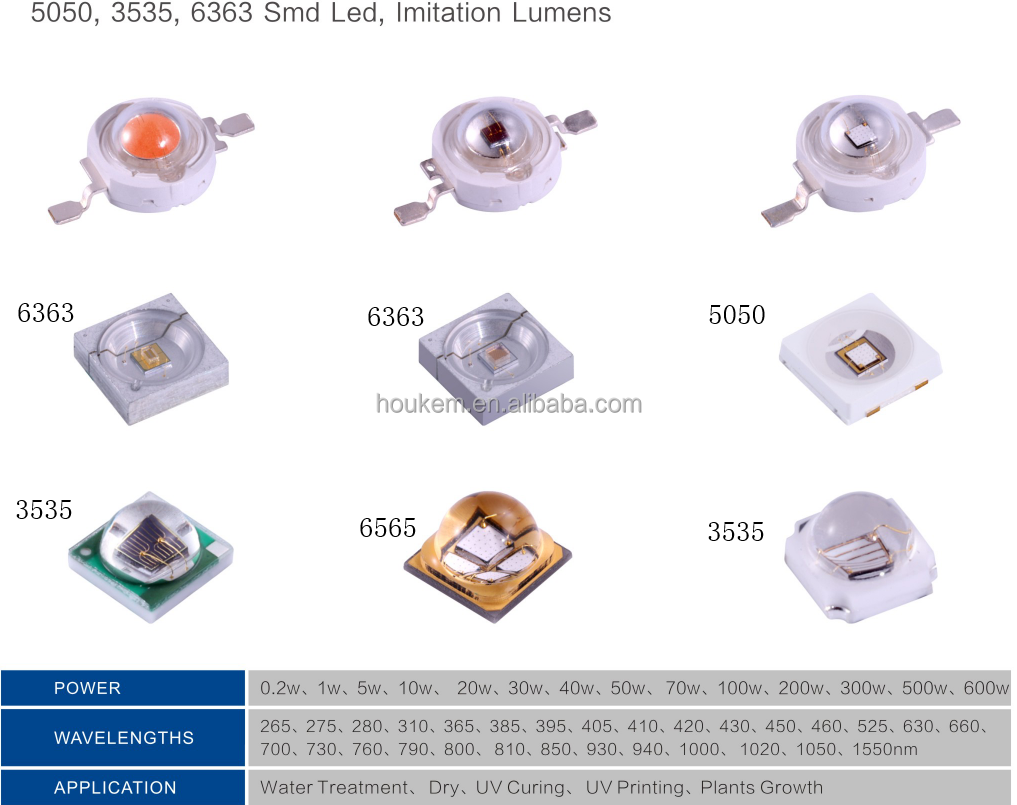

COB LEDs, SMD LEDs, street light LED, LED optical lens, Led flood light, street light,and all LED lighting application solution, etc.
Q1: Can you accept the sample order?
Yes,we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course.The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We havecolor box and carton.Welcome to customized if you need.
Q4: What's your lead time?
3-7 daysfor the sample orders in the stock. 25-30 days for the mass production.
Q5:What's your quotation terms?
EXW.
Q6:How about your quality?
With over16 years experiencein manufacturing the LED equipments, we're fully confident about our quality.
All of the products will be tested before shippment.
CE, Rohs and ETLapproval.
Q7:What's your warrenty?
2 years of warrenty.
Q8:Why choose us?
1) We provide factory direct price.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) W provide service door to door (China to your warehouse), much easy transaction.
