Model No: HOUKEM-HP20W-405
405nm uv led high power 20w 400nm 405 nm 405nm UV LED module for 3d printing
uv led houkem is uv led professional manufacturer
Delivery :
EXW
minimum order :
2 pieces
Supply Ability :
500pieces / Month
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $7.50 - US $11.00 / pieces
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:uv curing, uv coating, uv ink
- Luminous Efficacy(lm/w):400
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.03
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:20w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:20W High Power LED 405nm
- Emitting Colour:purple
- Forward Current:600-700mA
- Forward Voltage:30-34v
- Application:uv curing, uv ink, uv coating
- Warranty:2 Years
- Wave length:400-405nm
- warranty:2 Years
- Certification:RoHS, CE
Product Description

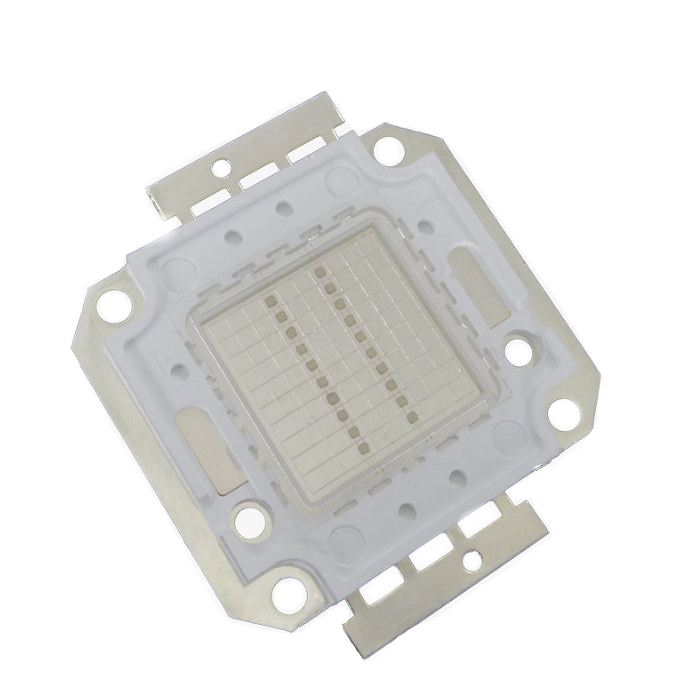

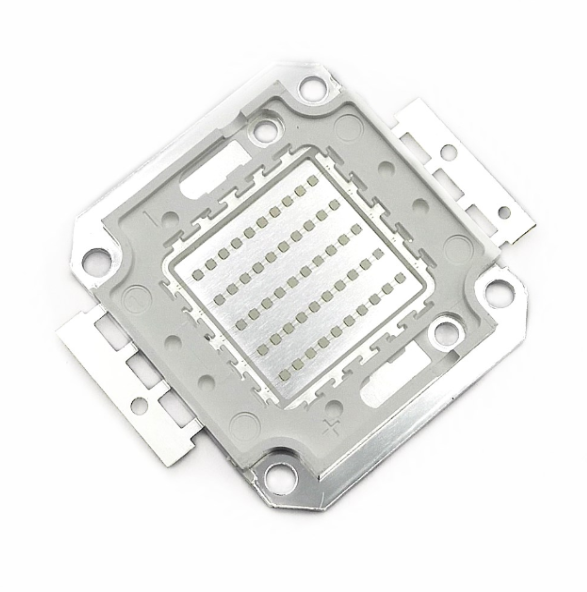

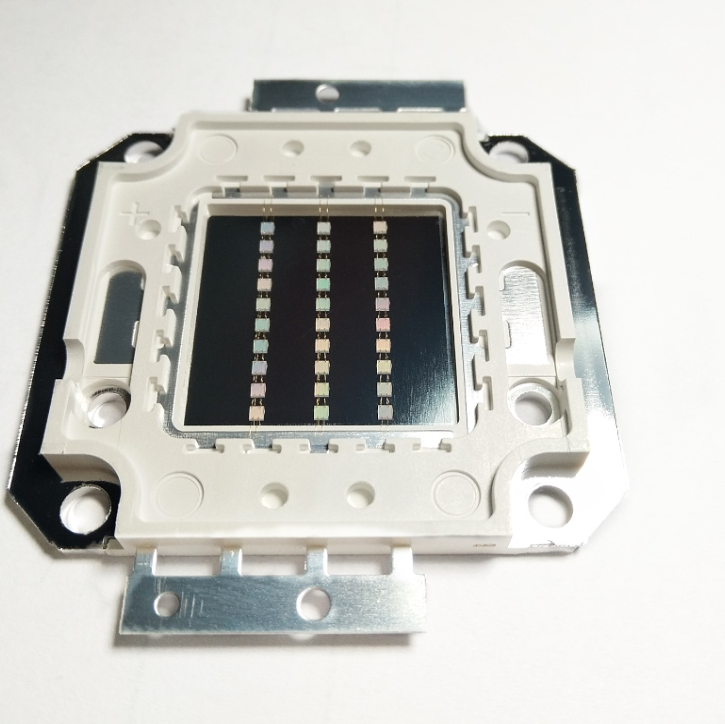

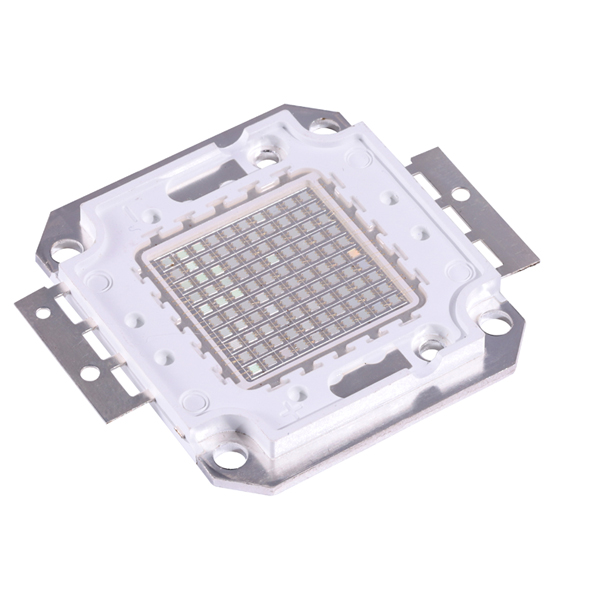

High power UVA led 20w 365nm uv led
| Item | High Power 20w UV LED 365NM |
| Power | 20w |
| Color | purple |
| Diode Brand | LG |
| Wavelength | 365-370nm, 380-385nm, 390-395nm, 395-400nm, 400-405nm, 405-410nm, 410-415nm, 415-420nm, 420-425nm |
| Radiant power | 13600-14000mw |
| Forward Current | 3000-3500mA |
| Forward Voltage | 32-36v |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |

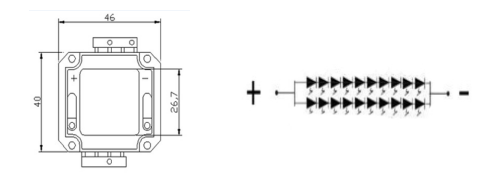

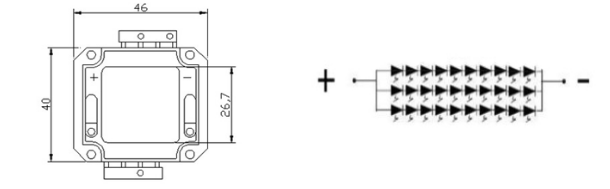

20w: 10 series& 2parallel
30w: 10 series& 3parallel

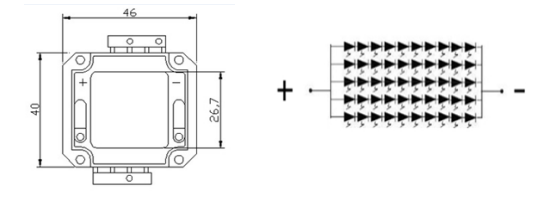

50w: 10 series& 5parallel

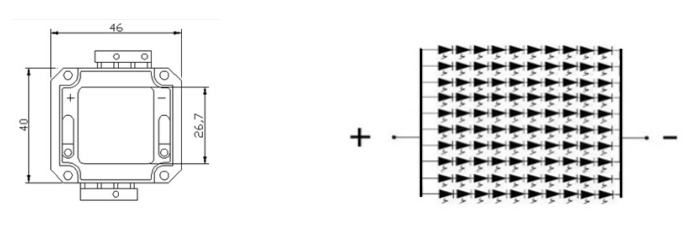

100w: 10 series& 10parallel

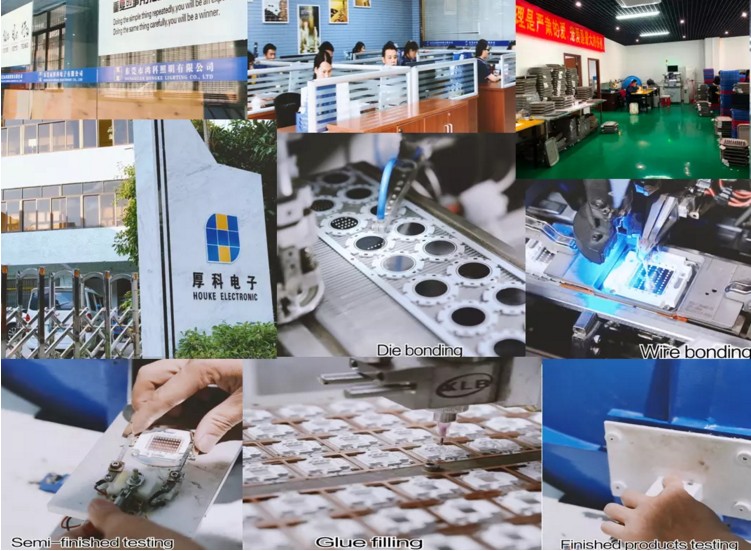

Factory pictures
Established in 2003, we are a LED professional manufacturer, we offer led products, high power 255nm to 1550nm LED, COB LEDs,
SMD LEDs, street light LED, UVC LED sterilizer light, 10w-200w led flood light, and all LED lighting application solution.
Application
Certifications
FAQ
Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and carton. Welcome to customize if you need.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 25-30 days for mass production.
Q5: What's your quotation terms?
EXW is available.
Q6: What's your warranty?
With over 16 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested before shipment. and have 2 years warranty.
Q7: Why choose us?
1) We provide factory direct price.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) W provide service door to door (China to your warehouse), much easy transaction.
