40-50mW UVC LED 275nm 280nm 3w high power 6565 smd 4 chips uvc led for disinfection
- Warranty(Year):1-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Chip Material:INGAN
- Emitting Color:purple
- Power:3w
- Viewing Angle(°):120
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:3w 275nm uvc led
- Emitting Colour:puple
- Forward Voltage:6-6.5v
- Application:uv curing
- Warranty:2 Years
- Wave length:270-280nm
- Chip Size:40*40mil
- Current:400mA
- Chip quantity:4pcs
- Certification:ce, RoHS

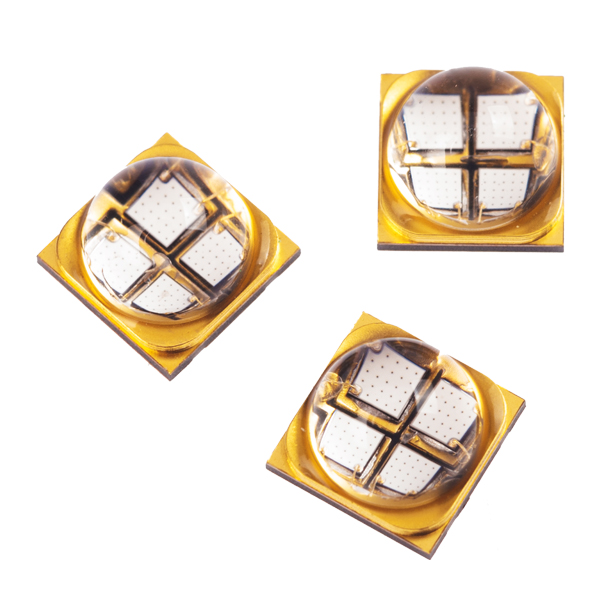

High power 3w 275nm uvc led 6565
Electrical and optical characteristics (Ta = 25℃)
| Item | High Power 3w uv 275nm LED 6565 |
| Power | 3w |
| chip quantity | 4pcs |
| radiant flux | 40-50mw |
| Color | purple |
| Diode type | 6565 smd type |

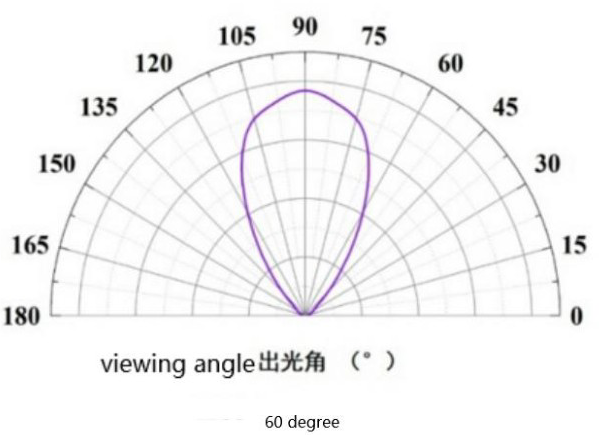

| View Angle of the Lens | 60 degree or 120degree |
| Wavelength | 270-280nm |
| Forward Current | 350mA |
| Forward Voltage | 6-6.5v |
| Certification | CE, RoHS |

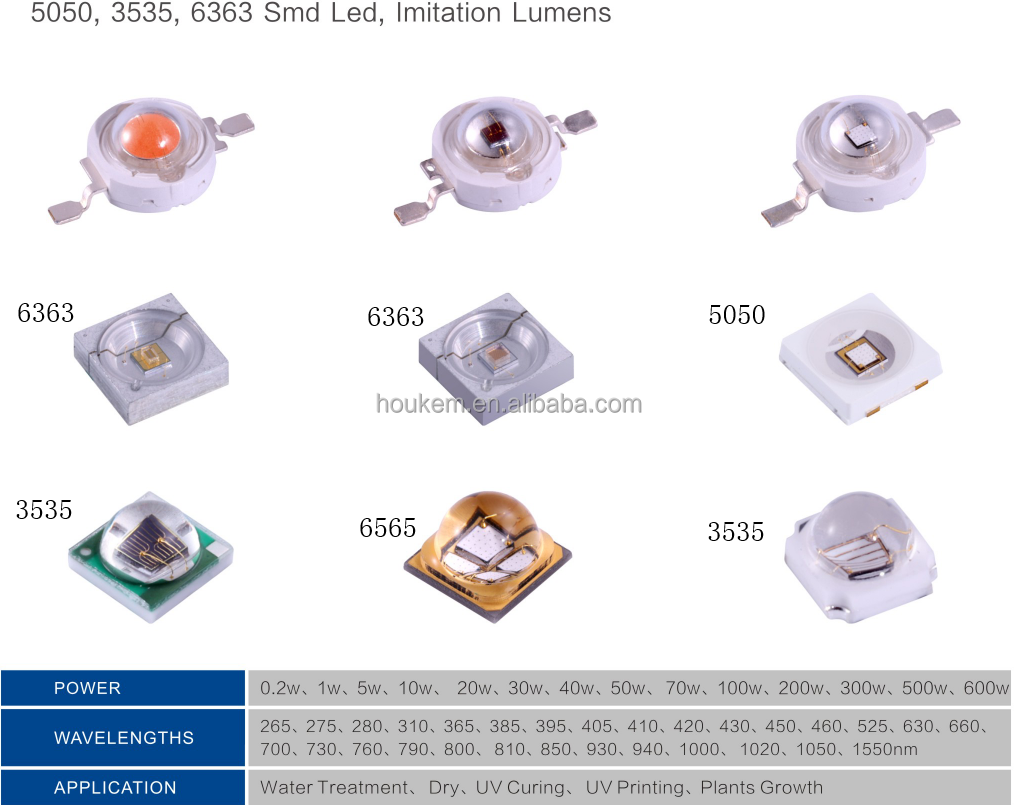

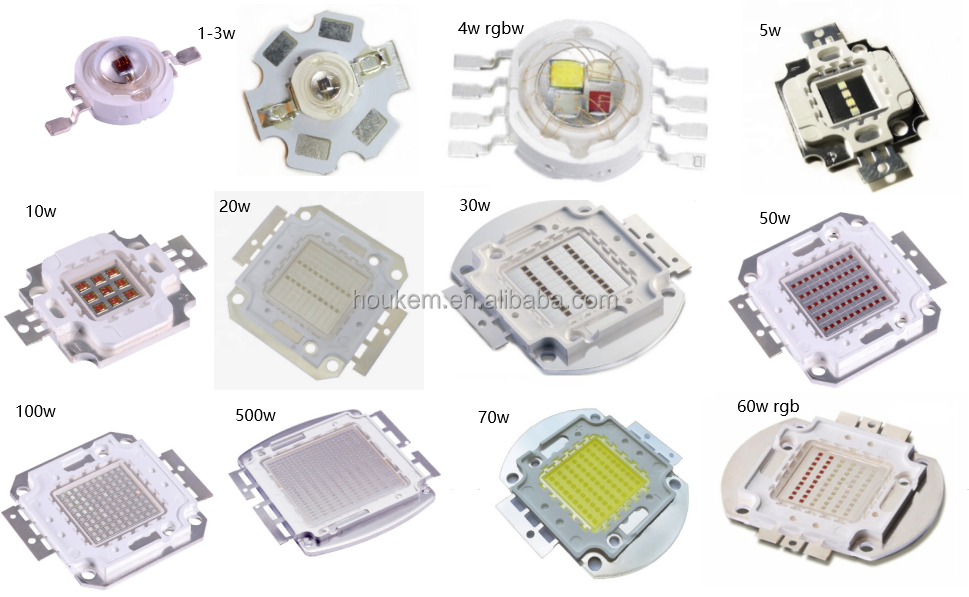

Established in 2003, we are a LED professional manufacturer, we offer led products, high power 255nm to 1550nm LED, COB LEDs, SMD LEDs, street light LED, LED optical lens, 50w-1000w LED grow light, 10w-200w led flood light, uvc led sterilizer light, and all LED lighting application solution.
1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.
2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.
3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
