four colors 12 segment display
four colors 12 segment display
four colors 12 segment display
four colors 12 segment display
four colors 12 segment display
four colors 12 segment display
Model No: HOUKEM-123010-RGBY

4 colors red green blue yellow 12 segment led bar graph

7 segment led display houkem is 7 segment led display professional manufacturer
minimum order :
1
Quantity :
USD1.00 - USD2.00
add to cart
Contact Now
  • Place of Origin:CN
  • Application:Graphics
  • Color:blue
  • Panel Size:10.1*30.4*8mm
  • Model Number:HOUKEM-123010-RGBY
  • Brand Name:HOUKEM
Product Describtion

12 segment led bar graph display red green blue yellow

Features:

1, Low consumption

2, High brightness

Product details:

Item No.HOUKEM-123010-RGBY
Dimension10.1*30.4*8mm
Surface color Black / Grey
Segment colorWhite /Clear
Emitting color super red, super green, blue, yellow

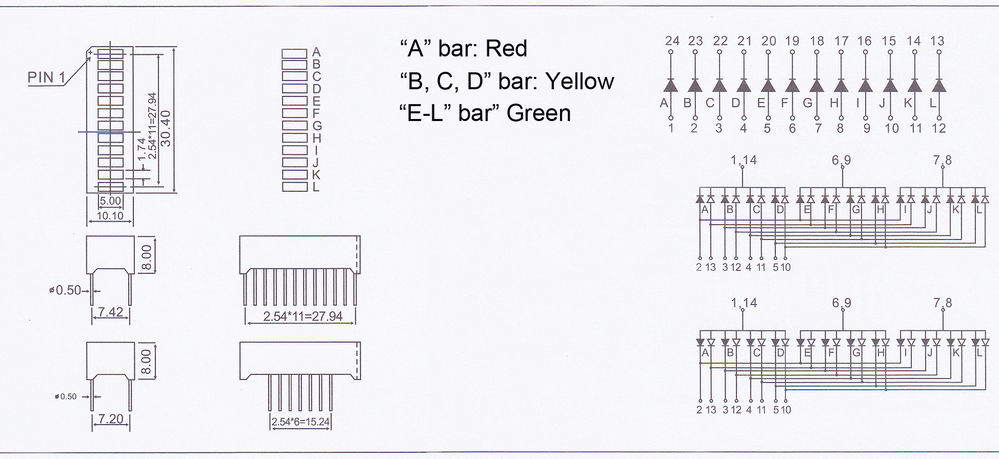

Package dimension & Internal circuit diagram

123010

Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)

Emitting Color

Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=10-15mA

600-605

30

1.8

2.0

90

100

Super green

IF=10-15mA

565-575

30

1.8

2.0

48

55

Super red

IF=10-15mA

620-625

20

1.8

2.0

110

130

Ultra red 1

IF-10-15mA

620-625

20

1.8

2.0

200

210

Ultra red 2

IF=10-15mA

620-625

20

1.8

2.0

300

350

High red

IF=10-15mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=10-15mA

570-580

30

1.8

2.0

43

50

Yellow

IF=10-15mA

580-600

35

1.8

2.0

70

80

Blue

IF=10-15mA

465-475

40

2.7

2.9

150

200

Pure green

IF=10-15mA

515-525

40

2.7

2.9

180

250

White

IF=10-15mA

-

-

2.7

2.9

180

200

Two years quality warranty

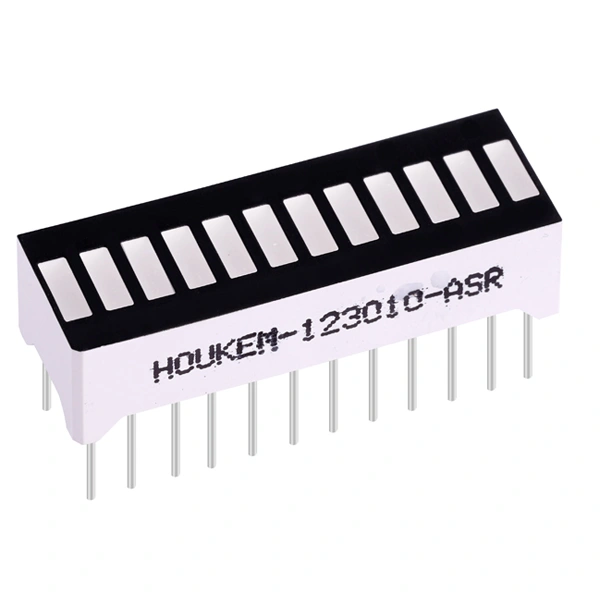

123010

Our Services

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

led dot matrix display

7 segment LED display

1 digit0.2'', 0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.5'', 0.52'', 0.56'', 0.6'', 0.8'', 1'', 1.2'', 1.5'', 1.8'', 2.3'', 3'', 4'', 5'', 6'', 7'', 8'', 10'', 12'', 16'', 20''
2 digit0.28'', 0.3'', 0.36'', 0.39'', 0.4'', 0.43'', 0.5'', 0.52'', 0.56'', 0.8'', 1'', 1.2'', 1.5''
3 digit0.25'', 0.28'', 0.3'', 0.4'', 0.52'', 0.56'', 0.8''
4 digit0.25'', 28'', 0.3'', 0.36'', 0.4'', 0.5'', 0.56'', 0.8'', 1.2''
5 digit0.28'', 0.36'', 0.56''
6 digit0.3'', 0.36''

14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1'', 1.2'', 2.3''
2 digit0.54''
3 digit0.54''
4 digit0.39'', 0.54''

Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.



Custom 7 segment display are available



High power led: smd led, red/ green/ blue led, UV/ IR LED

Application

application

application

Packaging & Shipping

packing & shipping

Certifications

Houke-certifictes

Contact us

Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,
street light,and all LED lighting application solution, etc.
factory

7 segment dot matrix LED

Related Products

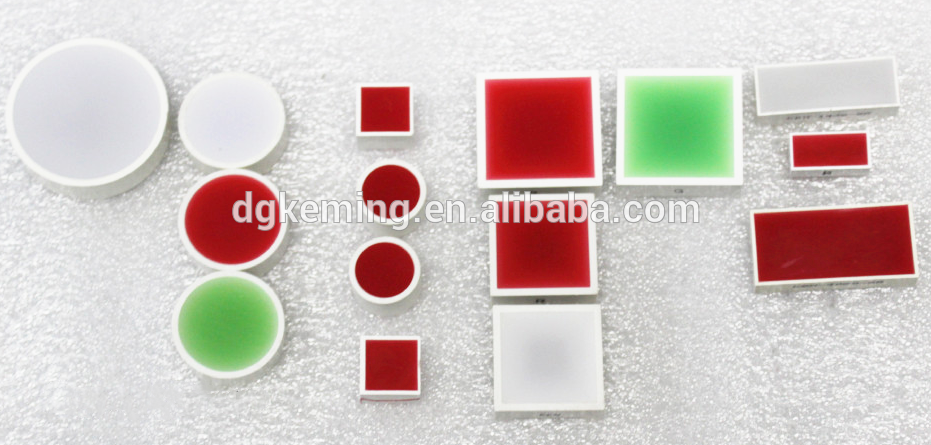

led bar

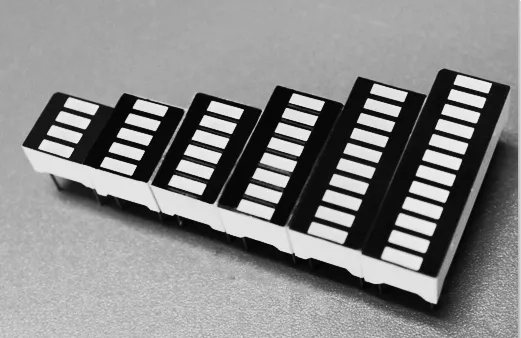

bargraph
