4.5V Epistar chip 10000K white 3W high power led
- Place of Origin:CN;GUA
- Package Type:Surface Mount
- Max. Reverse Voltage:10V
- Model Number:KEM-HP003PW-E33
- Brand Name:KEM
- Max. Reverse Current:10uA
- Max. Forward Current:600mA
- Max. Forward Voltage:3.8V
- Type:LED
Best quality 3W high power led white color
Pictures of Best quality 3W high power led white color in detail
1, Warm white, 2800-4500K for 3W high power led white color
2, Warm white, 6000-7500K for 3W high power led white color
3, Light effect of 3W high power led various color

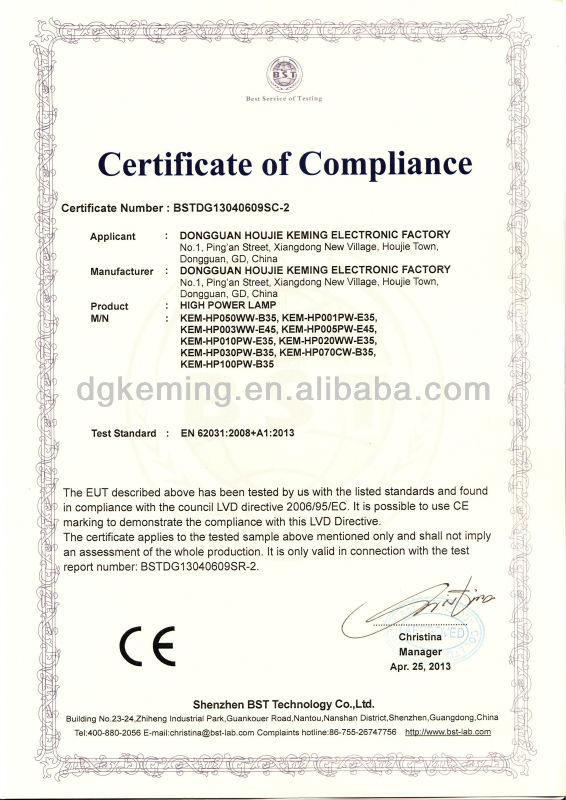

CE and ROHS certificate for Best quality 3W high power led white color
Series information of Best quality 3W high power led white color:
| Part Number | Chip Material | Emitting Color | Forward voltage | Forward current | Luminous | Viewing angle (Deg) |
| KEM-HP001WW-E33 | InGan | 2500-4500K | 3.0-3.3V | 350mA | 100-110lm | 140 |
| KEM-HP001PW-E33 | InGan | 4500-7000K | 3.0-3.3V | 350mA | 110-120lm | 140 |
| KEM-HP001CW-E33 | InGan | 7000-15000K | 3.0-3.3V | 350mA | 110-120lm | 140 |
| KEM-HP001RW-E38 | AIGainp | Red 620-630nm | 2.0-2.4V | 350mA | 50-60lm | 140 |
| KEM-HP001DR-E42 | AIGainp | Red 660-670nm | 2.0-2.4V | 350mA | 40-50lm | 140 |
| KEM-HP001GW-E40 | InGan | Green 520-530nm | 3.0-3.3V | 350mA | 80-90lm | 140 |
| KEM-HP001BW-E35 | InGan | Blue 460-470nm | 3.0-3.3V | 350mA | 90-100lm | 140 |
| KEM-HP001YW-E38 | AIGainp | Yellow 590-595nm | 2.0-2.4V | 350mA | 35-45lm | 140 |
| KEM-HP001UV-E45 | InGan | Purple385-430nm | 3.0-3.3V | 350mA | 70-90mw | 140 |
| KEM-HP001UV365-E45 | InGan | UV 365nm | 3.4-3.8V | 350mA | 70-90mw | 140 |

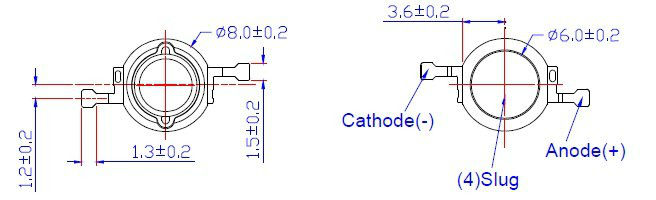

Dimension of Best quality 3W high power led white color:
Features ofBest quality 3W high power led white color
Excellent Operating life
High Efficacy of 95lm/W
Low thermal resistance
Instant light
Fully dimmable
No UV
Superior ESD protection
RoHS compatibility
Electeical Characteristics of Best quality 3W high power led white color at 350mA,Ta=25°C
Color | Part No | Forward Voltage | Units | ||
Min | Typ | Max | |||
Daylight | 3.4 | - | 3.8 | V | |
Absolute Maximum Ratings of Best quality 3W high power led white color
Parameter | Symbol | Rating | Unit |
white | |||
DC Forward Current(mA) | If | 300 | mA |
Peak Pulse Current(mA) | If | 700 | mA |
Reverse Voltage | VR | 5 | V |
LED Junction Temperature | Tj | 125 | °C |
Operation Temperature | Topr | -40--100 | °C |
Storage Temperature | Tstg | -40--100 | °C |
Soldening Temperature | Tsol | 260 | °C |
ESD Sensitivity | Vb | 4000 | V |

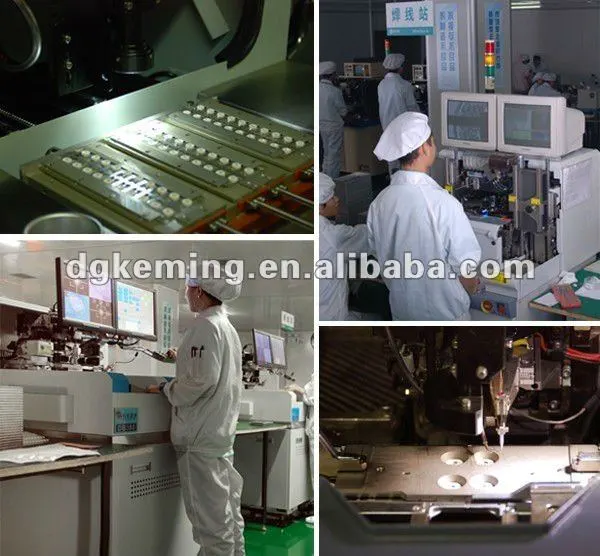

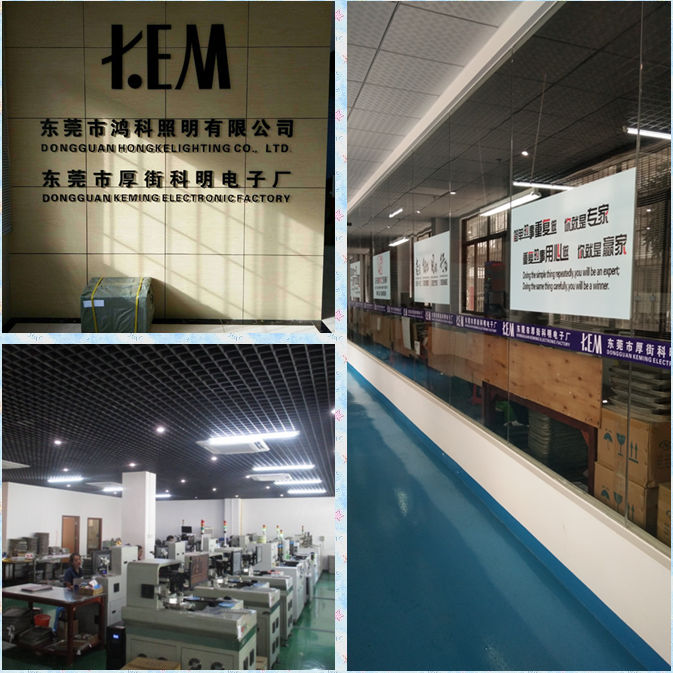

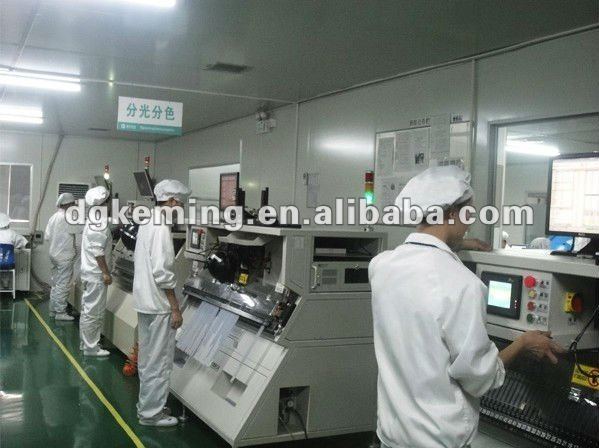

Factory information of Best quality 3W high power led white color
Series information of 3W high power led white color
1, 3W RGB full color high power led
2,10w high power led diode
4, 50W high power led diode
