3w infrared led 1400nm 1450nm high power ir led
- Color Temperature(CCT):1400NM
- Warranty(Year):2-Year
- Type:High Power LED
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):12
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.001
- Chip Material:AlGaInP
- Emitting Color:ir
- Power:1-3W
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:1W High Power LED 1450nm
- Forward Current:500mA
- Forward Voltage:1.1-1.2v
- Warranty:2 Years
- Wave length:1450nm
- Chip quantity:1pcs
- Led type:3535 smd led
- Certification:RoHS, CE

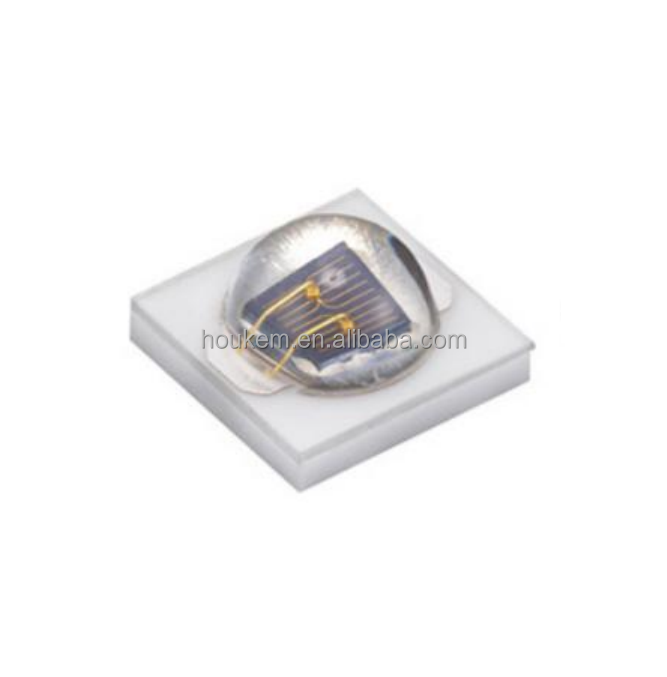

High power 3w 1400nm 1450nm ir led 3535

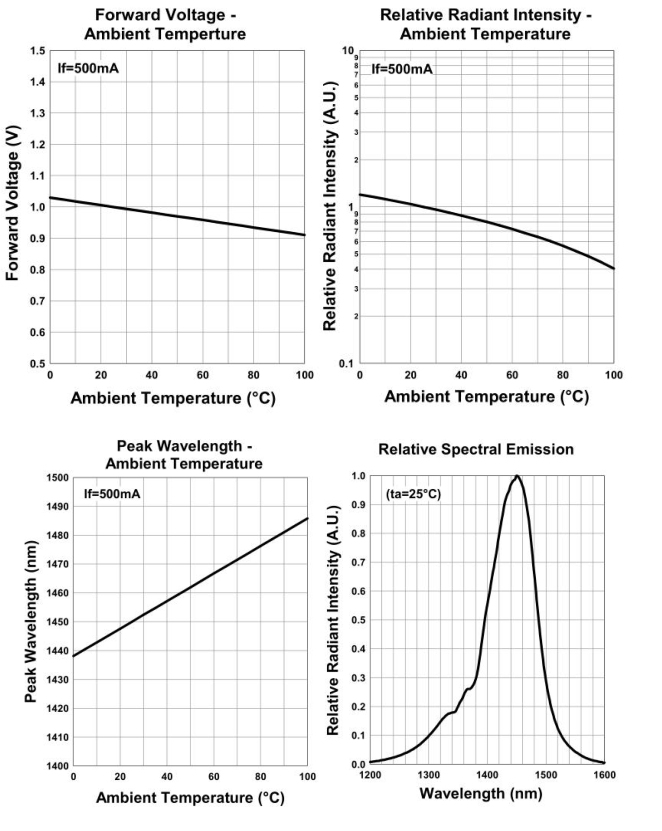

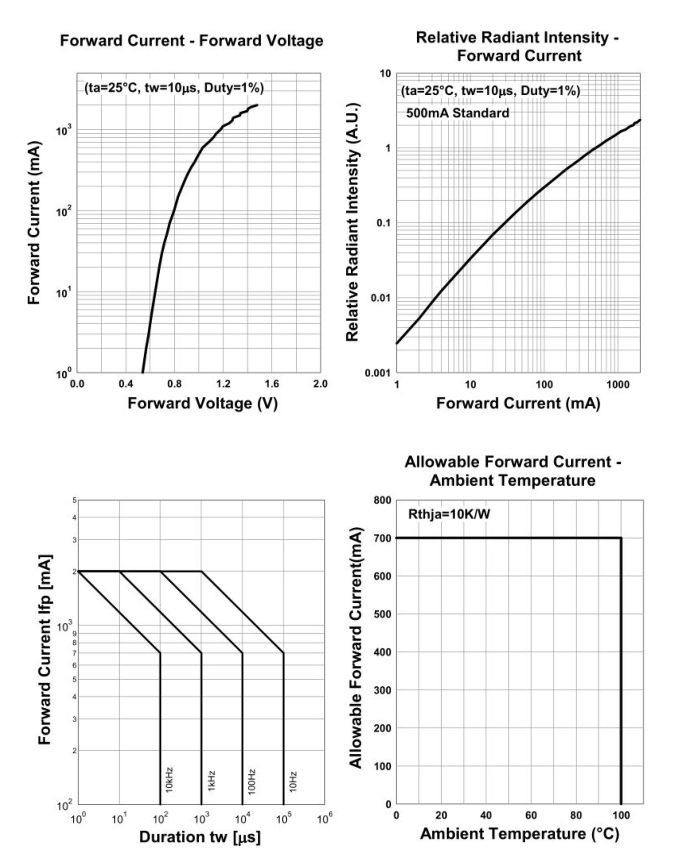

Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 500mA | 1 | 1.1 | 1.3 | V |
Luminous Flux | Φv | IF=500mA | 20 | 22 | 30 | mw |
Viewing Angle | 2θ1/2 | IF = 500mA | ---- | 60 | ---- | Deg. |
Dominate Wavelength | λd | IF = 500mA | 1400 | 1450 | 1500 | nm |
