Model NO.
HOUKEM-1357-AW
Price:
USD 1.38-1.67
Delivery:
FOB
Minimum order quantity:
10
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Display Function:Graphics
  • Pixels:25mm
  • Tube Chip Color:white
  • Brand Name:HOUKEM
  • Model Number:HOUKEM-1357-AW
  • Screen Dimension:22.8*39*9.6mm


Product Describtion



 business

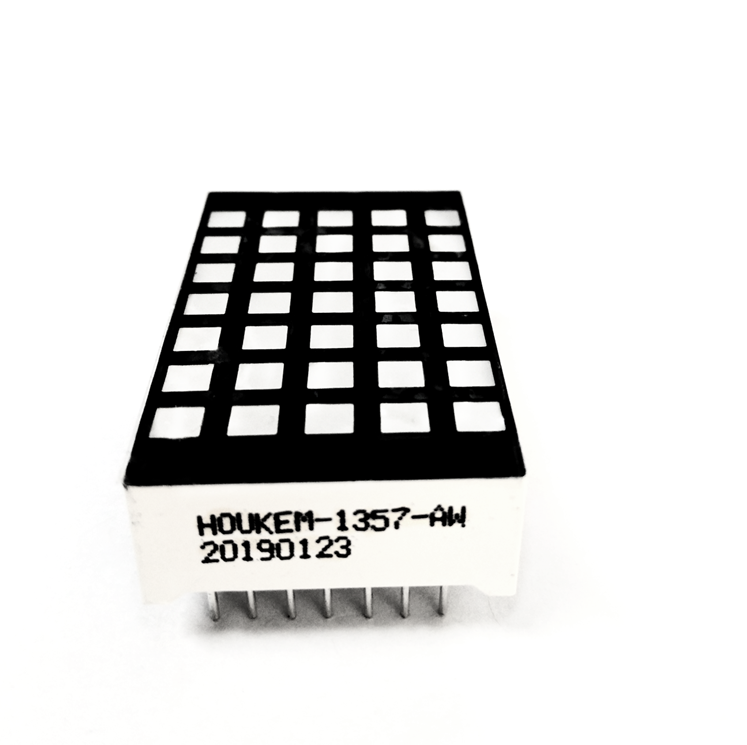

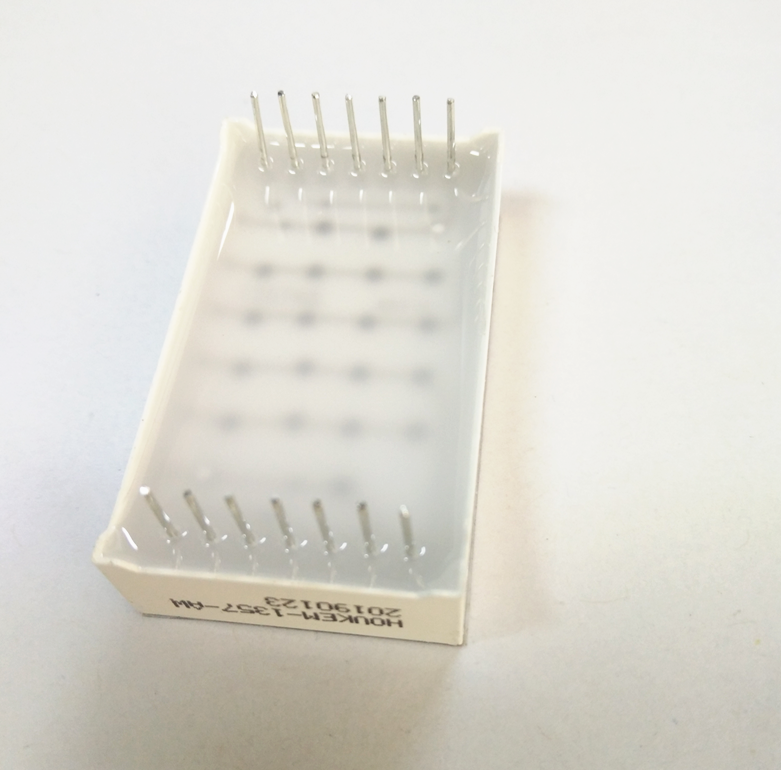

3mm square dot 5x7 led dot matrix display white



Features:

1, Low consumption

2, High brightness

HOUKEM-13057-AW--------Common cathode(CC)

HOUKEM-13057-BW--------common anode(CA)



Product details:

Item No.HOUKEM-13057-AW
Dimension22.8*39*9.6mm
dot3*3mm
Surface color  Black  / Grey
Segment colorWhite  /Clear
Emitting color white

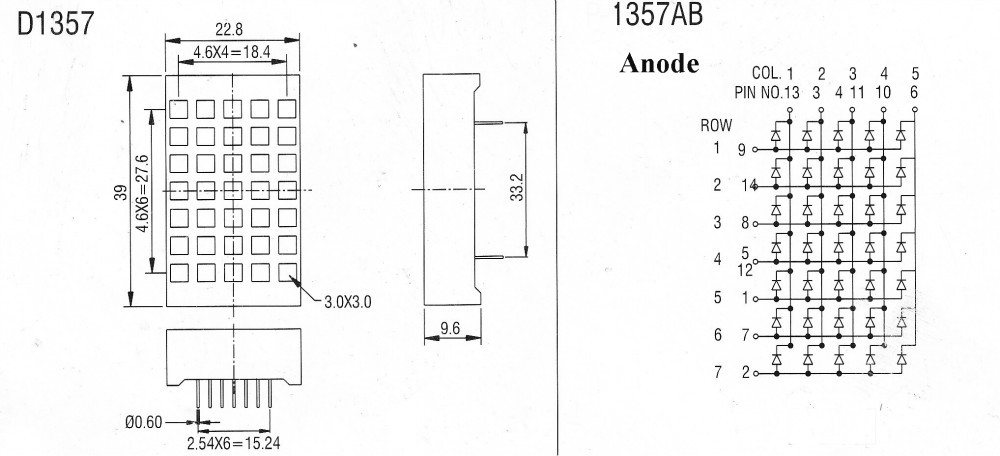

Package dimension & Internal circuit diagram







Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

625-640

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200









Two years quality warranty





paste-pic-dp_uuid_dea9w
paste-pic-dp_uuid_sh9xy



Our Services

Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16

led dot matrix display



7 segment LED display

1 digit0.2'',  0.28'',  0.3'',  0.36'',  0.39'',  0.4'',  0.5'',  0.52'',  0.56'',   0.6'',   0.8'',     1'',    1.2'',   1.5'',    1.8'',      2.3'',   3'',      4'',     5'',   6'',    7'',     8'',     10'',    12'',     16'',  20''
2 digit0.28'',   0.3'',   0.36'',   0.39'',   0.4'',  0.43'', 0.5'',   0.52'',   0.56'',   0.8'',  1'',   1.2'',   1.5''
3 digit0.25'',   0.28'',    0.3'',    0.4'',   0.52'',  0.56'',  0.8''
4 digit0.25'',   28'',   0.36'',    0.4'',    0.5'',     0.56'',  0.8'',   1.2''
5 digit0.28'',    0.36'',    0.56''
6 digit0.3'',    0.36''



14 /16 segment

1 digit0.39'', 0.5'', 0.8'', 1.2'', 2.3''
2 digit0.54''
3 digit0.54''
4 digit0.39''



Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, orange, Bi-color, RGB.



Custom 7 segment display are available


High power led: smd led, red, green, blue led, UV/ IR LED





Packaging & Shipping

packing & shipping

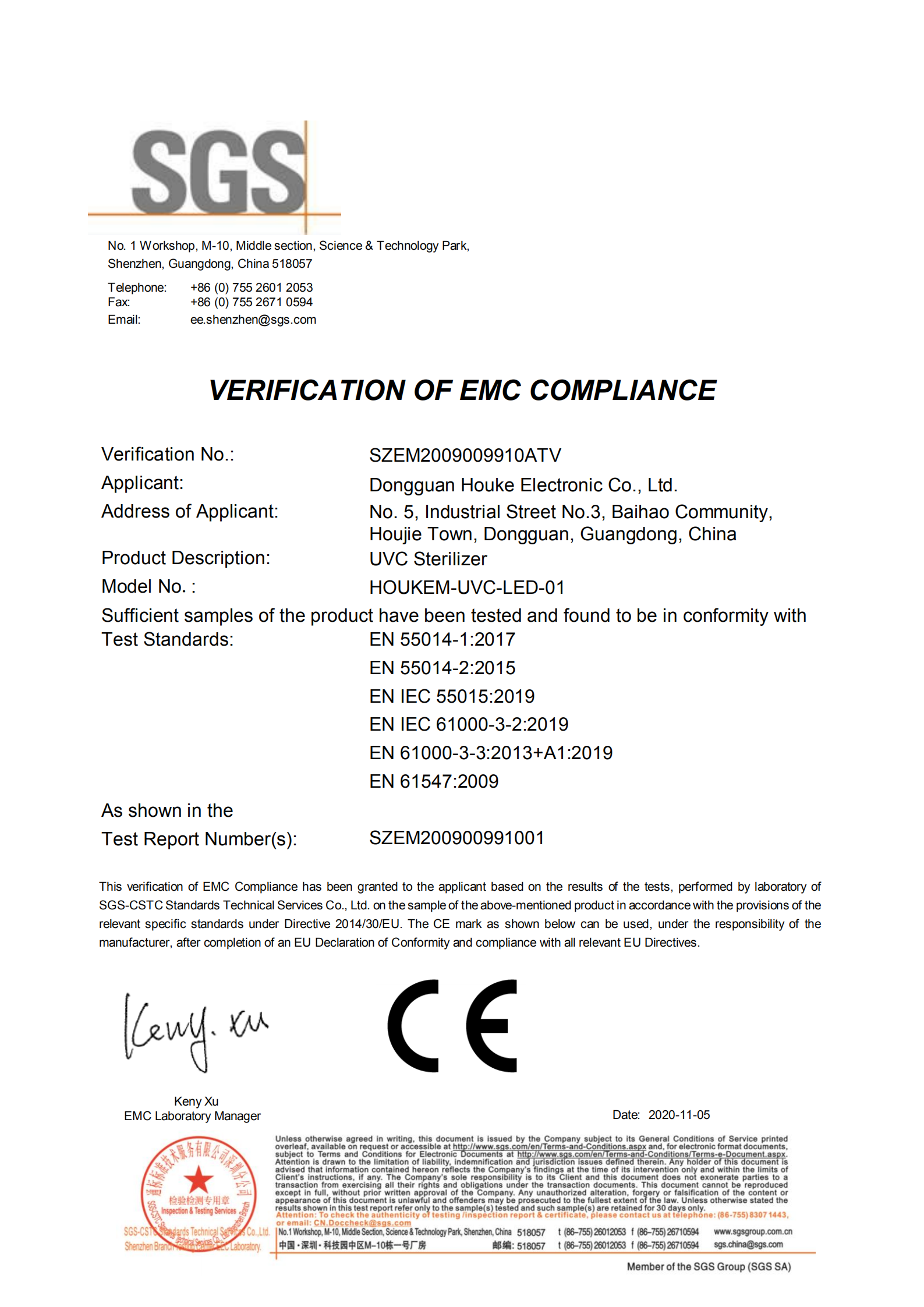

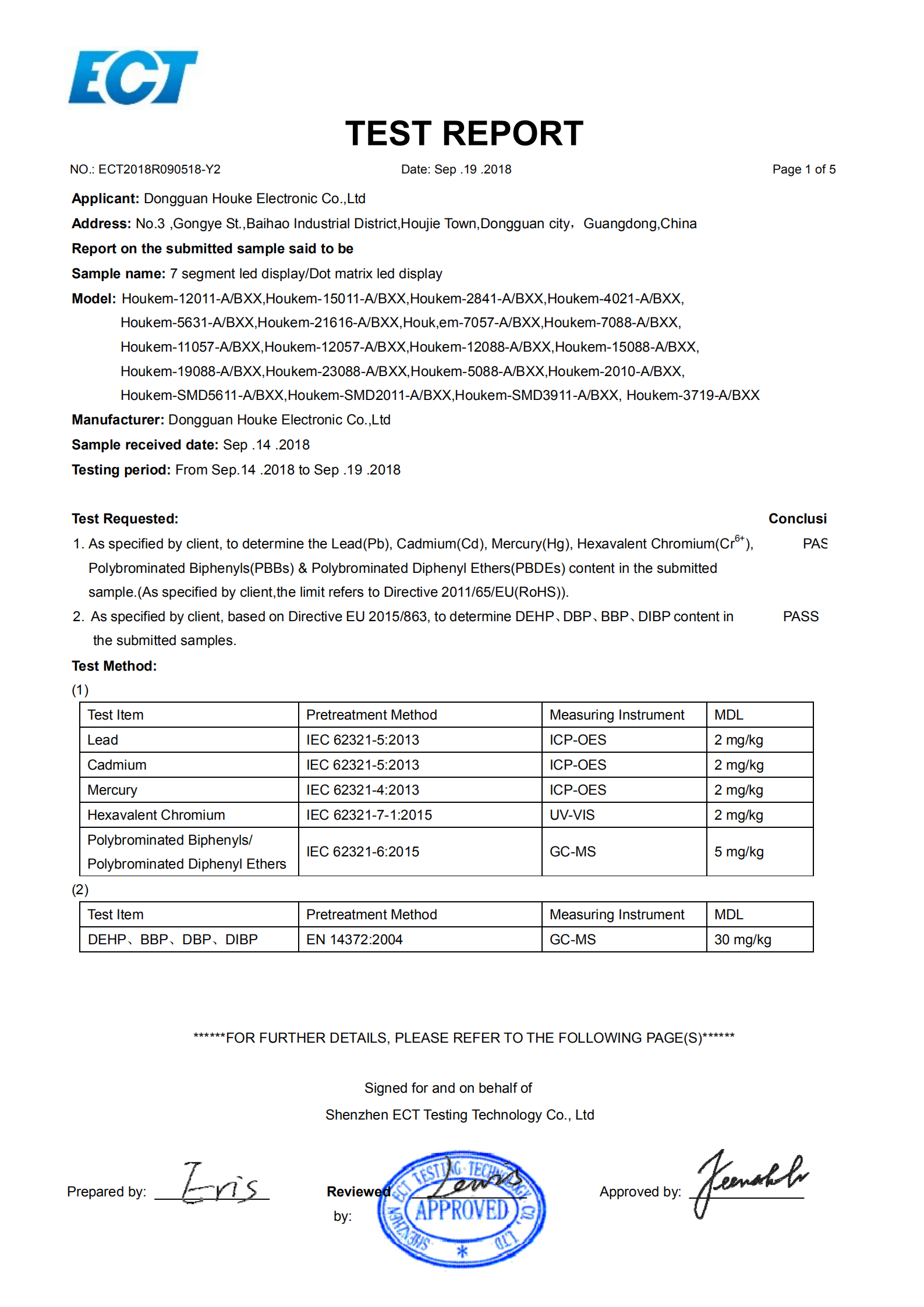

Certifications

 Houke-certifictes

Contact us



Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led,
high power 255nm to 1550nm LED arrays,COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, high bay light,
street light,and all LED lighting application solution, etc.
