Model No: Houkem-11057-A/BRG

3mm bi-color 5x7 led matrix P4.57 dot matrix

led dot matrix display houkem is led dot matrix display professional manufacturer
Delivery :
FOB
minimum order :
100 pieces
Supply Ability :
50000pieces / Day
Country of Origin :
SZ/GZ (LED square dot)
Quantity :
USD0.60 - USD3.00 / pieces
add to cart
Contact Now
  • Place of Origin:CN;GUA
  • Display Function:Graphics
  • Pixels:16mm
  • Usage:outdoor/indoor
  • Tube Chip Color:milky white or as emitting color
  • Brand Name:Houkem
  • Model Number:Houkem-11057-A/BRG
  • Screen Dimension:29.4*44.9mm



3mm bi-color 5x7 led matrix P4.57 dot matrix

Contact us

Sales:Ellen Liu

Tel:+86755-85933616

MP:+8618825779357

Skype:ellen.liu770

QQ:1766570387

Wechat:ellen432555

Whatsapp:+8618825779357

Email:sales3.jpgdgkeming.com.cn

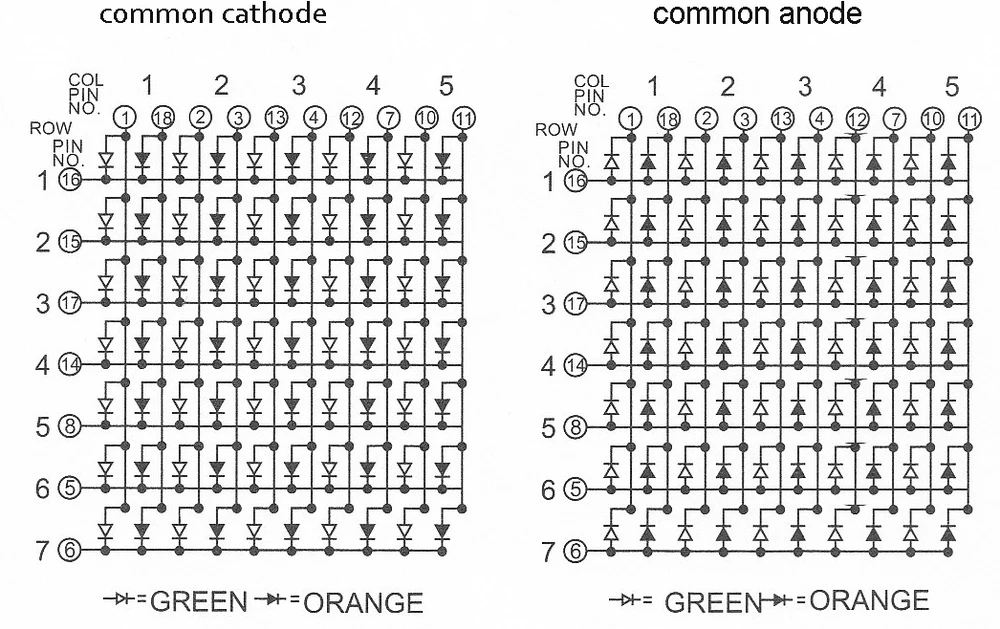

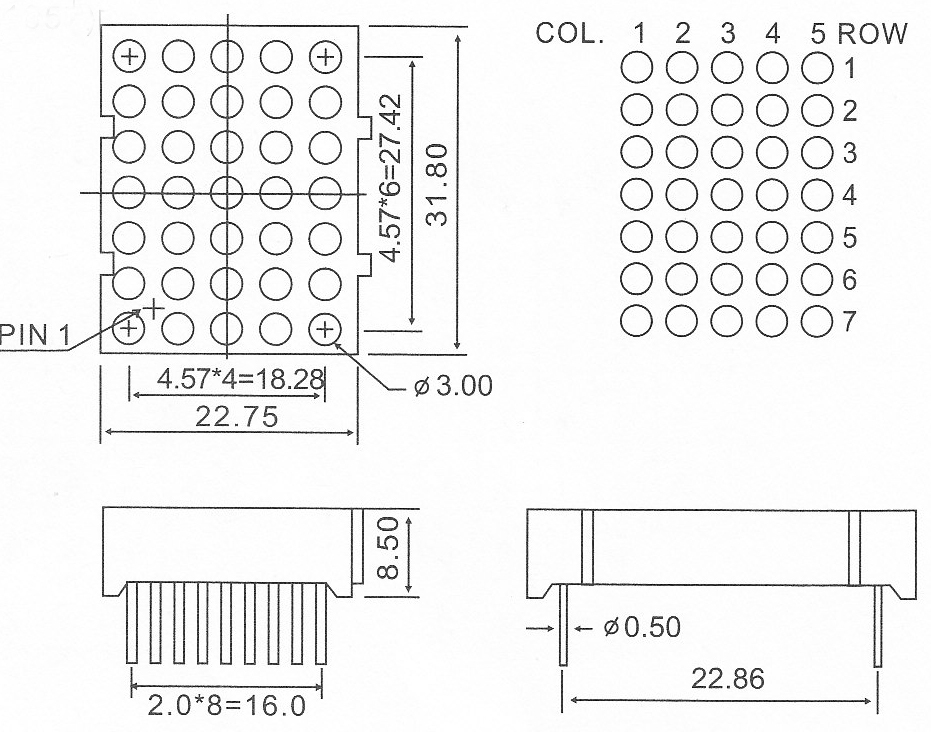

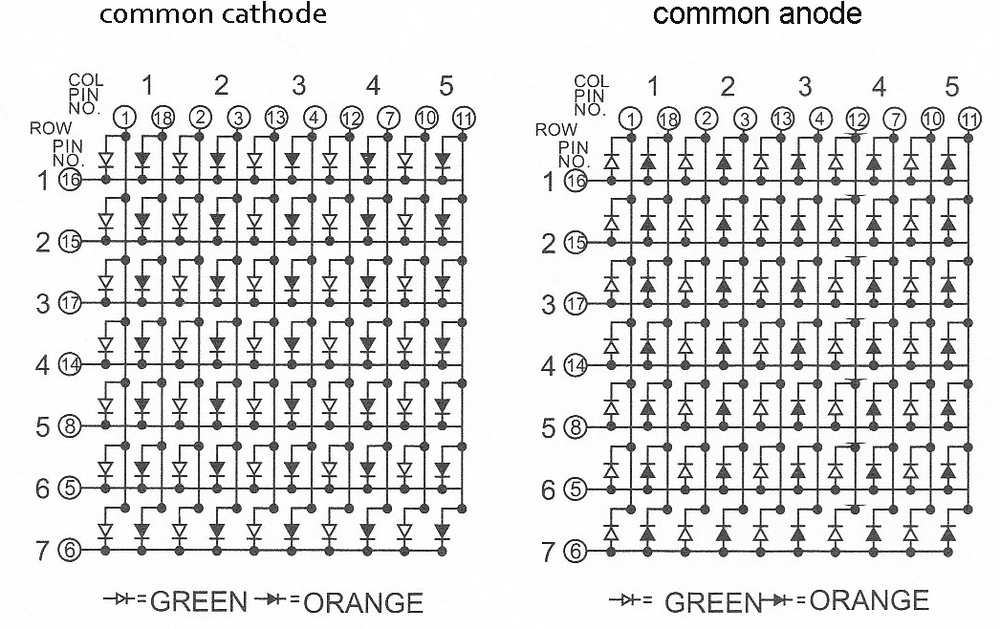

Dimension and Internal Curcuit :

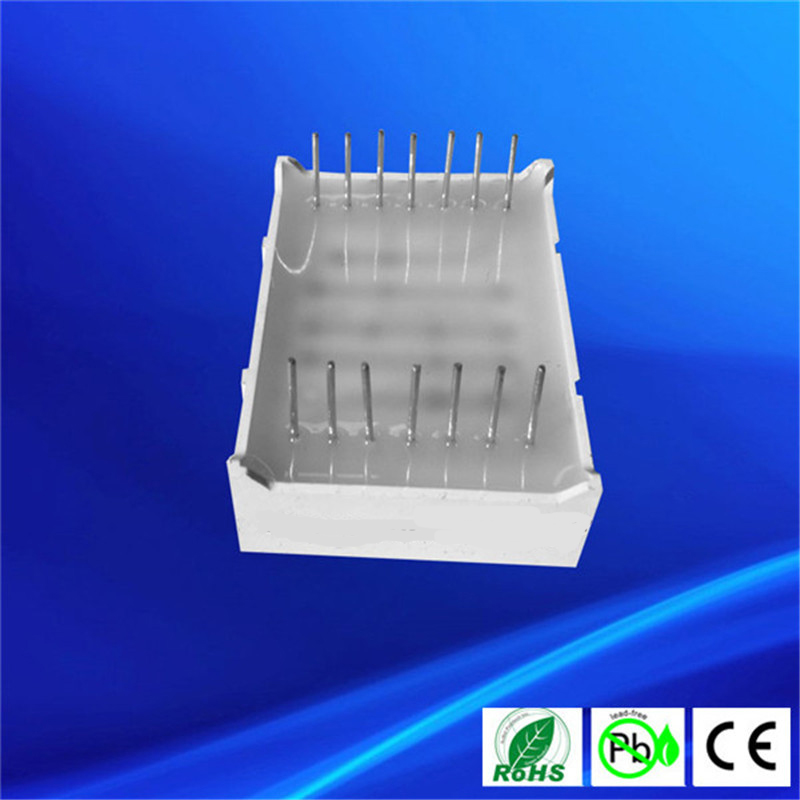

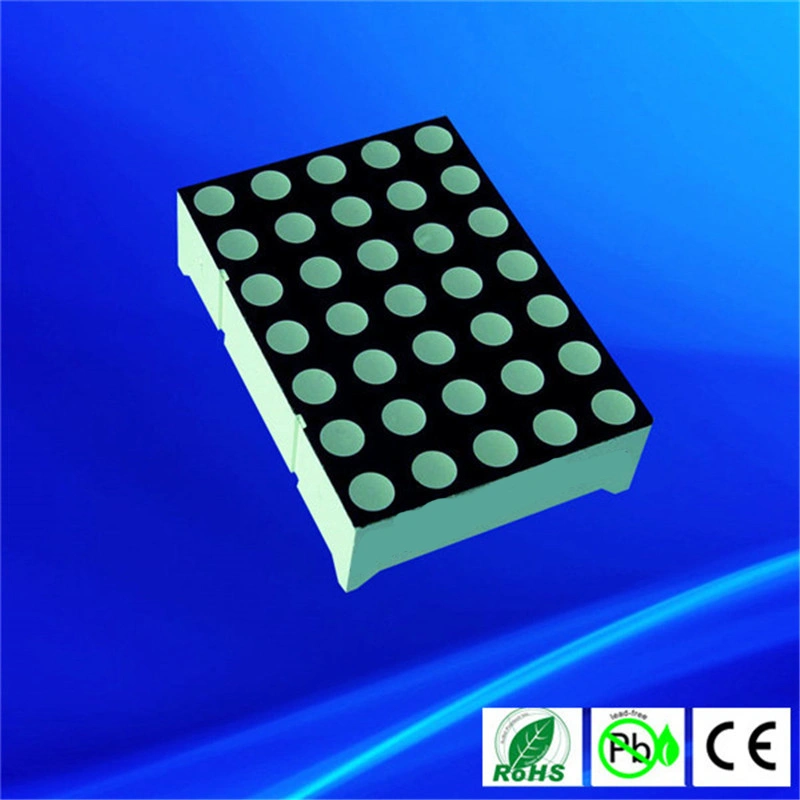

More Pictures for your easy ref

Features :

  • Low current operation.
  • Low power consumption.
  • Full color.
  • High brightness.
  • Industrial standard size.
  • Easy mounting on P.C. board or sockets.
  • Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB.
  • Face color : black / gray.
  • Surface dot type : epoxy diffusion / clear lens.


Part details :

Model.

:KEM-16057A/B

Description

:29.4*44.9mm

Surface color

:Black / gray/red

Emitting color

:red and green

Wavelength

:475-635 nm

Luminous intensity

:50-200mcd

Voltage/ Current

:1.8-3.3v / 15-20mA

PCB Polarity

:Common Cathode or Common Anode

Various color available for custom led dot matrix module 4.5 mm :

Dominant Wavelength Luminous Intensity

Red: 620 - 630nm Red: 70-90 mcd (1.8-2.3v / 20mA)

High red: 635 - 640 nm High red: 50-70 mcd (1.8-2.3v / 20mA)

Green: 565 - 575 nm Green: 70-90 mcd (1.8-2.3v / 20mA)

Yellow: 585 - 595 nm Yellow: 40-50 mcd (1.8-2.3v / 20mA)

Amber: 600 - 605nm Amber: 30 mcd (1.8-2.3v / 20mA)

Blue: 460 - 475nm Blue: 40-50 mcd (3.0-3.3v / 20mA)

Pure green: 515 - 525nm Pure green: 180-250 mcd (3.0-3.3v / 20mA)

White : 450-460 nm White: 100-180 mcd (3.0-3.3v / 20mA

If the PCB curcuit can not meet your need, pls contact me for other choices.

custom led dot matrix module 4.5 mm

What We Can Provide:

7 segment / 14 segment / 16 segment display :

1 Digit

:

0.28"0.3"0.36"0.39"0.5"0.52"0.56"0.8"

1.0"1.2"1.5"1.8"2.3"4"5"8"12"16"

2 Digit

:0.36"0.39"0.4"0.56 0.8"1"1.5"1.8"2.3"

3 Digit

:0.25"0.3"0.36"0.4"0.5"0.52"0.56"0.8"

4 Digit

:

0.25"0.28"0.3"0.36"0.39"0.4"

0.5"0.52"0.56"0.8"

Emitting Color Available

:Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB

Standard Face color

:Black Face / Gray Face (white segment)

PCB Polarity

:Common Anode / Commone Cathode

LED Dot Matrix Display:

Dot Array

:8*8 / 5*7 / 5*8 / 7*11

Dot Shape

:Round Dot , Square Dot

Dot Diameter

:

1.9mm, 3.0mm, 3.45mm,3.7mm

4.8mm, 5.0mm, 6.0mm, 10mm

Various Color

:

Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB.

Applications:

- Audio equipments or instrument panels.

- Home electronic appliances, air conditional controller.

- General use for digital indicator( led clock timer, led price tag, lift / elevator indicator & etc.).

- Multimedia products.
