Model No: Houkem-12088-BSR
3mm 8x8 dot matrix led display red 8x8 led matrix display
houkem is dot matrix led display professional manufacturer
minimum order :
1 piece
Country of Origin :
FOB Shenzhen
Quantity :
$0.80 - $1.50 / piece
- Application:Advertising/Message
- Color:red
- Panel Size:32*32mm
- Pixel Pitch:2.54
- Supplier Type:Original manufacturer
- Place of Origin:Guangdong
- Model Number:Houkem-12088-BSR
- Brand Name:Houkem
- use:advertising publish
- Pixels:2.5mm
- Specification:Digital Poster
- Emitting color:Red Green Yellow Orange Blue
- Life span:50000hours
- Screen Dimension:32*32mm
- Dot array:8x8
- Product name:7 Segment Led Display
- Voltage:1.8-2.0v
Products Description
8x8 dot matrix led display
Part No. | Houkem--12088-ASR | Dimension | 32X32mm | |||
Pixel | 3mm | Surface Color | Black/Grey | |||
Epoxy Color | Milky White/Clear | Emitting Color | red | |||
Luminous intensity | 80-100mcd/chip | Polarity | Common anode/cathode | |||
If need other specifications, Please contact with our sales to get what you want. | ||||||

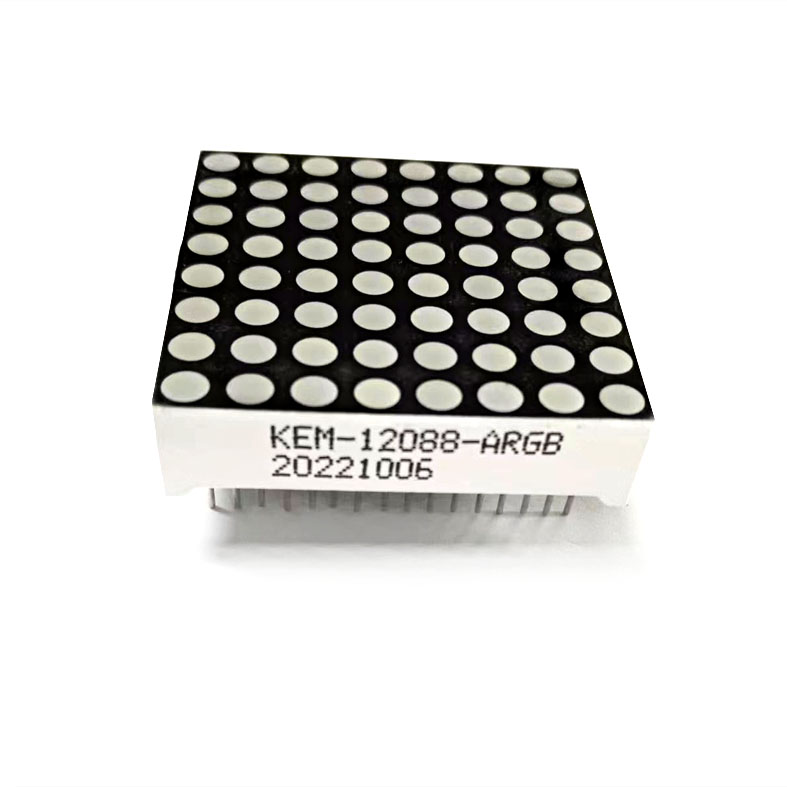

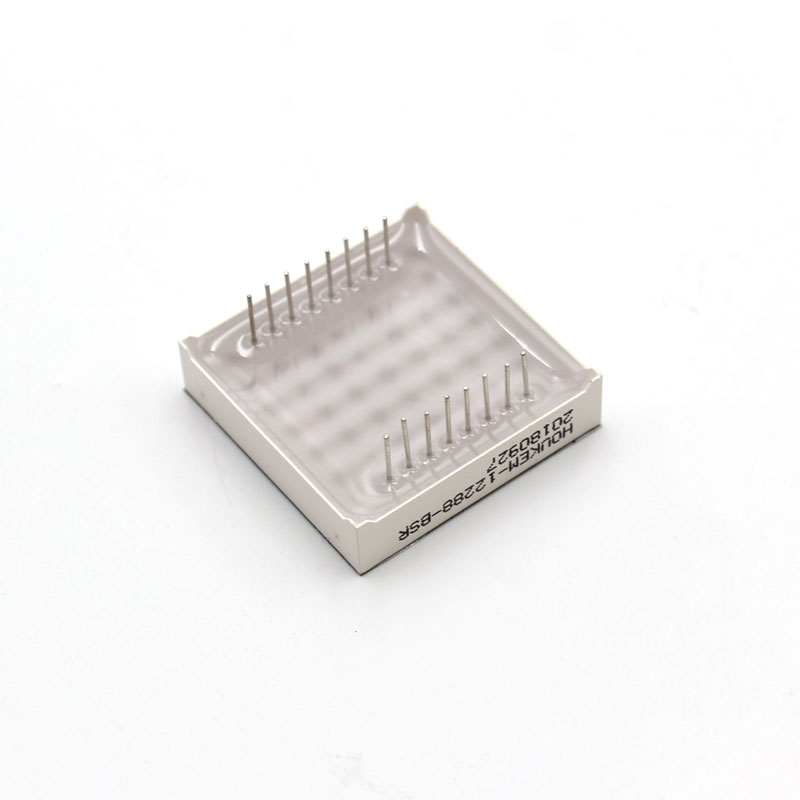

Details Images
Features:
1.8x8 dot matrix 3mm.
2.Uniform glow.
3.Low current consumption.
4.2 years of warranty.
5.Rohs & CE compliant.

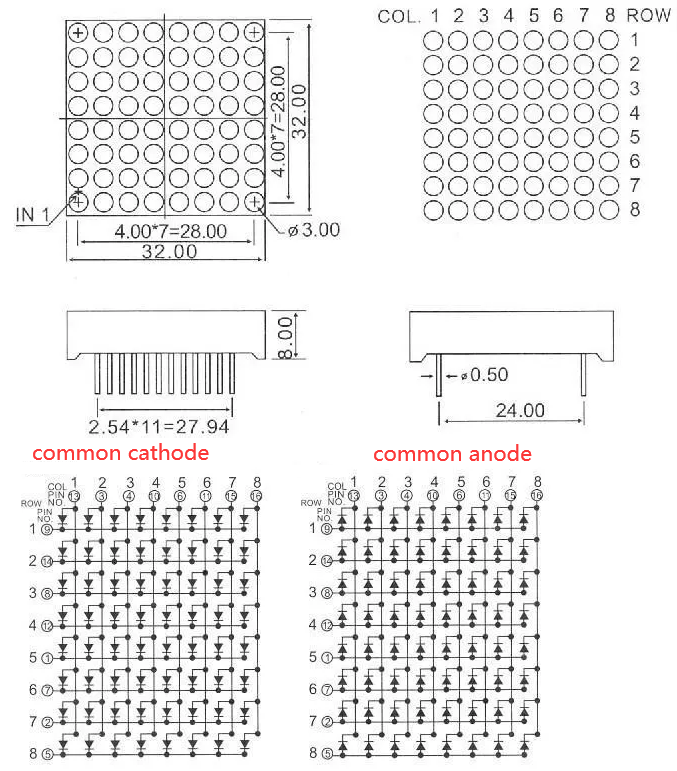

Dimension and Internal Circuit Diagram

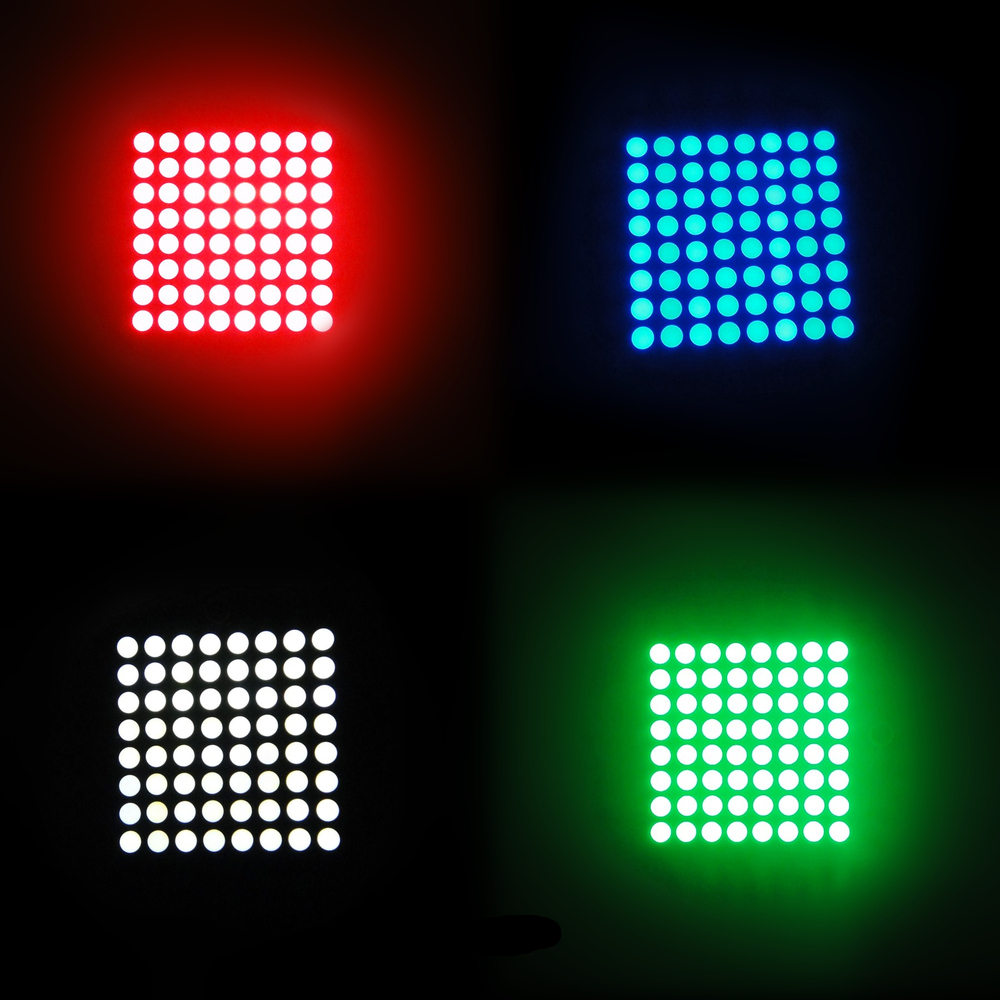

All colors and others items we can supply:
Items | Wavelength(nm) | Forward Voltage(V) | Forward current(mA) | Luminous Intensity (mcd) | Peak Forward Current(mA) | Reverse Voltage (V) | Reverse Current(uA) | ||||||
super red | 630-635 | 1.8-2.0 | 18 | 100-150 | 100 | 5 | 10 | ||||||
high red | 638-660 | 1.8-1.9 | 18 | 15-20 | 100 | 5 | 10 | ||||||
ultra red | 620-625 | 2.0-2.1 | 18 | 200-300 | 100 | 5 | 10 | ||||||
super green | 565-575 | 1.9-2.0 | 18 | 48-55 | 100 | 5 | 10 | ||||||
pure green | 615-625 | 2.8-3.0 | 20 | 260-300 | 100 | 5 | 10 | ||||||
white | / | 2.6-2.8 | 20 | 200-250 | 100 | 5 | 10 | ||||||
blue | 465-475 | 2.8-3.0 | 20 | 150-200 | 100 | 5 | 10 | ||||||
yellow | 580-600 | 1.9-2.0 | 18 | 70-80 | 100 | 5 | 10 | ||||||
amber | 600-605 | 1.9-2.0 | 18 | 100-110 | 100 | 5 | 10 | ||||||
1 digit 7 segment led display | 0.28"/0.3"/0.32"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.5"/1.8"/2.3"/3"/4"/5"/6"/7"/8"/10"/12"/16"/20" | ||||||||||||
2 digit 7 segment led display | 0.25"/0.26"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.0"/1.2"/1.3"/1.5"/1.8"/2.3" | ||||||||||||
3 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8" | ||||||||||||
4 digit 7 segment led display | 0.25"/0.28"/0.3"/0.36"/0.39"/0.4"/0.5"/0.52"/0.56"/0.8"/1.2" | ||||||||||||
5 digit 7 segment led display | 0.28"/0.36"/0.39"/0.56" | ||||||||||||
6 digit 7 segment led display | 0.3"/0.36" | ||||||||||||
Application
Industrial Equipment led display
Clock LED Display
Home Appliance LED Display
Company Profile
Houkem has 18 years of experience in manufacturing,developing,selling of led products,and certified by ISO 9001 international quality system.our main products are:customized led display,7 segment smd /led display,dot matrix,uv led & IR led.Our reliable quality and excellent service acquired high reputation from our customers.Sincerely hope to cooperate with you and create a bright future!

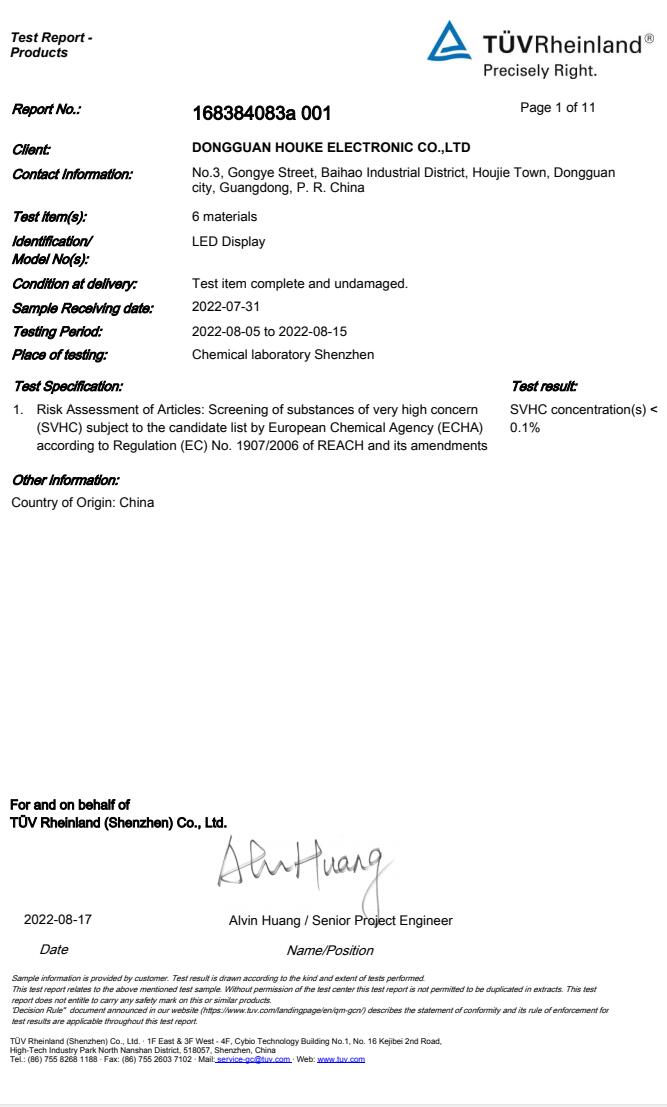

Certifications
Exhibition
FAQ
Q1: Can you accept the sample order?
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 20-30 days for mass production.
Q5: What's your quotation terms?
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and a carton. Welcome to customize if you need it.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 20-30 days for mass production.
Q5: What's your quotation terms?
EXW.
Q6: How about your quality?
Our products are CE, Rohs listed.
Q7: What's your warranty?
With over 18 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested two times before shipment. and have 2 years of warranty.
Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) We provide logistic service door to door (China:to your warehouse), much easier to transport.
Q6: How about your quality?
Our products are CE, Rohs listed.
Q7: What's your warranty?
With over 18 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested two times before shipment. and have 2 years of warranty.
Q8: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) We provide logistic service door to door (China:to your warehouse), much easier to transport.
