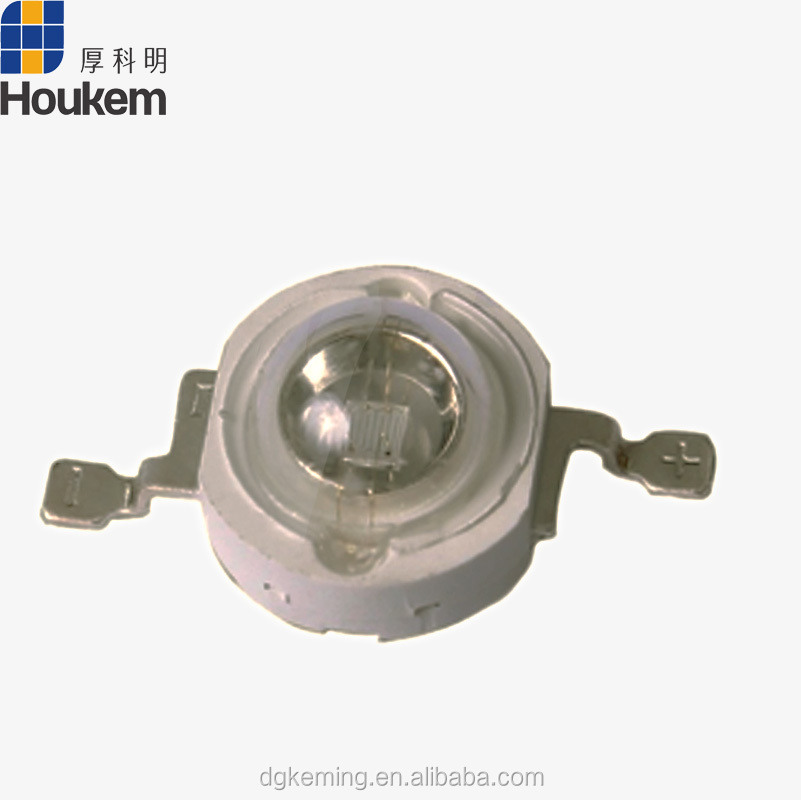

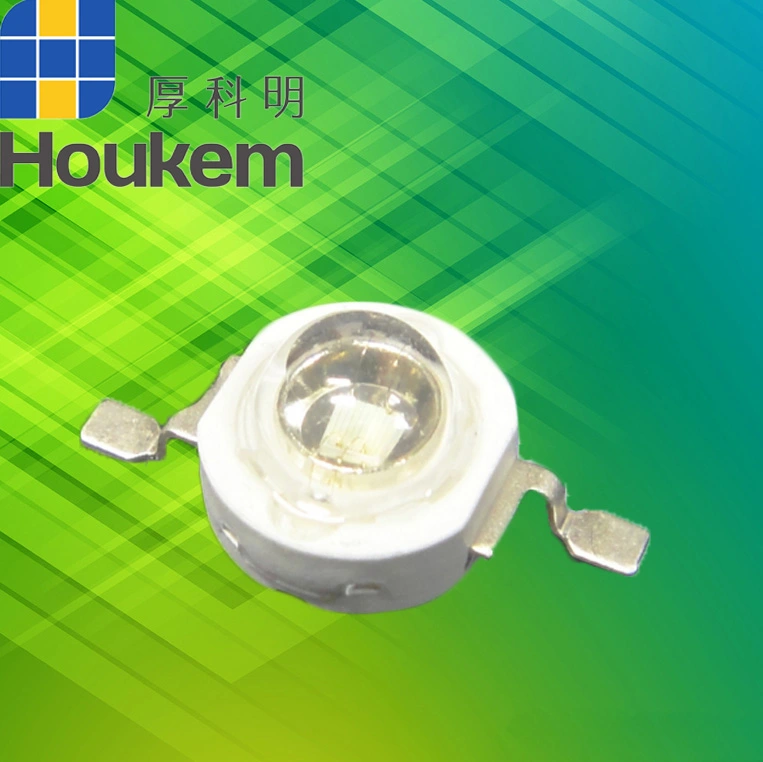

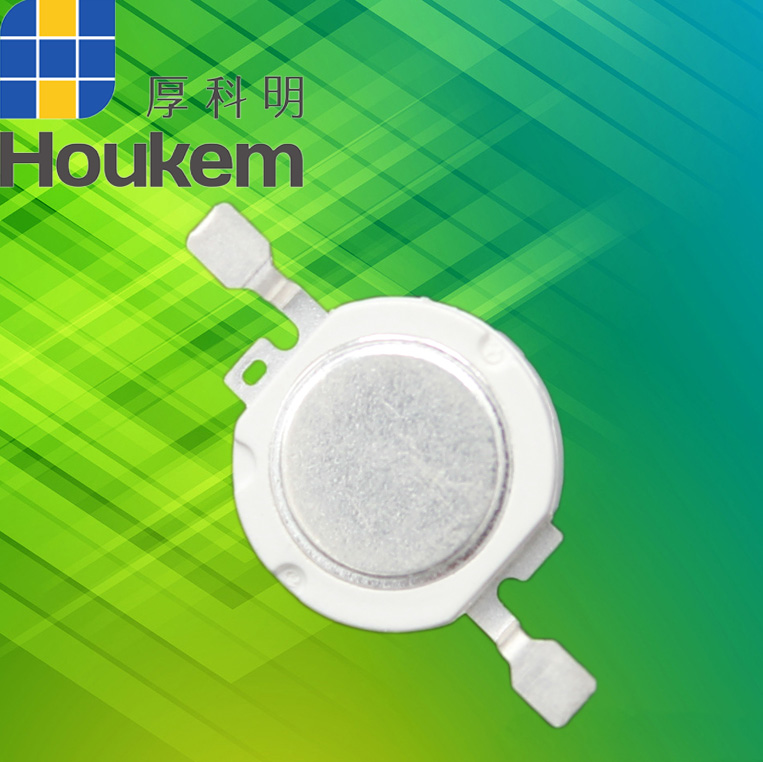

Model No: Houkem-3W-365nm
370nm 380nm 390nm 405nm 420nm 410nm 440nm 365nm 3w UV High Power Led Light
uv led houkem is uv led professional manufacturer
Delivery :
EXW
minimum order :
1 piece
Supply Ability :
500piece / Week
Stock Time :
7Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.56 - US $1.03 / piece
- Type:High Power LED
- Chip Material:InGaN
- Power:1-3W
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Emitting Color:purple
- Optical Attenuation(%):1
- Power Dissipation:1
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 80
- Brand Name:KEM
Product Description
Electeical Characteristics at 600mA,Ta=25°C
Color | Part No | Forward Voltage | Units | ||
Min | Typ | Max | |||
uv | KEM-HP003UV-E45 | 3.0 | - | 3.4 | V |
Absolute Maximum Ratings
Parameter | Symbol | Rating | Unit |
blue | |||
DC Forward Current(mA) | If | 600 | mA |
Peak Pulse Current(mA) | If | 600 | mA |
Reverse Voltage | VR | 5 | V |
LED Junction Temperature | Tj | 125 | °C |
Operation Temperature | Topr | -20--60 | °C |
Storage Temperature | Tstg | -20--80 | °C |
Soldening Temperature | Tsol | 260 | °C |
ESD Sensitivity | Vb | 4000 | V |
Luminous Flux at 600mA,Ta=25°C
Color | Part No | Wavelength | CRI | Flux | Units | ||
Min | Typ | Max | |||||
uv | KEM-HP003UV-E45 | 385-420nm | 83 | 40 | 90 | mw | |
Series information:
| Part Number | Chip Material | Emitting Color | Forward voltage | Forward current | Luminous | Viewing angle (Deg) |
| KEM-HP003WW-E45 | InGan | 2500-4500K | 3.0-3.4V | 600mA | 100-110lm | 140 |
| KEM-HP003PW-E45 | InGan | 4500-7000K | 3.0-3.4V | 600mA | 110-120lm | 140 |
| KEM-HP003CW-E45 | InGan | 7000-15000K | 3.0-3.4V | 600mA | 110-120lm | 140 |
| KEM-HP003RW-E42 | AIGainp | Red 620-630nm | 2.0-2.4V | 600mA | 60-670lm | 140 |
| KEM-HP003DR-E42 | AIGainp | Red 660-670nm | 2.0-2.4V | 600mA | 40-50lm | 140 |
| KEM-HP003GW-E42 | InGan | Green 520-530nm | 3.0-3.4V | 600mA | 80-90lm | 140 |
| KEM-HP003BW-E45 | InGan | Blue 460-470nm | 3.0-3.4V | 600mA | 100-120lm | 140 |
| KEM-HP003YW-E42 | AIGainp | Yellow 590-595nm | 2.0-2.4V | 600mA | 40-50lm | 140 |
| KEM-HP003UV-E45 | InGan | UV 385-420nm | 3.0-3.4V | 600mA | 40-90mw | 140 |
| KEM-HP003UV365-E45 | InGan | UV 365nm | 3.2-3.6V | 600mA | 70-90mw | 140 |

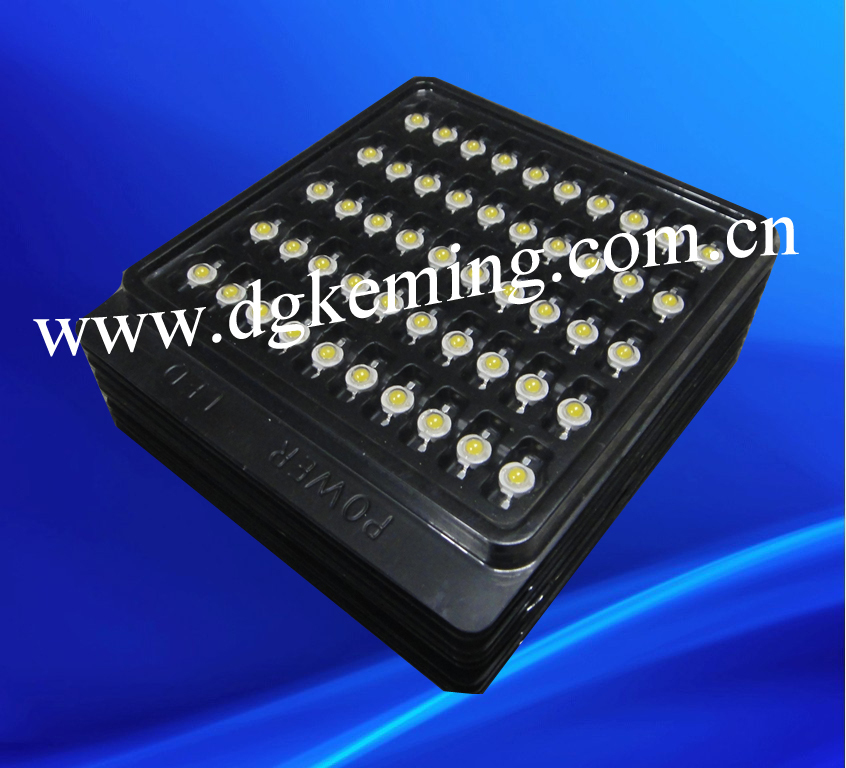

Packaging & Shipping

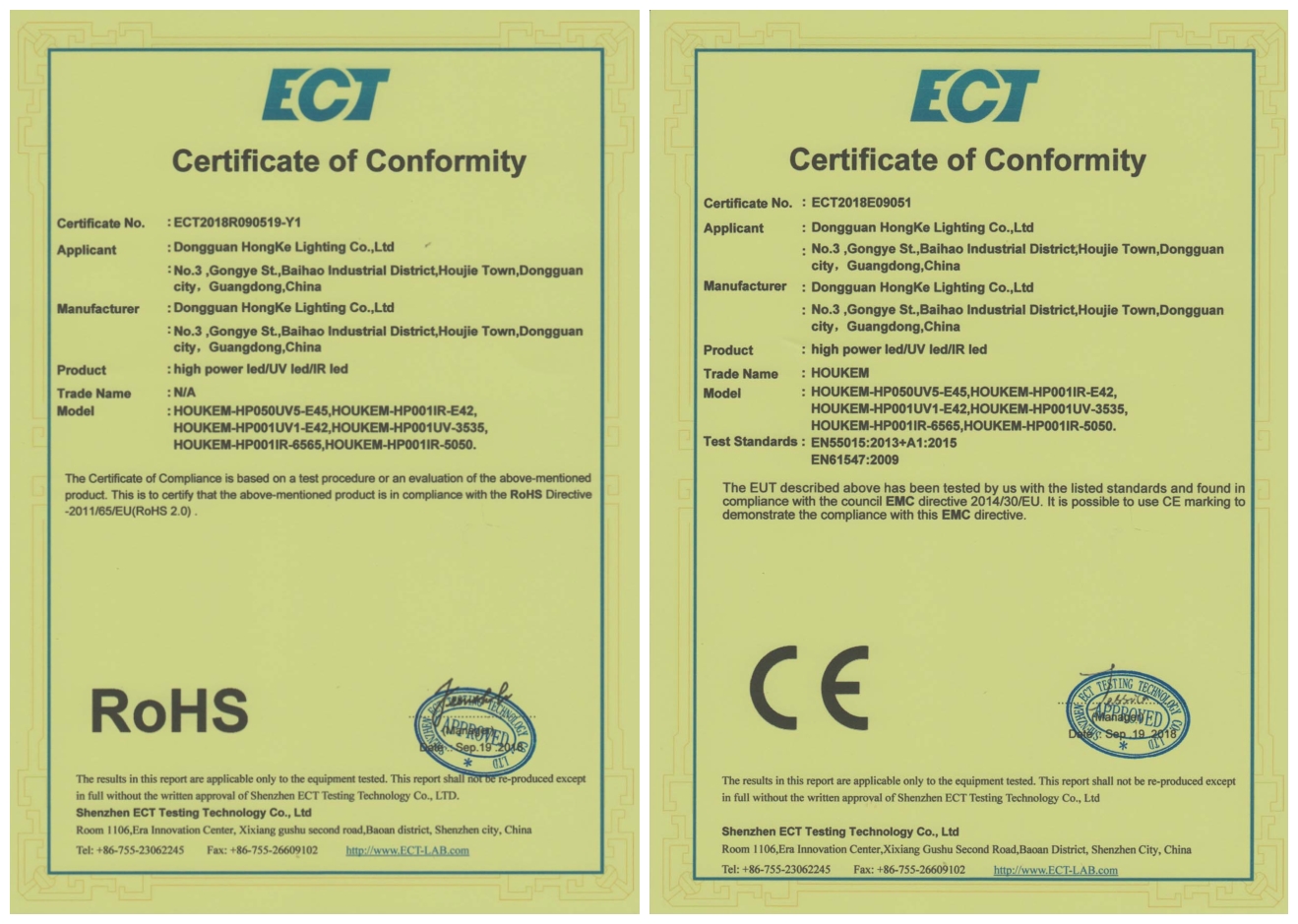

Certifications

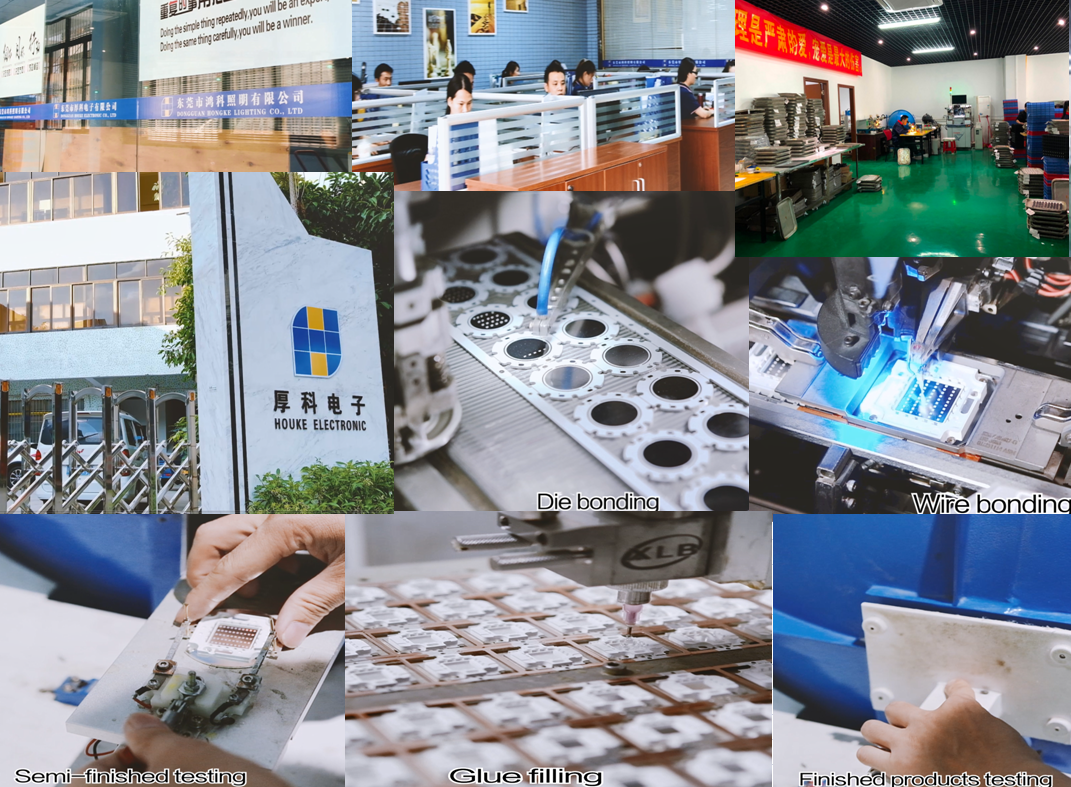

Factory pictures
