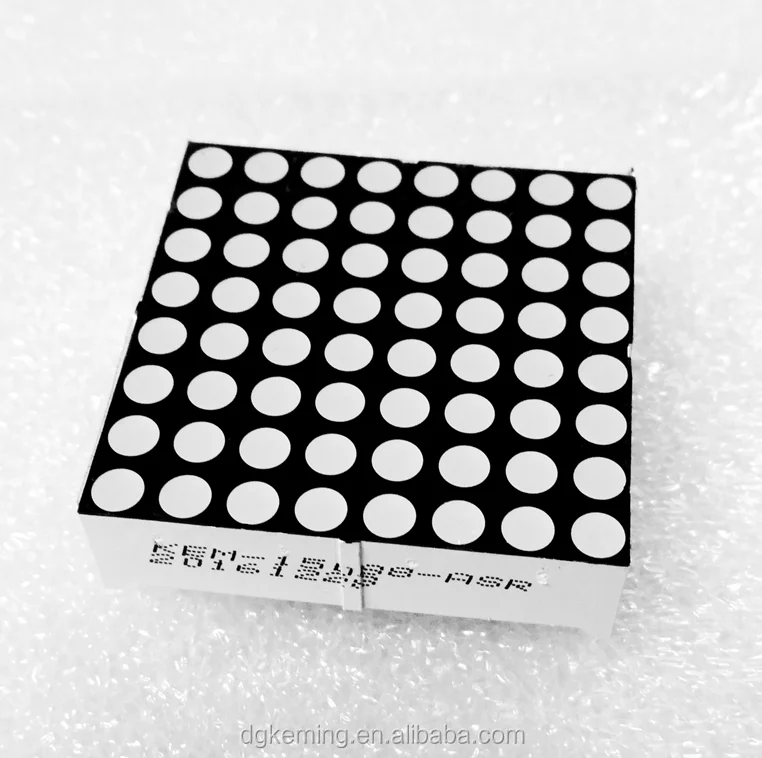

37.9*37.9mm 8x8 led dot matrix display 3.7mm dot blue
- Place of Origin:CN;GUA
- Usage:Indoor
- Tube Chip Color:Blue
- Display Function:Graphics
- Pixels:20mm
- Brand Name:Houkem
- Model Number:Houkem-15088-BB
- Screen Dimension:37.9*37.9mm

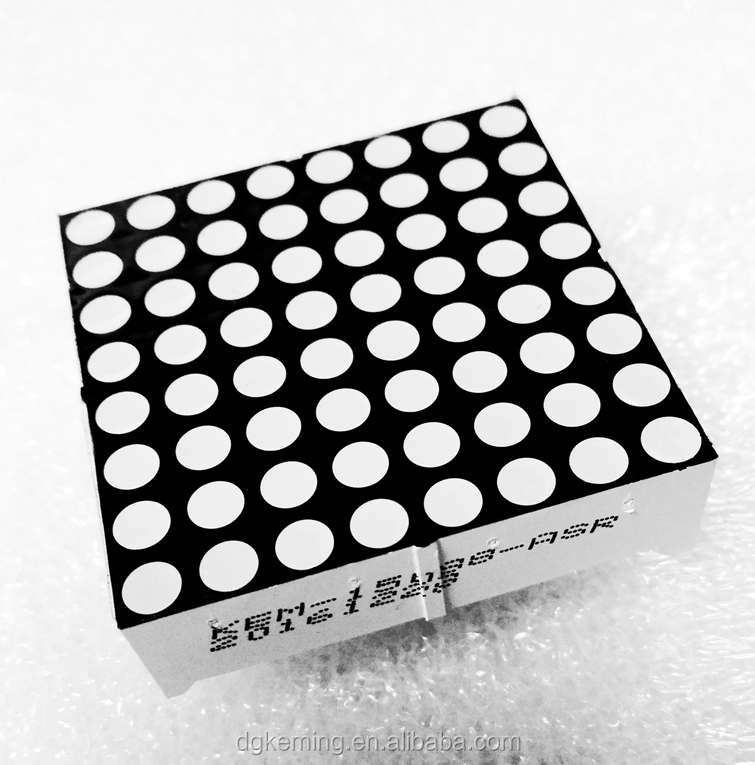

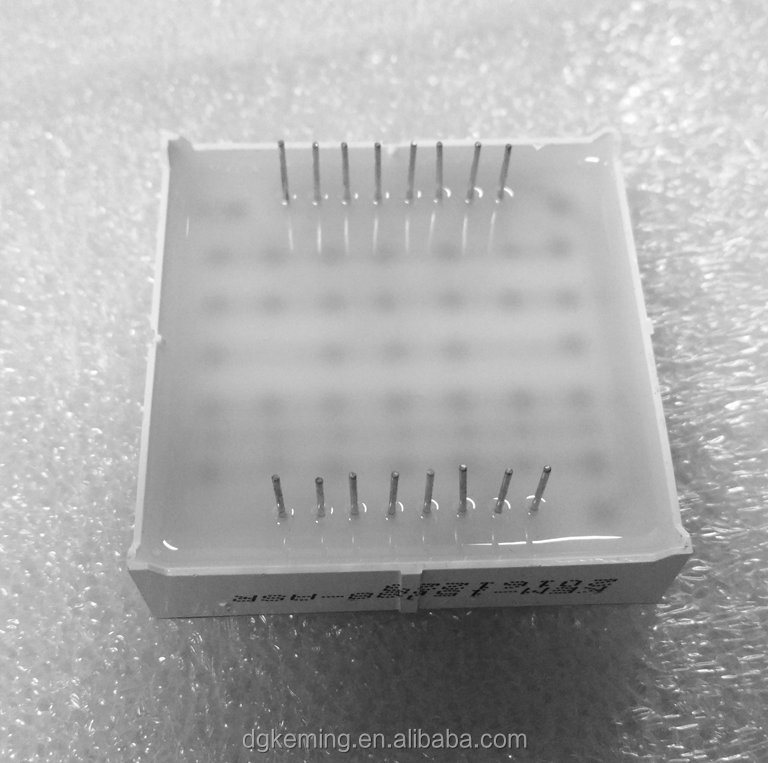

37.9*37.9mm 8x8 led dot matrix display 3.7mm dot blue 15088
Features:
1, Low consumption
2, High brightness
Product details:
KEMING-15088-AB -------common cathode(CC)
KEMING-15088-BB--------common anode(CA)
| Item No. | Houkem-15088-BB |
| Dimension | 37.9*37.9*10.3mm |
| dot | 3.7mm |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | blue |

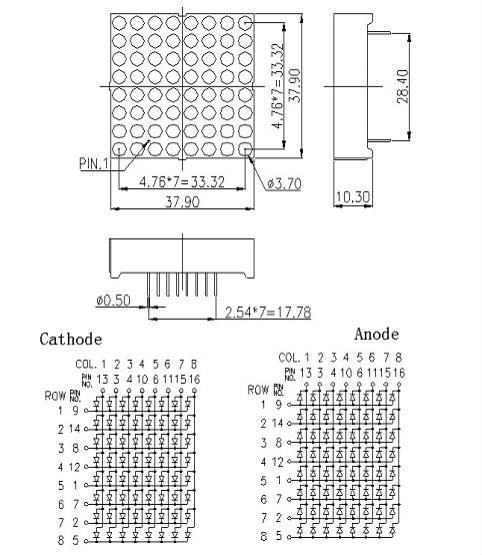

Package dimension & Internal circuit diagram
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=18mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=18mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=18mA | 625-640 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=18mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=18mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=18mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=18mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=20mA | 465-475 | 40 | 2.8 | 3.0 | 150 | 200 |
Pure green | IF=20mA | 515-525 | 40 | 2.8 | 3.0 | 180 | 250 |
White | IF=20mA | - | - | 2.8 | 3.0 | 180 | 200 |
Quantity Lead time
1-10K pcs 3-7 days
10.1K-50K pcs 7-15 days
Any delivery way is available.
Custom service:
1. We can supply you all kinds of 7 segment LED display
---Digit size: from 0.25"to 20"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green, blue, yellow, white, amber, Bi-color, RGB.

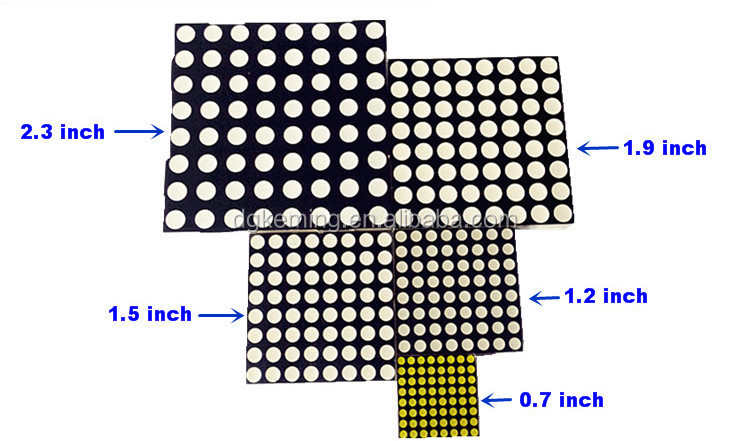

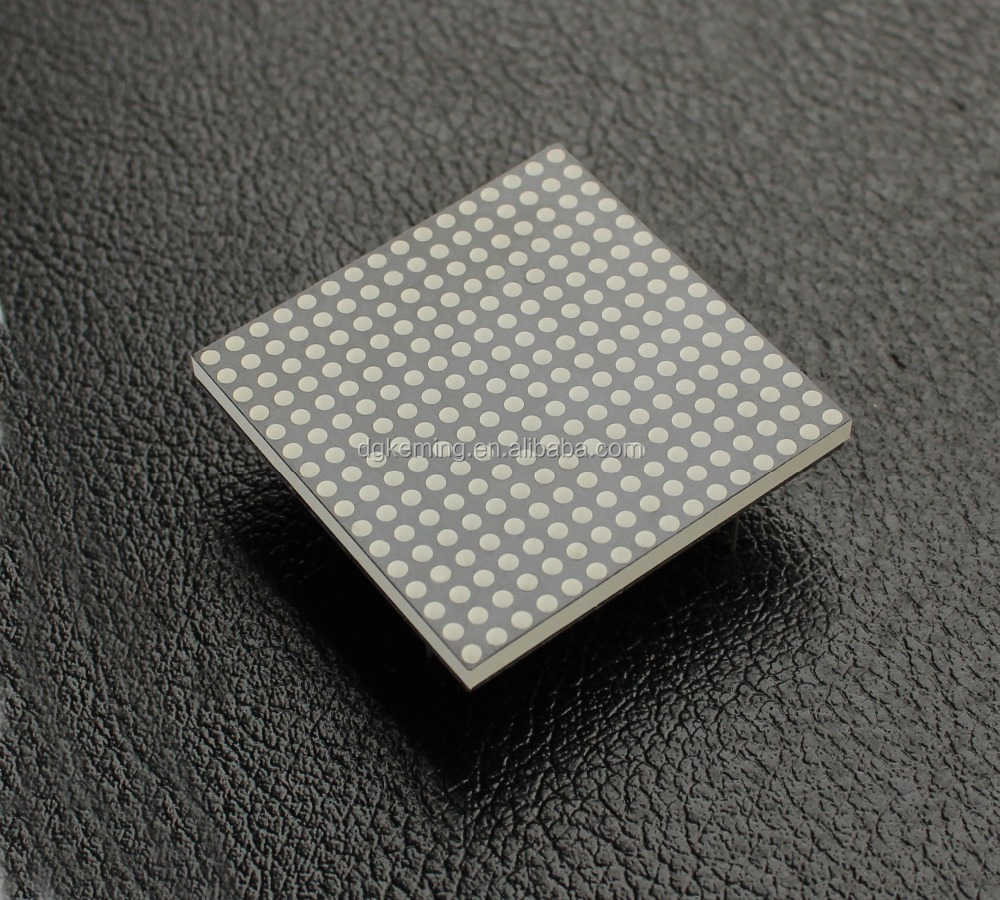

4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16
5. high power led: white /red /blue/green/IR/UV led
warranty:
Two years quality warranty
