365nm uv led good quality Epileds chip 20w 370nm 365nm UV LED module for 3d printing
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:uv curing, uv coating, uv ink
- Luminous Efficacy(lm/w):700
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.03
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:20w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:20W High Power LED 365nm
- Emitting Colour:purple
- Forward Current:700mA
- Forward Voltage:34-35v
- Application:uv curing, uv ink, uv coating
- Warranty:2 Years
- Wave length:365-370nm
- warranty:2 Years
- Certification:RoHS, CE
- Chip brand:Epileds

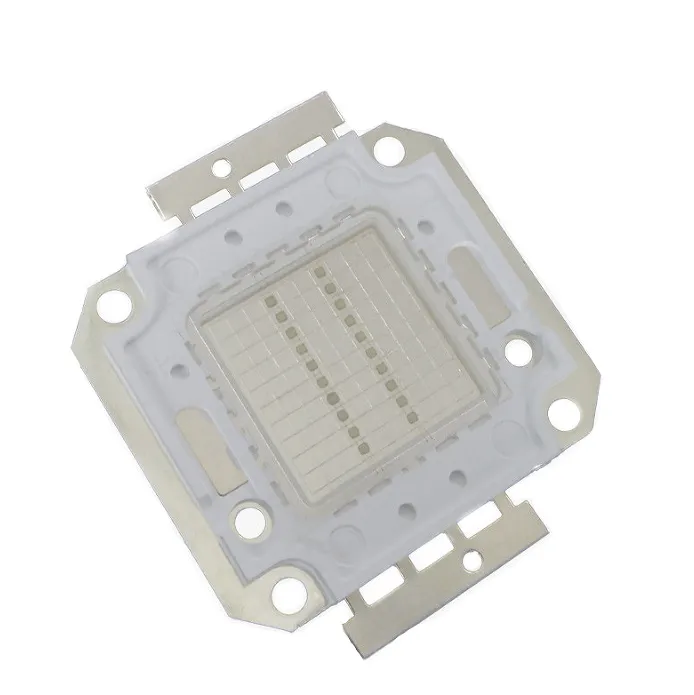

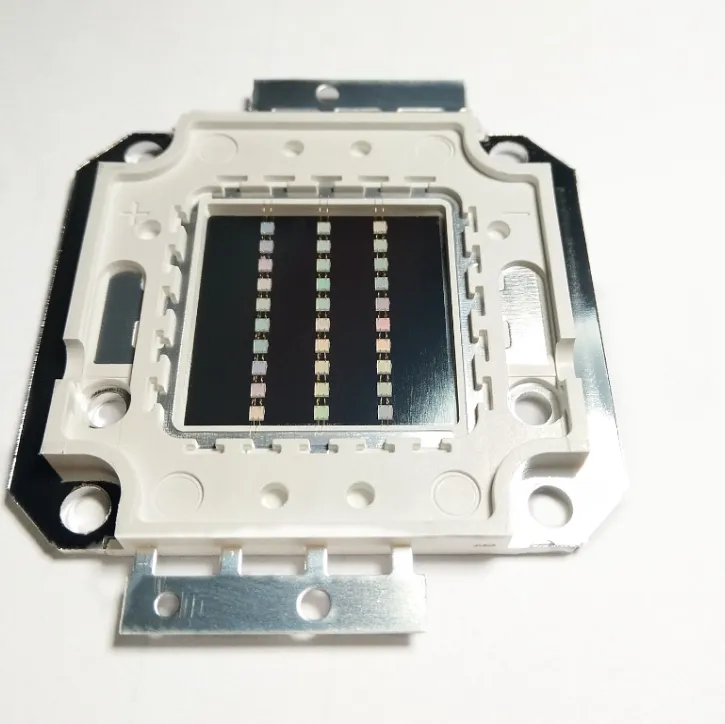

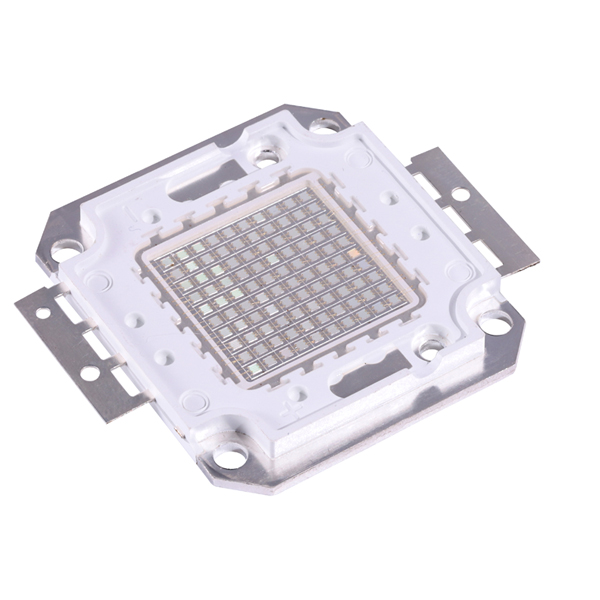

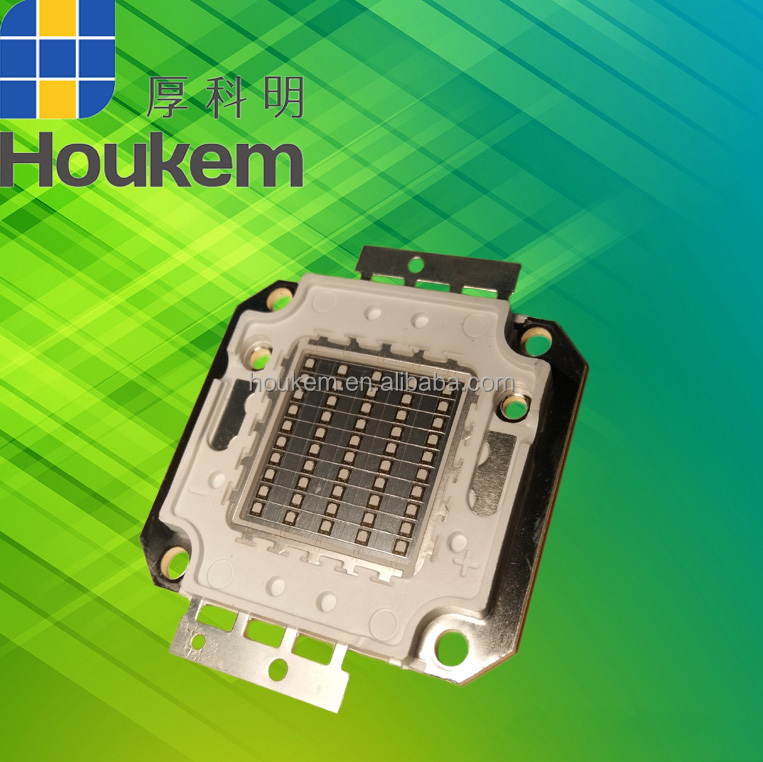

High power UVA led 20w 365nm uv led
| Item | High Power 20w UV LED 365NM |
| Power | 20w |
| Color | purple |
| Diode Brand | Epileds |
| Wavelength | 365-370nm, 380-385nm, 390-395nm, 395-400nm, 400-405nm, 405-410nm, 410-415nm, 415-420nm, 420-425nm |
| Radiant power | 10000mw |
| Forward Current | 700mA |
| Forward Voltage | 34-35v |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |

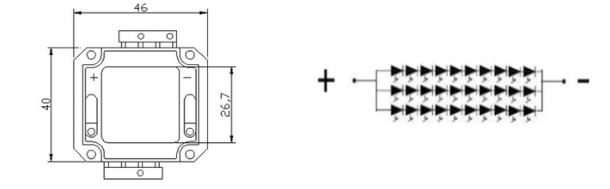

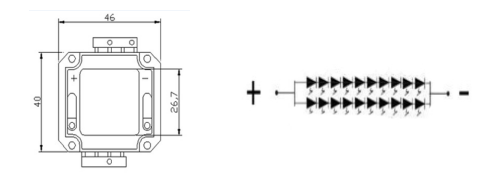

20w: 10 series& 2parallel

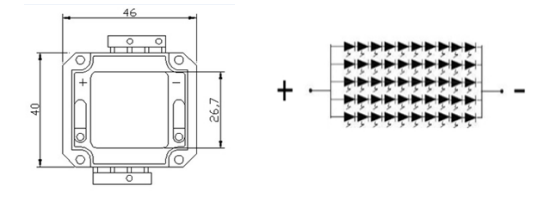

30w: 10 series& 3parallel
50w: 10 series& 5parallel

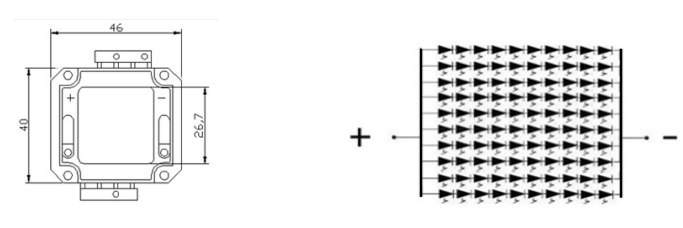

100w: 10 series& 10parallel
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1450nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..

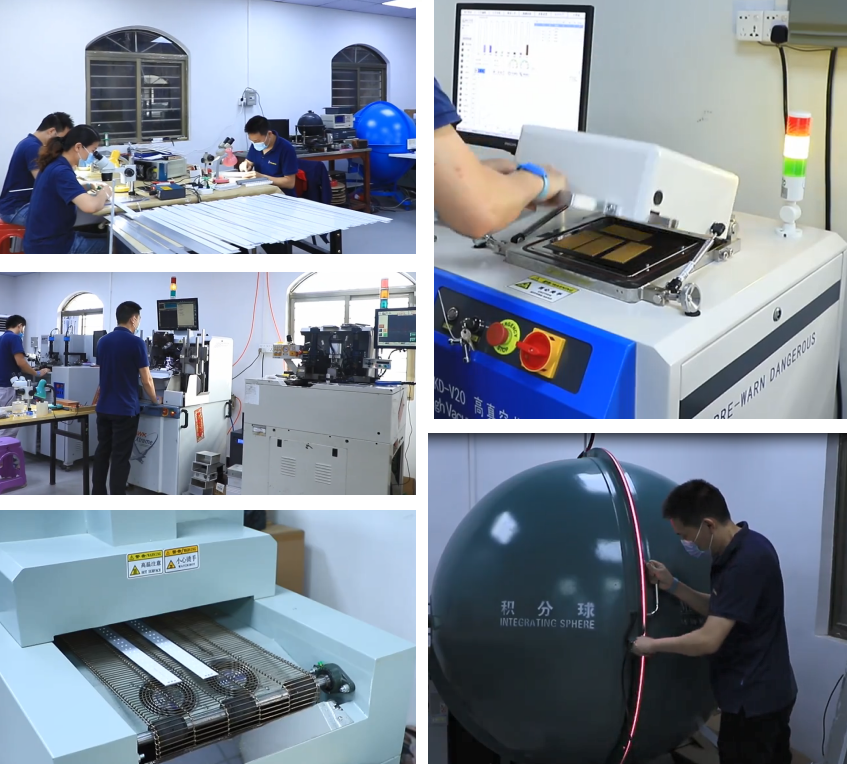

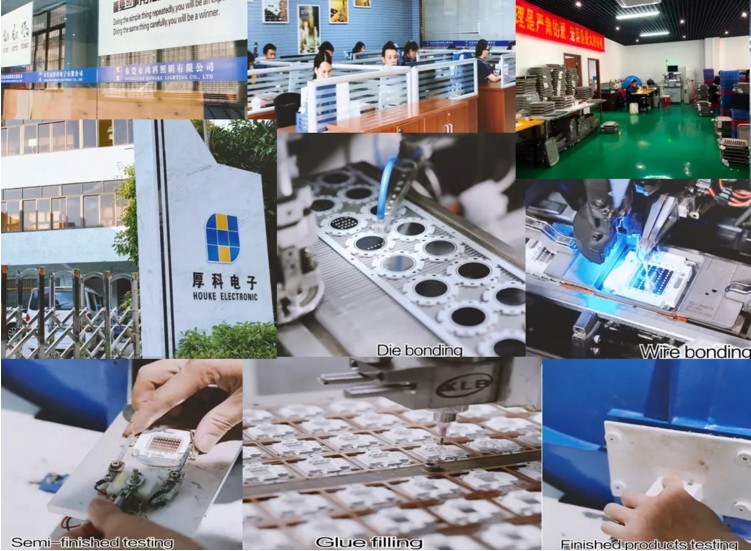

In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
