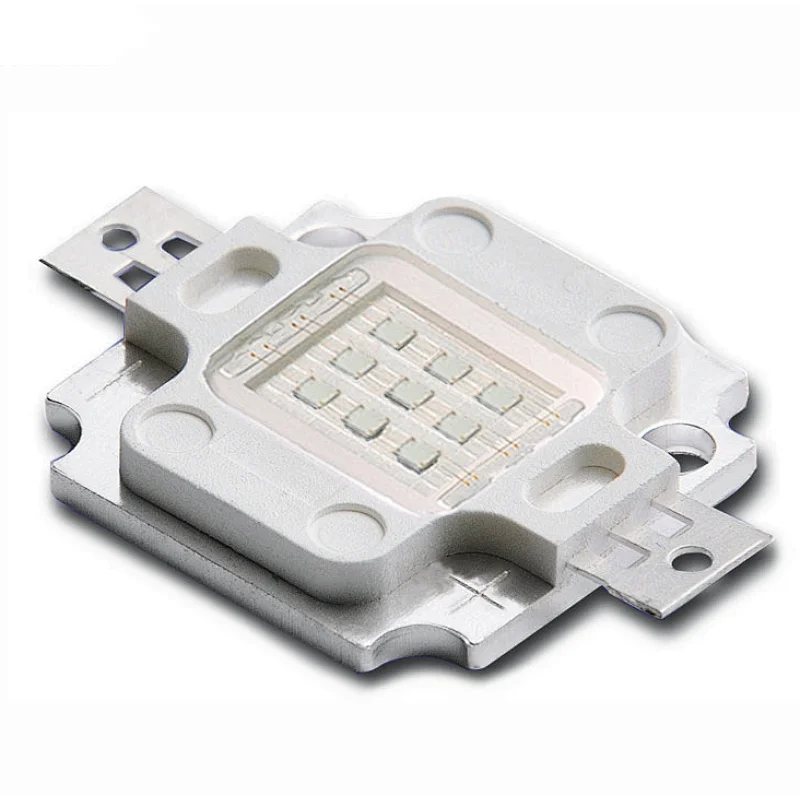

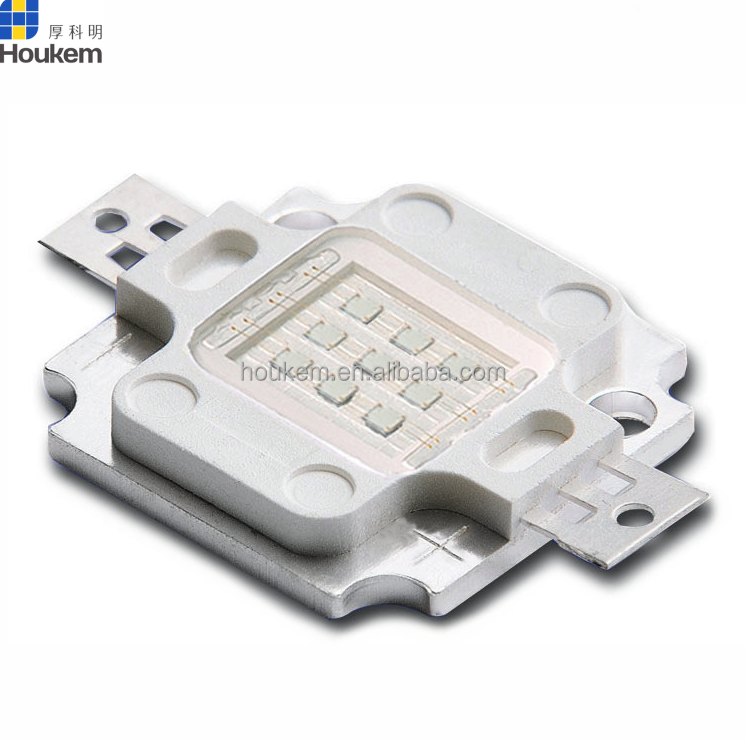

10W High Power 365nm UV LED
365nm UV LED for Industrial UV Curing Applications
The365nm UV LED is a high-performance UVA light source designed for industrial UV curing, UV coating, UV ink printing, fluorescence detection, adhesive curing, and customized ultraviolet equipment. Manufactured by Houkem, this 10W high power UV LED delivers stable optical output, excellent reliability, and long service life for OEMs, equipment manufacturers, and industrial system integrators.
Built with premium Epistar or Epileds 45mil chips and mounted on a 2.0mm red copper PCB, this 365nm UV LED provides strong radiant power and efficient heat dissipation, ensuring consistent performance in demanding industrial environments.
Key Features
- High power 10W UVA LED
- Peak wavelength: 365nm
- Optional wavelength range: 365nm–425nm
- Radiant power: 5000–5200mW
- Long lifespan up to 50,000 hours
- Epistar or Epileds 45mil chip
- 2.0mm red copper PCB for superior thermal management
- CE and RoHS certified
- Custom wavelength and module solutions available
Typical Applications
The365nm UV LED is widely used in:
- UV curing systems
- UV ink printing equipment
- UV coating machines
- UV adhesive curing
- Fluorescence excitation
- Non-destructive testing
- Industrial inspection systems
- Medical and laboratory equipment
- Security marking and counterfeit detection
For industrial UV curing applications, the 365nm wavelength offers excellent compatibility with many UV-sensitive resins, inks, coatings, and adhesives, making it one of the most widely adopted UVA wavelengths in the market.

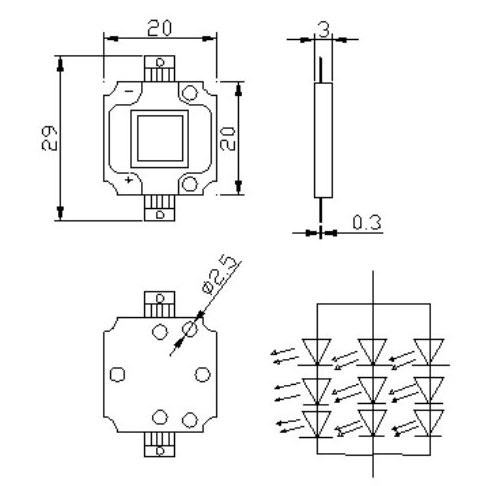

Product Specifications
Electrical and Optical Characteristics
| Item | High Power 10W UV LED 365nm |
|---|---|
| Product Model | HOUKEM-HP10W-365 |
| Power | 10W |

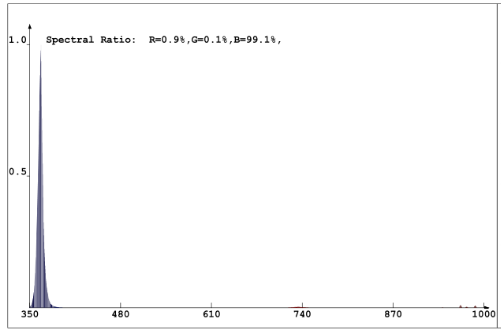

| Wavelength | 365nm |
| Optional Wavelengths | 365-370nm, 380-385nm, 390-395nm, 395-400nm, 400-405nm, 405-410nm, 410-415nm, 415-420nm, 420-425nm |
| Radiant Power | 5000-5200mW |
| Forward Current | 900-1050mA |
| Forward Voltage | 9.6-11V |
| Viewing Angle | 140° |
| Diode Brand | Epistar / Epileds 45mil |
| PCB Material | 2.0mm Red Copper Plate |
| Certification | CE, RoHS |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 80°C |
| Lifespan | 50,000 Hours |
| Other Wavelengths Available | 255nm-1550nm |
General Product Information
| Parameter | Value |
|---|---|
| Input Voltage | DC 9.6-11V |
| Product Weight | 0.03kg |
| Chip Material | AlGaInP |
| Emitting Color | Purple |
| Warranty | 2 Years |
| Origin | Guangdong, China |
| Brand | HOUKEM |
Why Choose a 365nm UV LED?
Among all UVA wavelengths, 365nm UV LED devices are considered the industry standard for UV curing and fluorescence applications.
Excellent UV Curing Performance
The 365nm wavelength efficiently activates a wide range of photoinitiators used in:
- UV inks
- UV coatings
- UV adhesives
- UV resins
This results in faster curing speed, higher production efficiency, and improved product quality.
Strong Fluorescence Excitation
A365nm UV LED can effectively excite fluorescent materials used in:
- Leak detection
- Mineral identification
- Forensic inspection
- Security verification
- Biomedical analysis
Long-Term Reliability
Compared with traditional mercury lamps, high power UV LEDs offer:
- Instant on/off operation
- Lower energy consumption
- Reduced maintenance costs
- Longer operating life
- Environmentally friendly operation
Manufacturing Capabilities
Houkem has specialized in LED manufacturing since 2003 and provides complete UV LED solutions for global industrial customers.
Our Advantages
- More than 20 years of LED manufacturing experience
- Professional UV LED R&D team
- OEM and ODM support
- Custom wavelength development
- Custom PCB and module design
- Fast sample delivery
- Stable large-volume production
- Global export experience
In addition to standalone LEDs, we can also provide:
- UV LED modules
- Constant current drivers
- Heat sinks
- Cooling fan systems
- Customized UV curing solutions
Our products are exported worldwide, including:
- United States
- Germany
- Japan
- South Korea
- Europe
- Southeast Asia
Quality Assurance
Every365nm UV LED undergoes strict testing before shipment.
Quality Control Process
- Incoming material inspection
- Spectrum wavelength verification
- Optical power testing
- Electrical performance testing
- Reliability testing
- Final quality inspection
All products comply with:
- CE Certification
- RoHS Certification
Warranty coverage: 2 years.
FAQ
What industries commonly use 365nm UV LED products?
Industrial UV curing, printing equipment, coating systems, fluorescence inspection, laboratory instruments, and medical devices are the most common applications. Custom solutions are available for specialized equipment manufacturers.
Can the 365nm UV LED be integrated into existing curing systems?
Yes. The LED can be integrated into new or existing UV curing equipment. Our engineering team can assist with thermal management, driver matching, and optical design recommendations.
Do you provide customized wavelengths or UV LED modules?
Yes. Houkem supports customized wavelengths from 255nm to 1550nm as well as custom UV LED arrays, modules, and PCB solutions for OEM customers.
What is the typical lead time for bulk orders?
Samples are usually available within 3–7 working days, while mass production typically requires 1–3 weeks depending on order quantity and customization requirements.
How do you ensure consistency between production batches?
Each batch undergoes wavelength sorting, optical power testing, and electrical parameter verification to ensure stable performance and consistent product quality.
Partner with a Professional UV LED Manufacturer
Looking for a reliable supplier of 365nm UV LED products for UV curing, UV printing, coating systems, or industrial inspection equipment?
Houkem offers factory-direct pricing, stable production capacity, custom engineering support, and fast global delivery.
Contact our technical team today to request samples, receive wavelength recommendations, or discuss your OEM/ODM UV LED project.
