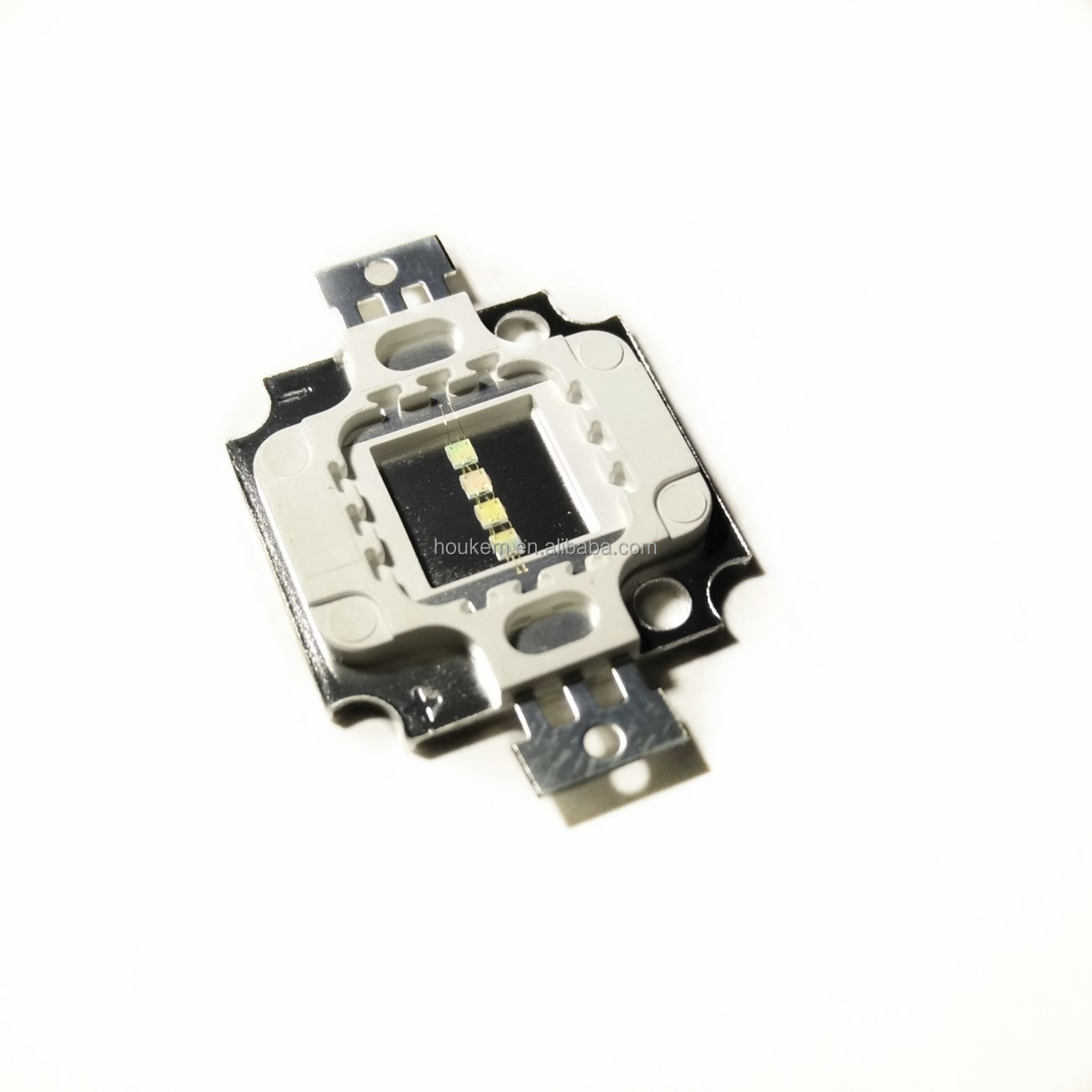

365nm 10W UV LED Epileds chip 370nm 365nm high power led for uv curing
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design, uv curing, uv coating, uv ink
- Luminous Efficacy(lm/w):500
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.02
- Chip Material:AlGaInP
- Emitting Color:purple
- Luminous Intensity:500mw
- Power:10w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:10W High Power LED 365nm
- Emitting Colour:purple
- Forward Current:1050mA
- Forward Voltage:9-11v
- Application:uv curing, uv ink, uv coating
- Wave length:365-370nm
- Other Wavelength:255nm-1550nm
- Certification:RoHS, CE, ISO9001
- Chip brand:Epileds
- Chip Size:45mil

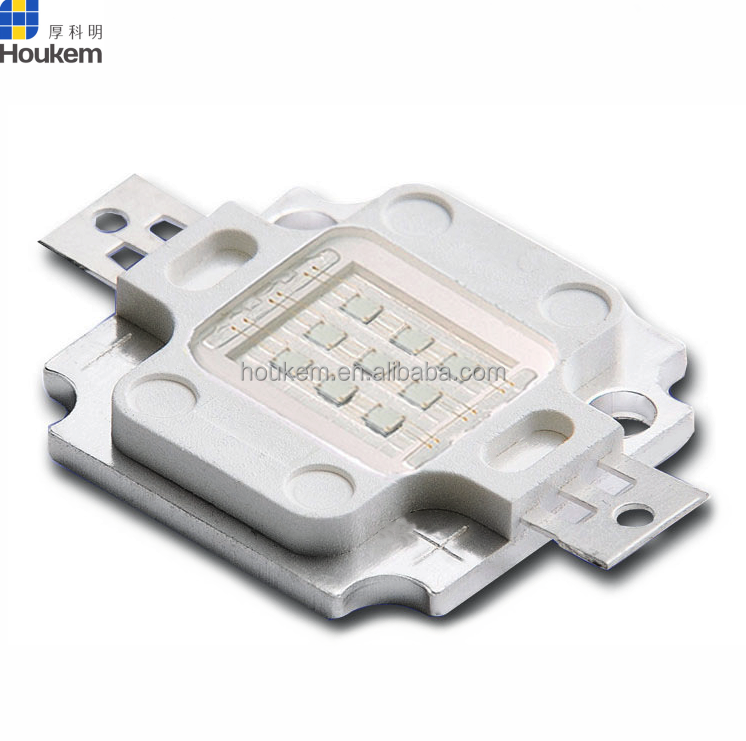

High power 10w 365nm UV led

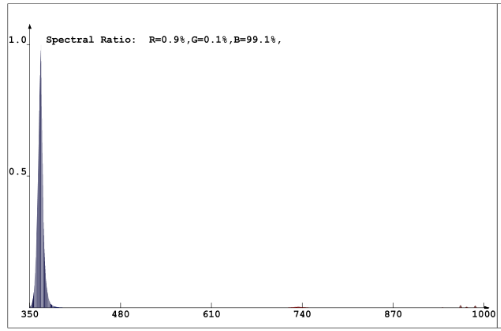

Electrical and optical characteristics (Ta = 25℃)
| Item | High Power 10w uv LED 365nm |
| Radiant flux | 4500-4700mw |
| Color | Purple |
| view angle | 140degree |
| Wavelength | 365-370nm,370-375nm, 380-385nm, 390-395nm, 395-400nm, 400-405nm, 405-410nm, 410-415nm, 415-420nm, 420-425nm, 430-435nm |
| Forward Current | 1050mA |
| Forward Voltage | 9-11v |
| Certification | CE, RoHS, ISO9001 |
| PCB Material | 2.0mm Red copper plate |

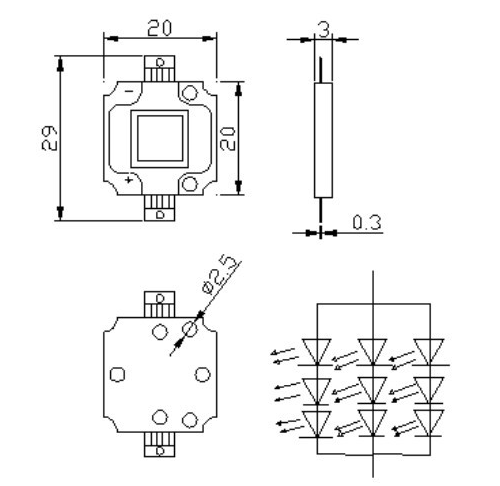

4 series 1 parallel
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.
Established in 2003, Houkem has 18 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1550nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
Q1. Can I have a sample order for your products?
A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A:Sample needs 3-7 work days, mass production time needs 1-3 weeks .
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc for sample checking is available for most types.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5.what payment method can you accept?
A:we accept :T/T,paypal,Western Union,Credit card.
Q6. How to proceed an order ?
A: Firstly let us know your requirements or application.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q7. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 2 years quality warranty to our products.
Q9: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) We provide service door to door (China to your warehouse), much easy transaction.
