3535 smd uvc led aluminum pcb board 30w 270nm 275nm 280nm UVC led module for sterilization
- Warranty(Year):2-Year
- Type:LED Modules
- Luminous Efficacy(lm/w):26
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:30w
- Viewing Angle(°):60 or 120
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:High Power uvc led module 275nm
- Emitting Colour:purple
- Forward Voltage:25-30v
- Lifespan:50000 Hours
- Application:water sterilization, air sterilization system
- Warranty:2 Years
- forward current:800mA
- Radiant flux:320-480mw
- LED Quantity:40pcs
- Material:Aluminum PCB
- Certification:ce, RoHS
| Item | High Power 30w uvc LED module |
| Power | 50w |
| chip quantity | 40pcs |
| Color | purple |
| Diode type | 275nm 3535 smd type (6565, 5050 are available) |
| material | aluminum pcb board |
| size | 51*31mm( customized size are avilable) (235*36mm,585*36*1.5mm, 985*36*1.5mm, 40*40*1.5mm aluminum pcb board) |
| Radiant flux | 320-480mw |
| View Angle of the Lens | 60 degree/120degree |
| Wavelength | 270-280nm |
| other wavelength | 255-340nm, 365-430nm, 440-1550nm |
| Forward Voltage | 25-30v |
| Forward current | 800mA |
| Application | Toilet , Bedding , Crawling mat ,Crib ,Pet items,Pet environmental ,etc Object disinfection |

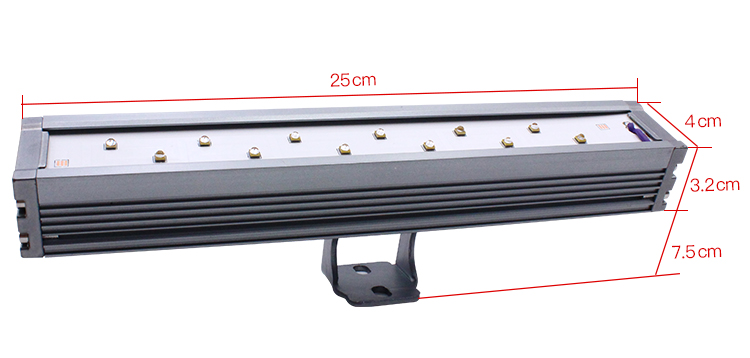

235*36mm
2 series 6 parallel, 12pcs led
41*30mm copper board
10 series 5 parallel
50pcs led
40*40mm
5 series 5 parallel
25pcs led

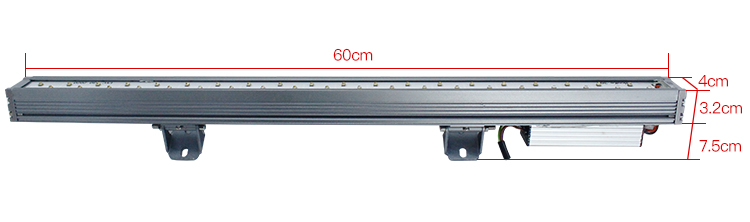

585*36mm
5 series 8 parallel
40 pcs led
985*36mm
5 series 12 parallel
60pcs led
UVC LED sterilizer light
Established in 2003, we are a LED professional manufacturer, we offer led products, high power 255nm to 1550nm LED, COB LEDs,
SMD LEDs, street light LED, LED optical lens, UVC LED sterilizer light, 50w-1000w LED grow light, 10w-200w led flood light, and all LED lighting application solution.
1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.
2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.
3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
4. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
