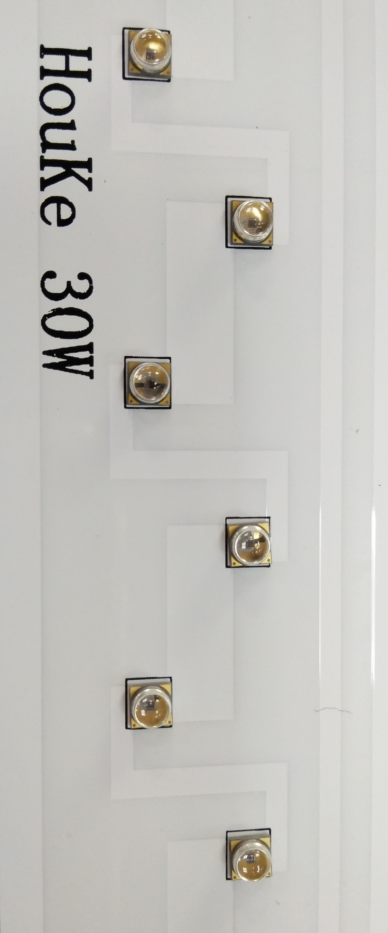

3535 smd uv led strip aluminum pcb board 30w 308nm 315nm 310nm UVB led module for phototherapy
- Input Voltage(V):DC 30V
- Warranty(Year):2-Year
- Type:LED Modules
- Support Dimmer:NO
- Lighting solutions service:phototherapy
- Luminous Efficacy(lm/w):26
- Lifespan (hours):10000
- Working Time (hours):10000
- Product Weight（kg）:0.3
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:30w
- Viewing Angle(°):60 or 120
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:High Power uvb led module 310nm
- Emitting Colour:purple
- Forward Voltage:25-30v
- Warranty:2 Years
- forward current:800mA
- Radiant flux:320-480mw
- LED Quantity:40pcs
- Material:Aluminum PCB
- Certification:RoHS, CE
| Item | High Power 30w uvB LED module |
| Power | 30w |
| chip quantity | 40pcs |
| Color | purple |
| Diode type | 310nm 3535 smd type (6565, 5050 are available) |
| material | aluminum pcb board |
| size | 51*31mm( customized size are avilable) (235*36mm,585*36*1.5mm, 985*36*1.5mm, 40*40*1.5mm aluminum pcb board) |
| Radiant flux | 320-480mw |
| View Angle of the Lens | 60 degree/120degree/30degree |
| Wavelength | 305-315nm |
| other wavelength | 255-340nm, 365-430nm, 440-1550nm |
| Forward Voltage | 25-30v |
| Forward current | 800mA |
10w, 235*36mm
2 series 6 parallel, 12pcs led
20w, 40*40mm
5 series 5 parallel
25pcs led
30w, 585*36mm
5 series 8 parallel
40 pcs led
50w, 985*36mm
5 series 12 parallel
60pcs led
UV LED light
Established in 2003, we are a LED professional manufacturer, we offer led products, high power 255nm to 1550nm LED, COB LEDs,
SMD LEDs, street light LED, LED optical lens, UVC LED sterilizer light, 10w-200w led flood light, and all LED lighting application solution.
1, What will be the delivery time and what will be the mode of payment ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
The payment can be T/T transaction, Paypal,Western Union.
2. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express, etc since the products isn't too heavy for the transportation.
3. Could you please send me the sample for the same . So that i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
4. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
