3535 smd led 20w 255nm 265nm 275nm 280nm high power UVC led module for sterilization
- Input Voltage(V):DC 6V
- Warranty(Year):1-Year
- Type:LED Modules
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):26
- Lifespan (hours):50000
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:20w
- Viewing Angle(°):60 or 120
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 60
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:High Power uvc led module 265nm
- Emitting Colour:puple
- Application:sterilization
- Warranty:2 Years
- Wave length:275nm
- warranty:2 Years
- Radiant flux:250-375mw
- other wavelength:255-1550nm
- Dimension:40*40*1.5mm
- Certification:ce, RoHS
| Item | High Power 20w uvc LED module |
| Power | 20w |
| chip quantity | 25pcs |
| Color | purple |

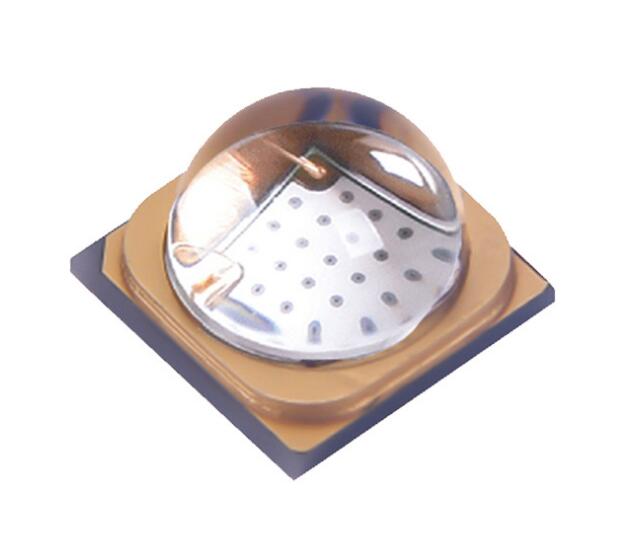

| Diode type | 265nm 3535 smd type (6565, 5050 are available) |
| material | copper ( aluminum are available) |
| size | 51*31mm( customized size are avilable) (235*36mm,585*36mm, 985*36mm, 40*40mm aluminum pcb board) |
| Radiant flux | 265nm(250-375mw); 275nm(250-375), 255nm(250-300mw) |

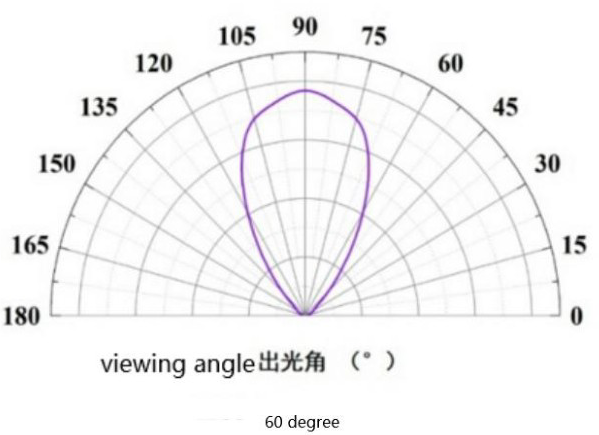

| View Angle of the Lens | 60 degree/120degree |
| Wavelength | 260-270nm, 250-260nm, 270-280nm |
| other wavelength | 255-340nm, 365-430nm, 440-1550nm, white color(2800-15000k) |
| Forward Voltage | 6v |
| Application | Toilet , Bedding , Crawling mat ,Crib ,Pet items,Pet environmental ,etc Object disinfection |

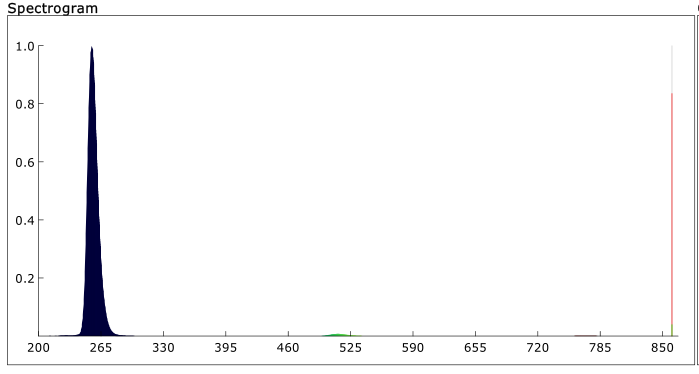

265nm

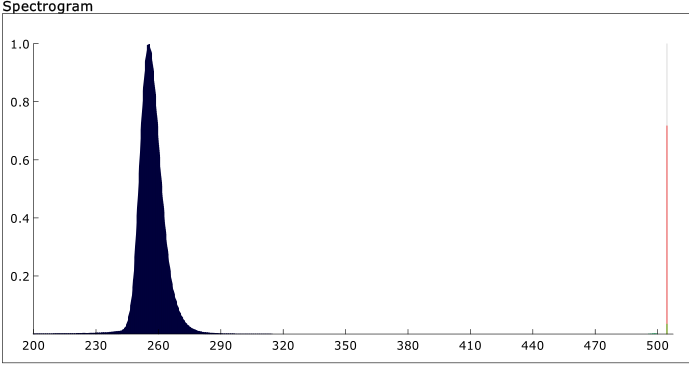

255nm

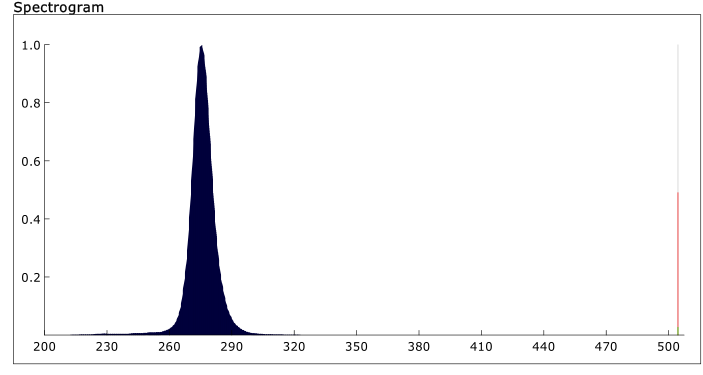

275nm

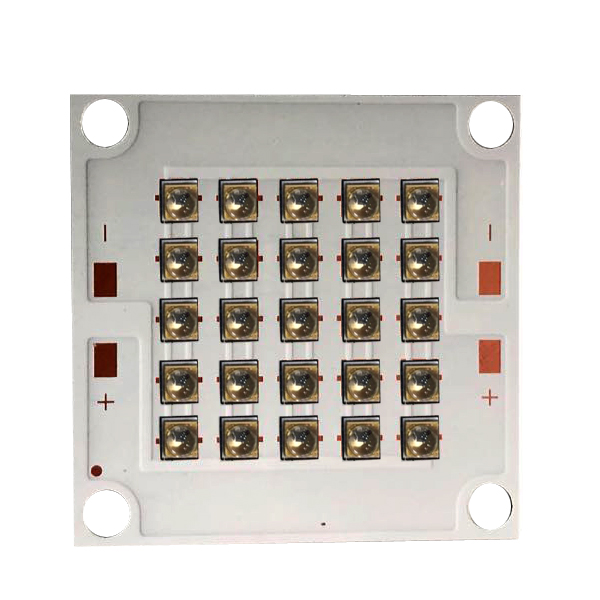

40*40*1.6mm
5 series 5 parallel
25pcs led

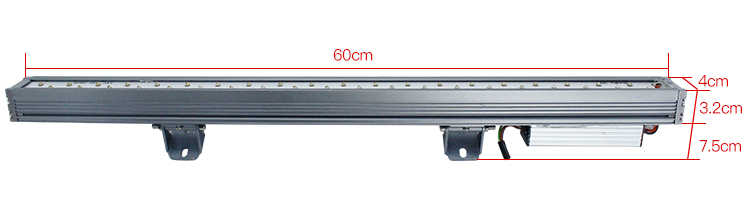

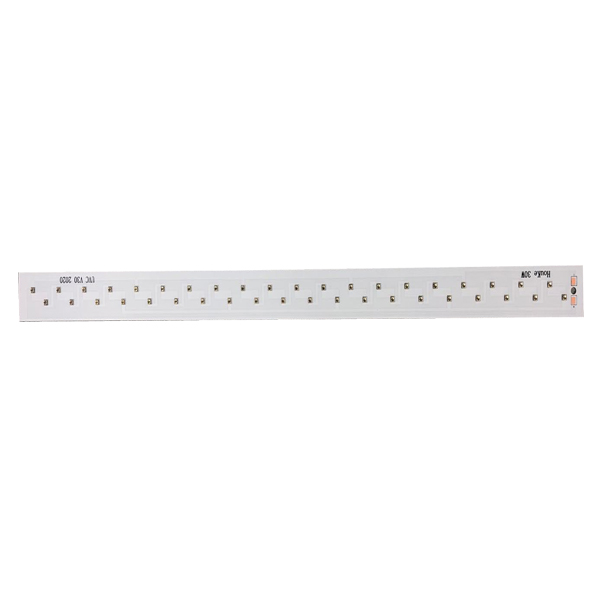

585*36mm
5 series 8 parallel
40 pcs led
985*36mm
5 series 12 parallel
60pcs led
235*40*1.6mm
12pcs led

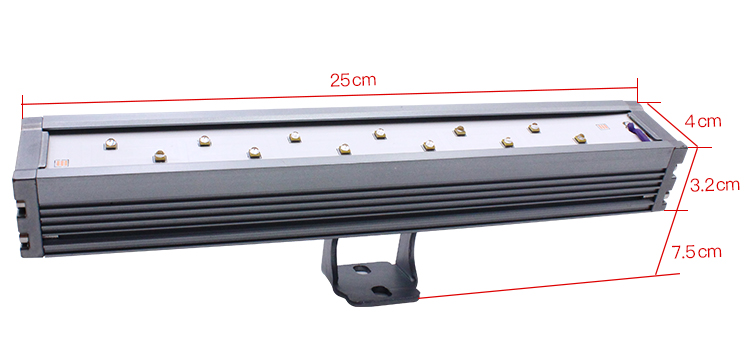

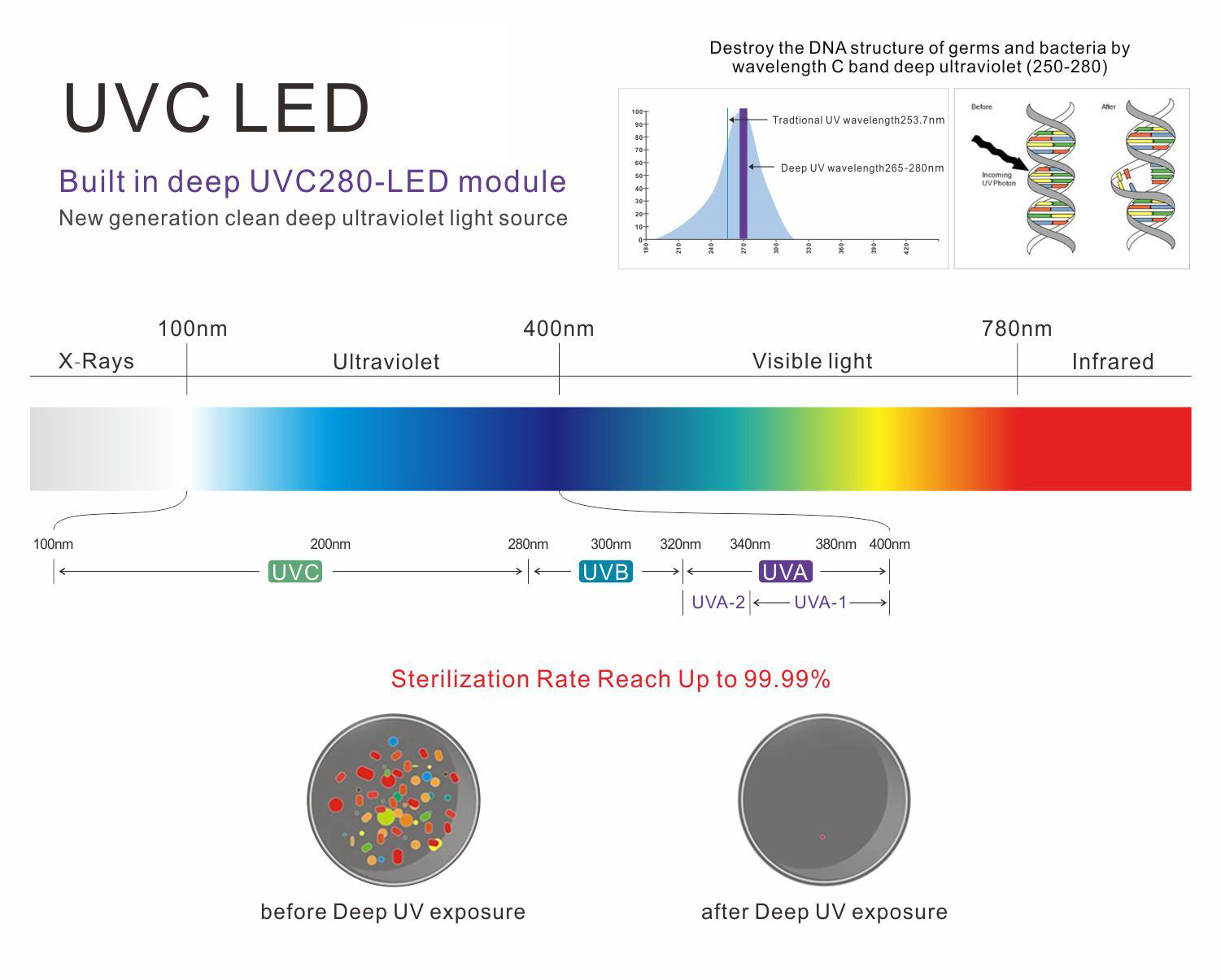

UVC LED sterilizer light
Cautions on use
(1) Do not look directly into the UV light during operation. This can be harmful to your eyes and skin.
(2) Wear protective eyewear to avoid exposure to UV light.
(3) Attach caution labels to your products which contain UV LEDs.
(4) Avoid direct eye and skin exposure to UV light, Keep out of reach of children.
