308nm UV LED Chip High Power UVB Phototherapy
308nm UV LED Chip High Power UVB Overview
HOUKEM308nm UV LED is a high-performance UVB LED chip engineered for professional medical, scientific, and analytical applications requiring precise ultraviolet output between 305nm and 315nm. With a peak wavelength of 310nm, this high power UVB LED delivers stable optical performance, low thermal resistance, and reliable operation, making it suitable for medical phototherapy equipment, spectroscopy instruments, blood analysis systems, and laboratory devices.
Built with a 3535 SMT package, premium PW chip technology, and RoHS-compliant materials, the 308nm UV LED offers excellent wavelength consistency and long-term reliability. HOUKEM provides OEM and ODM customization, helping equipment manufacturers integrate UVB LEDs into specialized medical and scientific systems.
Product Features
The HOUKEM 308nm UV LED is designed for applications that require accurate UVB wavelength control and dependable performance.
Key features include:
- High power 308nm UV LED with UVB wavelength
- Peak wavelength range: 305-315nm
- Typical wavelength: 310nm
- 3535 SMT package for compact integration
- Low thermal resistance design
- High radiant flux with stable optical output
- Lead-free and RoHS compliant
- Long operating life up to 10,000 hours
- Reliable performance for continuous operation
- OEM customization and technical support available
The product is ideal for manufacturers seeking a dependable UVB LED solution for medical treatment equipment and scientific instruments.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | 0.6W High Power UVB LED 310nm |
| Model | HOUKEM-06W-310-3535 |
| LED Type | High Power UVB LED |

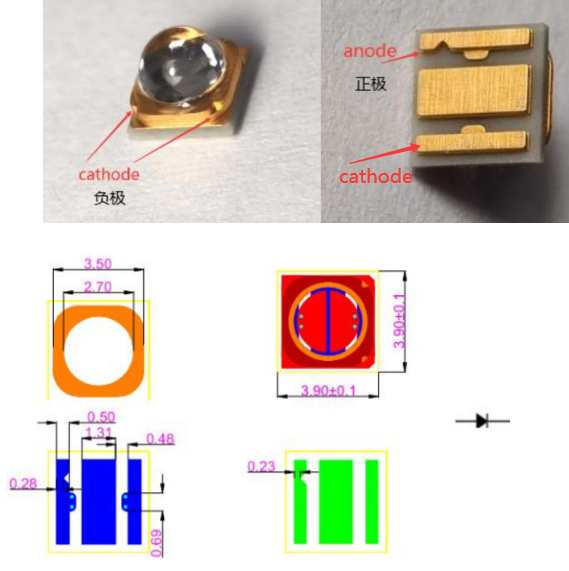

| Package | 3535 SMT |
| Power | 0.6W |
| Input Voltage | DC 6V |
| Forward Voltage | 5.5-6.2V |
| Forward Current | 100mA |

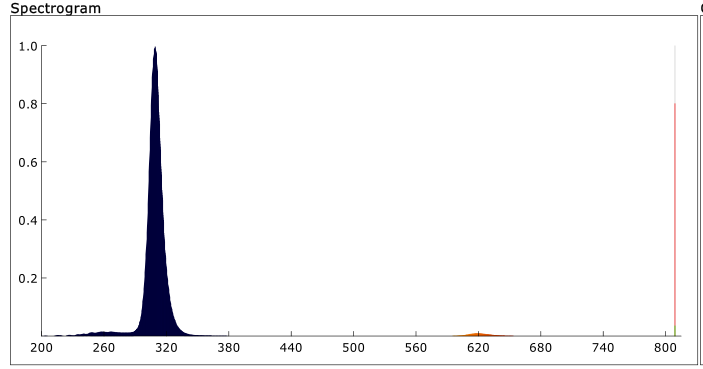

| Wavelength | 305-315nm |
| Typical Wavelength | 310nm |
| Radiant Flux | 10-13mW |

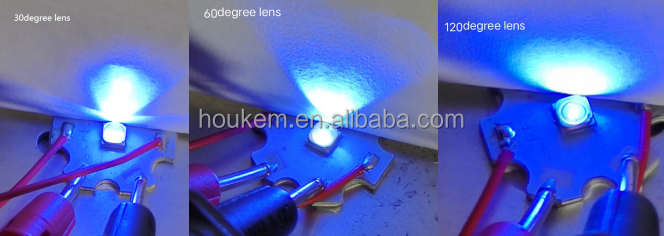

| Viewing Angle | 60° |
| Chip Size | 20 × 20 mil |
| Chip Brand | PW |
| Operating Temperature | -20℃ to 60℃ |
| Storage Temperature | -40℃ to 80℃ |
| Lifetime | 10,000 Hours |
| Certification | CE, RoHS, ISO9001 |
Electrical and Optical Characteristics
The electrical and optical performance below is measured at Ta = 25℃.
| Parameter | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|---|
| Forward Voltage | VF | IF = 100mA | 5.0 | 5.8 | 6.2 | V |
| Radiant Flux | mW | IF = 100mA | 10 | 12 | 13 | mW |
| Viewing Angle | 2θ1/2 | IF = 100mA | — | 60 | — | Degree |
| Dominant Wavelength | λd | IF = 150mA | 305 | 310 | 315 | nm |
Applications of 308nm UV LED
Medical Phototherapy Equipment
The308nm UV LED is widely used in professional phototherapy devices where accurate UVB wavelength output is required. It is suitable for manufacturers developing medical treatment systems and dermatology equipment.
Blood Analysis Instruments
Stable UVB emission makes this LED suitable for blood analysis equipment and biomedical diagnostic instruments that require precise ultraviolet illumination.
Spectroscopy and Scientific Research
The310nm UV LED supports spectroscopy systems, laboratory instruments, and scientific research equipment where wavelength consistency is critical for analytical accuracy.
Medical and Laboratory Equipment
This UVB LED chip can be integrated into customized medical devices, optical instruments, and scientific testing equipment requiring reliable ultraviolet performance.
Features and Benefits
The HOUKEM 308nm UV LED provides several advantages for OEM equipment manufacturers:
- Deep UVB wavelength output
- High luminous intensity
- Stable radiant performance
- SMT solderable package
- Low thermal resistance
- Lead-free manufacturing
- RoHS compliant materials
- Compact package for equipment integration
- Consistent wavelength control
- Professional technical support
Why Choose HOUKEM?

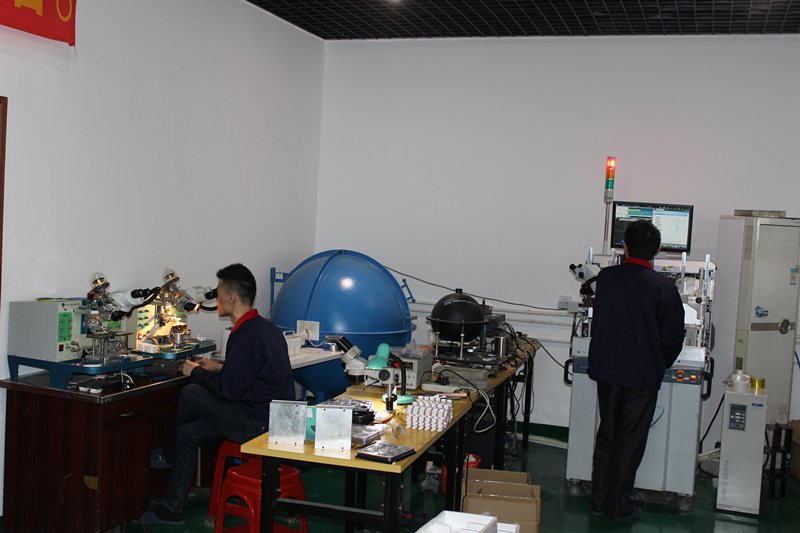

Established in 2003, HOUKEM has over 20 years of experience in developing and manufacturing LED products, including UV LEDs, IR LEDs, COB LEDs, SMD LEDs, LED arrays, and customized optical solutions.
Our advantages include:
- Factory-direct manufacturing
- Professional R&D team
- OEM and ODM customization
- Automatic production equipment
- Spectrum testing for quality control
- Global export experience
- CE, RoHS, and ISO9001 certified production
Every product undergoes strict inspection before shipment to ensure consistent quality and reliable performance.
FAQ
What is the primary application of this 308nm UV LED?
This308nm UV LED is mainly designed for medical phototherapy equipment, blood analysis instruments, spectroscopy, and scientific research devices.
Can the wavelength be customized?
Yes. HOUKEM offers customized UV LED wavelengths, package options, and electrical specifications for OEM projects based on application requirements.
Is this UVB LED suitable for continuous industrial operation?
Yes. The LED features low thermal resistance and stable optical performance, making it suitable for long-term operation when used with appropriate thermal management.
Do you provide samples before mass production?
Yes. Sample orders are available for testing and evaluation before volume production to ensure compatibility with your equipment.
What certifications does this product have?
The product complies with CE,RoHS, and ISO9001 standards, and all products are tested before shipment to ensure quality and reliability.
Request a Quote for 308nm UV LED Solutions
Looking for a reliable 308nm UV LED manufacturer for medical or scientific equipment?
HOUKEM provides professional UVB LED solutions with OEM customization, technical support, and factory-direct supply for equipment manufacturers worldwide.
Contact our engineering team today to request samples, technical datasheets, pricing, or customized UVB LED solutions for your project.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
