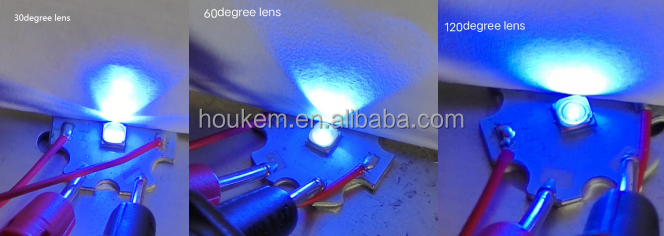

30degree lens Factory UVB 305nm-315nm LED Chip 308nm UV LED Chip 310nm 308nm UVB LED Diode
- Color Temperature(CCT):310nm
- Input Voltage(V):DC 6V
- Warranty(Year):2-Year
- Type:High Power LED
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):26
- Lifespan (hours):10000
- Working Time (hours):10000
- Product Weight（kg）:0.001
- Chip Material:AlGaInP
- Emitting Color:purple
- Luminous Intensity:10-12MW
- Power:0.6w
- Viewing Angle(°):60
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:0.6W High Power uvb LED 310nm
- Emitting Colour:puple
- Forward Voltage:5.5-6v
- Application:medical treatment
- Warranty:2 Years
- Wave length:305-315nm
- Current:100mA

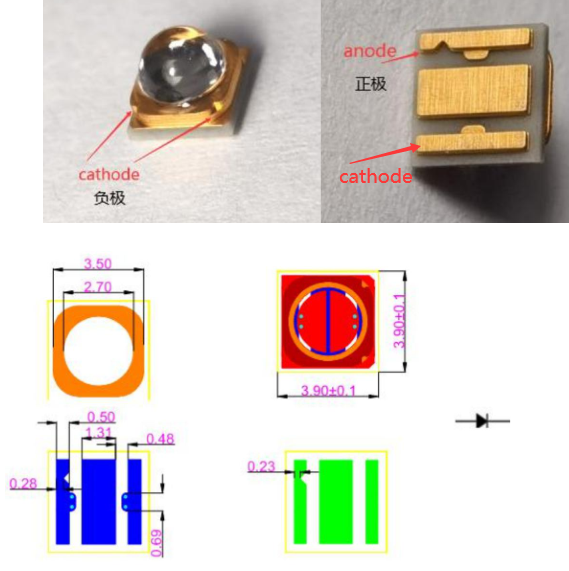

- Chip Size:20*20mil
- Certification:RoHS, CE, ISO9001
- Chip brand:PW
255-1550nm are available
High power uv led 0.6w 310nm uv b led
Electrical and optical characteristics (Ta = 25℃, If=100mA)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 100mA | 5 | 5.8 | 6.2 | V |
Radiant Flux [mW] | mW | IF = 100mA | 10 | 12 | 13 | mw |
Viewing Angle | 2θ1/2 | IF = 100mA | ---- | 60 | ---- | Deg. |

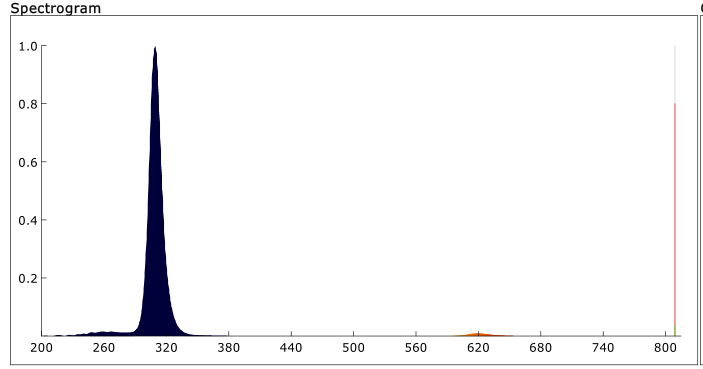

Dominate Wavelength | λd | IF = 150mA | 305 | 310 | 315 | nm |
Features and Benefits
• Deep ultraviolet LED
• Low thermal resistance
• SMT solderable
• Lead Free product
• RoHS compliant
• High Luminous intensity
• Long Operation Life
Key Applications
• Blood Analysis
• Phototherapy
• Spectroscopy for Medical &
Scientific application
• Deodorization

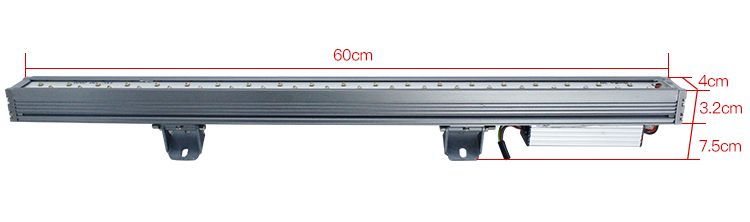

UVC LED sterilizer light
Established in 2003, Houkem has 19 years professional manufacturer experience, development, production, sale and service of LED products,
including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs, dot-matrix Led displays, bar graph arrays and LED direction indicator
displays, High power led, high power 255nm to 1600nm LED arrays,COB LED, SMD LED, street light LED, ,and all LED lighting application solution, etc..
In recent years, our company has introduced a series of advanced equipment including Automatic Production Machines and Spectrum Test Machine.
The products are also exported to clients in countries like USA, Germany, Japan, Korea etc.
