300nm 298nm 295nm uvb high power output power 22mw 300 nm 295 nm uv led for Vitamin D
- Warranty(Year):2-Year
- Type:High Power LED
- Luminous Efficacy(lm/w):26
- Lifespan (hours):50000
- Chip Material:AlGaInP
- Emitting Color:purple
- Power:0.6w
- Viewing Angle(°):60
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:0.6W High Power uvb LED 295nm
- Emitting Colour:puple
- Forward Voltage:5.8-6v
- Lifespan:50000 Hours
- Warranty:2 Years
- Wave length:290-300nm
- Current:150mA
- Chip Size:20*20mil
- Application:Medical Treatment, phototherapy
- Certification:RoHS
High power 0.6w 298nm 293nm 295nm uv b led
Electrical and optical characteristics (Ta = 25℃, If=100mA)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 100mA | 5 | 5.8 | 6.2 | V |
Radiant Flux [mW] | mW | IF = 100mA | 18 | 20 | 22 | mw |

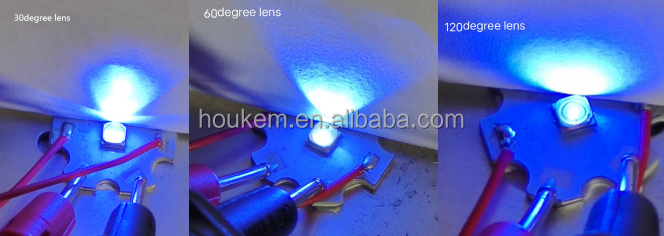

Viewing Angle | 2θ1/2 | IF = 100mA | ---- | 60 | ---- | Deg. |

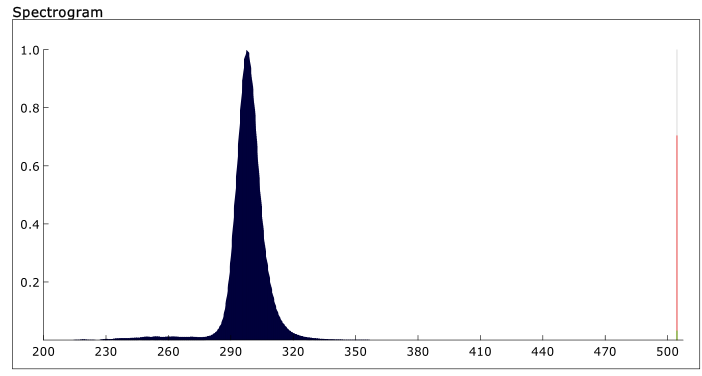

Dominate Wavelength | λd | IF = 150mA | 290 | -- | 300 | nm |
Features and Benefits
• Deep ultraviolet LED
• Low thermal resistance
• SMT solderable
• Lead Free product
• RoHS compliant
• High Luminous intensity
• Long Operation Life
Key Applications
• Blood Analysis
• Phototherapy
• Spectroscopy for Medical &
Scientific application
• Deodorization
led light
