30-34V Bridgelux 50 watt high power led blue 455nm 470nm
30-34V Bridgelux 50 watt high power led blue 455nm 470nm
30-34V Bridgelux 50 watt high power led blue 455nm 470nm
30-34V Bridgelux 50 watt high power led blue 455nm 470nm
30-34V Bridgelux 50 watt high power led blue 455nm 470nm
30-34V Bridgelux 50 watt high power led blue 455nm 470nm
30-34V Bridgelux 50 watt high power led blue 455nm 470nm
30-34V Bridgelux 50 watt high power led blue 455nm 470nm
30-34V Bridgelux 50 watt high power led blue 455nm 470nm
30-34V Bridgelux 50 watt high power led blue 455nm 470nm
30-34V Bridgelux 50 watt high power led blue 455nm 470nm
30-34V Bridgelux 50 watt high power led blue 455nm 470nm
30-34V Bridgelux 50 watt high power led blue 455nm 470nm

30-34V Bridgelux 50 watt high power led blue 455nm 470nm

Price:
USD 12.80-15.00 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
10000 piece / Day
Country of Origin:
shenzhen
Quantity:
  • Type:High Power LED
  • Chip Material:InGaN
  • Emitting Color:Blue
  • Place of Origin:CN;GUA
  • Certification:CE
  • Certification:RoHS
  • Power:50W
  • Optical Attenuation(%):1
  • Power Dissipation:10
  • Viewing Angle(°):140
  • Color Rendering Index(Ra):80
  • Operating Temperature(℃):-20 - 60
  • Storage Temperature(℃):-20 - 80
  • Brand Name:HOUKEM


   business





Product Description

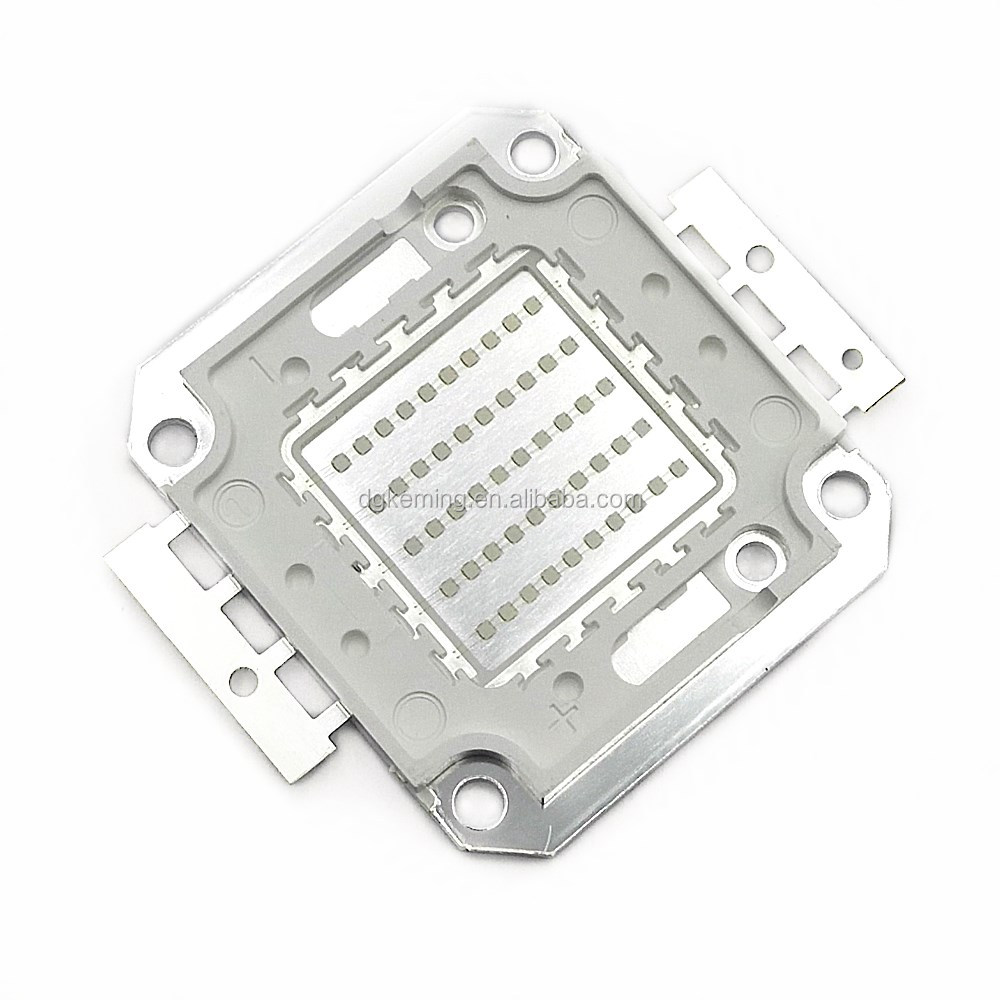

  Bridgelux Epileds 50 watt  high power  led blue 455nm 470nm



Part no50w high power led
ModelHOUKEM-HP050BW-E45
wave length450nm, 455-460nm, 460-465nm, 465-470nm,
Power 50W
Voltage
30-40V
current 1500-1750ma
color blue
Beam angle
140deg

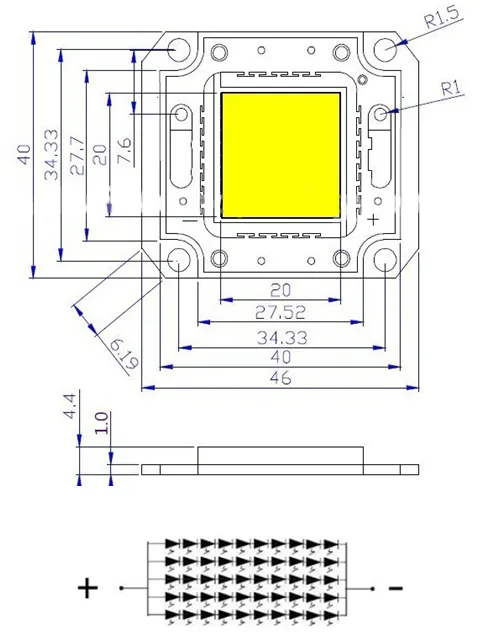

        Package dimension& Internal circuit diagram

50W

50



 Features



 1) High flux



2) Very low decay and long working lifespan: >50,000 hours



3) More energy efficient than incandescent and most halogen lA



4) Low voltage DC operated



5) Environmental protection: No toxic metals mercury, no infrared and ultraviolet radiation



6) Superior ESD protection



7) Green product Features



8).Various colors: Different wavelengths produce different colored light, bright saturated, without filter,



 the formation of a variety of different colors available red, green and blue primary colors, full-color gradient color effects

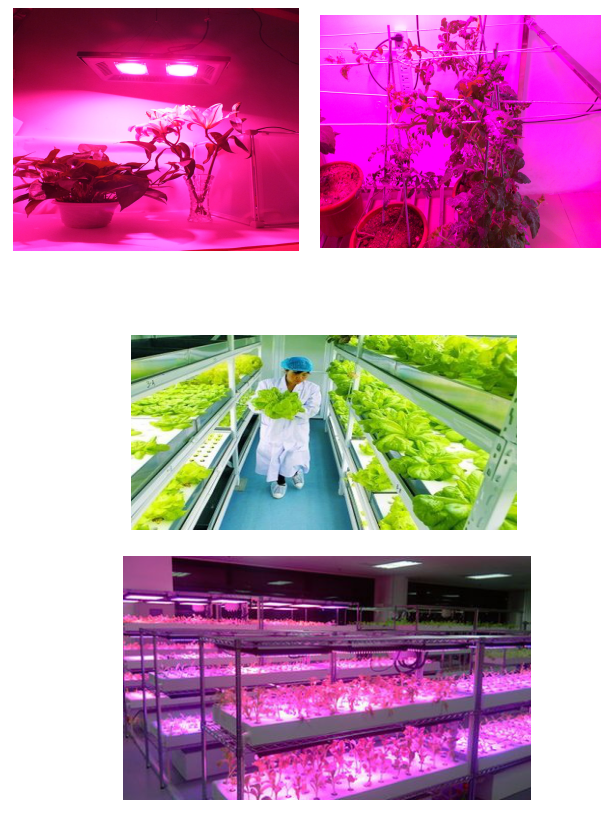

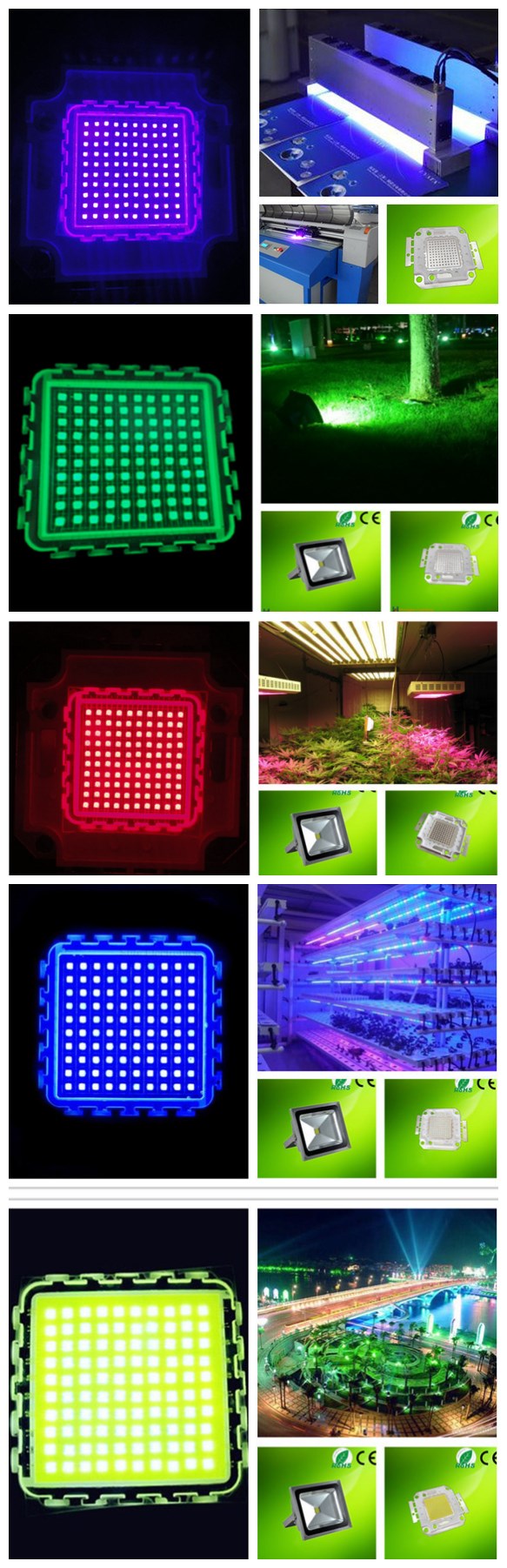

Application


applicate

application(3)



Packing

50pieces/tray,10 trays/box,4boxes/carton


2000pcs/carton


Tray size:20cm*15cm*1cm


Box size:25cm*20cm*10cm


Carton size:55cm*45cm*15cm


Or as per customer's request




packing

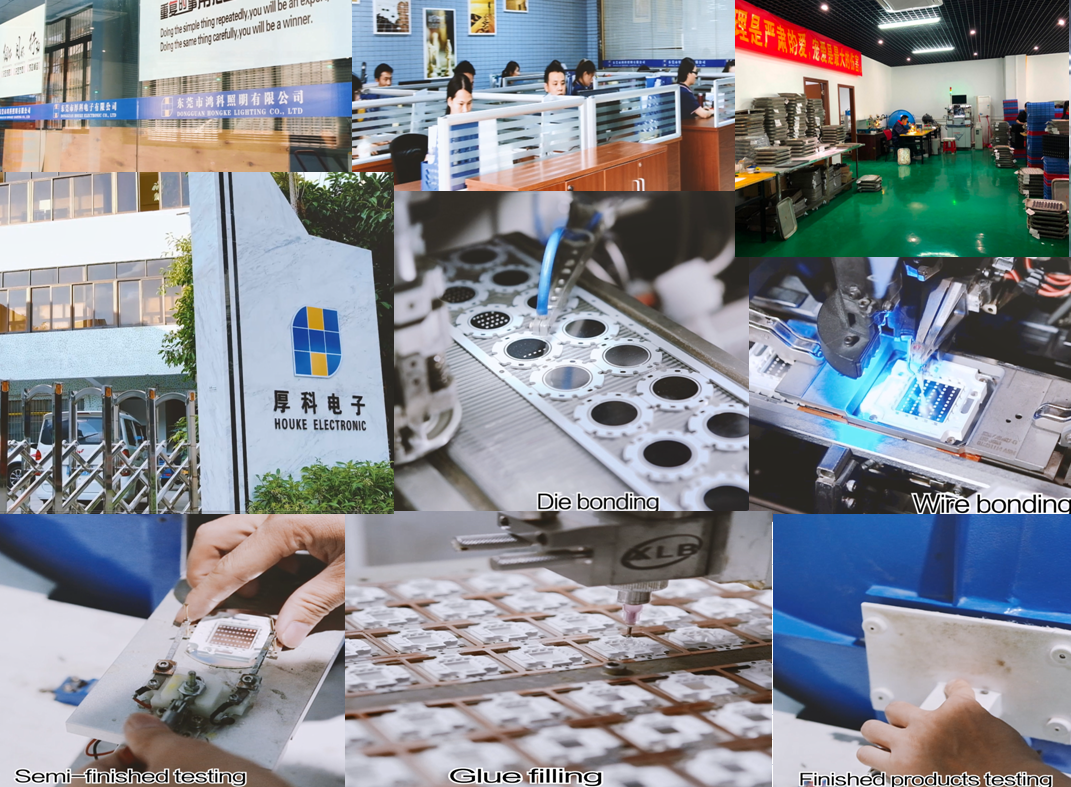

Factory Information



 factory-LED

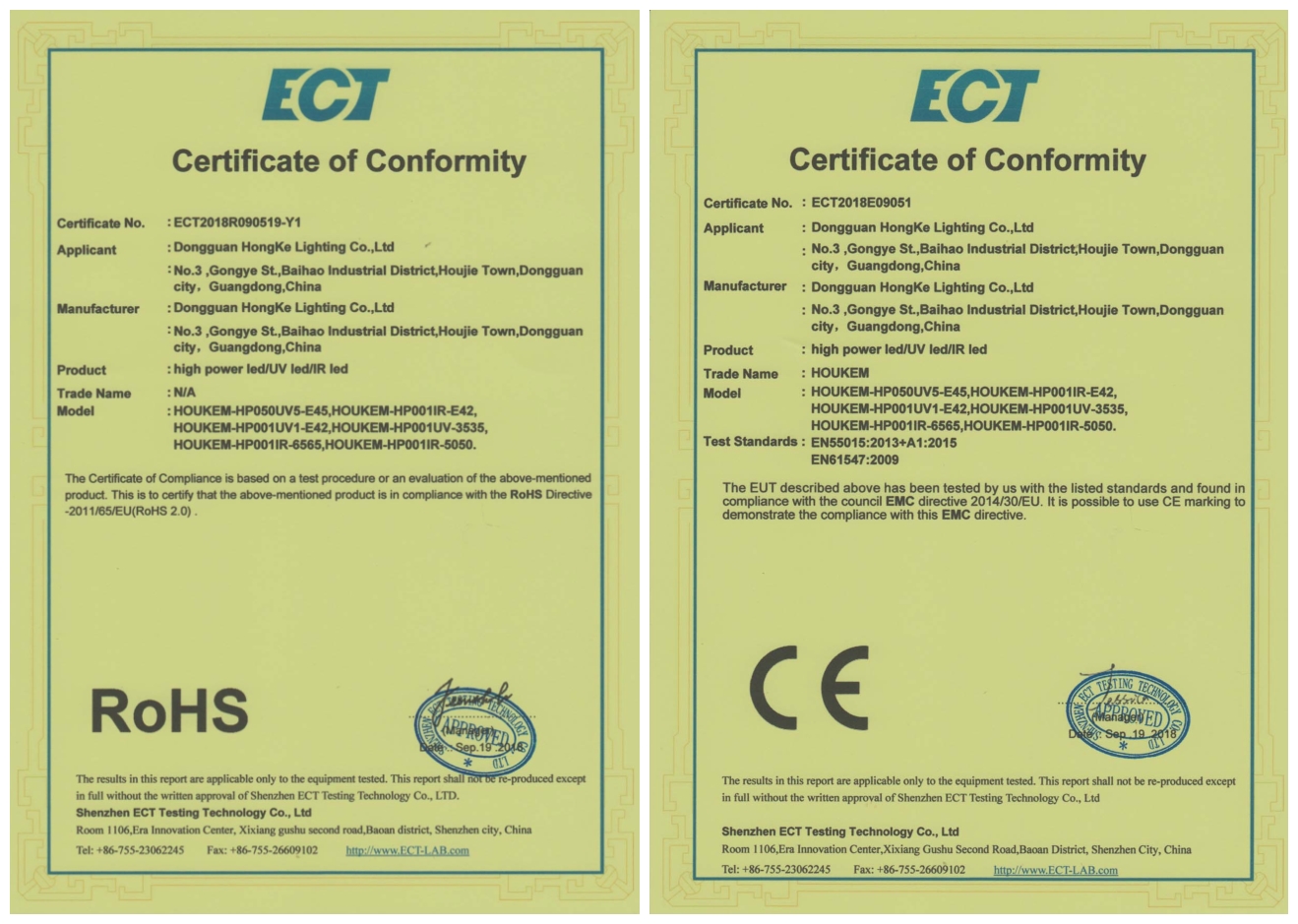

Certifications

 Hongke-certificates





Our Service



1 We have our own independent R&D department, On existing products for better maintenance, we still continue to develop high-tech products, We have our own patented products.

2 Our products must pass strict quality control procedures.

3 We have advanced production equipment

4 We use the raw materials are from domestic and foreign well-known brand manufacturers.

5 After repeated tests before shipment.

6Sample are available in our side!
