3 colors led bar graph 5 segment bar graph display China manufacturer
- Place of Origin:CN;GUA
- Usage:Indoor
- Tube Chip Color:Green
- Display Function:Graphics
- Pixels:20mm
- Brand Name:KEM
- Model Number:KEM-B5-A/BPG
- Screen Dimension:122*90mm

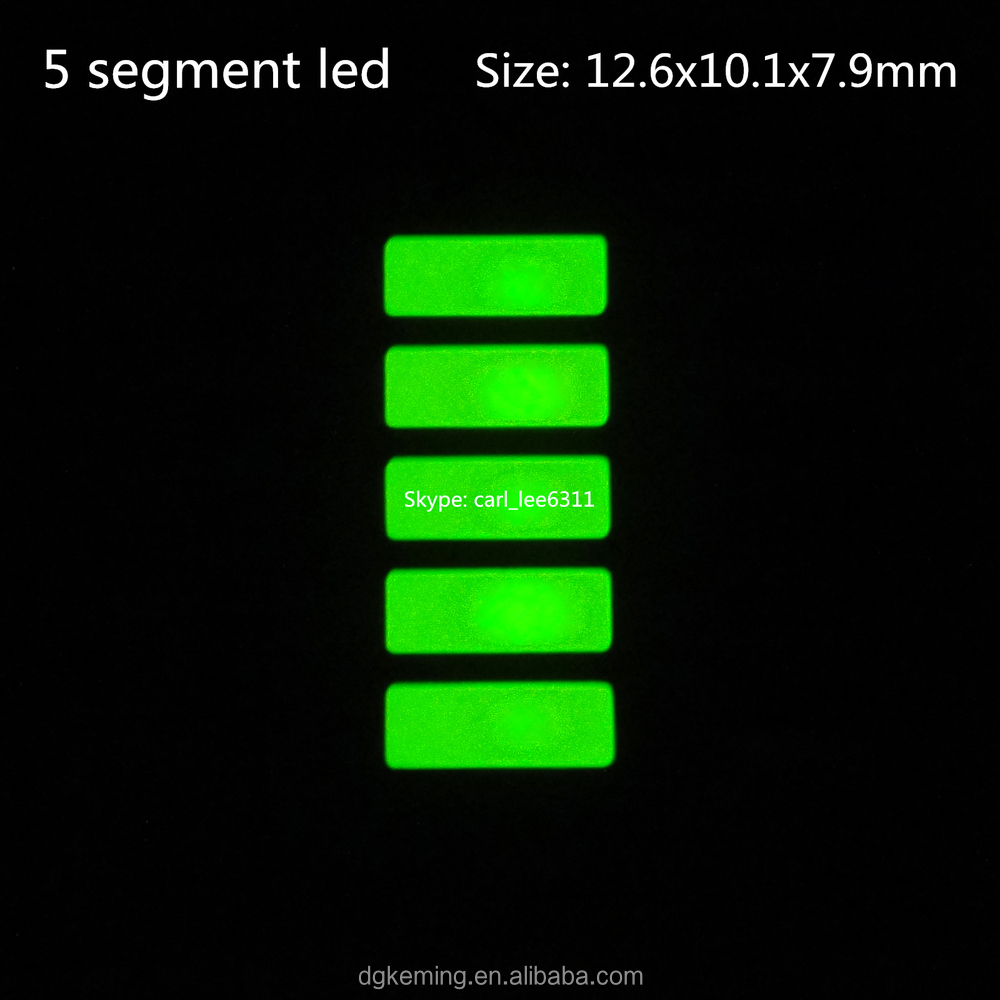

Light on:
All colors are available: Any single color and dual color/triple color are available.

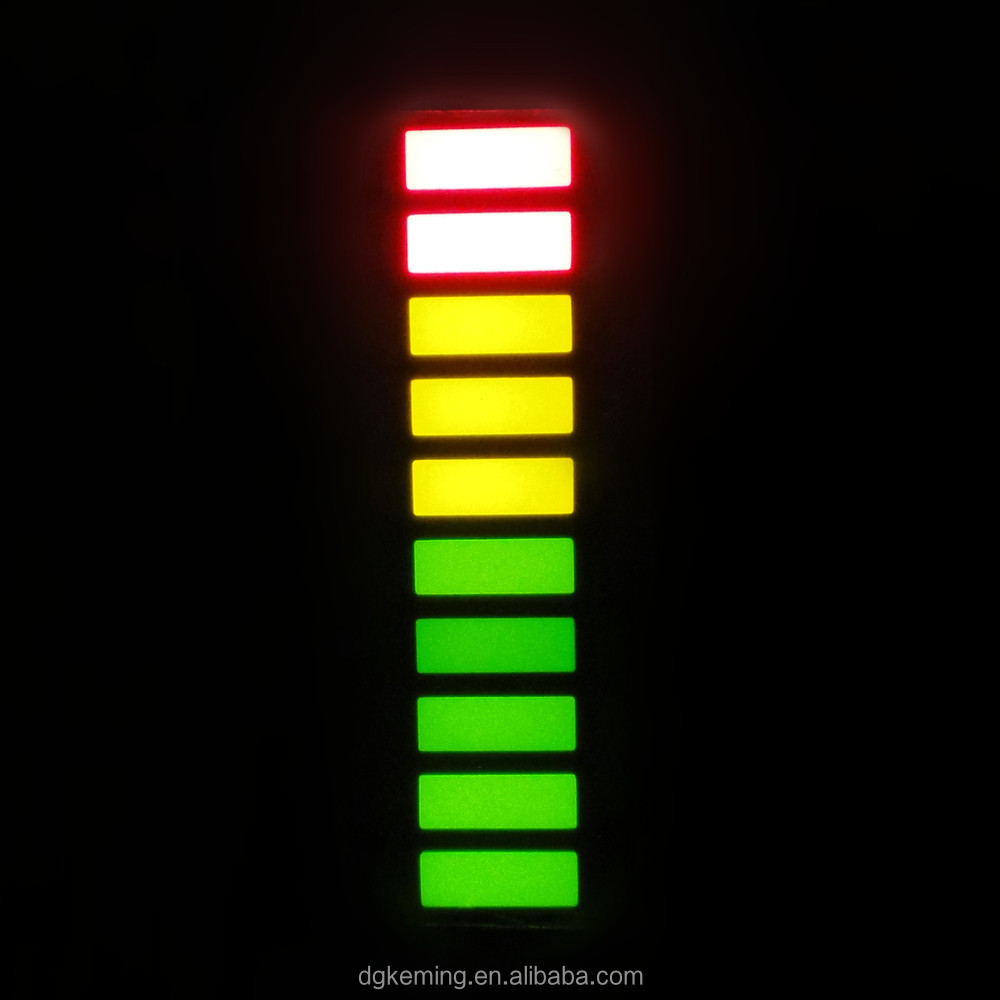

8 BAR & 10 BAR also available:

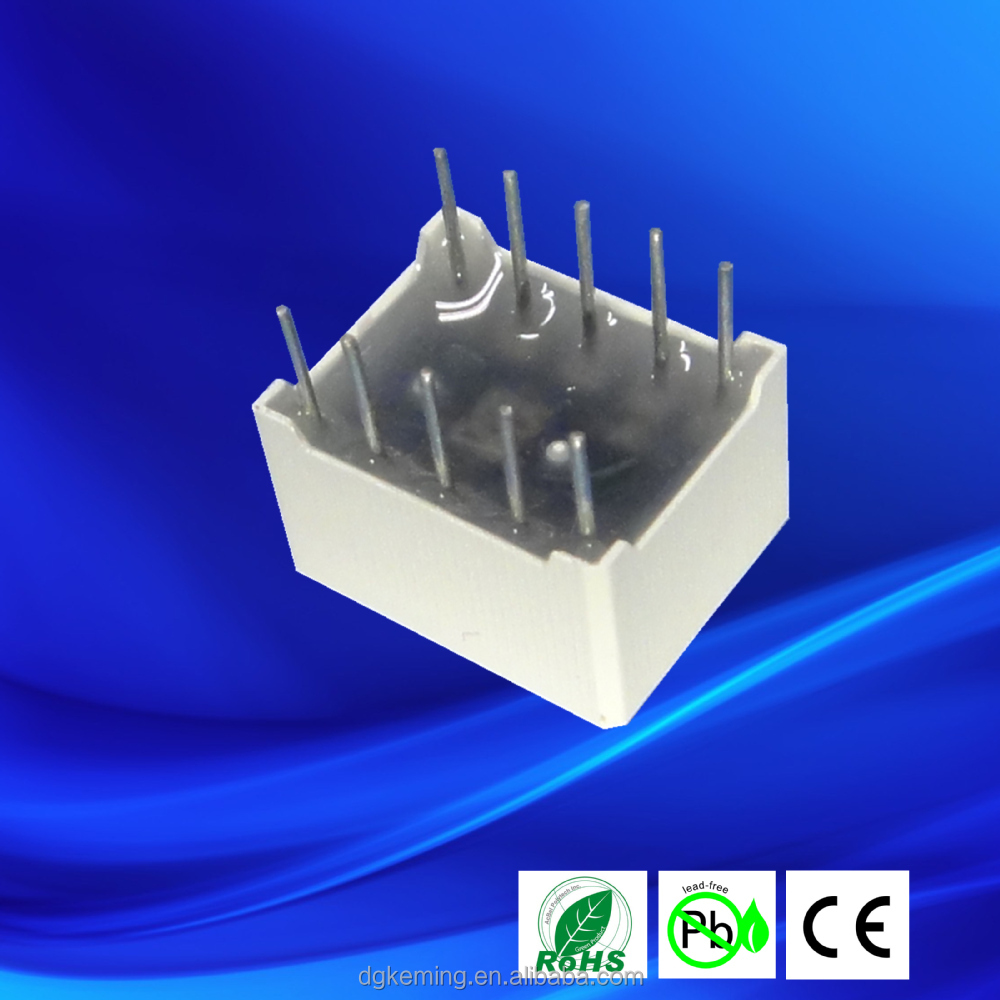

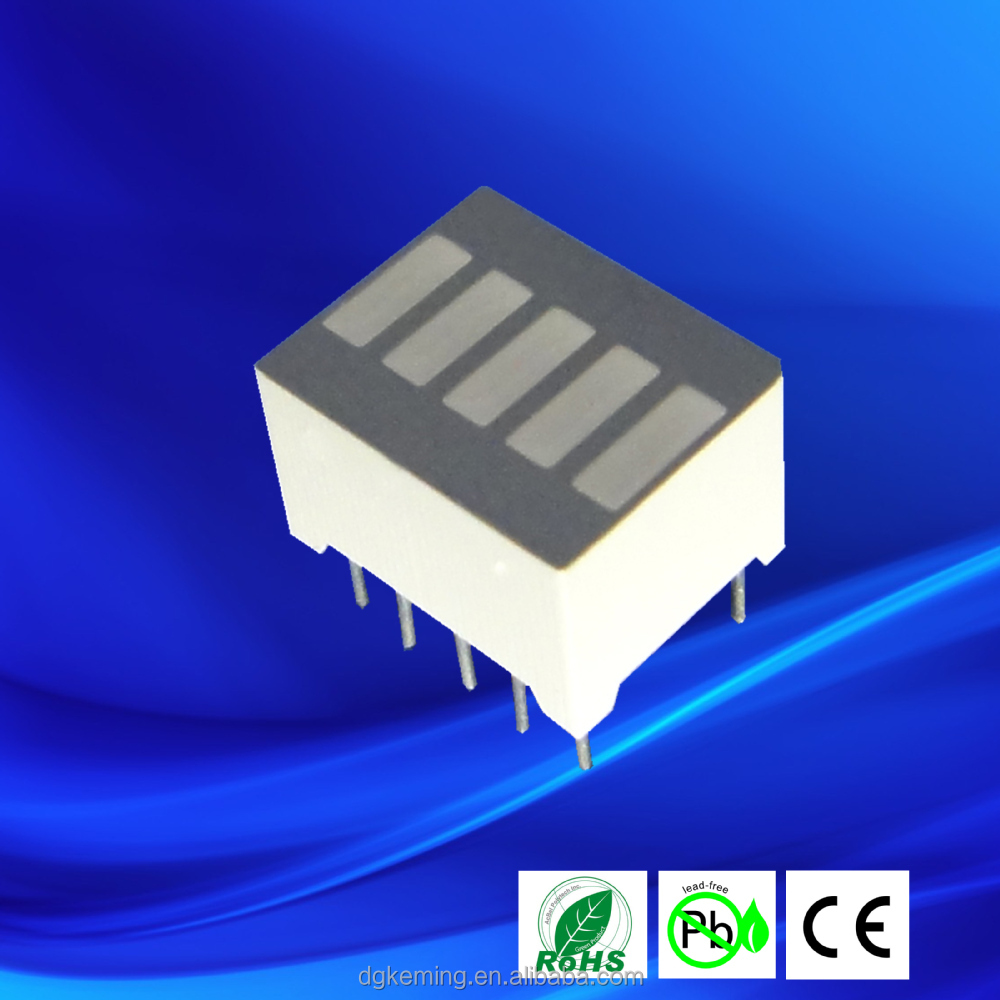

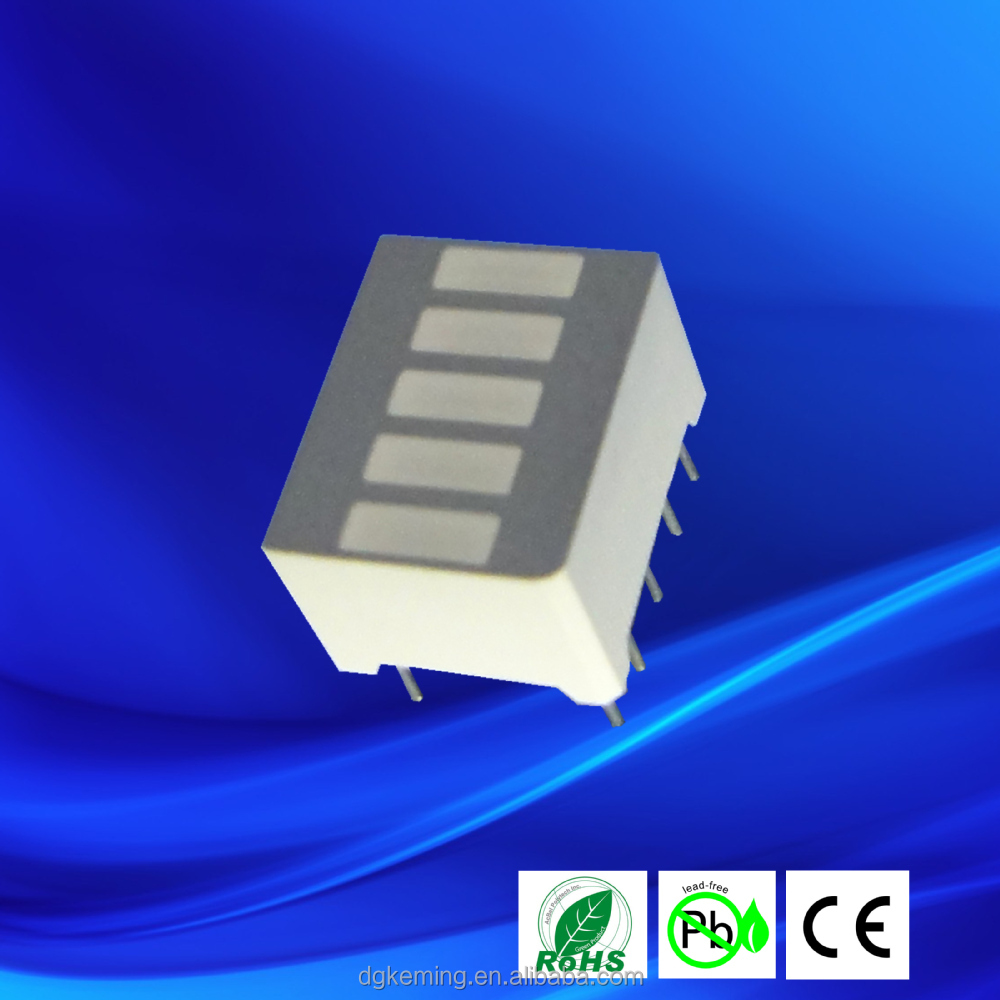

Light off:
Part No | KEM-B5-A/BPG |
| Dimension | 12.6*10.1*7.9mm |
| Bar Nos. | 5 / five |
| Surface color | Black/gray |
| Segment color | white / clear |
| Emitting color | Ultra green(525nm) |
| Luminous intensity | 200mcd/chip |
| Pin configuration | common anode/common cathode |
Dimension and Internal Circuit Diagram:
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Application:

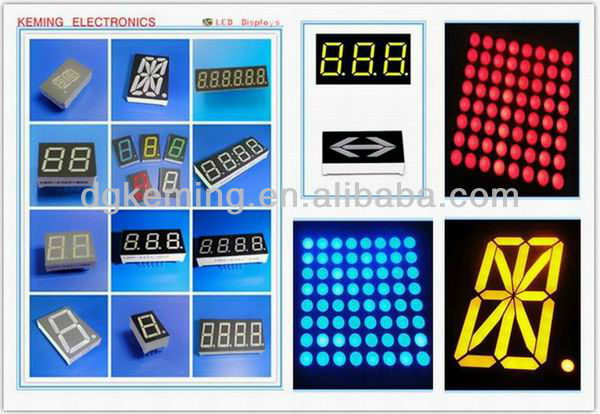

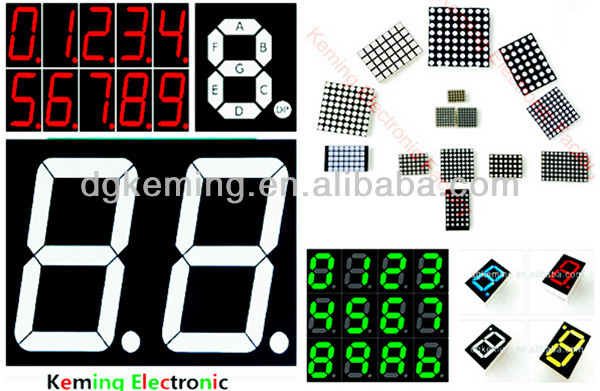

1. We can supply you all kinds of 7 segment LED display:
---Digit size: from 0.25"to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 16 segment both available
3. Available Emitting color: Red, green, blue, yellow, amber, white, bi-color
4. Available surface color: black,grey or red
5. Lens color: white or same as emitting color
All of our led products with 3 yearswarranty.

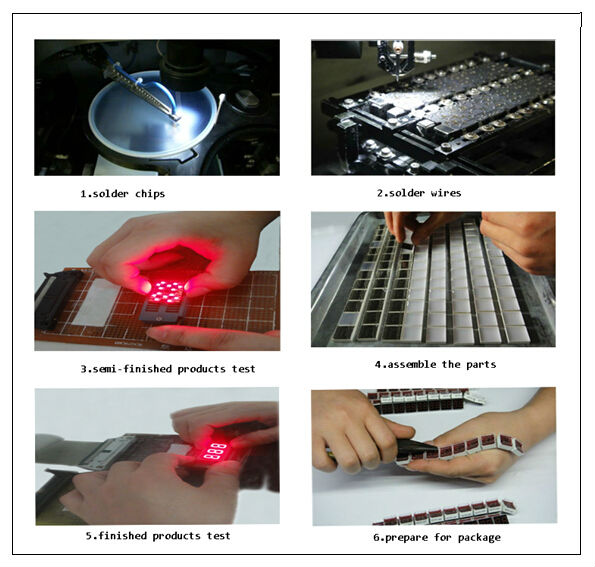

Main Processes of Our Segment Display(Factory pictures):
Delivery Time:
Quantity Lead time
1-10K pcs 3-7 days
10.1K-50K pcs 7-15 days
Our safety packing for your goods:
Small carton size:40*27*40cm.
Export carton size:50*43*43cm(two small cartons packed inside)
1. T/T
2. Western Union
3. Ali Escrow
4. L/C
LED professional manufacturerKEM with over 11 years experience in led field,
we do believe we can become your reliable supplier!
