3-3.4V Epistar Bridgelux chip 5000-6000K white 3W high power led

Model NO.
KEM-HP003PW-E45
Price:
USD 0.27-2.00 / pieces
Delivery:
FOB
Minimum order quantity:
10 pieces
Supply Ability:
5000 pieces / Day
Country of Origin:
Shenzhen
Stock Time:
about 2-15days after receive the payment Day
Quantity:
  • Place of Origin:CN;GUA
  • Type:LED
  • Package Type:Surface Mount
  • Brand Name:KEM
  • Model Number:KEM-HP003PW-E45
  • Max. Forward Voltage:3.8V
  • Max. Reverse Voltage:10V
  • Max. Forward Current:600mA
  • Max. Reverse Current:10uA


business card (2)



Best quality 3W high power led white color





Pictures of Best quality 3W high power led white color in detail

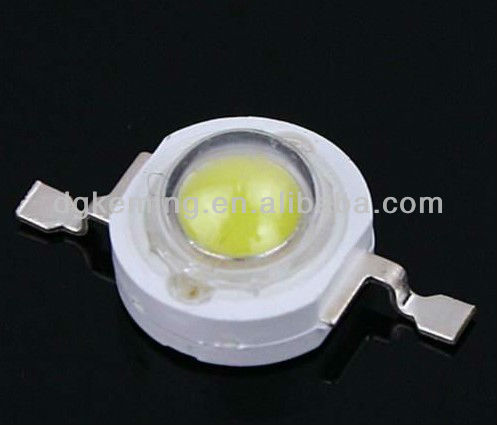

1, Warm white, 2800-4500K for 3W high power led white color

4.5V cree chip 10000K white 3W high power led

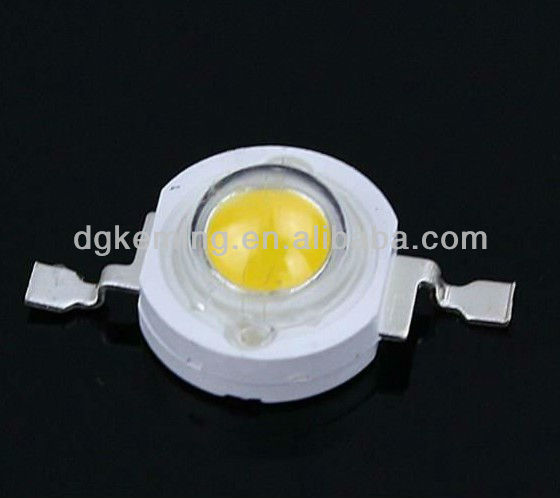

2, Warm white, 6000-7500K for 3W high power led white color



 4.5V cree chip 10000K white 3W high power led

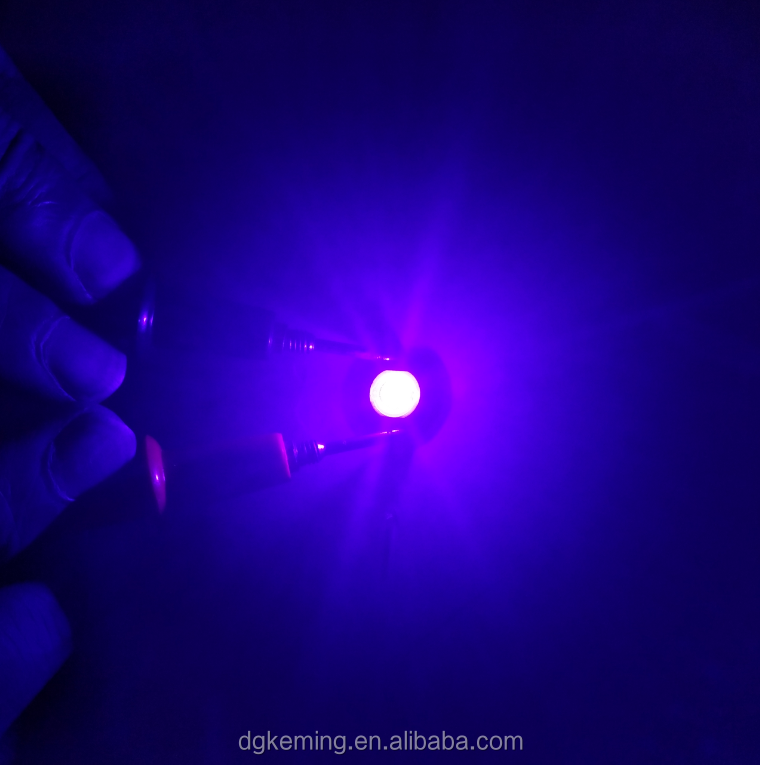

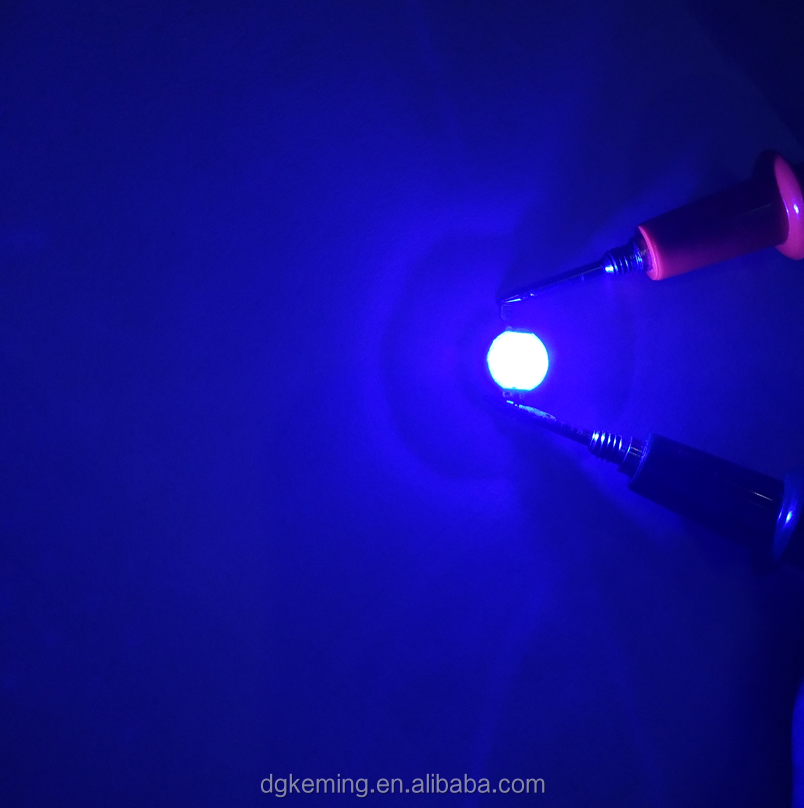

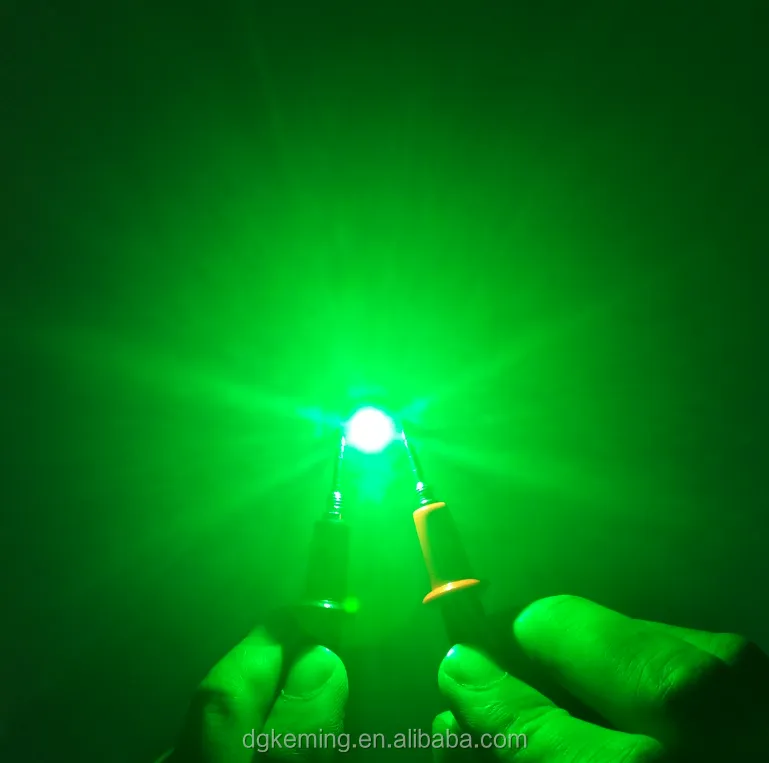

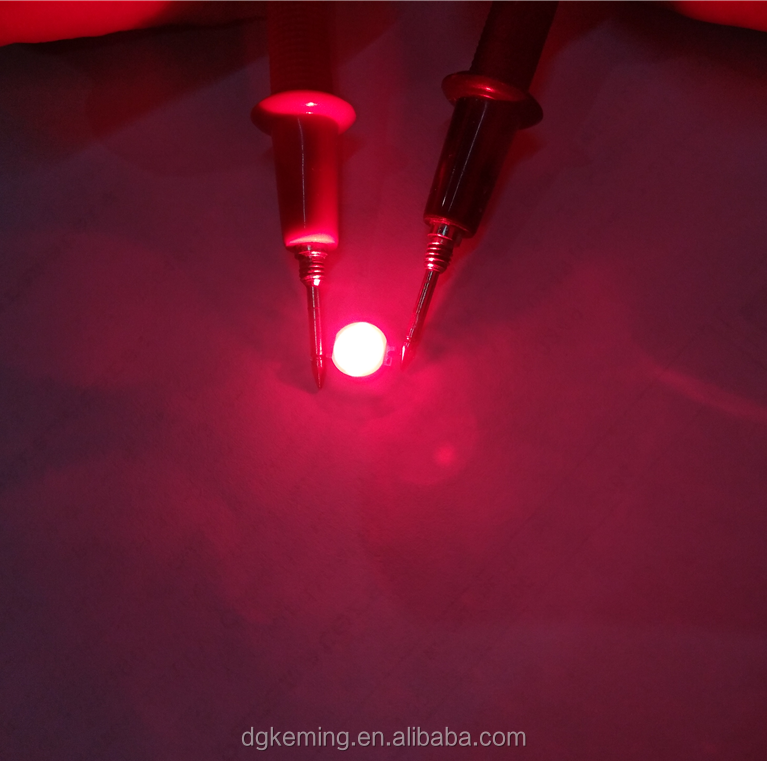

3, Light effect of 3W high power led various color



redGREEN 520blue (2)UV430

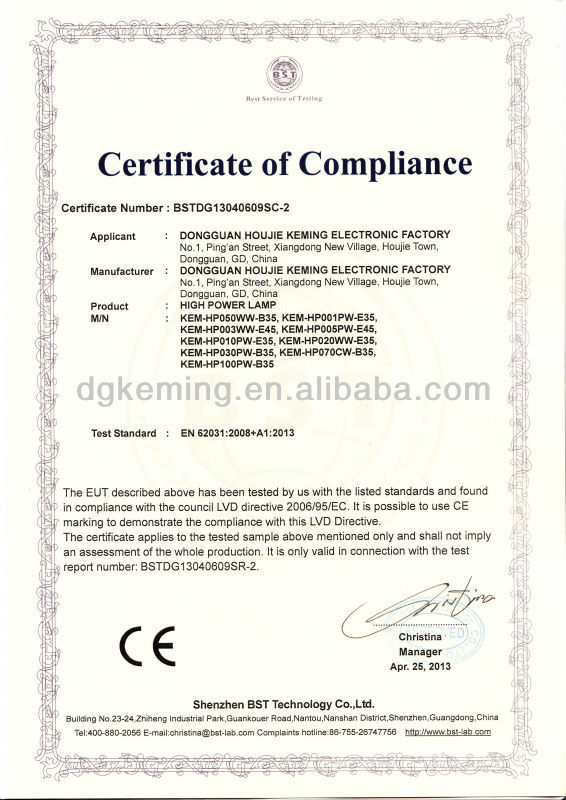

CE and ROHS certificate for Best quality 3W high power led white color



4.5V cree chip 10000K white 3W high power led





Series information of Best quality 3W high power led white color:



Part Number           Chip MaterialEmitting Color               Forward voltageForward currentLuminousViewing angle (Deg)
KEM-HP001WW-E45InGan5000-6000K3.0-3.3V600mA100-110lm140
KEM-HP001PW-E35InGan4500-7000K3.0-3.3V600mA110-120lm140
KEM-HP001CW-E35InGan7000-15000K3.0-3.3V600mA110-120lm140
KEM-HP001RW-E38AIGainpRed 620-630nm2.0-2.4V600mA50-60lm140
KEM-HP001DR-E42AIGainpRed 660-670nm2.0-2.4V600mA40-50lm140
KEM-HP001GW-E40InGanGreen 520-530nm3.0-3.3V600mA80-90lm140
KEM-HP001BW-E35InGanBlue 460-470nm3.0-3.3V600mA90-100lm140
KEM-HP001YW-E38AIGainpYellow 590-595nm2.0-2.4V600mA35-45lm140
KEM-HP001UV-E42InGanPurple385-430nm3.0-3.3V600mA70-90mw140
KEM-HP001UV365-E45InGanUV 365nm3.4-3.8V600mA70-90mw140

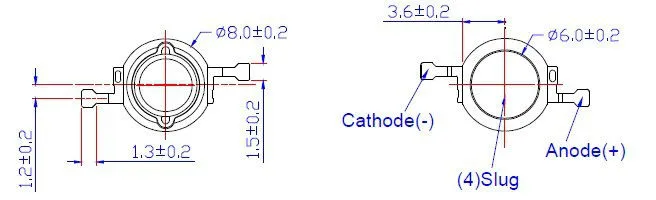

Dimension of Best quality 3W high power led white color:



 4.5V cree chip 10000K white 3W high power led







Features ofBest quality 3W high power led white color



Excellent Operating life

High Efficacy of 95lm/W

Low thermal resistance

Instant light

Fully dimmable

No UV

Superior ESD protection

RoHS compatibility



Electeical Characteristics of Best quality 3W high power led white color at 350mA,Ta=25°C



Color

Part No

Forward Voltage

Units

Min

Typ

Max

Daylight



3

-

3.4

V





Absolute Maximum Ratings of Best quality 3W high power led white color



Parameter

Symbol

Rating

Unit

white



DC Forward Current(mA)

If

300

mA

Peak Pulse Current(mA)

If

700

mA

Reverse Voltage

VR

5

V

LED Junction Temperature

Tj

125

°C

Operation Temperature

Topr

-40--100

°C

Storage Temperature

Tstg

-40--100

°C

Soldening Temperature

Tsol

260

°C

ESD Sensitivity

Vb

4000

V





Factory information of Best quality 3W high power led white color





process



Series information of 3W high power led white color

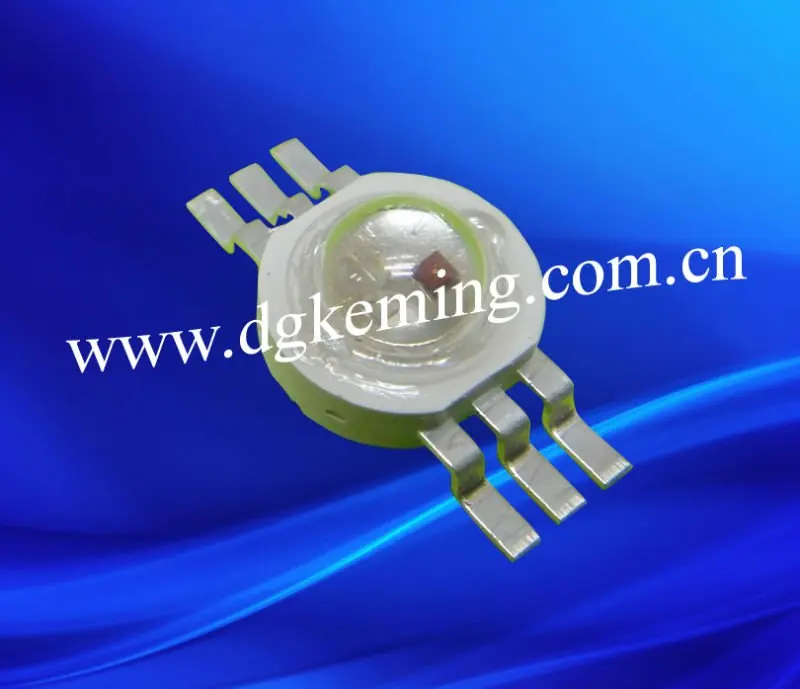

1, 3W RGB full color high power led

4.5V cree chip 10000K white 3W high power led

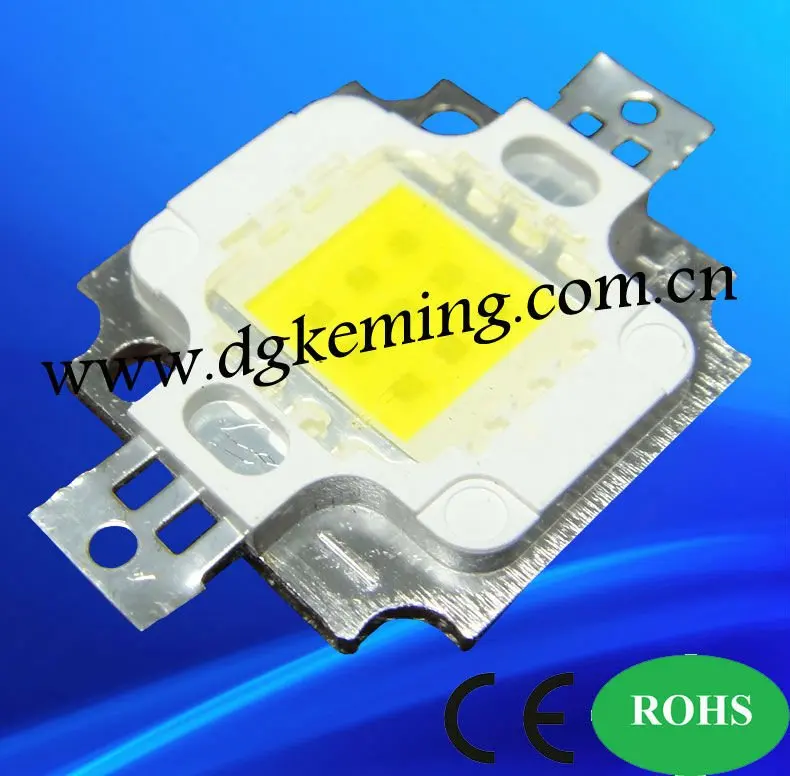

2,10w high power led diode

4.5V cree chip 10000K white 3W high power led

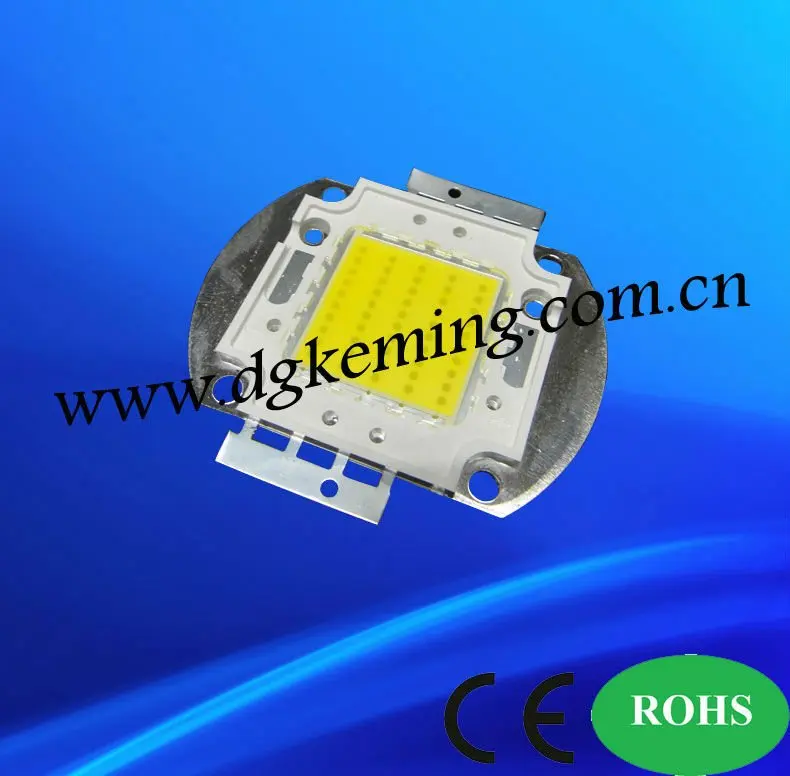

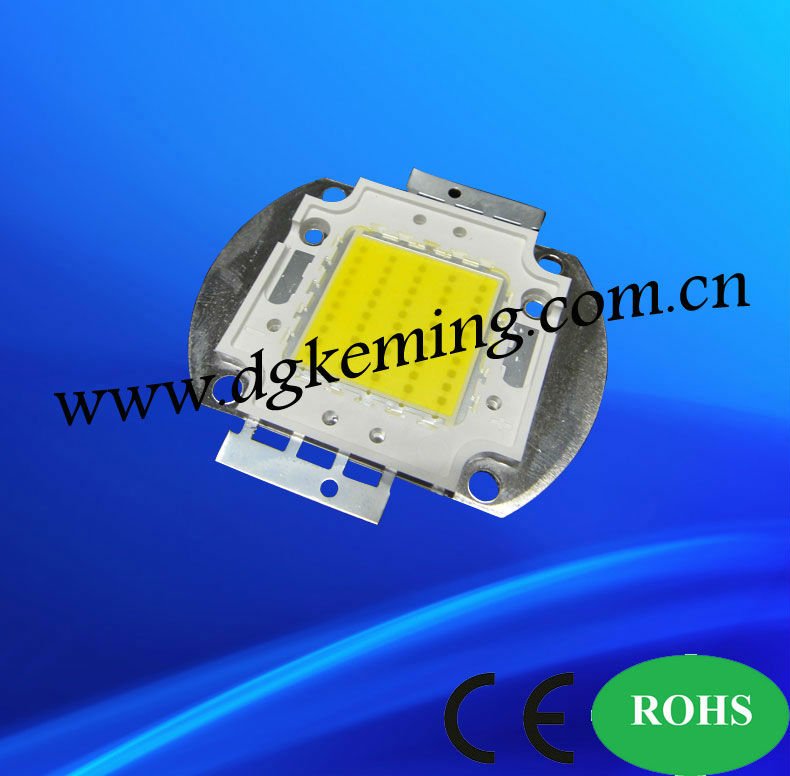

4, 50W high power led diode

4.5V cree chip 10000K white 3W high power led
