40x40mm 16x16 RGB LED Matrix Display

40x40mm 16x16 RGB LED Matrix Display

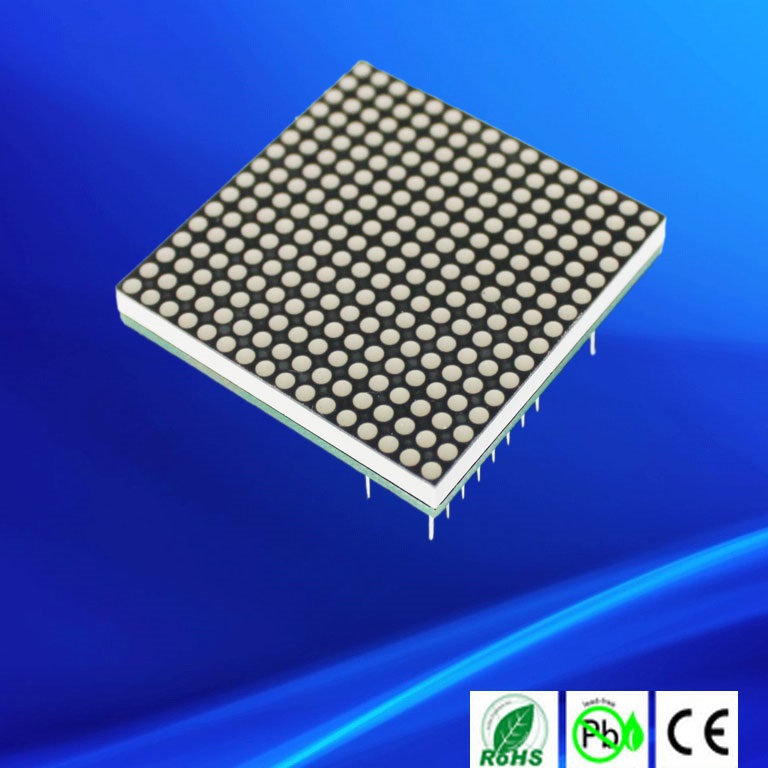

The HOUKEM 40x40mm 16x16 RGB LED Matrix Display is designed for OEM and ODM applications that require compact, multi-color LED indication. With a 16×16 dot array and RGB emission, it can be integrated into electronic displays, digital indicators, signage, and customized display equipment.

Its compact 40×40mm panel size provides 256 individually arranged LED dots in a space-efficient format. The matrix supports RGB color output, making it suitable for applications where different colors are needed to communicate information, status, or visual content.

Product Specifications

Note: The original product information contains both “2mm” in the product name and “Pixel Pitch: 4” in the specifications. These values should be confirmed with the engineering team before being used as a final dimensional specification.

RGB LED Matrix for OEM Display Applications

This16x16 RGB LED Matrix is suitable for manufacturers and system integrators developing customized electronic display products. The RGB configuration allows multiple colors to be used for visual indication, advertising content, status information, and other display functions.

Typical applications include RGB LED dot matrix screens, electronic indicators, advertising displays, digital signage, control equipment, and customized display assemblies. The 40×40mm format also makes the matrix practical for equipment where available installation space is limited.

The module supports both common anode and common cathode configurations, allowing OEM customers to select the electrical configuration that best matches their control circuit and system architecture. HOUKEM can also support customized LED display requirements for professional buyers.

Electrical and Mechanical Configuration

The40x40mm 16x16 RGB LED Matrix uses a 16×16 dot arrangement and RGB emitting color configuration. Its specified working current is 20mA, while the working voltage is 3–3.3V.

For project development, customers should confirm the required polarity, drive circuit, operating environment, and control method before placing a production order. This helps ensure that the selected matrix matches the customer's existing PCB and display system.

The product is supplied in EPE packaging for protection during transportation and is available from HOUKEM's China factory for OEM applications.

OEM and Custom LED Display Support

HOUKEM specializes in LED display components, including 7 segment LED/SMD displays, alphanumeric displays, SMD LEDs, dot-matrix LED displays, bar graph arrays, and LED direction indicator displays.

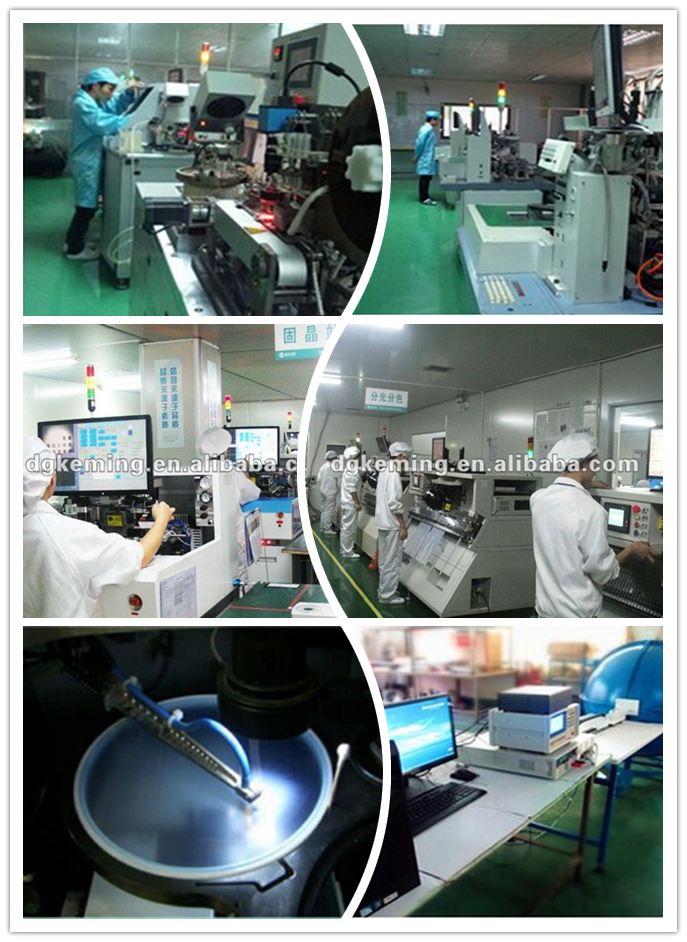

Established in 2003 in Dongguan, the factory provides OEM support for customers requiring customized LED display solutions. The company focuses on manufacturing quality, competitive pricing, and professional service for OEM orders worldwide.

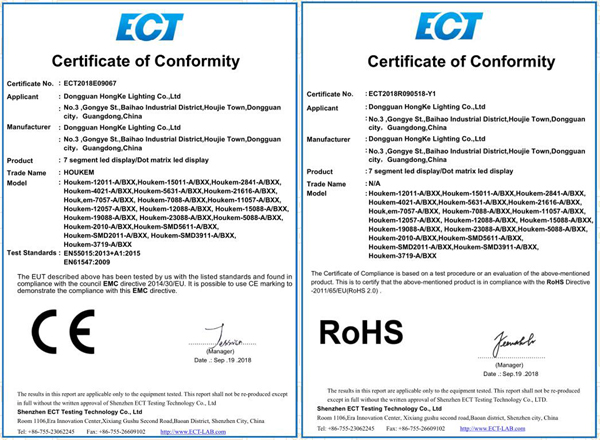

The product is supplied with a 2-year warranty, and RoHS certification is available for the product.

FAQ

Can this RGB LED matrix be used for OEM projects?

Yes. The 40x40mm 16x16 RGB LED Matrix supports OEM applications and can be integrated into customized electronic display systems.

Can I choose common anode or common cathode?

Yes. The product specifications support both common anode and common cathode configurations, subject to the selected version.

What information should I provide for a quotation?

Please provide the required quantity, application, polarity, display configuration, and destination country so HOUKEM can recommend a suitable configuration and shipping solution.

Is a sample available before mass production?

Yes. HOUKEM supports sample orders so professional buyers can evaluate product compatibility before proceeding with larger OEM orders.

Does HOUKEM provide a warranty?

Yes. This product is supplied with a 2-year warranty for quality issues covered under the company's warranty terms.

Request an OEM Quotation

Looking for a 40x40mm 16x16 RGB LED Matrix for an electronic display, indicator, signage, or OEM project? Contact HOUKEM with your required quantity, polarity, application, and technical requirements.

Request a product quotation and sample evaluation from HOUKEM today.
