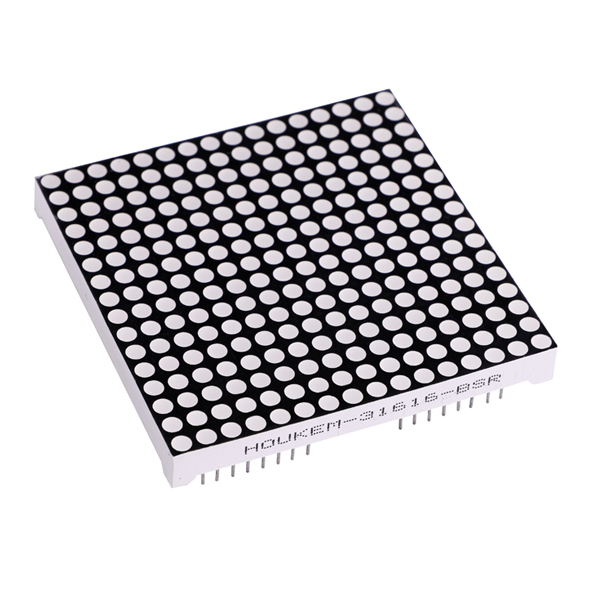

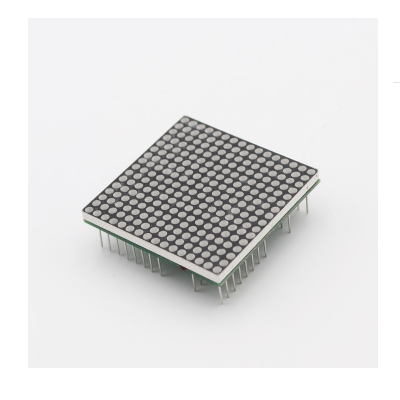

2mm 16x16 LED matrix display 40*40mm 16*16 rgb dot matrix
- Application:Indoor, Semi-outdoor, elevator,
- Color:RGB, rgb
- Panel Size:40*40MM
- Pixel Pitch:2.54
- Supplier Type:Original manufacturer, ODM, OEM
- Media Available:datasheet, Photo
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-21616-BRGB
- Brand Name:HOUKEM
- use:advertising publish, shopping mall, exhibition hall, elevator, Restaurant & Hotel Supplies
- Function:SDK
- Pixels:2.54
- Specification:--
- Screen Dimension:40*40mm
- Product name:RGB 16*16 led matrix
- Warranty:2Years
- Luminous Intensity:300-350mcd

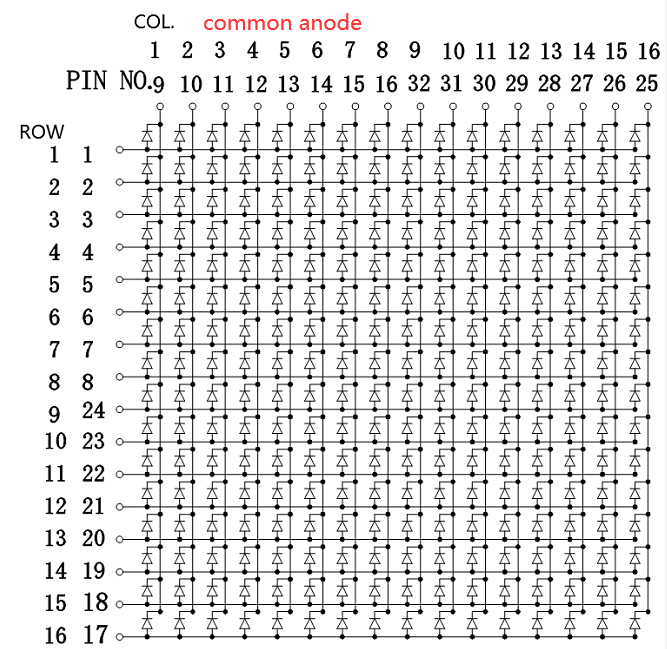

- PCB Polarity:common anode
- operating temperature:-20 ~ +50 ℃
- OEM:YES
- Custom made:YES
- Display Function:Video Picture Graphic Text Message
16x16LED matrix display 40*40mm 16*16 rgb dot matrix
1, Low consumption
2, High brightness
Item No. HOUKEM-21616-BRGB

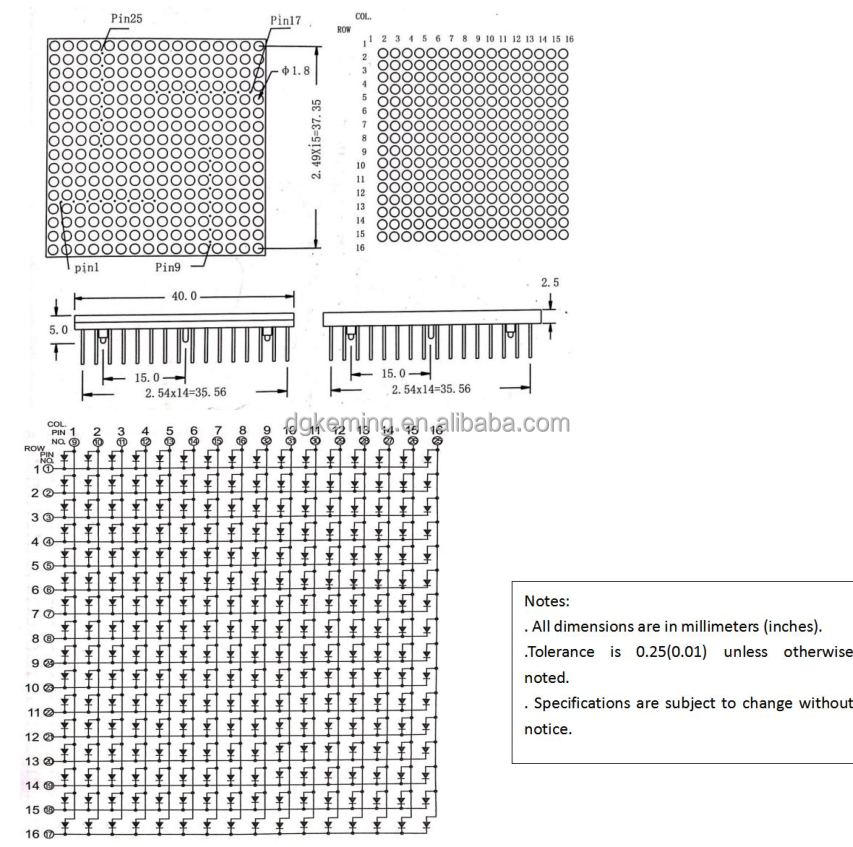

Part:Dot diameter | 1.8mm | Plastic film color | Milky white(diffuse) |
Array | 16*16 | Polarity | common cathode on row |
Surface color | Black | Emitting color | RGB(300mcd) |
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=15Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=15mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
ultra blue | IF=15mA | 465-469 | 40 | 2.9 | 3.0 | 360 | 380 |
Blue | IF=15mA | 465-475 | 40 | 2.95 | 3.0 | 150 | 200 |
Pure green | IF=15mA | 515-525 | 40 | 2.95 | 3.0 | 600 | 640 |
White | IF=15mA | - | - | 2.8 | 3.0 | 180 | 200 |
Two years quality warranty
Customized product are available.
