295nm UV LED SMD 3535 Diode
295nm UV LED SMD 3535 Product Description
HOUKEM295nm UV LED is a high-performance 0.6W UVB LED packaged in a compact SMD 3535 package for professional medical, scientific, and industrial applications. Designed with a stable UVB wavelength of 290–300nm (typical 295nm), this LED provides reliable optical output, long operating life, and excellent consistency for OEM equipment manufacturers and system integrators.
As a professional UV LED manufacturer established in 2003, HOUKEM provides high-quality 295nm UVB LED solutions with strict quality control, stable production capacity, and customization support. Our UV LEDs are widely used in phototherapy equipment, blood analysis instruments, spectroscopy systems, and other precision optical devices where wavelength accuracy and long-term reliability are essential.
Compared with conventional UV light sources, this 295nm UV LED offers lower power consumption, instant start-up, compact size, and maintenance-free operation, making it an ideal choice for modern medical and scientific equipment.
Key Features
- Typical wavelength of 295nm with UVB spectrum (290–300nm)
- High-power0.6W UV LED in SMD 3535 package
- Stable radiant output with excellent wavelength consistency
- Low thermal resistance for improved heat dissipation
- Lead-free and RoHS compliant
- Long service life up to 50,000 hours
- Compact package for easy PCB integration
- Suitable for OEM and custom medical equipment development
Electrical & Optical Characteristics
Test Condition: Ta = 25°C, IF = 100mA
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Forward Voltage | VF | 5.0 | 5.8 | 6.2 | V |
| Radiant Flux | - | 18 | 20 | 22 | mW |
| Viewing Angle | 2θ1/2 | - | 60 | - | Degree |

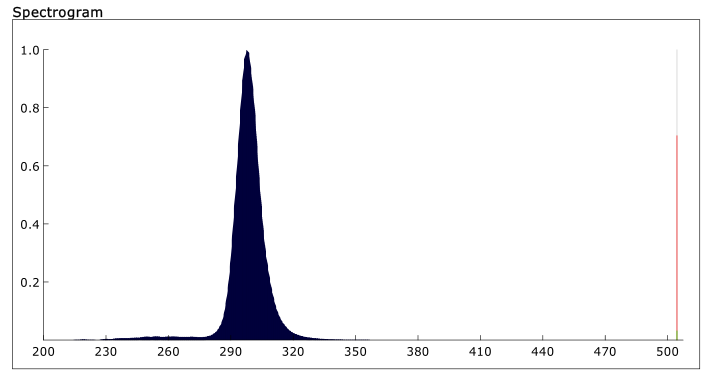

| Dominant Wavelength | λd | 290 | 295 | 300 | nm |
Product Specifications
| Item | Specification |
|---|---|
| Product Name | 0.6W High Power 295nm UV LED |

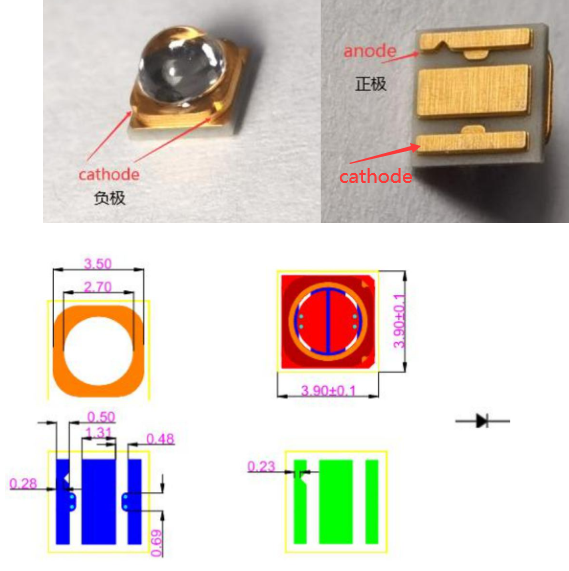

| Package Type | SMD 3535 |
| Peak Wavelength | 290–300nm (Typical 295nm) |
| Power | 0.6W |
| Forward Voltage | 5.8–6V |
| Forward Current | 100mA |
| Chip Size | 20 × 20 mil |
| Viewing Angle | 60° |
| Chip Material | AlGaInP |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Lifespan | 50,000 Hours |
| Warranty | 2 Years |
| Certifications | CE, RoHS, ISO9001 |
Typical Applications
The295nm UV LED is developed for professional B2B applications requiring stable UVB output and reliable long-term performance.
Typical applications include:
- Phototherapy equipment
- Psoriasis and vitiligo treatment devices
- Blood analysis instruments
- Spectroscopy systems
- Medical diagnostic equipment
- Scientific research instruments
- Biomedical optical devices
- Laboratory analytical equipment
Why Choose HOUKEM 295nm UV LED?
HOUKEM has specialized in LED manufacturing since 2003 and offers a complete range of UV LED solutions from 255nm to 1550nm. With extensive OEM and ODM experience, we support customers with product selection, optical design, and customized wavelength solutions.
Our manufacturing advantages include:
- Professional UV LED manufacturer
- Stable production capacity
- Strict quality inspection
- Consistent wavelength control
- Fast sample support
- OEM & ODM customization
- Global export experience
- Technical engineering assistance
Whether you are developing a new medical device or upgrading an existing UV optical system, HOUKEM can provide dependable 295nm UVB LED solutions tailored to your project requirements.
FAQ
What is the typical wavelength of this 295nm UV LED?
The dominant wavelength is 295nm, with a wavelength range of 290–300nm. Each batch is manufactured under strict quality control to ensure stable optical performance.
Is this UVB LED suitable for medical phototherapy equipment?
Yes. This 295nm UVB LED is designed for professional phototherapy, dermatology devices, and other medical applications requiring stable UVB output. Please verify compliance with your local medical equipment regulations before commercial use.
Can HOUKEM provide OEM or customized UV LED solutions?
Yes. We support OEM and ODM projects, including customized wavelength selection, package design, optical solutions, and application-specific requirements for industrial and medical customers.
What is the minimum order quantity for bulk purchasing?
Sample orders are available for evaluation, while volume production supports flexible quantities based on your project needs. Our sales team can provide detailed quotations according to your requirements.
How long is the production and delivery time?
Standard models are usually available from stock. Customized products typically require 3–5 working days for production before shipment, depending on specifications and order quantity.
Contact HOUKEM for OEM UV LED Solutions
Looking for a reliable 295nm UV LED manufacturer for your medical, scientific, or industrial project?
HOUKEM provides high-quality 295nm UVB LED products with stable performance, OEM customization, fast sample delivery, and professional technical support. Contact our engineering team today to discuss your application requirements and receive a customized quotation.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
