29.4*19mm smd seven segment led display 0.56 inch 3 digits
- Place of Origin:Guangdong, China
- Model Number:HOUKEM-5631SMD-AB/B
- Brand Name:HOUKEM
- Screen Dimension:29.4*19*3.75mm
- Product name:3 digit 7 segment led smd display 0.56''
- Warranty:2Years
- Luminous Intensity:110-130mcd
- Forward Voltage:1.8-2V
- PCB Polarity:common anode/cathode
- OEM:YES
- operating temperature:-35 ~ +85 ℃
- Custom made:YES
- Certificate:CE ROHS

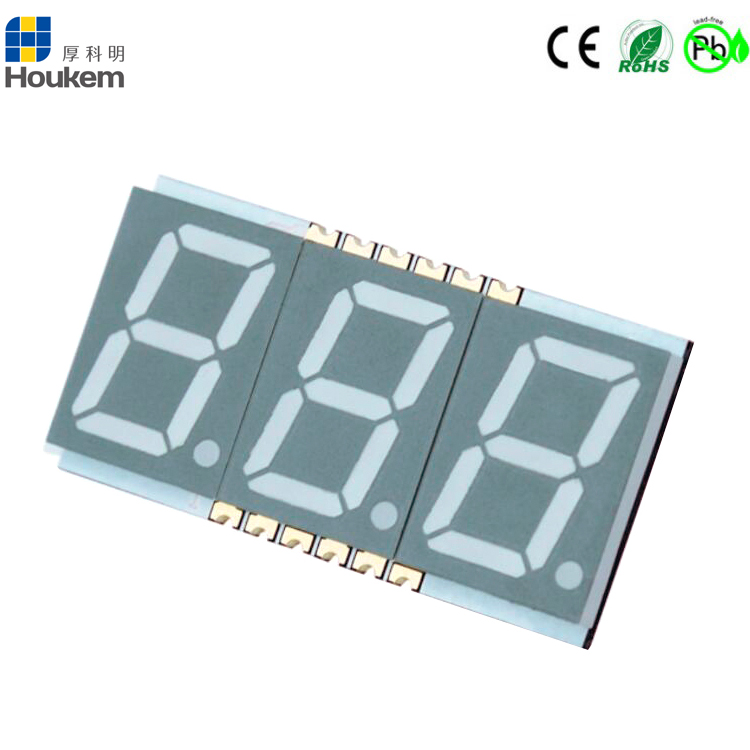

Gray face kem led 0.56 inch smd 7 segment led display 3 digits
1, Low consumption
2, High brightness
Product details:
| Item No. | HOUKEM-5631SMD-A/BB |
| Dimension | 37.5*19.5*3.75mm |
| Digit height | 0.56'' |
| Surface color | Black / Grey |
| Segment color | White /Clear |
| Emitting color | BLUE |
Package dimension& Internal circuit diagram
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Two years quality warranty
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=18mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=18mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=18mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=18mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=18mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=18mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=18mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=20mA | 465-475 | 40 | 2.8 | 3.0 | 150 | 200 |
Pure green | IF=20mA | 515-525 | 40 | 2.8 | 3.0 | 180 | 250 |
White | IF=20mA | - | - | 2.8 | 3.0 | 180 | 200 |
Our service:
Sample are available
In order to let you have an enjoyable experience on our best quality product and satisfied service,
we can offerSAMPLES for your test within 3-5 days.

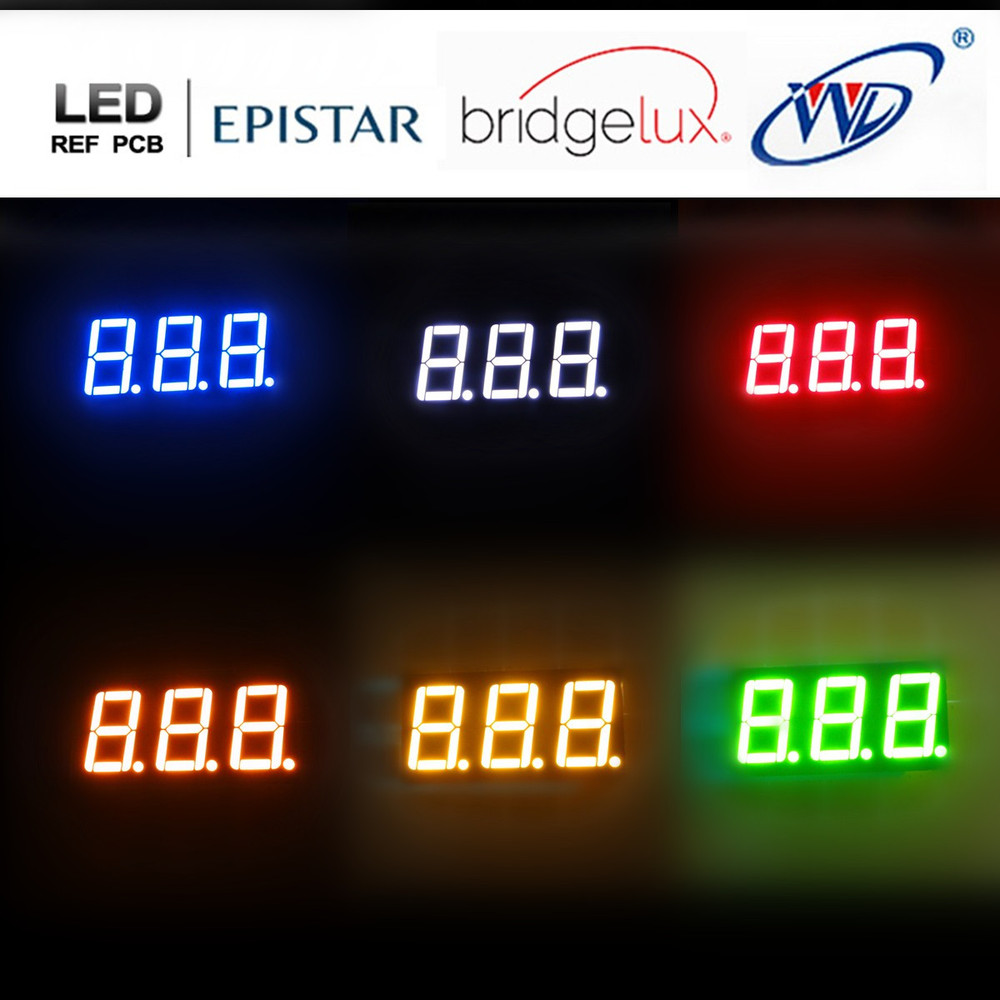

Other color
