265nm uv led high power uvc led 200mA 1W 265nm 260nm 265 nm uv led 26mw
- Input Voltage(V):DC 6-6.5V
- Warranty(Year):2-Year
- Type:High Power LED
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):26
- Lifespan (hours):10000
- Working Time (hours):10000
- Product Weight（kg）:0.001
- Chip Material:AlGaInP
- Emitting Color:purple
- Luminous Intensity:26mw
- Power:1W

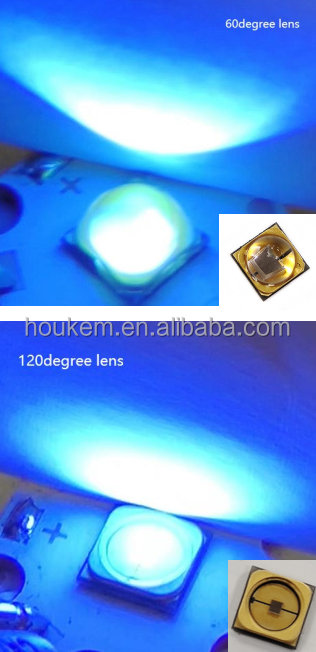

- Viewing Angle(°):60 or 120
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:1W High Power uvc LED 265nm
- Emitting Colour:puple
- Forward Voltage:6v
- Warranty:2 Years
- Wave length:260-270nm
- Current:200mA

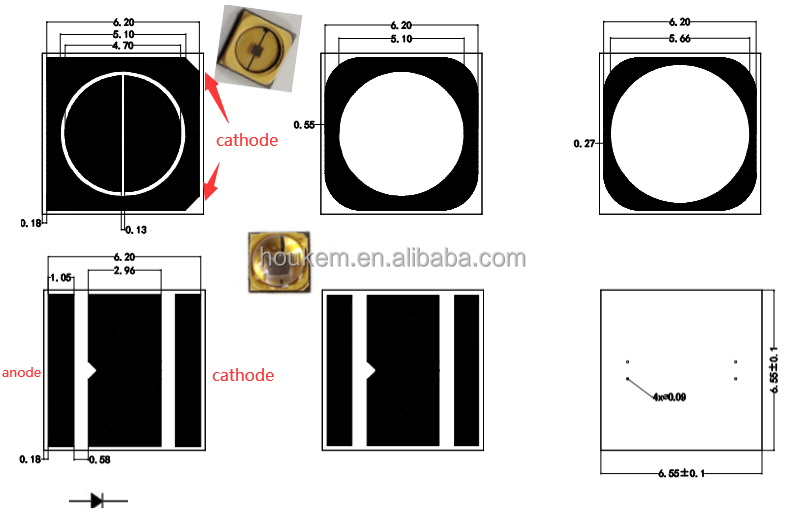

- Chip Size:30*30mil
- Certification:RoHS, CE, ISO9001
- lens:quartz lens
- Application:Sterilization

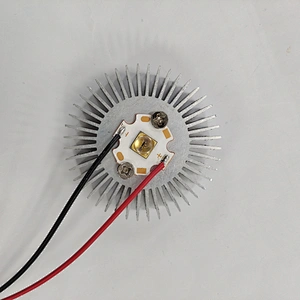

High power 1w 265nm UVC led
Electrical and optical characteristics (Ta = 25℃, If=200mA)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage | VF | IF = 200mA | 5.8 | 6 | 6.5 | V |
Radiant Flux [mW] | mW | IF = 200mA | 20 | --- | 26 | mw |
Viewing Angle | 2θ1/2 | IF = 200mA | ---- | 60 | ---- | Deg. |

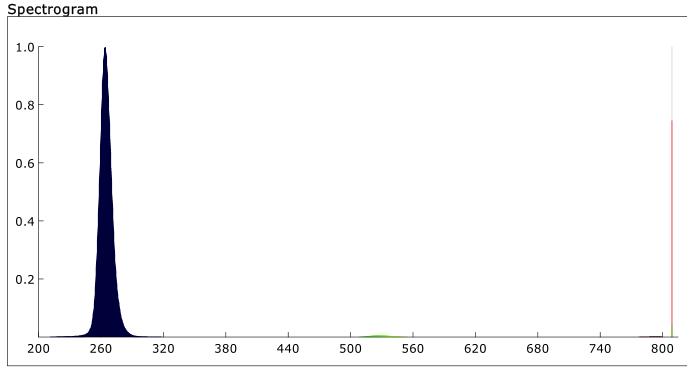

Dominate Wavelength | λd | IF = 200mA | 260 | 265 | 270 | nm |
Electrical and optical characteristics (Ta = 25℃)
| Wavelength | UVC: 255-260nm, 260-270nm, 270-280nm, UVB: 290-300nm, 305-315nm, |
Features and Benefits
• Deep ultraviolet LED • Low thermal resistance• SMT solderable• Lead Free product
• RoHS compliant• High Luminous intensity• Long Operation Life
Cautions on use
(1) Do not look directly into the UV light during operation. This can be harmful to your eyes and skin.
(2) Wear protective eyewear to avoid exposure to UV light.
(3) Attach caution labels to your products which contain UV LEDs.
(4) Avoid direct eye and skin exposure to UV light, Keep out of reach of children.

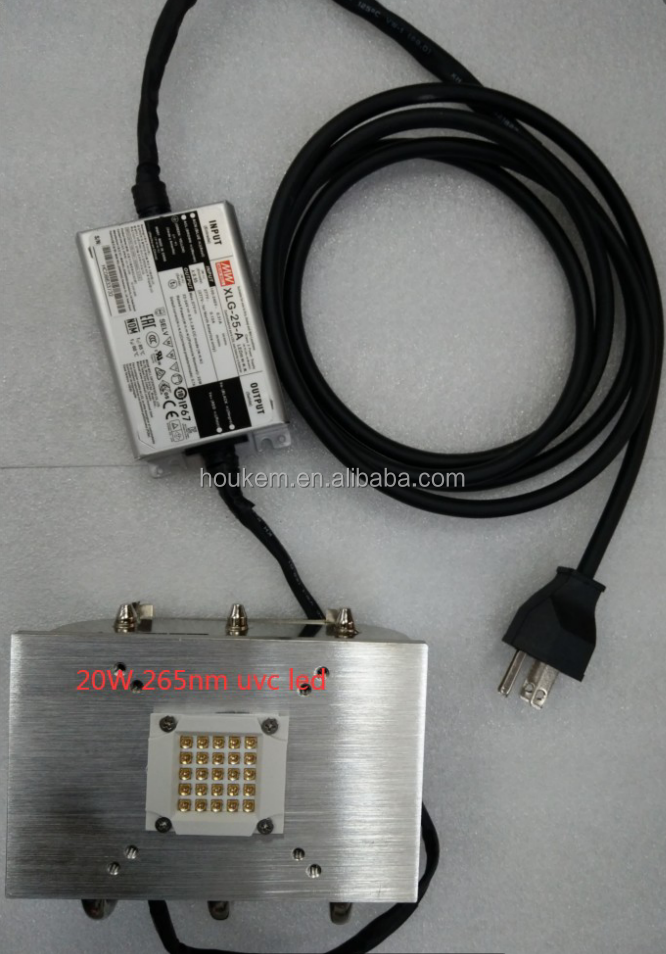

UVC LED sterilizer light
