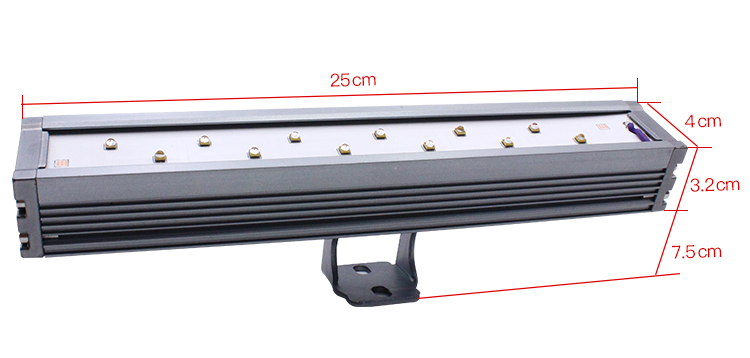

10W 275nm UVC LED Sterilization Lamp
10W 275nm UVC LED Sterilization Lamp
The HOUKEM 10W 275nm UVC LED Sterilization Lamp is a high-performance ultraviolet disinfection solution designed for OEM manufacturers, sterilization equipment suppliers, air purification system integrators, and medical device developers. Featuring a 275nm UVC LED wavelength, this lamp delivers effective germicidal performance while providing the advantages of LED technology, including instant startup, compact design, low maintenance requirements, and mercury-free operation.
With a durable aluminum housing, AC110-240V input, and 12-piece high-power UVC LED configuration, this product is suitable for a wide range of ultraviolet sterilization applications, including air treatment systems, medical equipment, laboratory devices, and water purification equipment.
Product Features
High-Efficiency 275nm UVC LED Technology

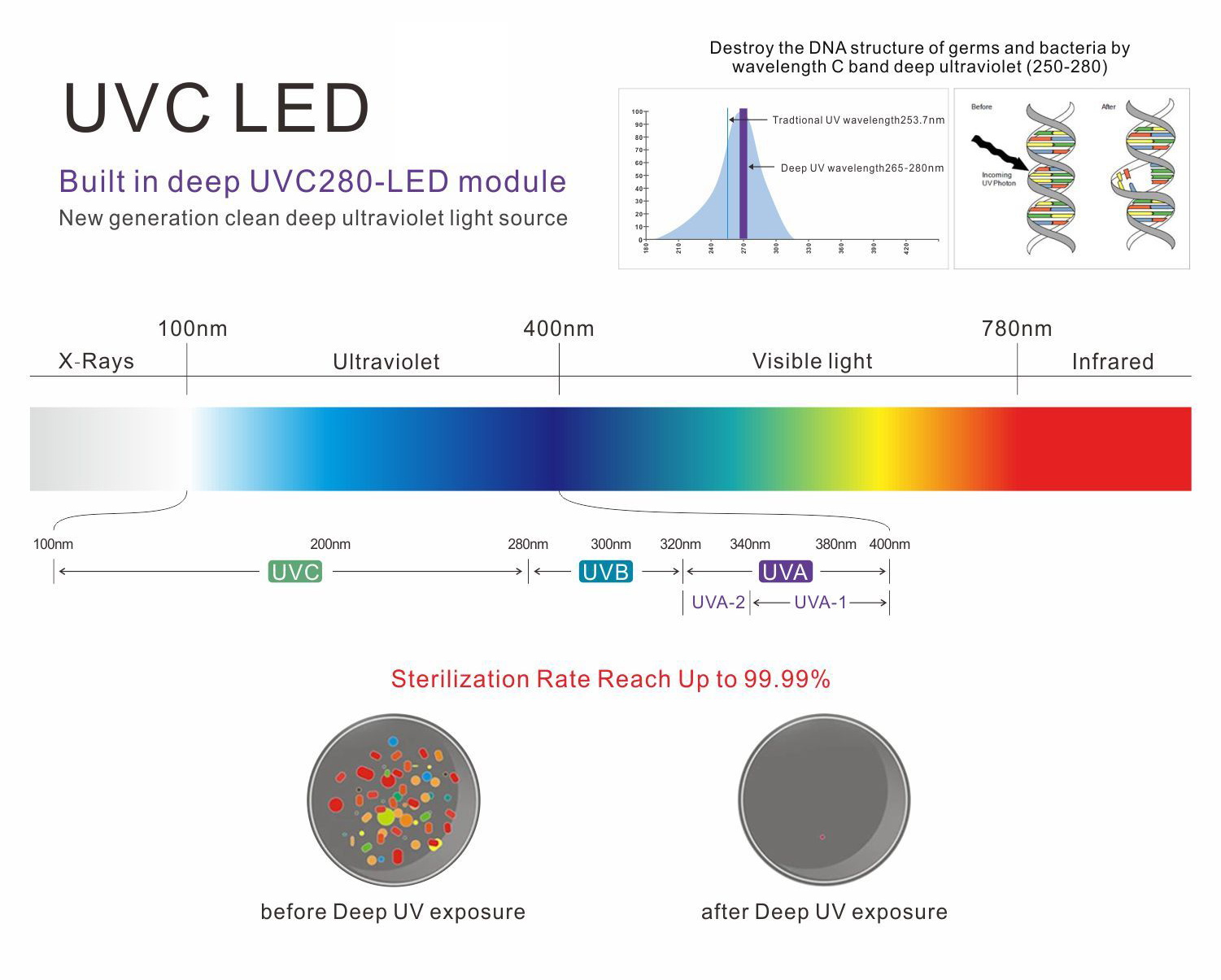

This 275nm LED lamp operates within the 270-280nm germicidal wavelength range, which is widely used in ultraviolet sterilization applications. The 275nm wavelength helps manufacturers develop reliable disinfection systems for air, surfaces, and equipment.
High Power 10W Output
The lamp integrates 12 pieces of 275nm 3535 SMD UVC LEDs to achieve a total power rating of 10W, providing strong ultraviolet output for commercial and industrial sterilization equipment.
Long Service Life
Compared with traditional mercury UV lamps, the UVC LED design offers a service life of up to 10,000 hours, reducing replacement frequency and maintenance costs.
Mercury-Free and Environmentally Friendly
Unlike conventional UV lamps, this 275nm UVC LED lamp contains no mercury, making it safer for system integration and environmentally responsible applications.
Flexible Beam Angle Options
Available lens angles:
30°
60°
120°
Manufacturers can select the appropriate beam angle based on sterilization distance and equipment design requirements.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | 10W 275nm UVC LED Sterilization Lamp |
| Model | HOUKEM-10W-275 |
| Power | 10W |
| LED Quantity | 12 PCS |
| LED Type | 275nm 3535 SMD |
| Wavelength | 270-280nm |
| Peak Wavelength | 275nm |

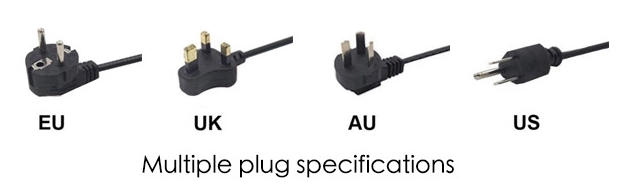

| Input Voltage | AC110-240V |
| Power Supply | AC |
| Radiant Flux | 140-180mW |
| Beam Angle | 30° / 60° / 120° |
| Material | Aluminum |
| Lifespan | 10,000 Hours |
| Weight | 0.5kg |
| Certification | CE, RoHS |
| Warranty | 2 Years |
Typical Applications of 275nm LED Technology
Air Sterilization Systems
This ultraviolet air sterilization lamp can be integrated into:
HVAC systems
Air purifiers
Ventilation equipment
Commercial air disinfection units
The compact structure allows easy installation in enclosed air treatment systems.
Medical and Laboratory Equipment
The 275nm UVC LED lamp is suitable for:
Medical sterilization devices
Laboratory sterilization systems
Diagnostic equipment
Healthcare disinfection units
Water Purification Equipment
OEM manufacturers can integrate this 275nm UVC LED solution into:
Water sterilization modules
Point-of-use purification systems
Industrial water treatment devices
Surface Disinfection Systems
The lamp can also be used in ultraviolet sterilization equipment designed for:
Production lines
Packaging systems
Automated disinfection stations
Industrial sanitation equipment
Why Choose 275nm UVC LED Instead of Traditional UV Lamps?
Instant Start-Up
UVC LEDs reach full output immediately without warm-up time.
Compact Equipment Design
The small size of the LED module allows greater flexibility in equipment development.
Lower Maintenance Requirements
With a lifespan of up to 10,000 hours, replacement frequency is significantly reduced.
Mercury-Free Technology
Unlike traditional mercury lamps, 275nm UVC LEDs provide a cleaner and safer solution for modern sterilization equipment.
Better Integration for OEM Projects
The compact design, multiple beam angles, and AC110-240V compatibility make this lamp suitable for a wide range of OEM sterilization systems.
Manufacturing Capability
Established in 2003, HOUKEM specializes in the development, production, and export of LED lighting products and high-power LED solutions.
Our manufacturing advantages include:
Professional LED manufacturing experience
Advanced automated production equipment
Spectrum testing systems
CE and RoHS certified products
OEM and customization services
Global export experience
Our products have been supplied to customers in the United States, Germany, Japan, South Korea, and many other international markets.
FAQ
What industries commonly use 275nm LED sterilization lamps?
The most common industries include air purification, medical devices, water treatment, laboratory equipment, and OEM sterilization system manufacturing.
Can this 275nm UVC LED lamp be customized?
Yes. HOUKEM provides OEM and ODM services, including customized specifications, branding, and product configuration according to project requirements.
Is the lamp suitable for continuous operation?
Yes. The lamp is designed for industrial and commercial applications with a rated lifespan of up to 10,000 hours under proper operating conditions.
What is the difference between 275nm UVC LEDs and traditional mercury UV lamps?
275nm UVC LEDs offer instant startup, compact design, mercury-free operation, and easier integration into modern sterilization equipment.
Can this lamp be integrated into air purification equipment?
Yes. Many OEM customers use this ultraviolet air sterilization lamp in HVAC systems, air purifiers, and commercial air disinfection equipment.
Contact HOUKEM
Looking for a reliable 275nm LED supplier for your sterilization equipment project?
HOUKEM provides factory-direct pricing, OEM customization, technical support, and worldwide shipping for UVC LED sterilization solutions.
Contact our team today to discuss your project requirements and receive a quotation for bulk orders.
