200watt high power ir led 825nm 830nm 835nm cob led 200w
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):400
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.5
- Chip Material:INGAN
- Emitting Color:Red
- Power:200w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 50
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:200W High Power ir LED 830nm
- Emitting Colour:red
- Forward Current:3000-3500mA
- Forward Voltage:30-34v
- Lifespan:50000 Hours
- Warranty:2 Years
- Wave length:830-835nm
- warranty:2 Years
- other Wavelength:255nm-1550nm
- Certification:CE,ROHS

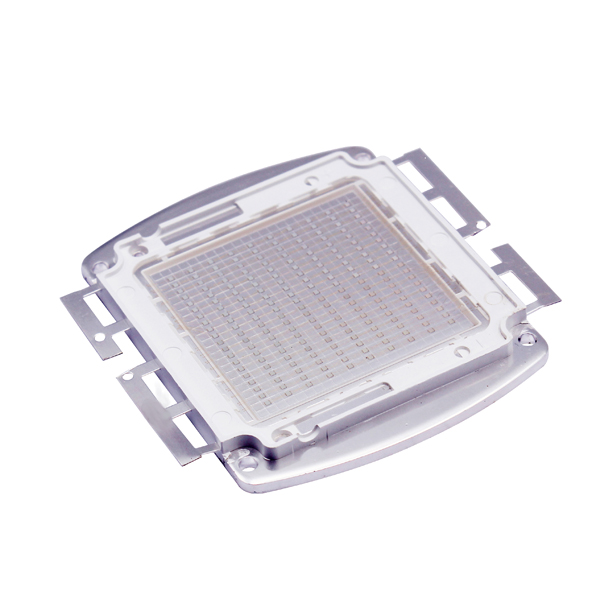

200w High power 830nm ir led
Electrical and optical characteristics (Ta = 25℃)
| Item | High Power 200w ir LED 830NM |
| Power | 200w |
| Color | red |
| Diode Brand | Epileds |
| Wavelength | 800-805nm, 805-810nm, 825-830nm, 830-835nm,850-855nm, |
| Radiant power | 14600-15000mw |
| Forward Current | 3000-3500mA |
| Forward Voltage | 30-34v |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |
The Features of Our Product
1. Use high efficient integrated LED as the light source
2. Wide beam angle: 140 degree (larger lighting area) or customized
3. Smart appearance: built-in power supply, no need ballast, reflector, it can work independently
4. Unique heat dissipation device: thermostatically controlled fans to keep LED light cool
5. Can be combined with fluorescent lighting
6. Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant
20 series 2 parallel, 200pcs led chip inside, chip size: 42mil

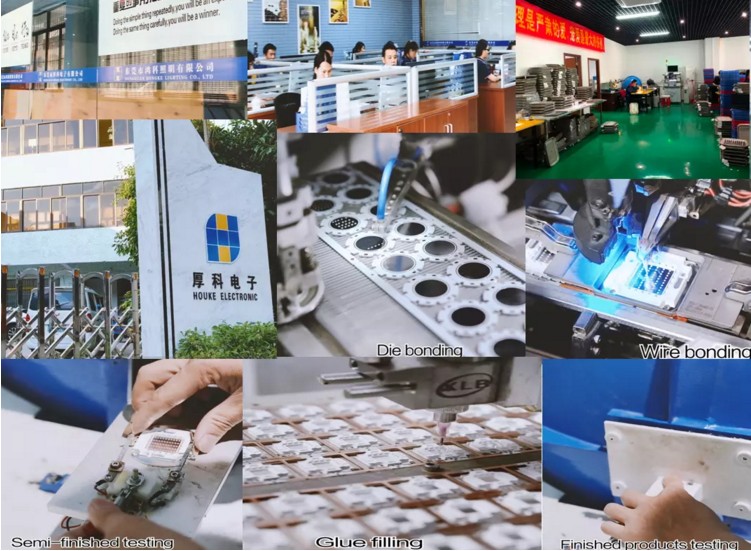

Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs,
dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, high power 255nm to 1550nm LED arrays,
COB LEDs, SMD LEDs, street light LED, and all LED lighting application solution, etc.

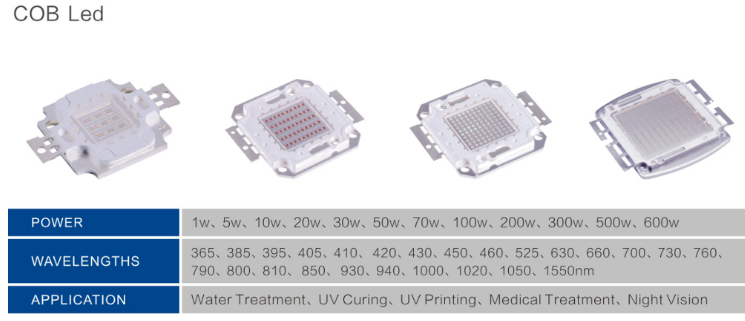

255-1550nm are available
Yes, we can. we welcome sample order to test and check quality.
Q2: Could I put my logo on it?
Of course. The logo can be made according to your requirements once you reached our MOQ.
Q3: What's your packaging?
We have a color box and carton. Welcome to customize if you need.
Q4: What's your lead time?
3-7 days for the sample orders in the stock. 25-30 days for mass production.
Q5: What's your quotation terms?
EXW is available.
Q6: What's your warranty?
With over 16 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested before shipment. and have 2 years warranty.
Q7: Why choose us?
1) We provide factory direct price.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) W provide service door to door (China to your warehouse), much easy transaction.
