200w led high power led 450nm 455nm 460nm 465nm 470nm blue led cob
- Warranty(Year):2-Year
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Luminous Efficacy(lm/w):400
- Lifespan (hours):50000
- Working Time (hours):50000
- Product Weight（kg）:0.5
- Chip Material:INGAN
- Emitting Color:Blue
- Power:200w
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 50
- Storage Temperature(℃):-40 - 80
- Place of Origin:Guangdong, China
- Brand Name:HOUKEM
- Product name:200W High Power blue LED 450nm
- Emitting Colour:blue
- Forward Current:3000-3500mA
- Forward Voltage:60-68v
- Lifespan:50000 Hours
- Warranty:2 Years
- Wave length:450-455nm
- warranty:2 Years
- other Wavelength:255nm-1550nm
- Certification:ce, rohs

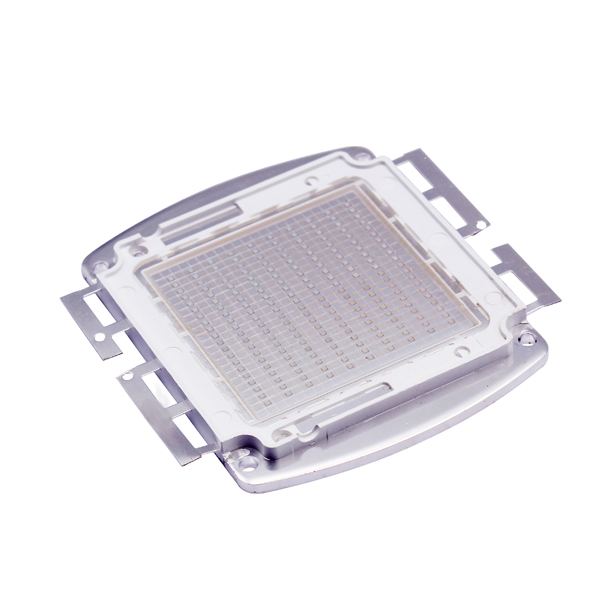

200w High power 450nm blue led
Electrical and optical characteristics (Ta = 25℃)
| Item | High Power 200w blue LED 450NM |
| Power | 200w |
| Color | blue |
| Diode Brand | Epileds |
| Wavelength | 365-370nm, 370-375nm, 380-385nm, 390-395nm, 395-400nm, 400-405nm, 405-410nm, 410-415nm, 420-425nm, 430-435nm, 450-455nm, 460-465nm, 470-475nm, 480-485nm |
| Radiant power | 400mw/chip |
| Forward Current | 3000-3500mA |
| Forward Voltage | 60-68v |
| Certification | CE, RoHS |
| PCB Material | 2.0mm Red copper plate |
The Features of Our Product
1. Use high efficient integrated LED as the light source
2. Wide beam angle: 140 degree (larger lighting area) or customized
3. Smart appearance: built-in power supply, no need ballast, reflector, it can work independently
4. Unique heat dissipation device: thermostatically controlled fans to keep LED light cool
5. Can be combined with fluorescent lighting
6. Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant
10 series 3 parallel, 30pcs led chip, chip size: 42mil

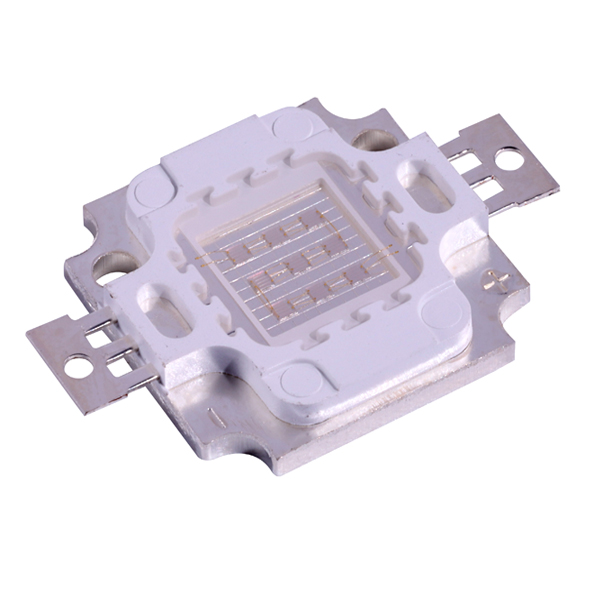

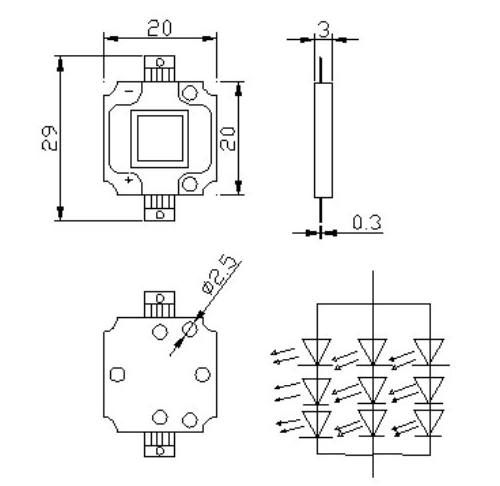

3 series 3 parallel, 9pcs led chip

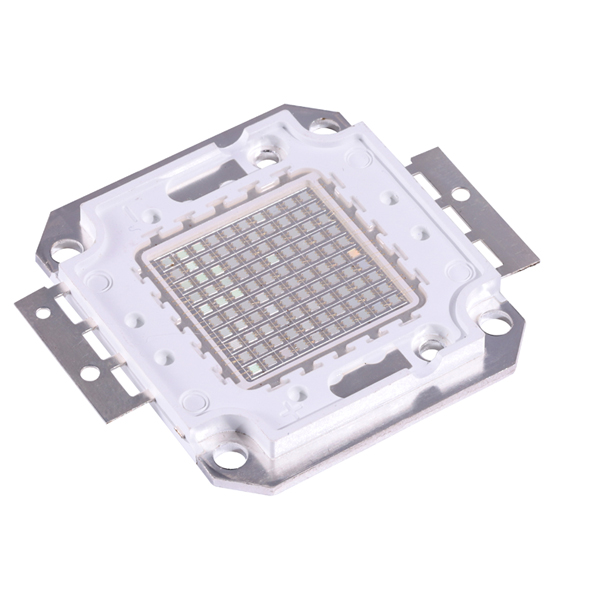

100w
10 series 10 parallel,
500w, 500PCS led chip
Established in 2003, we are a LED professional manufacturer, we offer led products, high power 255nm to 1550nm LED, COB LEDs,
SMD LEDs, street light LED, UVC LED sterilizer light, 10w-200w led flood light, and all LED lighting application solution.
255-1550nm are available
