HOUKEM 16x16 RGB LED Matrix Display

The HOUKEM 16x16 RGB LED Matrix Display provides full-color LED output for electronic displays, control panels and visual indicators. Designed for OEM applications, it supports customized display solutions for industrial and commercial equipment.

minimum order :

1 piece

Country of Origin :

FOB Shenzhen

Quantity :

$11.23 - $12.00 / piece

add to cart

Contact Now

16x16 RGB LED Matrix Display for OEM Applications

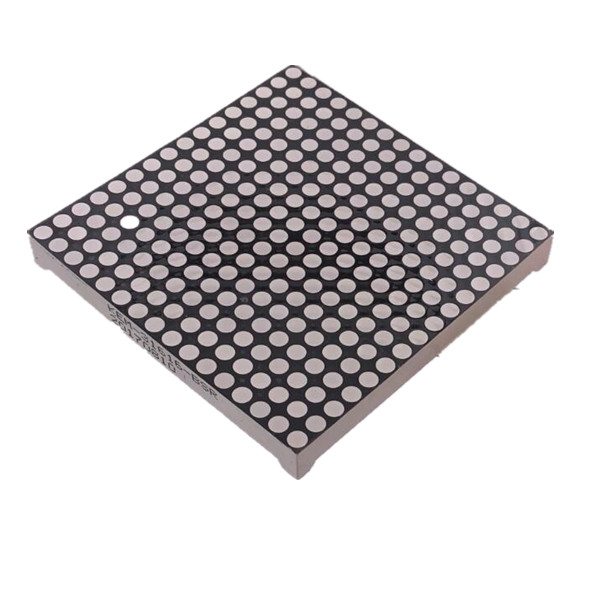

The HOUKEM 16x16 RGB LED Matrix is a compact dot matrix display designed for electronic equipment, industrial indicators, visual interfaces, and customized LED display applications. With a 16×16 dot arrangement, 3mm dot diameter, and 64×64mm panel size, it provides RGB full-color output in a compact format.

The display is available with common anode or common cathode polarity and can also be supplied in single-color and dual-color configurations according to project requirements. HOUKEM supports OEM and customized LED display solutions for professional equipment manufacturers, electronics companies, and component distributors.

16x16 RGB LED Matrix Specifications

Specification	Details
Model	HOUKEM-31616-BRGB
Product Type	16x16 RGB LED Matrix
Array	16×16 dots
Dot Diameter	3.0mm
Dimension	64 × 64 × 7.5mm
Panel Size	64 × 64mm
Pixel Pitch	2.54mm
Emitting Color	RGB
Polarity	Common Anode / Common Cathode
Surface Color	Black / Grey
Dot Color	Water Clear / Milky White
LED Source	Epistar LED
Application	Indoor Display
Supplier Type	Original Manufacturer
Country of Origin	Guangdong, China

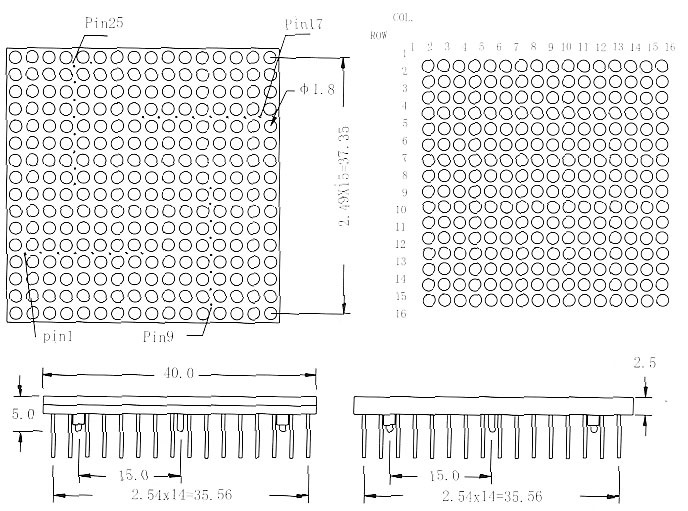

The standard configuration uses a 16×16 array with 3mm dots and a 64×64×7.5mm overall dimension. If the standard dimension or PCB layout does not meet your equipment requirements, HOUKEM can discuss alternative specifications and customized solutions.

Flexible Dot Matrix Configurations

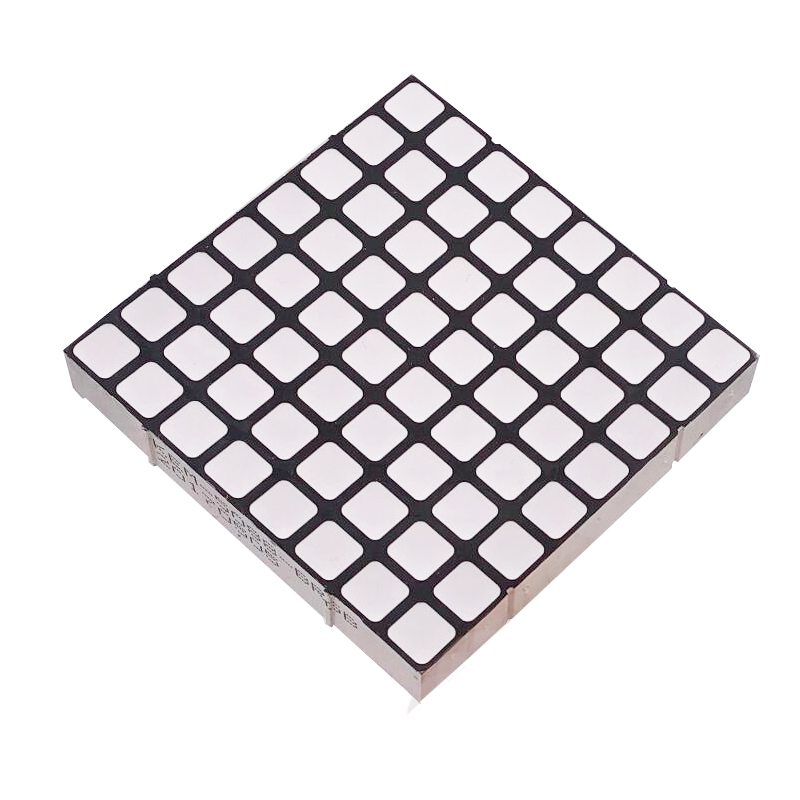

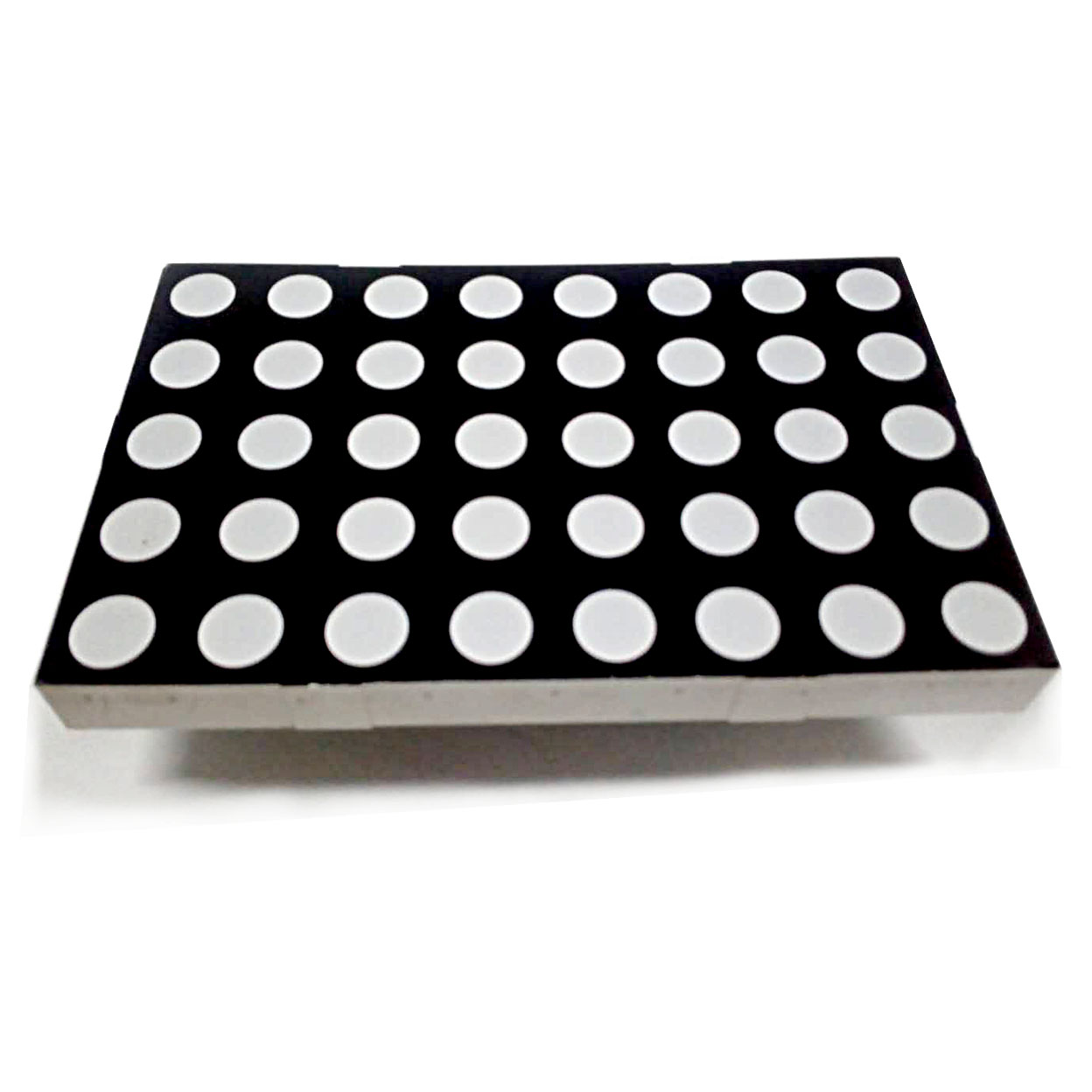

HOUKEM supplies different types of LED dot matrix displays for electronic equipment manufacturers and OEM projects. Available array configurations include 5×7, 5×8, 8×8, 11×7, and 16×16 dot matrix displays.

Different emitting colors are available, including red, green, blue, yellow, amber, white, and RGB. Surface colors can be supplied in black or grey, while dot epoxy options include milky white, water clear, or the same color as the emitting light.

This flexibility allows purchasing and engineering teams to select the appropriate dot size, array, color, and electrical configuration according to the final equipment design.

Applications for Professional Equipment

A 16x16 RGB LED Matrix Display can be integrated into indoor electronic displays where compact visual output and multiple colors are required. Typical applications include equipment indicators, control interfaces, electronic instruments, information displays, and customized display assemblies.

For OEM projects, the display can be evaluated according to panel dimensions, dot arrangement, polarity, emitting color, PCB layout, and installation requirements before mass production.

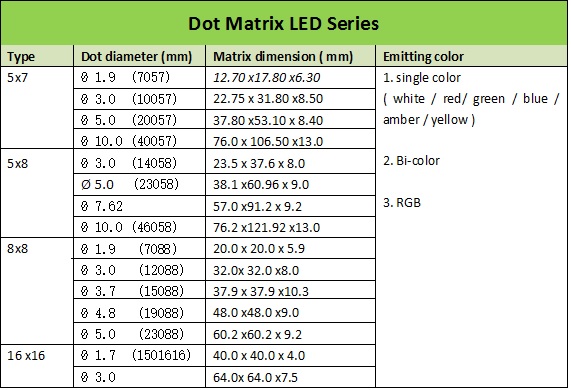

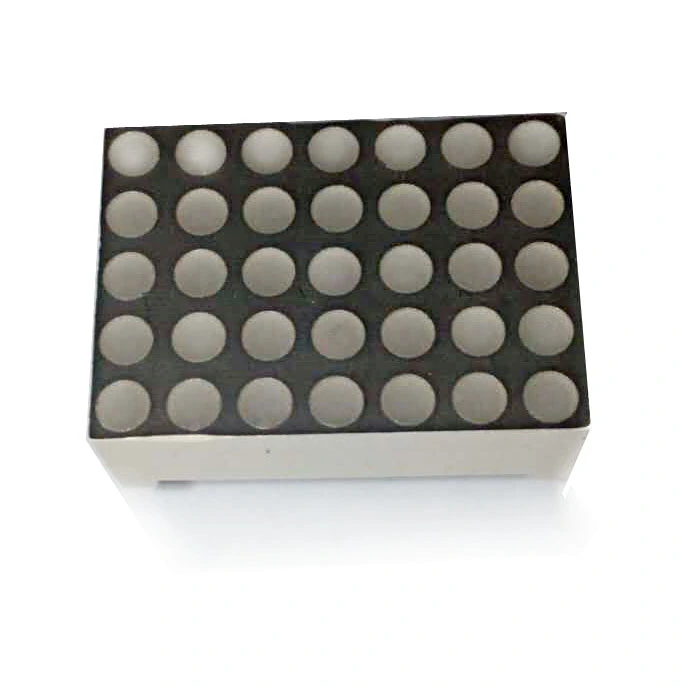

Other Available Dot Matrix Sizes

Model	Dot Diameter	Array	Length × Width
KEM-7057-AB	1.9mm	5×7	12.7×17.8mm

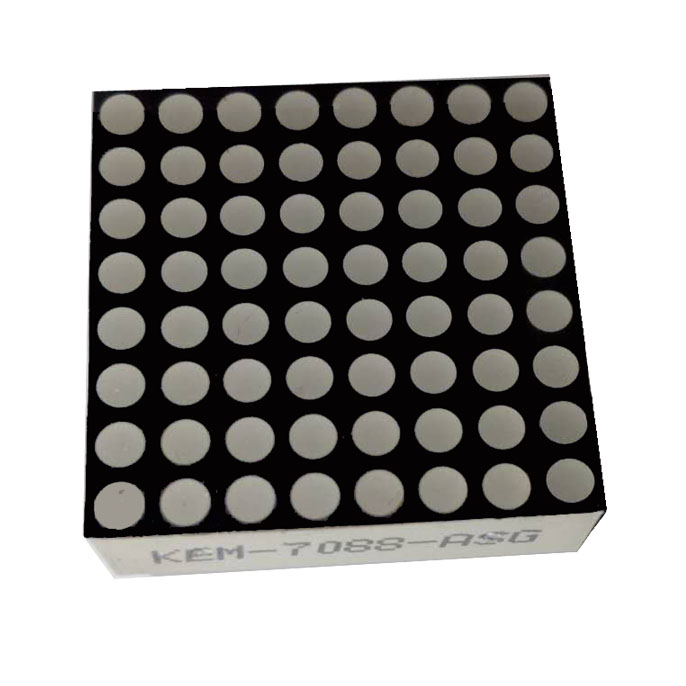

KEM-7088-AB	1.9mm	8×8	20×20mm
KEM-10057-AB	2.54mm	5×7	19.96×27.94mm
KEM-11057-AB	3.0mm	5×7	22.75×31.8mm
KEM-12057-AB	3.0mm	5×7	22.80×39.1mm
KEM-12088-AB	3.0mm	8×8	32.0×32.0mm
KEM-12288-AB	Square 3.0×3.0mm	8×8	31.7×31.7mm
KEM-15088-AB	3.7mm	8×8	37.9×37.9mm
KEM16057-AB	4.5mm	5×7	29.4×44.9mm
KEM-19088-AB	4.8mm	8×8	47.8×44.9mm
KEM-20057-AB	5.0mm	5×7	37.8×53.1mm
KEM-20088-AB	5.0mm	8×8	50.7×50.7mm
KEM-23058-AB	5.0mm	5×8	37.8×60.6mm
KEM-2488-AB	Square 6.0×6.0mm	8×8	60.2×60.2mm
KEM-40057-AB	10.0mm	5×7	76.0×106.5mm
KEM-46058-AB	5.0mm	5×8	76.0×121.5mm

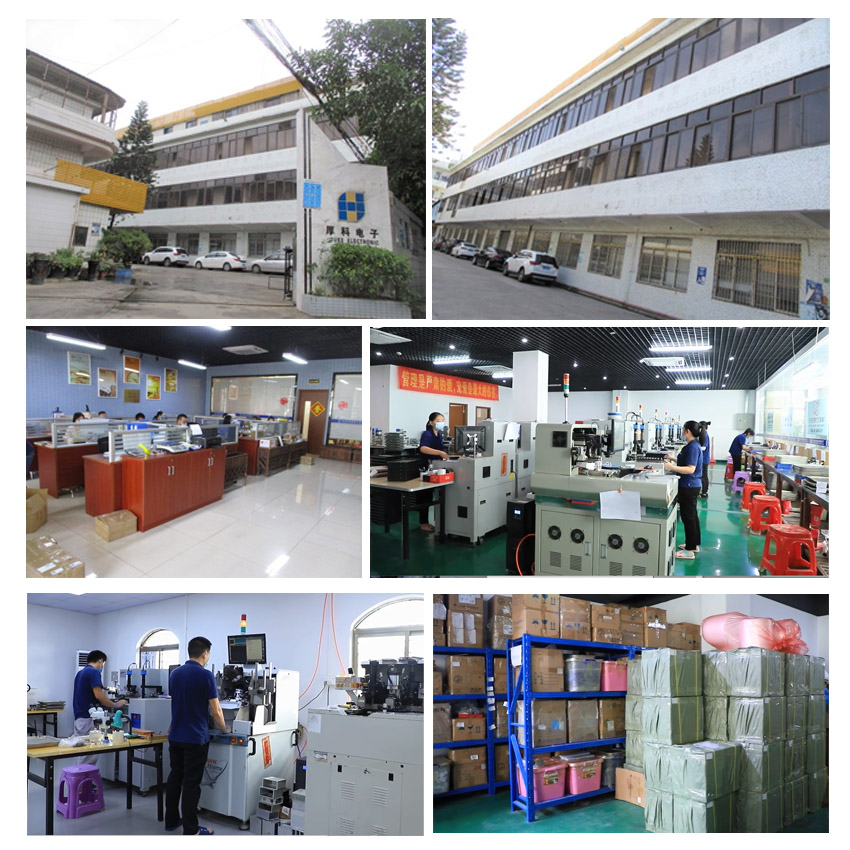

B2B OEM and Customization Support

HOUKEM is an original LED display manufacturer with experience in dot matrix, 7-segment LED displays, customized LED displays, UV LED, and IR LED products. The company provides OEM and ODM support and can work with customers on display specifications, PCB layout, dimensions, colors, and application requirements.

FAQ

1. Can the 16x16 RGB LED Matrix be customized for an existing PCB?
Yes, HOUKEM can review the required dimensions, layout, polarity, and electrical specifications for OEM projects.

2. Is the display available in common anode and common cathode versions?
Yes, both common anode and common cathode configurations are available.

3. Can I order a sample before mass production?
Yes, samples can be provided for engineering evaluation and compatibility testing before bulk orders.

4. What information should I provide for a custom LED matrix quotation?
Provide the required array, dot diameter, dimensions, emitting color, polarity, PCB requirements, and estimated order quantity.

5. Does HOUKEM manufacture other LED dot matrix sizes?
Yes, HOUKEM supplies 5×7, 5×8, 8×8, 11×7, and 16×16 dot matrix displays in different colors
