White 5mm 5x7 LED Dot Matrix Display
White LED Dot Matrix Display 5x7 LED Matrix Module

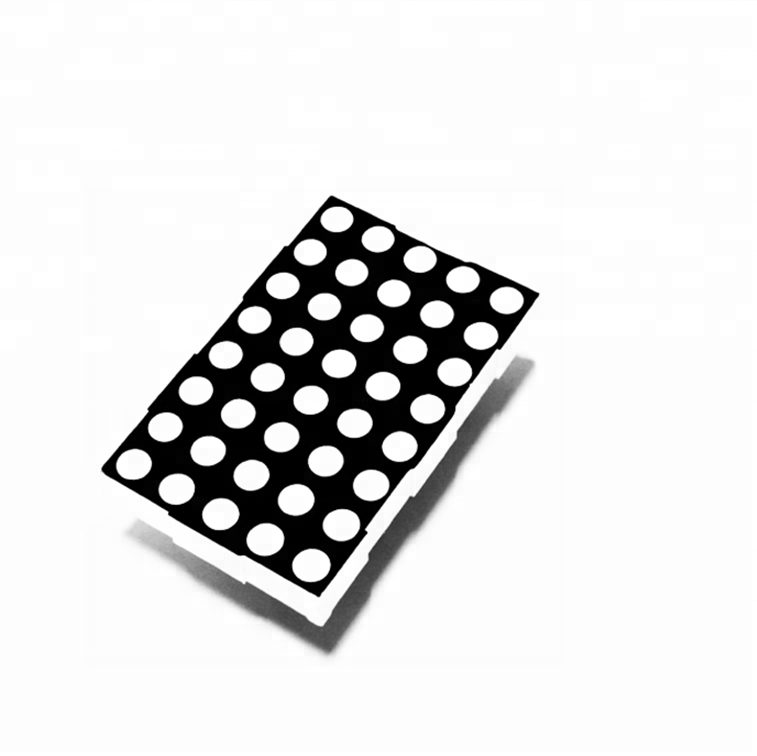

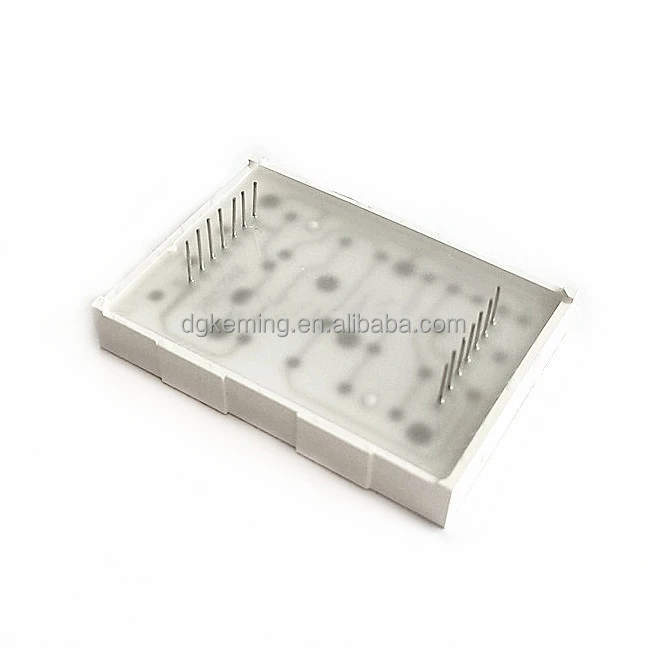

HoukemWhite LED Dot Matrix Display is a professional LED display module designed for industrial equipment, elevator indicators, digital counters, electronic devices, and customized OEM applications. Featuring a 5×7 dot matrix structure with 5mm LED dots, this LED matrix module provides clear character display, stable performance, and excellent visibility for various indoor display systems.
The5x7 LED Matrix Display adopts high-quality white LEDs with a luminous intensity of 200mcd/chip, supporting both common cathode and common anode configurations. With a compact size of 37.8 × 53.1 × 8.4mm, this 5mm LED Matrix Module is suitable for manufacturers requiring reliable LED components for integration into their own electronic products.
As an experienced LED display manufacturer, Houkem provides OEM and ODM services, including customized specifications, colors, packaging, and technical support for global customers.
Product Features
TheWhite LED Dot Matrix Display is designed for applications requiring clear text, numbers, symbols, and graphic information display.
Key Features:
- 5×7 LED dot matrix structure
- 5mm round LED dot design
- White LED emitting color
- High brightness with uniform illumination
- Low power consumption
- Common cathode and common anode options available
- Stable optical performance
- Long service life
- OEM and custom solutions supported
- Factory-direct supply from Houkem
The 5mm dot size provides better visibility compared with smaller LED matrix displays, making it suitable for medium-distance viewing applications such as industrial panels, elevator displays, and digital information systems.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | 5mm 5×7 LED Matrix Display |
| Model Number | HOUKEM-20057-A/BW |
| Display Type | White LED Dot Matrix Display |
| Dot Arrangement | 5×7 |
| Dot Diameter | 5mm |
| Dimension | 37.8 × 53.1 × 8.4mm |
| Emitting Color | White |

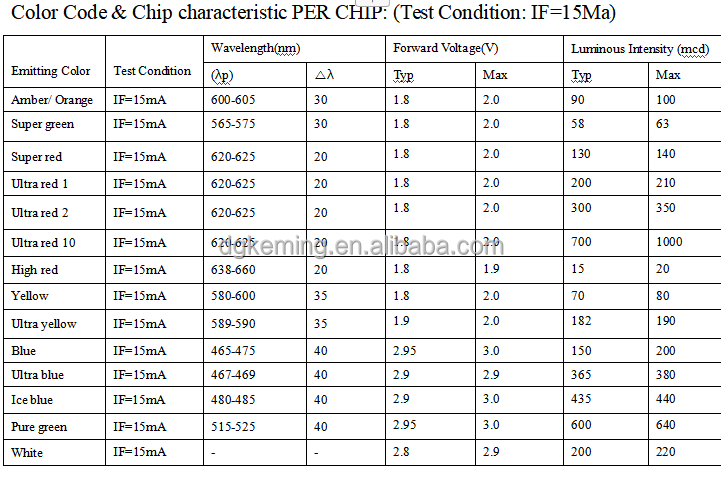

| Luminous Intensity | 200mcd/chip |
| Surface Color | Black / Grey / White |
| Epoxy Color | Milky White / Clear |
| Polarity | Common Cathode / Common Anode |
| Operating Temperature | -20℃ ~ +50℃ |
| Warranty | 2 Years |
| OEM | Supported |
| Custom Made | Supported |
| Certification | CE / REACH / RoHS / ISO9001 |
If your required dimensions, LED color, polarity, or electrical specifications are different, Houkem can provide customized LED Character Display Module solutions according to your project requirements.
Applications of White LED Dot Matrix Display
TheWhite LED Dot Matrix Display is widely used in electronic products that require character, number, and graphic information display.
Typical Applications Include:
Industrial Equipment Display
The 5x7 LED Matrix Display is commonly integrated into:
- Industrial control panels
- Automation equipment
- Machine status indicators
- Measuring instruments
It helps users quickly identify operating status, numbers, and warning information.
Elevator and Public Information Display
Due to its high brightness and reliable operation, the module can be used for:
- Elevator floor indicators
- Direction displays
- Public information systems
- Subway display equipment
Commercial and Consumer Electronics
The module is also suitable for:
- Digital counters
- Clock displays
- Home appliance displays
- Retail information systems
- Restaurant and hotel display equipment
The 5×7 matrix structure allows manufacturers to create letters, numbers, symbols, and customized display patterns.
Customized LED Matrix Display Solutions
Houkem specializes in manufacturing LED display components with extensive experience in product development, production, and customization.
Our LED display product range includes:

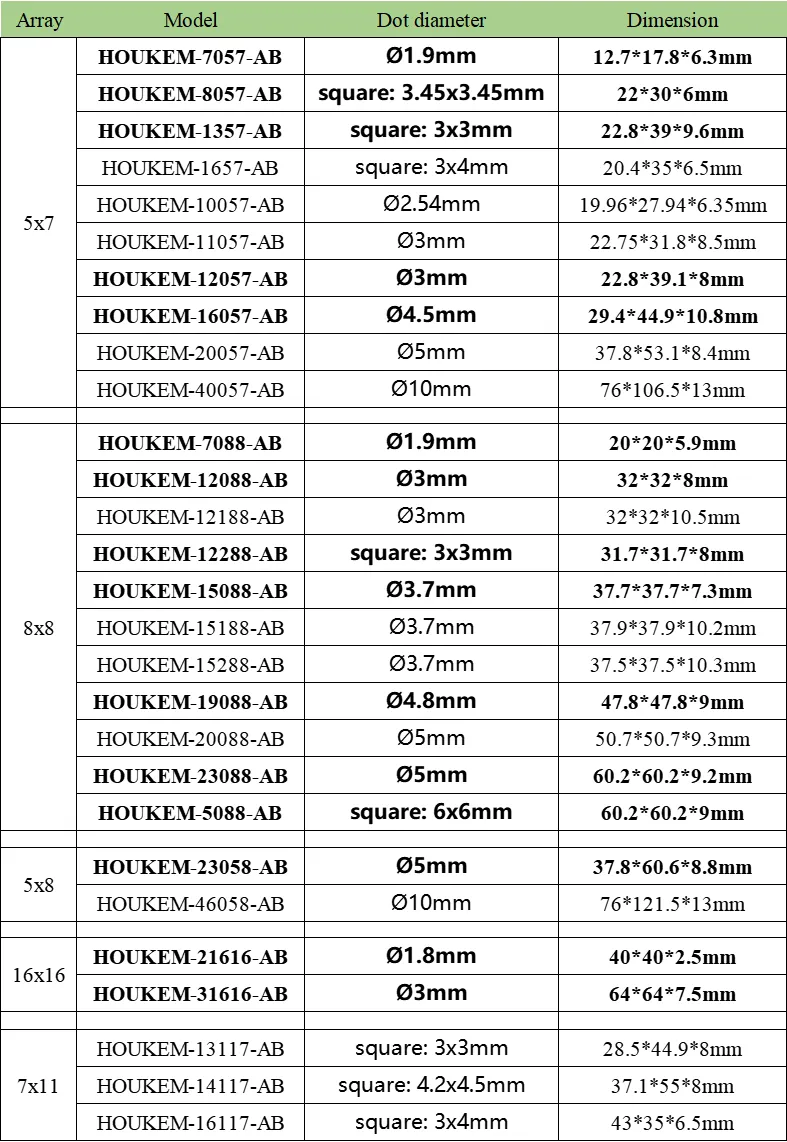

- LED Dot Matrix Displays:
- 5×7
- 5×8
- 8×8
- 11×7
- 16×16
- 7 Segment LED Displays
- Alphanumeric Displays
- SMD LED Displays
- LED Direction Indicator Displays
- Customized LED Display Solutions
With professional production equipment, strict quality control, and OEM capability, Houkem supports customers worldwide with reliable LED display modules.
Quality Assurance and Certifications
TheWhite LED Dot Matrix Display is manufactured under strict quality control procedures.
Quality advantages include:
- CE certification
- RoHS compliance
- REACH compliance
- ISO9001 quality management system
- 2-year product warranty
Each product is tested before shipment to ensure stable performance and consistent quality for long-term applications.
Frequently Asked Questions
Can Houkem customize the 5x7 LED Matrix Display?
Yes. Houkem supports OEM customization including LED color, polarity, dimensions, packaging, and technical specifications.

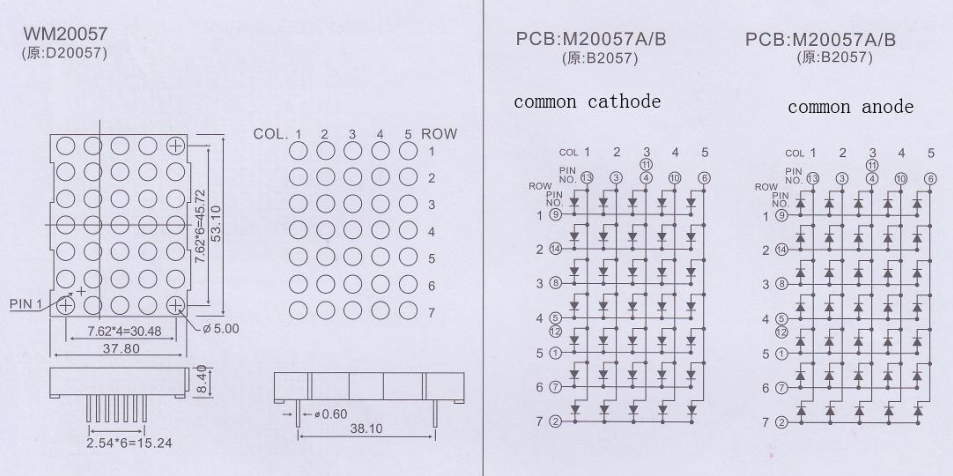

What is the difference between common cathode and common anode LED matrix?
The difference is the internal circuit configuration, allowing customers to select the suitable connection method for their control system.
Is this White LED Dot Matrix Display suitable for industrial equipment?
Yes. The module is designed for industrial displays, control panels, indicators, and electronic equipment requiring reliable character display.
Can I order samples before mass production?
Yes. Houkem supports sample orders for quality testing and product verification before bulk production.
Does Houkem provide datasheets and technical support?
Yes. Datasheets, product specifications, and engineering support are available for customer development and integration.
Request a Quote
Looking for a reliable White LED Dot Matrix Display manufacturer for your electronic project?
Houkem provides factory-direct LED matrix solutions, OEM/ODM customization, stable quality, and professional technical support.
Contact Houkem today to request samples, datasheets, pricing, or customized LED display solutions for your application.
Our valid EU‑related certifications include CE, RoHS 2.0, REACH (SVHC), EMC. We are able to provide complete MSDS (Material Safety Data Sheet) documents for customers upon request.
All our LED products follow EU EMC directive, RoHS hazardous‑substance restrictions and REACH chemical regulations. Full certification files can be supplied before shipment.
