1watt high power infrared led 1W 850nm ir led
- Type:High Power LED
- Warranty(Year):1-year
- Lighting solutions service:Lighting and circuitry design
- Chip Material:AlGaInP
- Emitting Color:Red
- Power:1-3W
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Luminous Efficacy(lm/w):10
- Viewing Angle(°):140
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-30 - 60
- Brand Name:HOUKEM

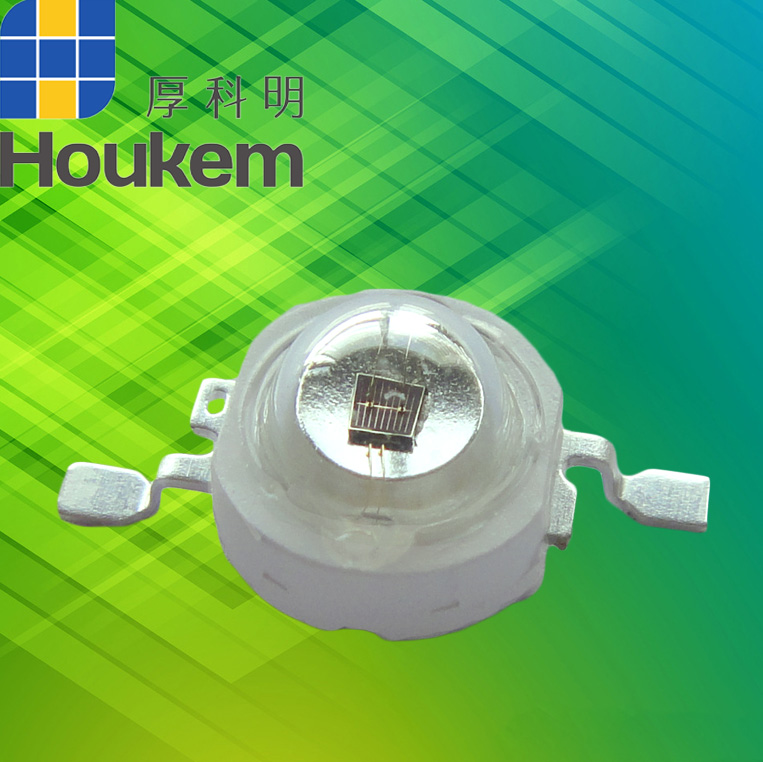

High power 1watt ir 850nm led
| Power Consumption | Part Name | Color | Typ. Voltage (V) | Current (mA) | I (mw/sr) | Beam angle |
| 1w | HOUKEM-HP1W-850 | RED | 1.5-1.6v | 300-350mA | 70-80 | 140deg |
1 series & 1 parallel
3w
1 series & 2parallel
or 2 series & 1parallel
Features:
1) High flux
2) Very low decay and long working lifespan: >30,000 hours
3) More energy efficient than incandescent and most halogen lA
4) Low voltage DC operated
5) Environmental protection: No toxic metals mercury, no infrared and ultraviolet radiation
6) Superior ESD protection
7) Green product Features
8).Various colors: Different wavelengths produce different colored light, bright saturated, without filter,
the formation of a variety of different colors available red, green and blue primary colors, full-color gradient color effects
Application
1. Indoor and outdoor commercial lighting
2. General lighting
3. Automotive lights
4. LCD TV / monitor backlights
5. LED display
6. Traffic Light
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays, SMD LEDs,
dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, high power 255nm to 1550nm LED arrays,
COB LEDs, SMD LEDs, street light LED, LED optical lens, LED grow light, led flood light, street light,and all LED lighting application solution, etc.
Our Service
1 We have our own independent R&D department, On existing products for better maintenance, we still continue to develop high-tech products, We have our own patented products.
2 Our products must pass strict quality control procedures.
3 We have advanced production equipment
4 We use the raw materials are from domestic and foreign well-known brand manufacturers.
5 After repeated tests before shipment.
