1w White 3000k 3500k 5000k 6000k 7000k 8000k High Power LED module
- Type:High Power LED
- Place of Origin:CN;GUA
- Power:1W
- Brand Name:KEM
- Optical Attenuation(%):1
- Power Dissipation:1
- Storage Temperature(℃):-40 - 100
- Emitting Color:Natural White
- Operating Temperature(℃):-40 - 100
- Color Rendering Index(Ra):80
- Viewing Angle(°):160
- Certification:CE
- Certification:RoHS
- Color Temperature:6000k-7000k
- Luminous Flux(lm): 110lm-160lm
- Model Number: HNK-HP001PW-E35
- Chip Material:InGaN
Packaging Detail: 50pieces/tray,10 trays/box,4boxes/carton 2000pcs/carton
Tray size:20cm×15cm×1cm
Box size:25cm×20cm×10cm
Carton size:55cm×45cm×15cm
Or as per customer's request
Shipping Detail: 1-3 for sample, 7-15 days for normal order according to quantity.
Can be delivered by sea,air and express.
1w White 3000k 3500k 5000k 6000k 7000k 8000k High Power LED module
Features:
1. Bridgelux, Epistar, Epileds Chips
2.Japanese Dow Corning Silicon packing, in accordance with environmental protection
3.Intematix fluorescent powder, quality assurance
4. Gold wire: 1.25mil huge diameter
5. High brightness,low light attenuation,less power, Long lifespan.
6. Lights attenuation: less than 1%
7. Reasonable prices, fast delivery(3-5 days)
8. CE & RoHS
9. MOQ: 1 piece

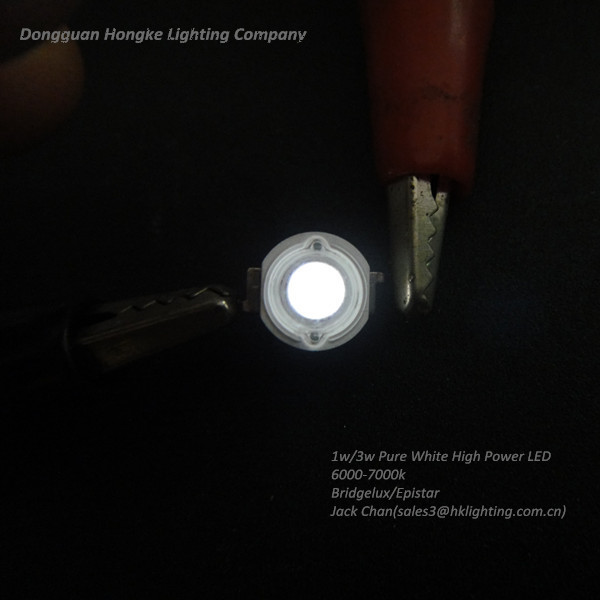

Detail information for 1w pure white high power LED
| Item | 1w white led chip |
| Product Name | 1w White 3000k 3500k 5000k 6000k 7000k 8000k High Power LED module |
| Power | 1w |
| Model No | HNK-HP001PW-E35 |
| Color | Pure White |
| Chip Material | InGaN |
| Luminous Flux(lm) | 110-160lm |
| C.T(NM/K) | 6000-7000K |
| Working Temperature | -40 °C-+100 °C |
| Current(mA) | 300-700mA |
| Forward Voltage | 3.0-3.4V |
| Certification | CE, RoHS |
| Warranty | 2 years |
| Place of Origin | Dongguan,Guangdong,China |
Advantages:
1, less power consumption: light effects to 75lm / w of the LED power consumption than equivalent incandescent brightness reduced by 80%
2, long life: product life of up to 50,000 hours
3, nanosecond response time, brightness and color make it easy to dynamically control: enables dynamic color changes and digital control
4, Individualized design: can be designed by your picturers or mind
5, environmental protection: no toxic metals mercury, no infrared and ultraviolet radiation
6, color: different wavelengths produce different colored light, can control red, green and blue primary colors to form a variety of colors
7,2 years warranty

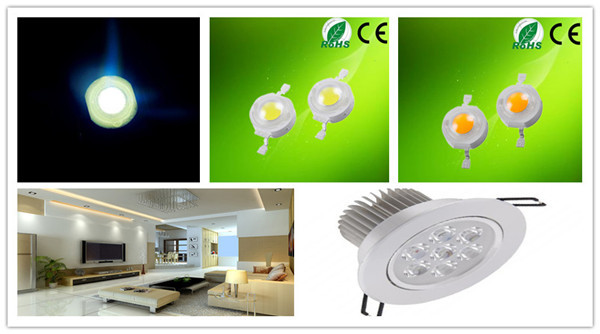

Applications for 1w high power led light source
>>Tracking light for shop and supermarket
>>Flood light,Spot light for ourdoor
>>Growing light for plant,vegetable,flower
>>Advertising light for ads.
The LED CHIPS of our products
The LOGISTICS partner of our company
The PACKAGE of cargoes
50pieces/tray,10 trays/box,4boxes/carton 2000pcs/carton
Tray size:20cm×15cm×1cm
Box size:25cm×20cm×10cm
Carton size:55cm×45cm×15cm
1.Trade terms
Price can be FOB, CIF ,EXW, or With taxes
2.What will be the delivery time and what will be the mode of payment?
Our delivery time will be 3-10days
The payment can be T/T transaction,Letter of credit,Paypal,Western Union
3.About logistics?
Usually ,we ship the products by express since the products isn’t too heavy for the transportation.
We can also arrange Air or LCL shipments if you need.
4.Could you please send me the sample for the same.So that i could see and analyze its quality?
Yes.We can send samples first,samples will be free charged if the value is lower.
1,all the raw materials for above products are from domestic and foreign well-known brand manufactures.
2,all products will be with strict tested before shipping.
3,choosing the best logistics services for all shipments.
4,2 years warranty for our products
The CE&RoHS certificated of our products

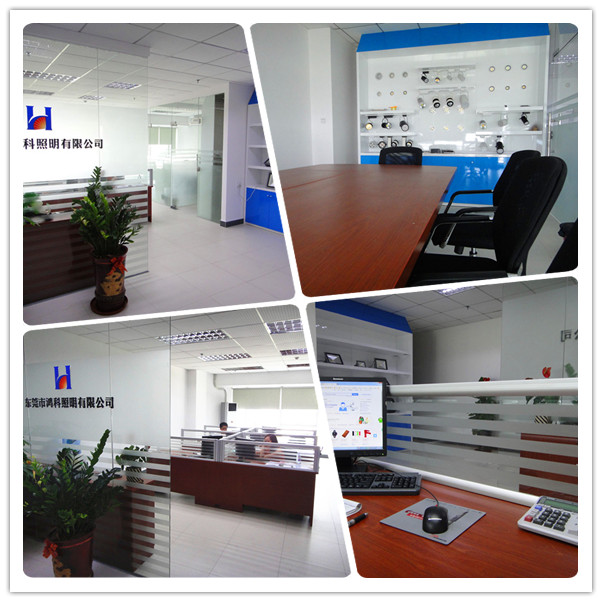

Our company
Hongke Lighting is a branch company of Dongguan Houjie Keming Electronic(established in 2003) which is a 5 years Gold supplier in Alibaba Website.
Hongke Lighting focus on producing High Power LED or COB LED.
Hongke Lighting will continue the quality and service concept of Keming Electronic,will still provide our best products for all our clients.
Hongke Lighting can provide 1w,3w,5w,10,20w,30w,50w,70w,100w high power LED or COB LED.
The products of Hongke Lighting have obtained CE&RoHS certification.
All led products will get 2 years warranty.
