Model No: HOUKEM-HP1W-485NM
1w blue led high power 1watt blue led light 480nm 485nm
high power blue led houkem is high power led professional manufacturer
Delivery :
EXW
minimum order :
5 pieces
Supply Ability :
1000pieces / Month
Stock Time :
7-14Day
Country of Origin :
Dongguan/ Guangdong
Quantity :
US $0.85 - US $1.00 / pieces
- Type:High Power LED
- Lighting solutions service:Lighting and circuitry design
- Warranty(Year):1-year
- Emitting Color:Blue
- Power:1-3W
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Luminous Efficacy(lm/w):10
- Viewing Angle(°):140
- Color Rendering Index(Ra):85
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 80
- Brand Name:KEM
- Chip Material:Other
Product Description
1w blue led High Power Led Light 480nm
Specification for 1Watt
Electeical Characteristics at 350mA,Ta=25°C
Color | Part No | Forward Voltage | Units | ||
Min | Typ | Max | |||
Blue | HOUKEM-HP1B-480 | 3 | 3 | 3.3 | V |
Absolute Maximum Ratings
Parameter | Symbol | Rating | Unit |
DC Forward Current(mA) | If | 350 | mA |
Peak Pulse Current(mA) | If | 350 | mA |
Reverse Voltage | VR | 5 | V |
LED Junction Temperature | Tj | 125 | °C |
Operation Temperature | Topr | -20--60 | °C |
Storage Temperature | Tstg | -20--80 | °C |
Soldening Temperature | Tsol | 260 | °C |
ESD Sensitivity | Vb | 4000 | V |

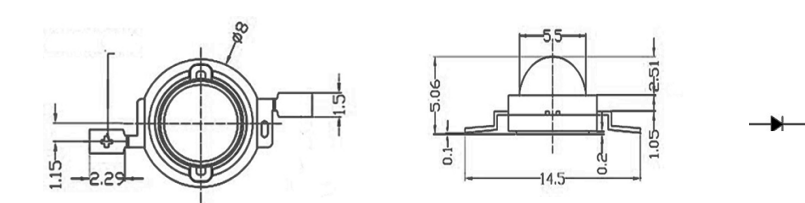

3w
Related Products
The Features of Our Product
1. Use high efficient integrated LED as the light source
2. Wide beam angle: 60 or 120 degree (larger lighting area) or customized
3. Smart appearance: built-in power supply, no need ballast, reflector, it can work independently
4. Unique heat dissipation device: thermostatically controlled fans to keep LED light cool
5. Can be combined with fluorescent lighting
6. Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant
1. Use high efficient integrated LED as the light source
2. Wide beam angle: 60 or 120 degree (larger lighting area) or customized
3. Smart appearance: built-in power supply, no need ballast, reflector, it can work independently
4. Unique heat dissipation device: thermostatically controlled fans to keep LED light cool
5. Can be combined with fluorescent lighting
6. Environment-friendly: no mercury and other harmful heavy metal, no light harmful for plant
Advantage
1. We have our own independent R&D department on existing products for better maintenance, we still continue to develop high-tech products. We have our own patented products.
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.
2. Our products must pass strict quality control procedures.
3. We have advanced production equipment.
4. We use the raw materials are from domestic and foreign well-known brand manufacturers.
5. After repeated tests before shipment.
Working process

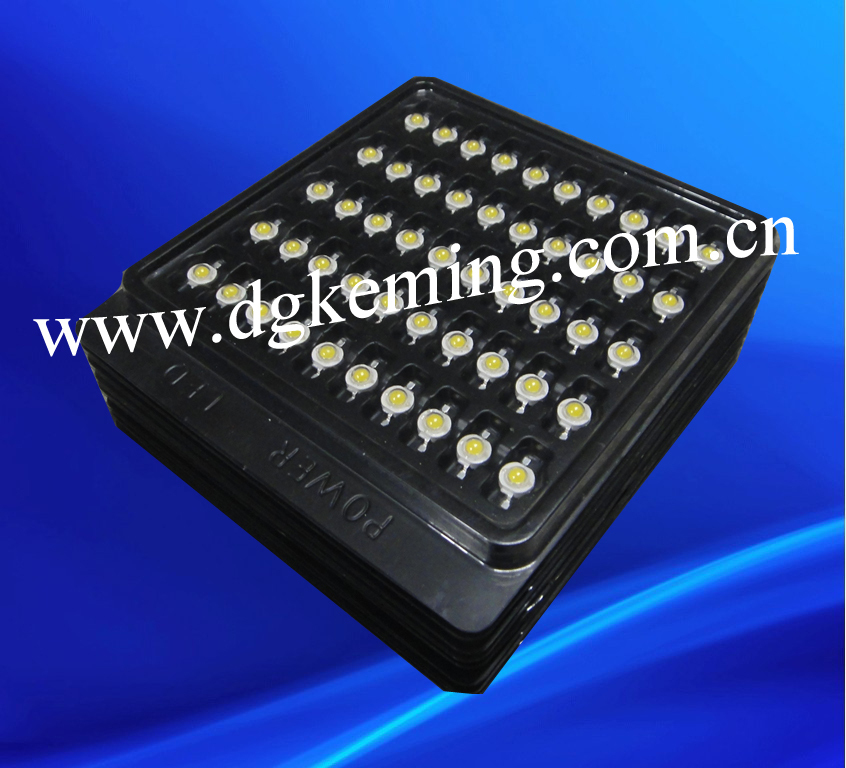

Packing
50pieces/tray,10 trays/box,4boxes/carton
2000pcs/carton
Tray size:20cm*15cm*1cm
Box size:25cm*20cm*10cm
Carton size:55cm*45cm*15cm
Or as per customer's request
