1w 3w high power blue led 450nm 455nm 460nm 465nm 470nm for grow light
- Type:High Power LED
- Warranty(Year):2-Year
- Chip Material:InGaN
- Power:1-3W
- Place of Origin:CN;GUA
- Certification:CE
- Certification:RoHS
- Luminous Efficacy(lm/w):100
- Viewing Angle(°):140
- Color Rendering Index(Ra):80
- Operating Temperature(℃):-20 - 60
- Storage Temperature(℃):-20 - 80
- Brand Name:HOUKEM

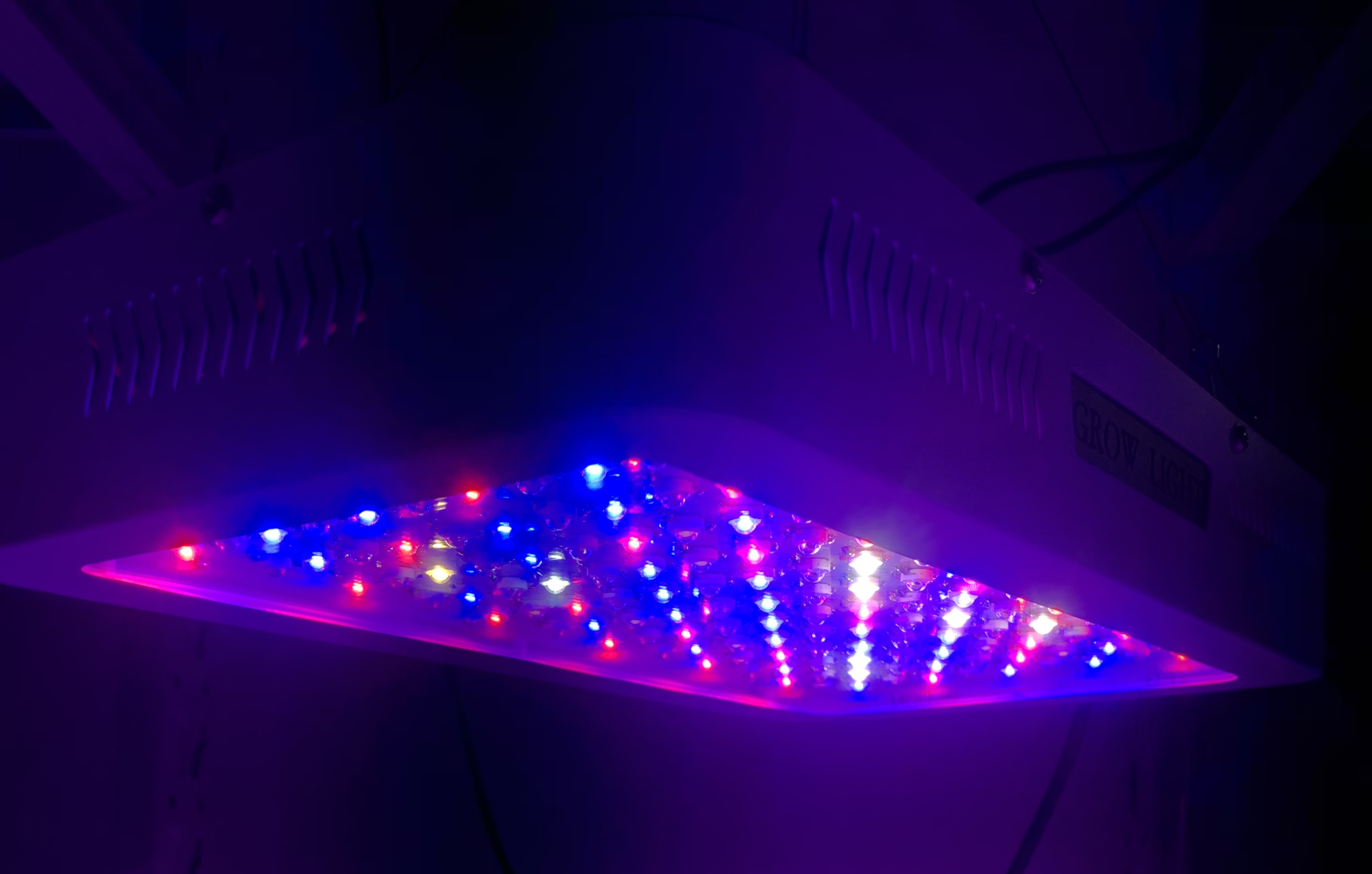

- Lighting solutions service:grow light
- Emitting Color:purple
Electeical Characteristics at 500mA,Ta=25°C
Color | Part No | Forward Voltage | Units | ||
Min | Typ | Max | |||
Blue | HOUKEM-HP3BW-465 | 3 | - | 3.4 | V |
Absolute Maximum Ratings
Parameter | Symbol | Rating | Unit |
RED | |||
DC Forward Current(mA) | If | 500 | mA |
Peak Pulse Current(mA) | If | 500 | mA |
Reverse Voltage | VR | 5 | V |
LED Junction Temperature | Tj | 125 | °C |
Operation Temperature | Topr | -20--60 | °C |
Storage Temperature | Tstg | -20--80 | °C |
Soldening Temperature | Tsol | 260 | °C |
ESD Sensitivity | Vb | 4000 | V |
Luminous Flux at 500mA,Ta=25°C
Color | Part No | Wavelength | CRI | Flux | Units | ||
Min | Typ | Max | |||||
blue | HOUKEM-HP3W-465 | 460-465nm | 80 | 100 | 110 | lm | |
50pieces/tray,10 trays/box,4boxes/carton
2000pcs/carton
Tray size:20cm*15cm*1cm
Box size:25cm*20cm*10cm
Carton size:55cm*45cm*15cm
Or as per customer's request
Package
Established in 2003, our factory is specialized in LED products, including 7 segment LED/SMD displays, Alphanumeric displays,
SMD LEDs, dot-matrix Led displays, bar graph arrays and LED directon indicator displays, High power led, high power 255nm to 1550nm LED arrays,
COB LEDs, SMD LEDs, street light LED, LED optical lens, LED spot light, led grow light, street light,and all LED lighting application solution, etc.
