19.95*27.94mm super red P2.5 led dot matrix 5x7 module
19.95*27.94mm super red P2.5 led dot matrix 5x7 module
19.95*27.94mm super red P2.5 led dot matrix 5x7 module
19.95*27.94mm super red P2.5 led dot matrix 5x7 module
19.95*27.94mm super red P2.5 led dot matrix 5x7 module
19.95*27.94mm super red P2.5 led dot matrix 5x7 module
19.95*27.94mm super red P2.5 led dot matrix 5x7 module

19.95*27.94mm super red P2.5 led dot matrix 5x7 module

Model NO.
Houkem-10057A/B
Price:
USD 0.46-1.20 / pieces
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
50000 pieces / Day
Country of Origin:
SZ/GZ (LED square dot)
Quantity:
  • Place of Origin:CN;GUA
  • Tube Chip Color:Red
  • Display Function:Graphics
  • Pixels:16mm
  • Usage:outdoor/indoor
  • Brand Name:Houkem
  • Model Number:Houkem-10057A/B
  • Screen Dimension:mm


white 2.5mm 5x7 led dot matrix module


Contact us

Sales:Ellen Liu

MP:+8618825779357

Skype:ellen.liu770

QQ:1766570387

Wechat:ellen432555

Whatsapp:+8618825779357

Email:sales3.jpgdgkeming.com.cn

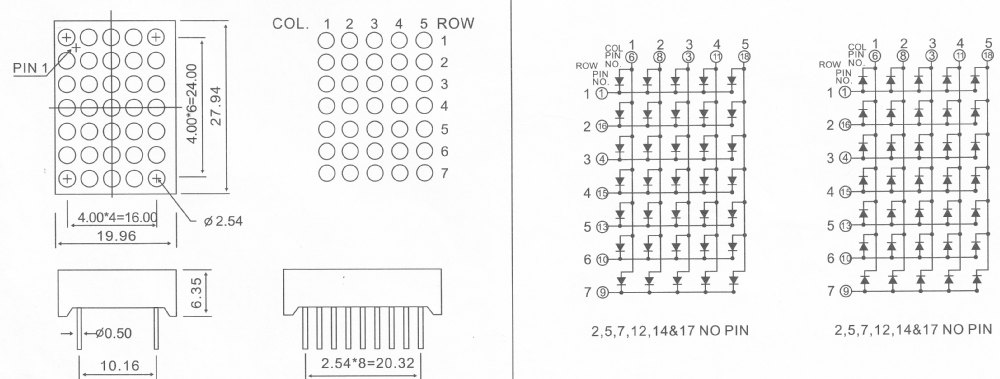

Dimension and Internal Curcuit :

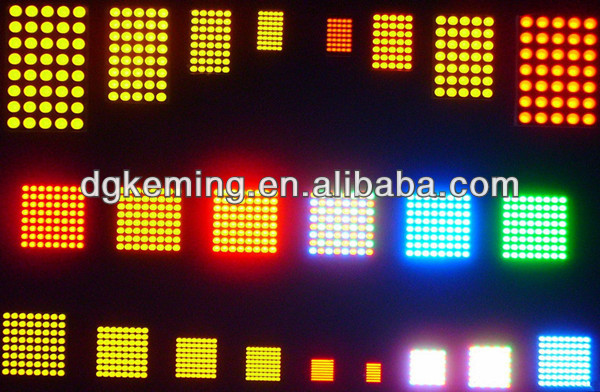

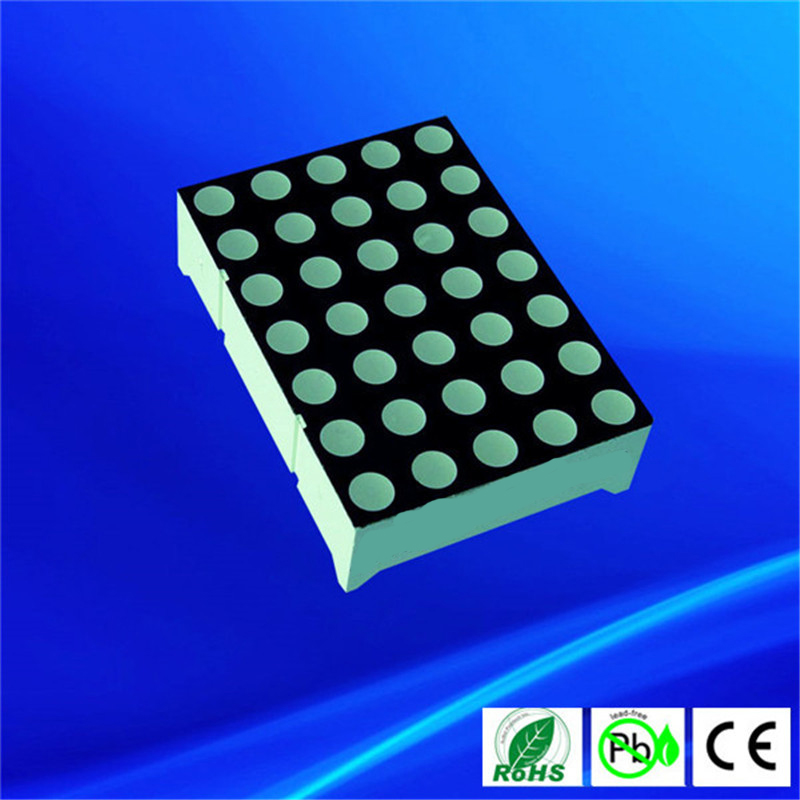

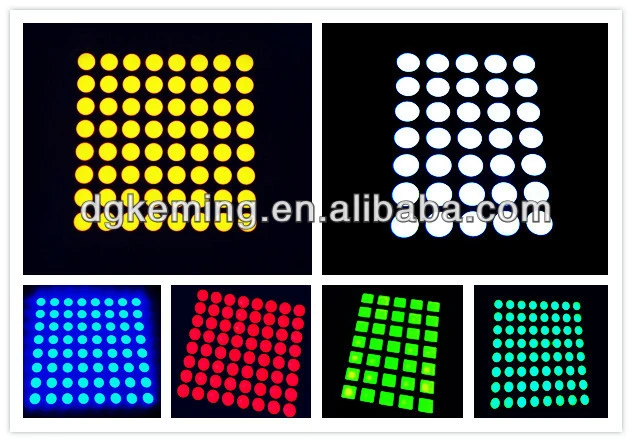

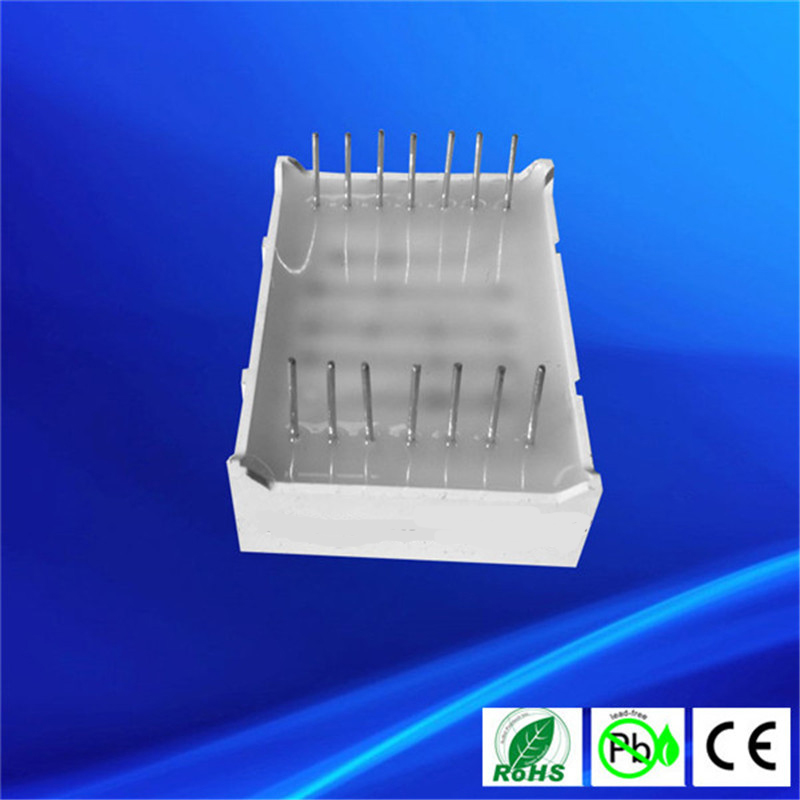

More Pictures for your easy ref




white led dot matrix module P2.5



white led dot matrix module P2.5

Features :

  • Low current operation.
  • Low power consumption.
  • Full color.
  • High brightness.
  • Industrial standard size.
  • Easy mounting on P.C. board or sockets.
  • Emitting color : red / green/ yellow/ blue/ orange/ white/ bi-color/ RGB .
  • Face color : black / gray .
  • Surface dot type : epoxy diffusion / clear lens .

Part details :



Model.

:KEM-10057A/B



Description

:27.94*19.96*6.35mm



Surface color

:Black / gray/red



Emitting color

: red,blue,green,white,yellow,amber



Wavelength

475-635 nm



Luminous intensity

50-200mcd



Voltage/ Current

1.8-3.3v  / 15-20mA



PCB Polarity

:Common Cathode or Common Anode















































Various color available for  white led dot matrix module P2.5  :

Dominant Wavelength                    Luminous Intensity

Red: 620 - 630nm                                     Red: 70-90 mcd                         (1.8-2.3v / 20mA)

High red: 635 - 640 nm                             High red: 50-70 mcd                  (1.8-2.3v / 20mA)

Green: 565 - 575 nm                                Green: 70-90 mcd                      (1.8-2.3v / 20mA)

Yellow: 585 - 595 nm                                Yellow: 40-50 mcd                     (1.8-2.3v / 20mA)

Amber: 600 - 605nm                                 Amber: 30 mcd                          (1.8-2.3v / 20mA)

Blue: 460 - 475nm                                    Blue: 40-50 mcd                     (3.0-3.3v / 20mA)

Pure green: 515 - 525nm                         Pure green: 180-250 mcd       (3.0-3.3v / 20mA)

White : 450-460 nm                                 White: 100-180 mcd                (3.0-3.3v / 20mA



If the PCB curcuit can not meet your need, pls contact me for other choices.



white led dot matrix module P2.5



What We Can Provide:

7 segment / 14 segment / 16 segment display :



 1 Digit

:

 0.28"0.3"0.36"0.39"0.5"0.52"0.56"0.8"

 1.0"1.2"1.5"1.8"2.3"4"5"8"12"16"



 2 Digit

: 0.36"0.39"0.4"0.56 0.8"1"1.5"1.8"2.3"



 3 Digit

: 0.25"0.3"0.36"0.4"0.5"0.52"0.56"0.8"



 4 Digit

:

 0.25"0.28"0.3"0.36"0.39"0.4"

 0.5" 0.52"0.56"0.8"



Emitting Color Available

:Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB



Standard Face color

:Black Face / Gray Face (white segment)



PCB Polarity

:Common Anode / Commone Cathode













































LED Dot Matrix Display:



Dot Array

:8*8 /  5*7 /  5*8 / 7*11



Dot Shape

:Round Dot , Square Dot



Dot Diameter

:

1.9mm, 3.0mm, 3.45mm,3.7mm

4.8mm, 5.0mm, 6.0mm, 10mm



Various Color

:

Red, Green, Yellow, Amber, Blue, White, Bi-color, RGB.

























Applications:


- Audio equipments or instrument panels.

- Home electronic appliances, air conditional controller.

- General use for digital indicator( led clock timer, led price tag, lift / elevator indicator & etc.).

- Multimedia products.



We Promise:

1. Your inquiry related to our products or prices will be replied within 24 hours.

2. Experienced sales and engineers will answer all your requirements in fluent English.

3. Advanced equipments & good material:ASM machines; chips,PCB boards & epoxy resin of RoHS compliant.

4. No matter big order or small order, we will provide our products with the best quality & also best service.

5. We are a direct factory in Dongguan and we've been doing the OEM and ODM service for over 10 years.
