led 7 segment display yellow 7 segment led display,
- Place of Origin:CN;GUA
- Usage:Indoor
- Display Function:Graphics
- Pixels:20mm
- Tube Chip Color:yellow
- Brand Name:KEM
- Model Number:HOUKEM-2542-AY
- Screen Dimension:20*8*4mm

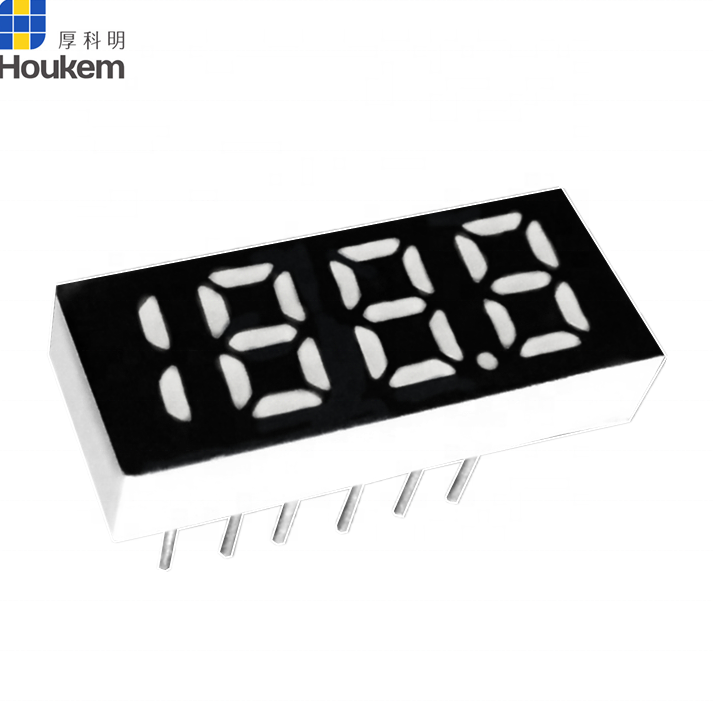

Smallest 188.8 mini 7 segment led display yellow
1,Low consumption
2, High brightness
3, High intensity and reliability
4, Easy assembly
| Item No. | HOUKEM-2542-AY |
| Dimension | 20*8*4mm |
| Surface color | Black /Grey |
| epoxy color | white |
| Emitting color | yellow |

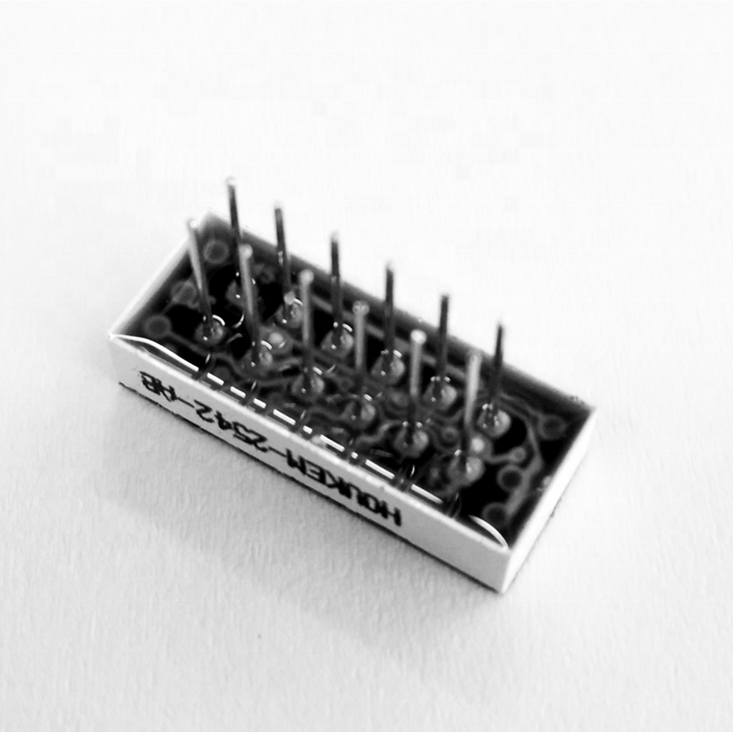

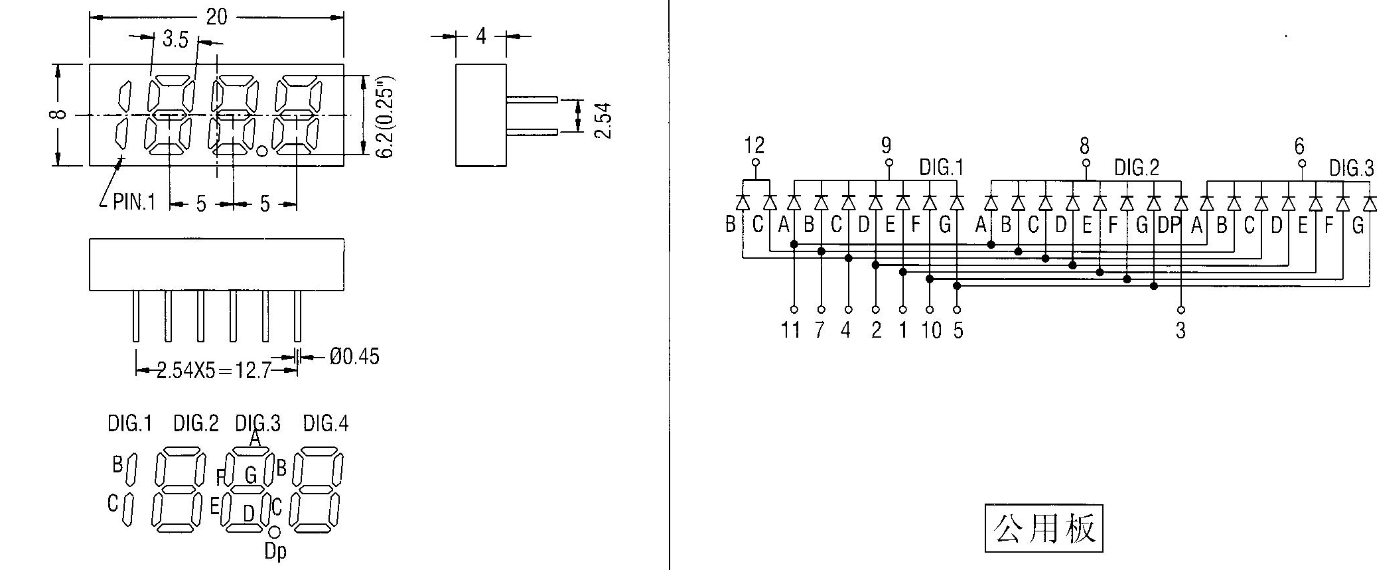

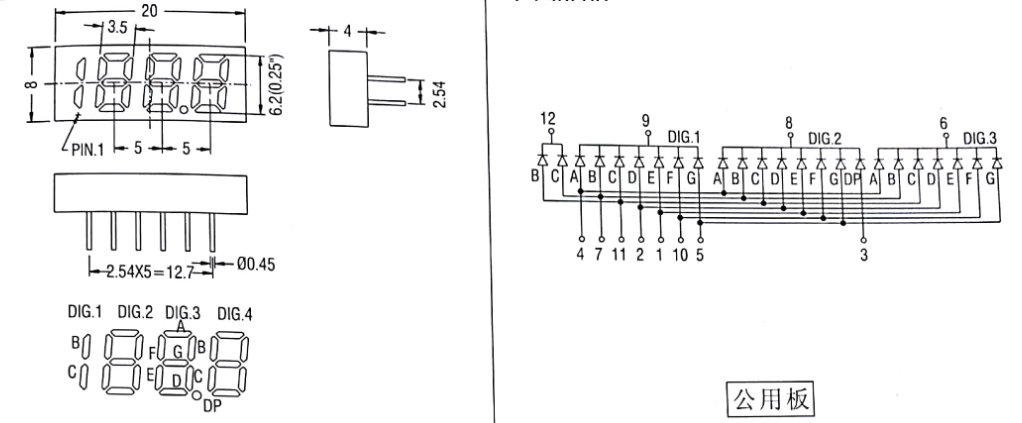

Package dimension & Internal circuit diagram
AB
CD
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)
Emitting Color | Test Condition | Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
(λp) | λ | Typ | Max | Typ | Max | ||
Amber | IF=18mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
Super green | IF=18mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
Super red | IF=18mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
Ultra red | IF=18mA | 620-625 | 20 | 2 | 2.1 | 300 | 350 |
High red | IF=18mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
Yellow green | IF=18mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
Yellow | IF=18mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
Blue | IF=20mA | 465-475 | 40 | 2.8 | 3.0 | 150 | 200 |
Pure green | IF=20mA | 515-525 | 40 | 2.8 | 3.0 | 180 | 250 |
White | IF=20mA | - | - | 2.8 | 3.0 | 180 | 200 |
Our service:
Sample are available
In order to let you have an enjoyable experience on our best quality product and satisfied service,
we can offer----SAMPLES for your test within 3-5 days.
Custom service:
1. We can supply you all kinds of 7 segment LED display
---Digit size: from 0.25"to 20"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 14 segment both available
3. Various colors: super red, ultra red, high red, yellow green, pure green, super green, pure green,
blue, yellow, white, amber, Bi-color, RGB.

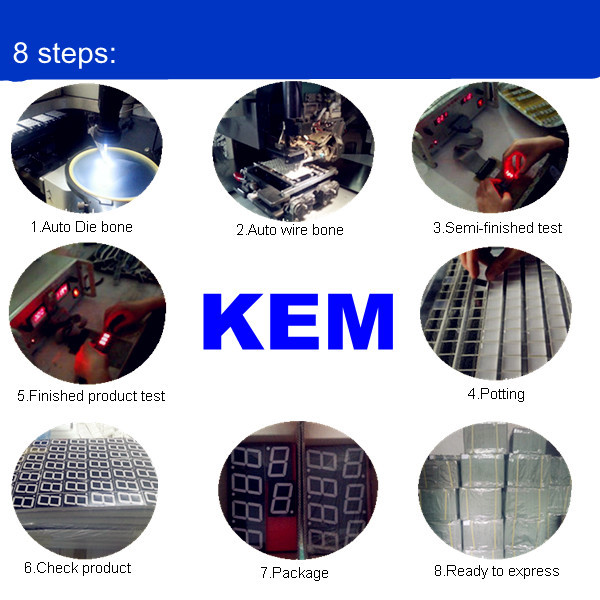

Working Process
Application

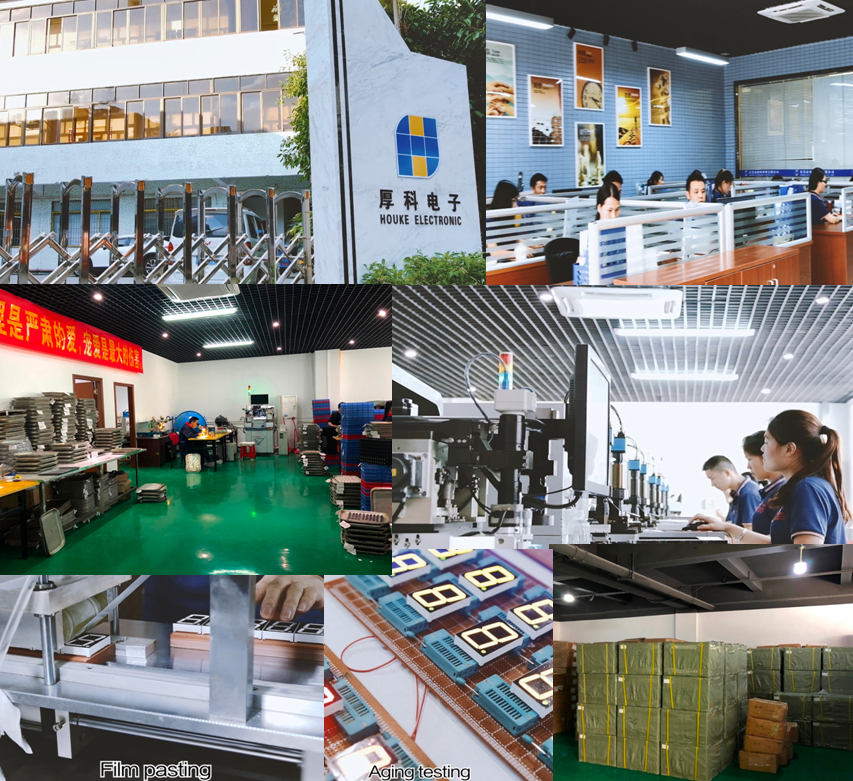

Established in 2003,our factory is specialized in LED products, including 7 segment
