Model NO.
HOUKEM-3621-BW
Price:
USD 0.38-0.55 / piece
Delivery:
FOB
Minimum order quantity:
1 piece
Supply Ability:
50000 piece / Day
Country of Origin:
shenzhen guangzhou
Quantity:
  • Place of Origin:CN;GUA
  • Usage:Indoor
  • Tube Chip Color:Blue
  • Display Function:Graphics
  • Pixels:25mm
  • Brand Name:KEM
  • Model Number:HOUKEM-3621-BW
  • Screen Dimension:20.1*16mm


Product Describtion
1

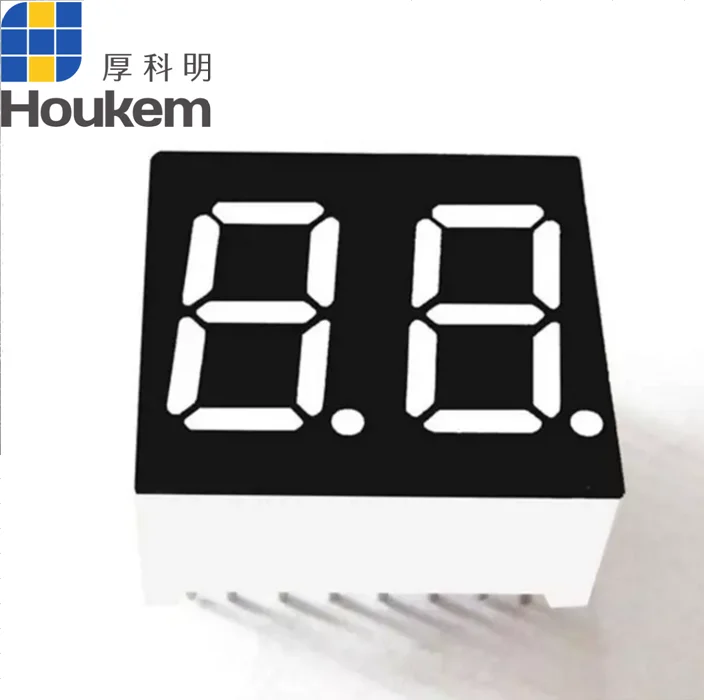

2 digit  0.36 inch 7 segment display  led display common anode with white color



KEMING-3621-BW---------common anode(CA)

KEMING-3621-AW ---------common cathode(CC)







Item No.KEMING-3621-BW
Dimension19.3*14*8mm
Surface color  Black  /Grey
epoxy color white
Emitting color white

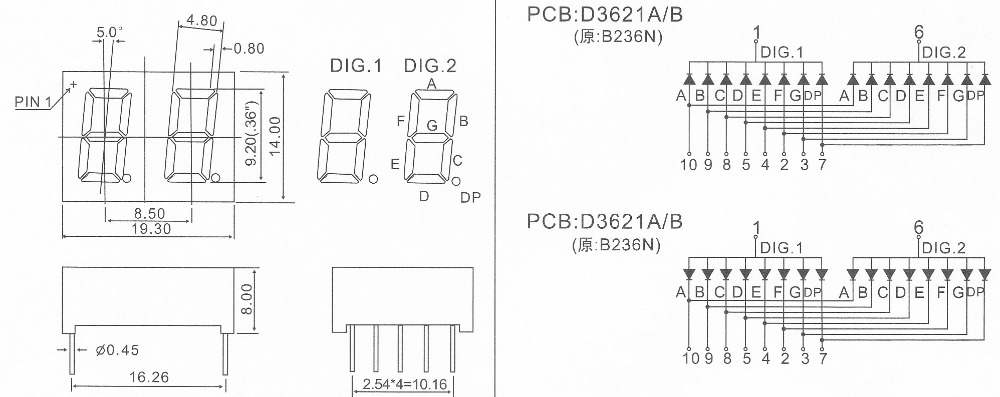

Package dimension & Internal circuit diagram

 3621AB





Note: If this PCB layout don't meet your requirements, please contact me for other choices.



                 TWO  years quality warranty





1,Low power consumption

2, High brightness

3, High intensity and reliability

4, Easy assembly












  3621-5













Color Code & Chip characteristic PER CHIP: (Test Condition: IF=20Ma)





Emitting Color



Test Condition

Wavelength(nm)

Forward Voltage(V)

Luminous Intensity (mcd)

(λp)

λ

Typ

Max

Typ

Max

Amber

IF=18mA

600-605

30

1.9

2.0

90

100

Super green

IF=18mA

565-575

30

1.9

2.0

48

55

Super red

IF=18mA

625-640

20

1.8

2.0

110

130

Ultra red

IF=18mA

620-625

20

2

2.1

300

350

High red

IF=18mA

638-660

20

1.8

1.9

15

20

Yellow green

IF=18mA

570-580

30

1.9

2.0

43

50

Yellow

IF=18mA

580-600

35

1.9

2.0

70

80

Blue

IF=20mA

465-475

40

2.8

3.0

150

200

Pure green

IF=20mA

515-525

40

2.8

3.0

180

250

White

IF=20mA

-

-

2.8

3.0

180

200





Different color epoxy are available

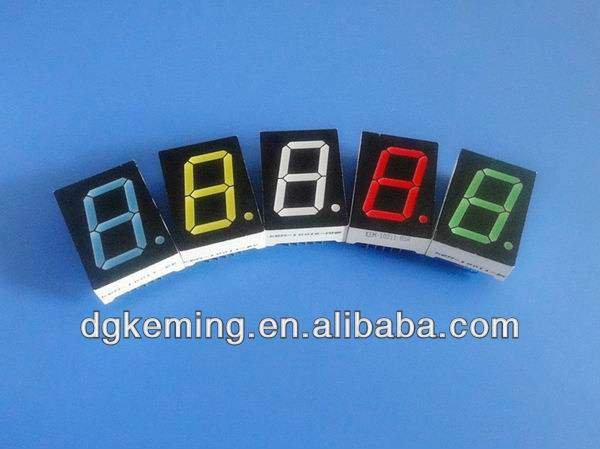

 1inch 10016 (27)

Our Services

Quantity Lead time

1-10K pcs 3-7 days

10.1K-50K pcs 7-15 days

Any delivery way is available.

Our service:

 Sample are available

In order to let you have an enjoyable experience on our best quality product and satisfied service,

we can offer---- FREE SAMPLES for your test within 3-5 days.

Custom service:

1. We can supply you all kinds of 7 segment LED display

---Digit size: from 0.25"to 20"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 14 segment both available

3.Various colors: super red, ultra red, high red, yellow green, pure green, super green,

pure green, blue, yellow, white, amber, Bi-color, RGB.



4. Led dot matrix: 5*7, 5*8, 8*8, 11*7, 16*16



5. high power led:  white /red /blue/green/IR/UV led

warranty:



Two years quality warranty





Working Process

kem working process



Application

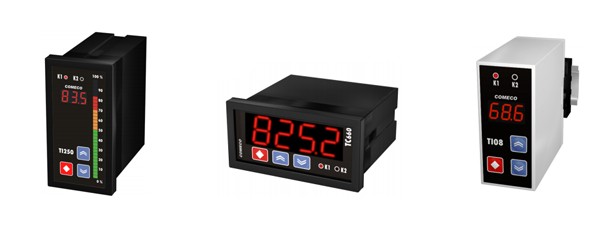

 7-segment-application

application-6311

Packaging & Shipping

packing (1)

express-611

Contact us



Established in 2003,our factory is specialized in LED products, including 7 segment

LED/SMD displays,Alphanumeric displays,SMD LEDs,dot-matrix Led displays,bar graph

arrays and LED directon indicator displays.etc.

 factory




Related Products



0.4inch

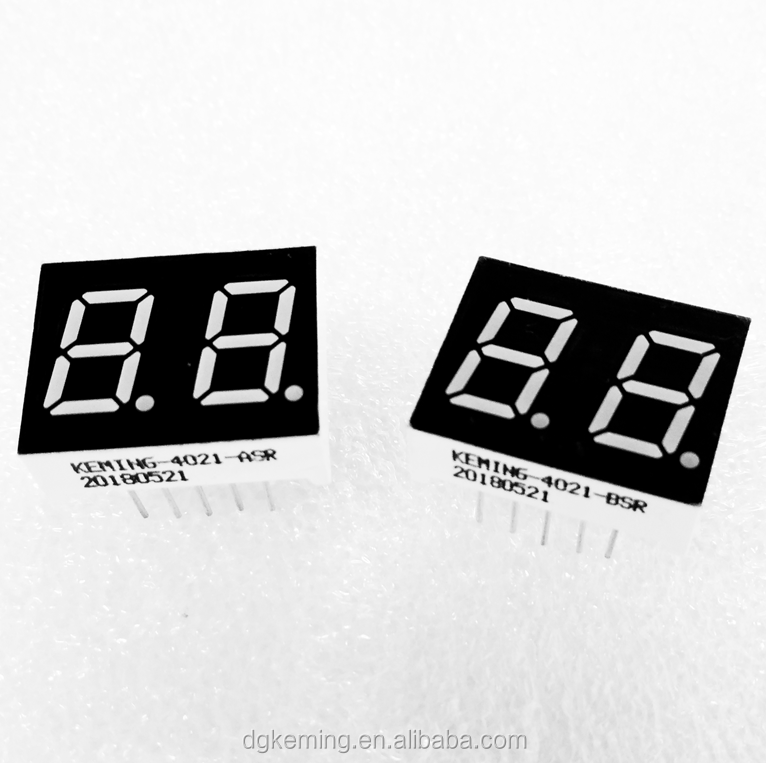

 4021-ab

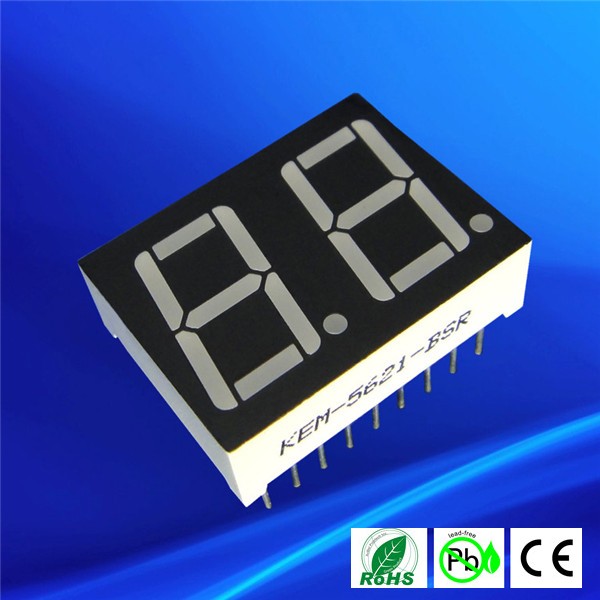

0.56 inch

5621-103

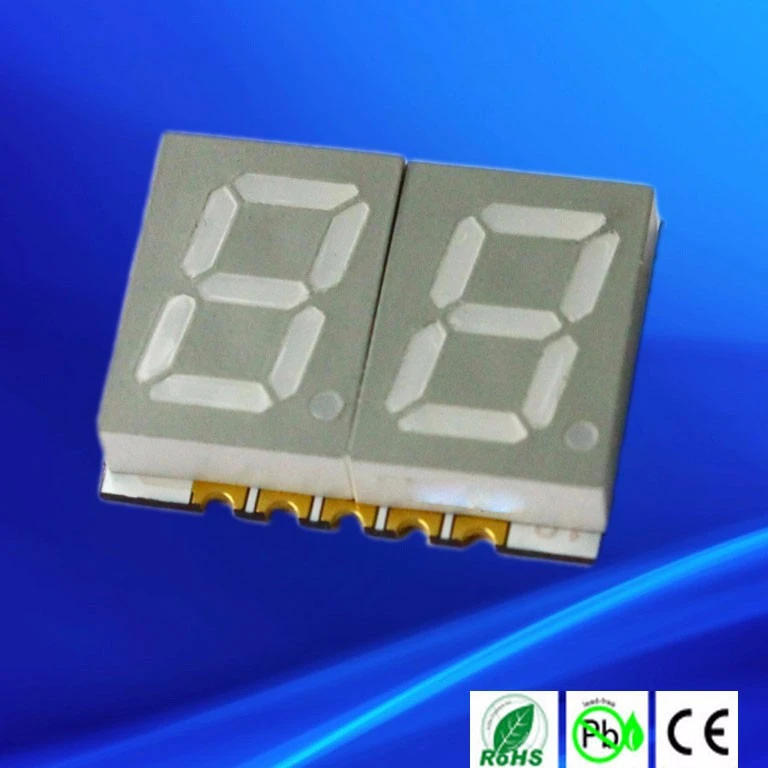

3921
